Alto-Shaam  |  Halo Heat  |  SKU: 400-HWILF/D4

Alto-Shaam 400-HWILF/D4 Halo Heat Steam Tables & Food Wells

$4,523.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - ce Owner's manual Spec sheet - spanish Terms & conditions Spec sheet - ul Spec sheet - french canadian Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

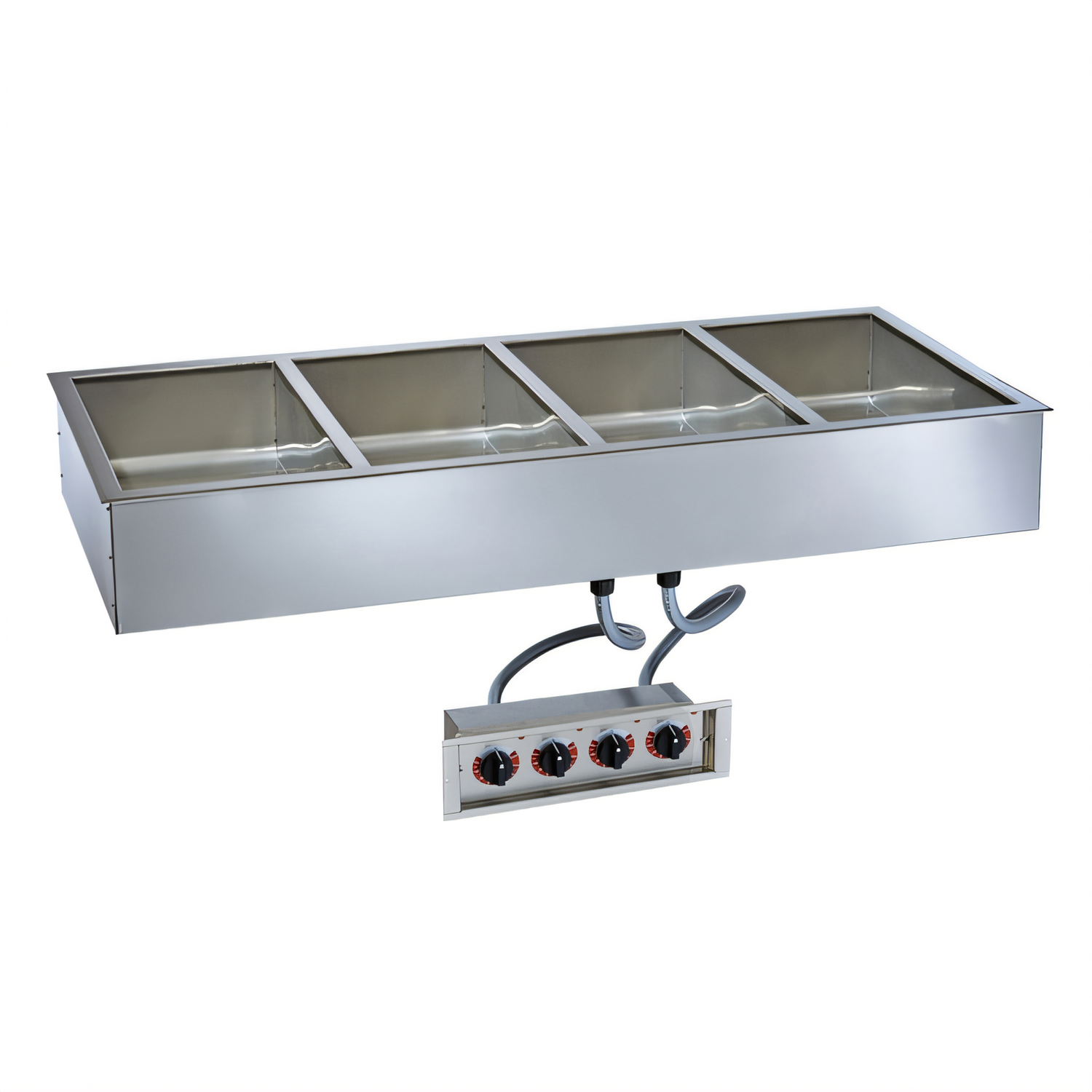

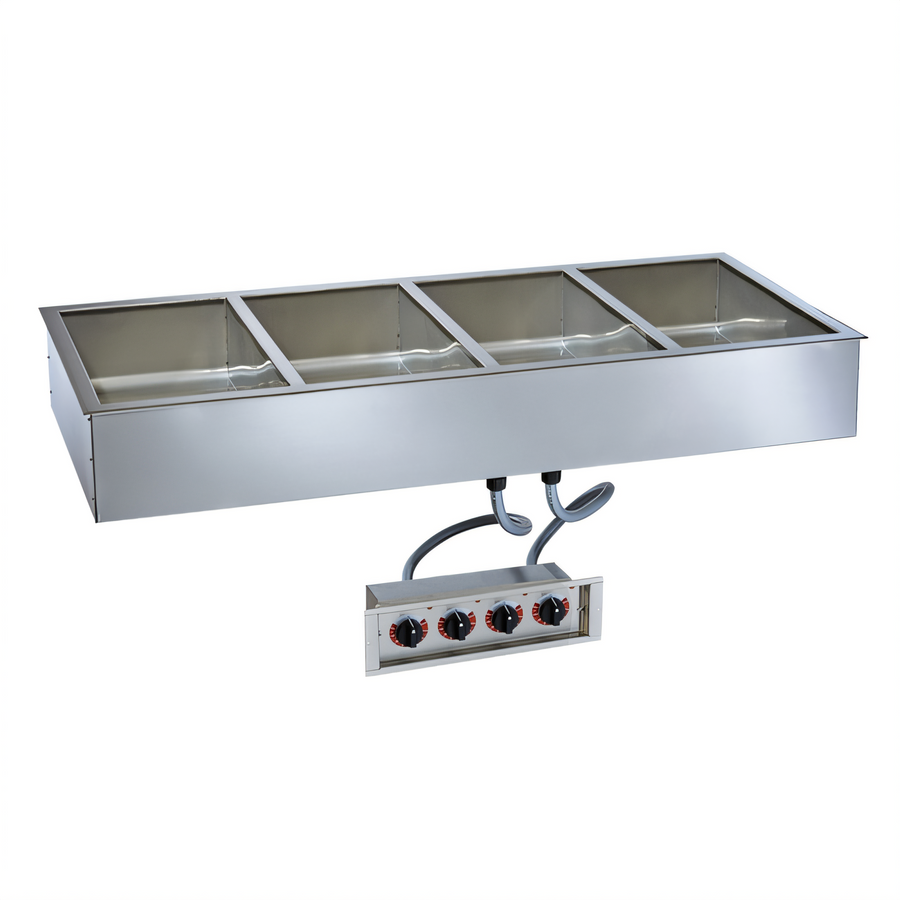

Alto-Shaam 400-HWLF/D4 Halo Heat® Drop-In Hot Food Well – 4 Pan, Large Flange

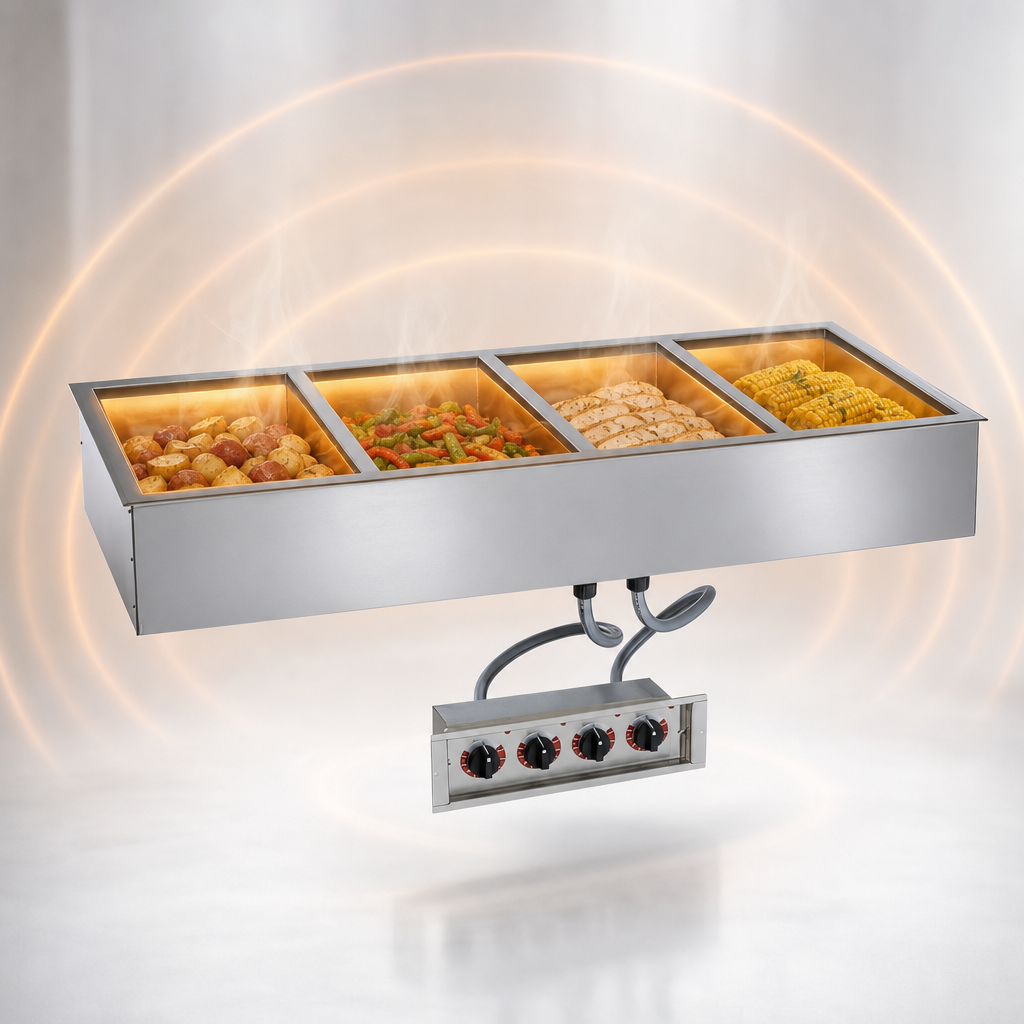

Waterless holding technology that keeps food fresh, hot – and profitable.

Give your service line a competitive edge with Alto-Shaam’s patented Halo Heat®. The 400-HWLF/D4 gently surrounds each pan with even, radiant heat—no water, no plumbing, no hot steam—so your menu stays flavorful, guests stay happy, and energy costs stay low.

Key Benefits

  • Holds four full-size 12 × 20" pans (4" deep) in a compact 57-5/16" footprint – pans not included.
  • Waterless design eliminates lime scale, plumbing and daily refilling associated with steam tables.
  • Four independent, flush-mount thermostatic controls let you fine-tune each well from 140 °F to 200 °F (60 °C-93 °C).
  • Large 2" stainless-steel flange covers rough cut-outs and permits installation in combustible countertops.
  • EcoSmart® efficiency draws as little as 1.8 kW (208 V), reducing energy use by up to 40 % versus wet wells.
  • Durable 18-gauge stainless construction is fully insulated for cooler exterior surfaces and easy cleaning.
  • cULus, UL EPH, CE, IPX3 & TÜV NORD listed for safe front-of-house or open-kitchen applications.

Perfect For

  • Supermarkets & delis
  • QSR & fast-casual lines
  • Convenience stores
  • Catering & banquets
  • Front-of-house mac-and-cheese, taco or carving stations

Specifications

Model 400-HWLF/D4 (large flange)
Pan Capacity (4) full-size • (8) half-size • (12) 1⁄3-size
Well Depth 4-3/8" – accepts standard 4" deep pans
Exterior (H × W × D) 7-5/16" × 57-5/16" × 27-1/16" (185 × 1455 × 686 mm)
Counter Cut-Out Non-combustible: 52-15/16" × 22-1/8"
Combustible: 54-7/8" × 24-1/8"
Control Box Cut-Out 4-1/4" H × 8-3/4" W × 11-3/8" D (108 × 222 × 288 mm)
Electrical* 120 V, 1 ph, 2.4 kW, 20 A, NEMA L5-30P (6 ft cord)
208-240 V, 1 ph, 1.8-2.4 kW, 8.7-10 A, NEMA 6-15P (9 ft cord)
230 V, 1 ph, 2.4 kW, 10.4 A, CEE 7/7 plug (9 ft cord)
Net Weight 75 lb (34 kg)
Certifications EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TÜV NORD
Warranty 1-year parts & labor (see full warranty details)

*Always verify local electrical codes and available voltage before ordering.

Installation Reminder: Unit must be installed level in a surface rated to 200 °F (93 °C) with 1" (25 mm) clearance from combustible materials and 6" (152 mm) between control box and conduit bend.

What’s in the Box

  • Eight half/third-size divider bars
  • Three full-size divider bars
  • Factory-installed control box with (4) thermostatic dials

Food pans, lids and optional locking kit sold separately.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.31in

Width

57.31in

Depth

27.06in

Shipping Weight

166.0lbs

Insulated or Non-Insulated

insulated

Drain

without drain

Controls

thermostatic controls

Style

individual pans

Pan Capacity

(4) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit with large flange, Drop-In, Electric, (4) 12" x 20" full-size pan capacity (pans NOT included), 4-3/8" deep well, holds 4" deep pans, (4) adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
