Alto-Shaam 400-HWI/D6 Halo Heat Steam Tables & Food Wells
Description

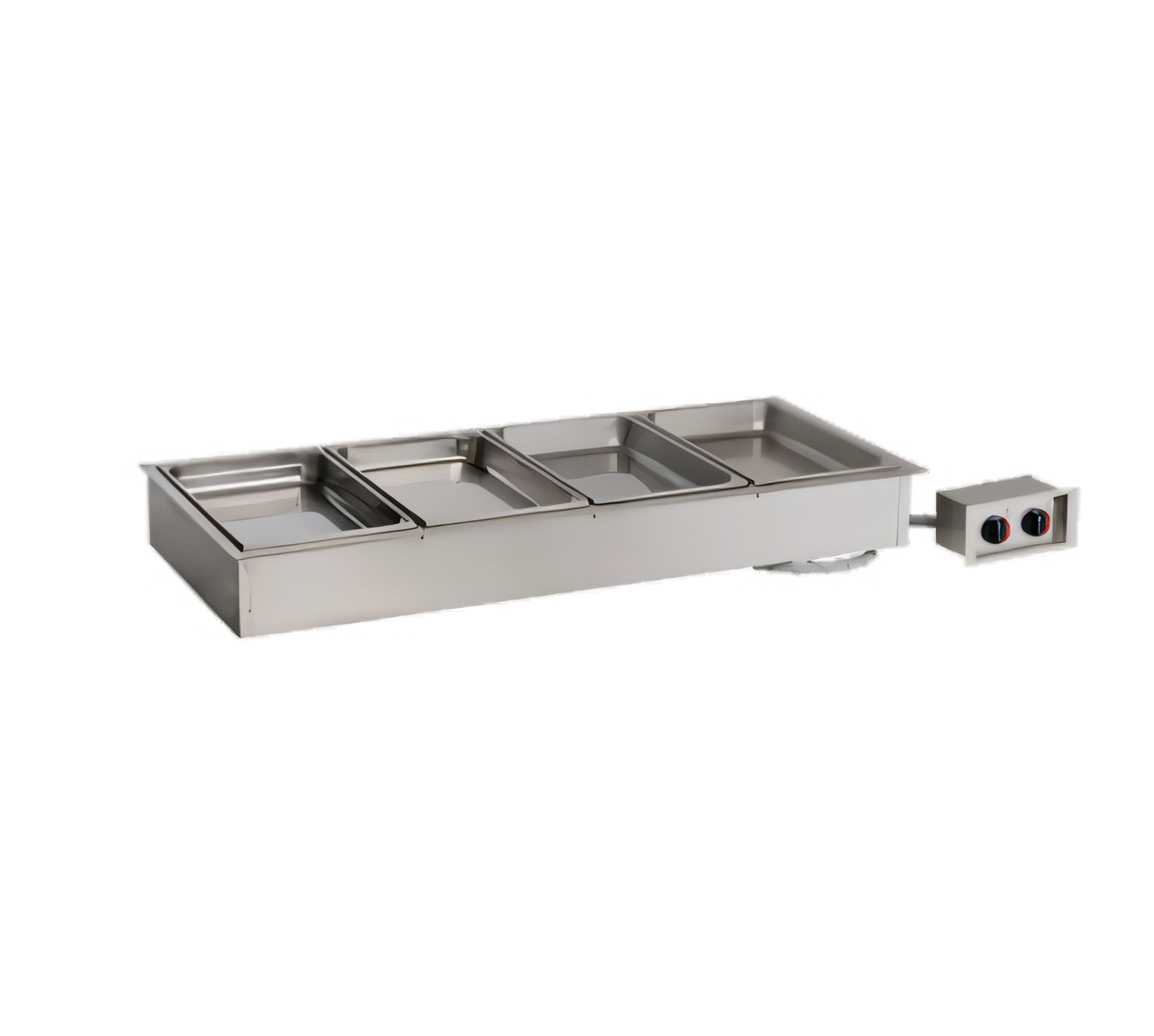

Alto-Shaam Halo Heat® 400-HW/D6 Waterless Drop-In Hot Food Well

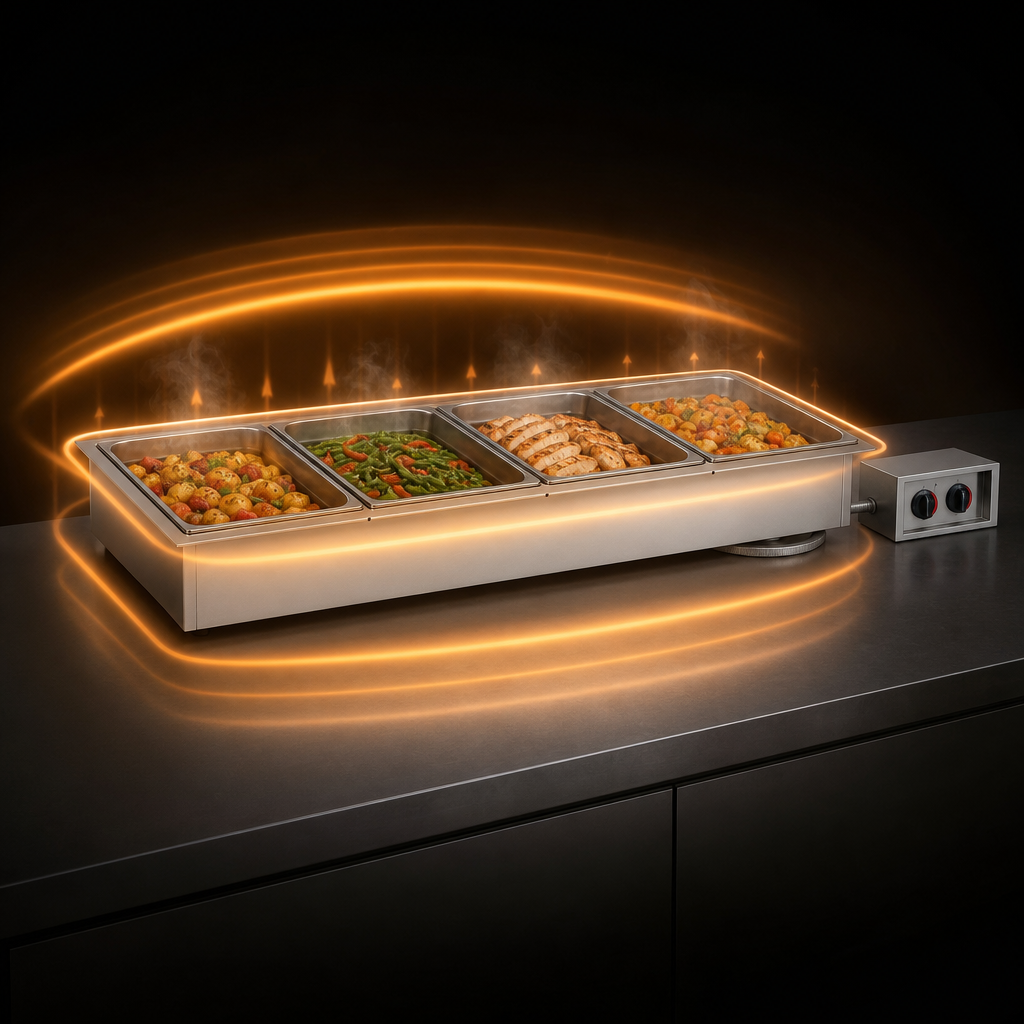

4-Pan Capacity • 6-3/8" Deep Well • Individual Thermostats • EcoSmart® EfficiencyGive guests perfectly held entrées, sides and sauces without the headaches of steam tables. The 400-HW/D6 uses Alto-Shaam’s exclusive Halo Heat® radiant technology to surround each pan with gentle, even heat—extending hold times, protecting food quality and cutting operating costs.
Top Features
- Waterless design—no plumbing, drains or costly steam generation to install or maintain.
- Halo Heat® technology eliminates fans and harsh elements, maintaining moisture and flavor.
- (4) independent, flush-mountable thermostats for pinpoint temperature control in each well.
- 6-3/8" deep stainless steel well accepts standard 12" × 20" × 6" pans and fractional sizes with optional bars.
- EcoSmart® system draws as little as 1.8 kW (208 V), slashing energy consumption.
- All-stainless construction for long-term durability and easy sanitation.
- Cools the work area—no escaping steam and no danger of scalding hot water spills.
- Full safety & sanitation approvals: cULus, UL EPH Classified (NSF/ANSI 4), CE, IPX3, TÜV NORD, UKCA.
Quick Specs
| Model | 400-HW/D6 |
|---|---|
| Pan Capacity | (4) full-size 12" × 20" × 6" pans (pans not included) |
| Well Depth | 6-3/8" / 162 mm |
| Exterior Dimensions | 9-5/16" H × 54" W × 23-1/8" D (235 mm × 1371 mm × 586 mm) |
| Interior Well | 6-3/8" H × 50-15/16" W × 20-3/16" D (162 mm × 1294 mm × 512 mm) |
| Controls | (4) thermostatic knobs, 60°–200°F (16°–93°C) |
| Electrical | 120 V / 20 A / 2.4 kW • 208 V / 8.7 A / 1.8 kW • 240 V / 10 A / 2.4 kW, 1 ph, cord & plug included |
| Net Weight | 79 lb / 36 kg |
| Construction | 18-gauge stainless steel well & flange, welded & polished |
| Certifications | cULus, UL EPH, CE, IPX3, TÜV NORD, EcoSmart®, UKCA |
| Warranty | 1-year parts & labor; lifetime Halo Heat® elements* |
*Lifetime element coverage applies to the original owner and excludes holding-only appliances. See full warranty for details.
What’s in the Box
- 400-HW/D6 drop-in hot well with attached control box
- Factory-installed power cord (6 ft on 120 V, 9 ft on 208–240 V)
- Mounting hardware & gasket
- Installation, operation & maintenance manual
Popular Accessories (sold separately)
- Half-/third-size divider bar kit (11318)
- Full-size divider bar kit (16019)
- Locking kit for mobile counters (5020849)
- Stainless steel heat shield for under-counter storage areas
Installation Note: Unit must be installed level in a counter that can withstand 200°F (93°C). Allow 1" (25 mm) clearance from combustible surfaces. Some menu items may require overhead heat to maintain safe serving temperatures.
Food pans and divider bars are not included.
