Alto-Shaam 400-HWI/D4 Halo Heat Steam Tables & Food Wells
Description

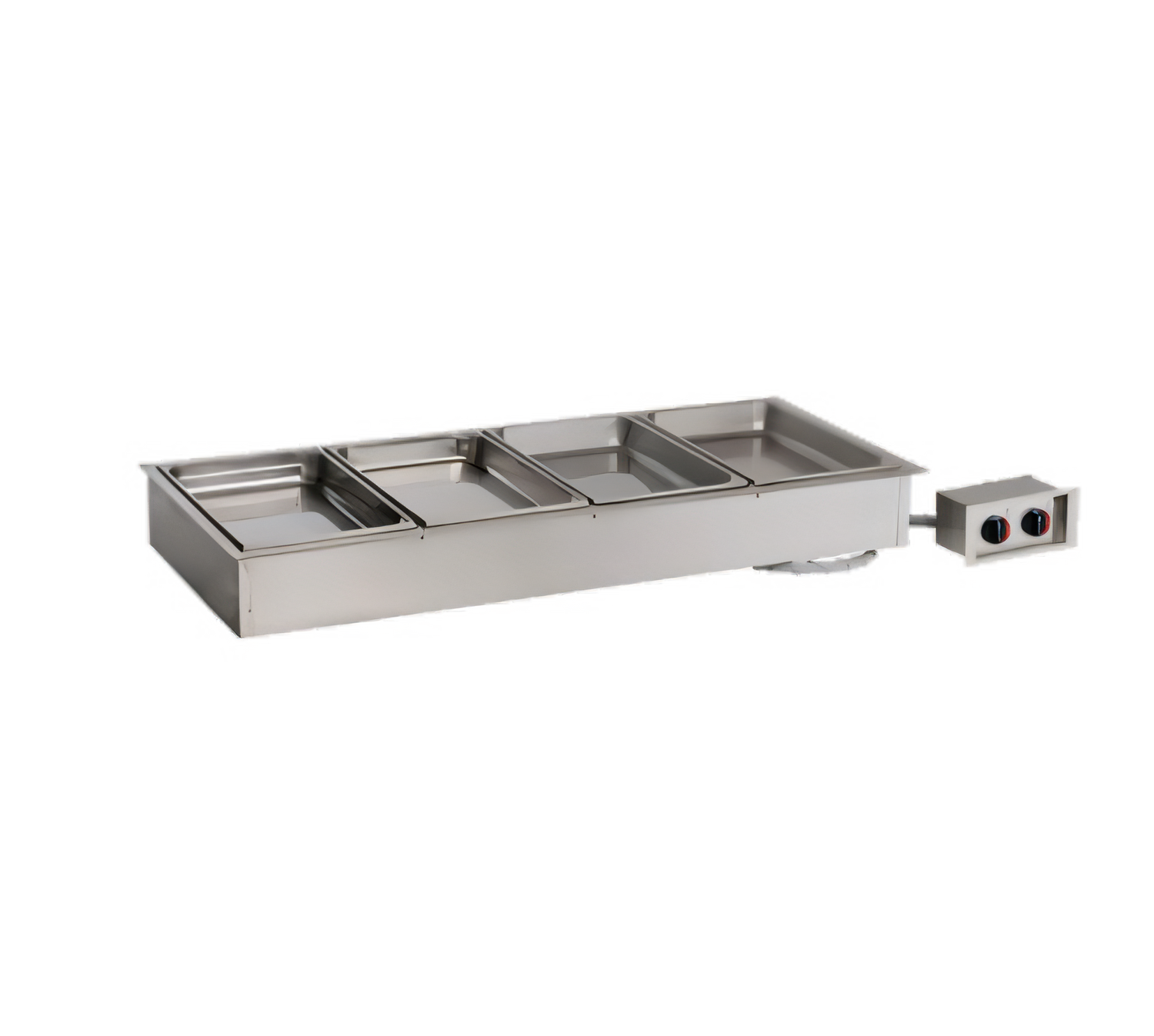

Alto-Shaam 400-HW/D4 Halo Heat® Drop-In Hot Food Well – 4 Wells
Waterless holding | 4-3/8" deep well | Fits four 12" × 20" pansReplace high-maintenance steam tables with the gentle, even warmth of Halo Heat®. This drop-in hot food well keeps menu items at perfect serving temperature—without water, plumbing or hot spots—to boost food quality, safety and profits.
Key advantages
- Waterless design eliminates drains, scale build-up and boiler maintenance.
- Patented Halo Heat® surrounds food with steady, radiant heat—no fans or humidity required.
- Four independent thermostatic controls let you hold each pan at its ideal temperature.
- EcoSmart® engineering uses up to 30 % less energy than traditional steam wells.
- Cool, dry operation improves employee and guest safety by removing steam hazards.
- Drop-in stainless steel flange installs flush for a clean, professional serving line.
- cULus, UL EPH, CE, IPX3 & TÜV NORD certified for worldwide compliance.
Capacity at a glance
| Full-size pans (12" × 20") | 4 |
|---|---|
| Half-size pans (12" × 10") | 8 |
| Third-size pans (12" × 6-2/3") | 12 |
| Maximum product load | 96 lb / 44 kg |
| Maximum volume | 58 qt / 56 L |
Technical specifications
| Model | 400-HW/D4 |
|---|---|
| Exterior dimensions (H × W × D) | 7-5/16" × 54" × 23-1/8" (185 × 1371 × 586 mm) |
| Well interior (H × W × D) | 4-3/8" × 50-15/16" × 20-3/16" (111 × 1294 × 512 mm) |
| Net / Ship weight | 71 lb (32 kg) / 125 lb (57 kg) |
| Electrical options |
120 V 1 ph 50/60 Hz • 2.4 kW • 20 A • NEMA L5-30P 208–240 V 1 ph 50/60 Hz • 1.8–2.4 kW • 8.7–10 A • NEMA 6-15P 230 V 1 ph 50/60 Hz • 2.4 kW • CEE 7/7 or BS 1363 plug |
| Heat rejection | 243 BTU/hr (0.07 kW) |
| Ingress protection | IPX3 |
| Controls | Four flush-mount adjustable thermostats (one per well) |
Certifications & approvals
- cULus Listed
- UL EPH Classified (NSF/ANSI 4)
- CE & UKCA marked
- TÜV NORD
- EcoSmart® energy-efficient design
Warranty
1-year parts & labor coverage, plus lifetime warranty on Halo Heat® elements for the original owner. See full warranty terms.
Need cut-out dimensions, CAD blocks or installation guidance? Download the complete spec sheet or chat with our food-service equipment specialists.
