Alto-Shaam  |  Halo Heat  |  SKU: 400-HW/D4

Alto-Shaam 400-HW/D4 Halo Heat Steam Tables & Food Wells

$3,006.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - french canadian Spec sheet - ul Owner's manual Terms & conditions Spec sheet - spanish Spec sheet - ce Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

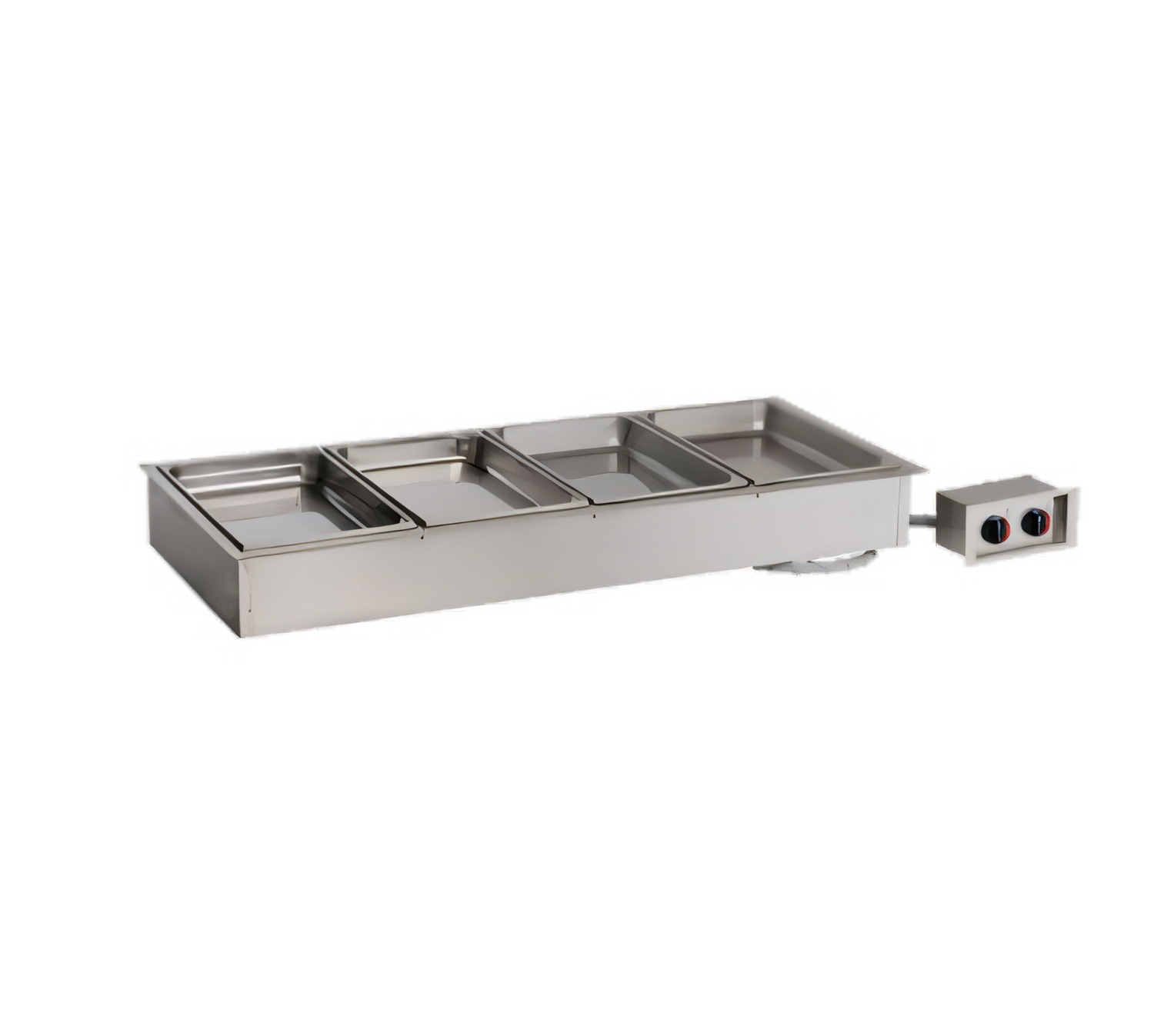

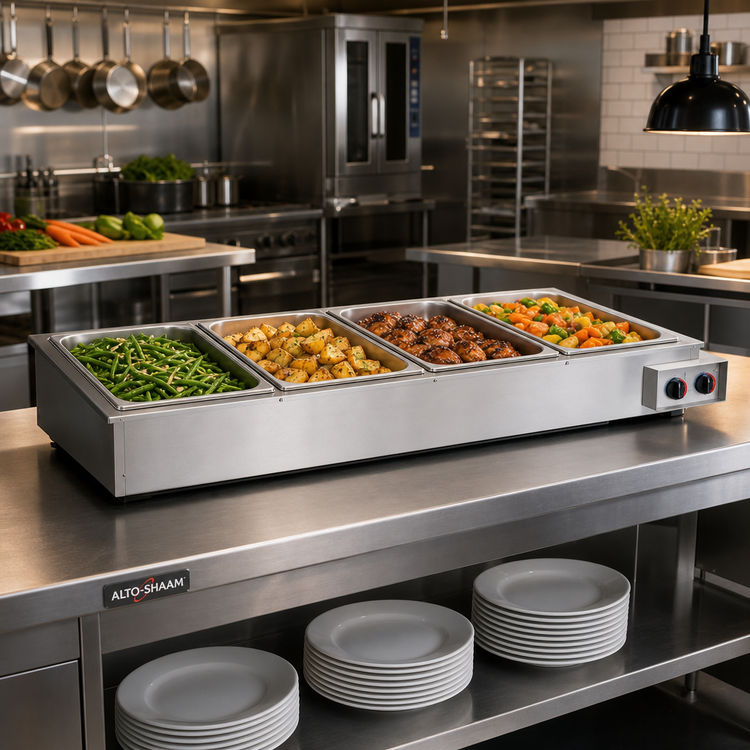

Alto-Shaam 400-HW/D4 Halo Heat® Waterless Drop-In Hot Food Well – 4 Wells

EcoSmart® electric holding with no water, steam or drains required

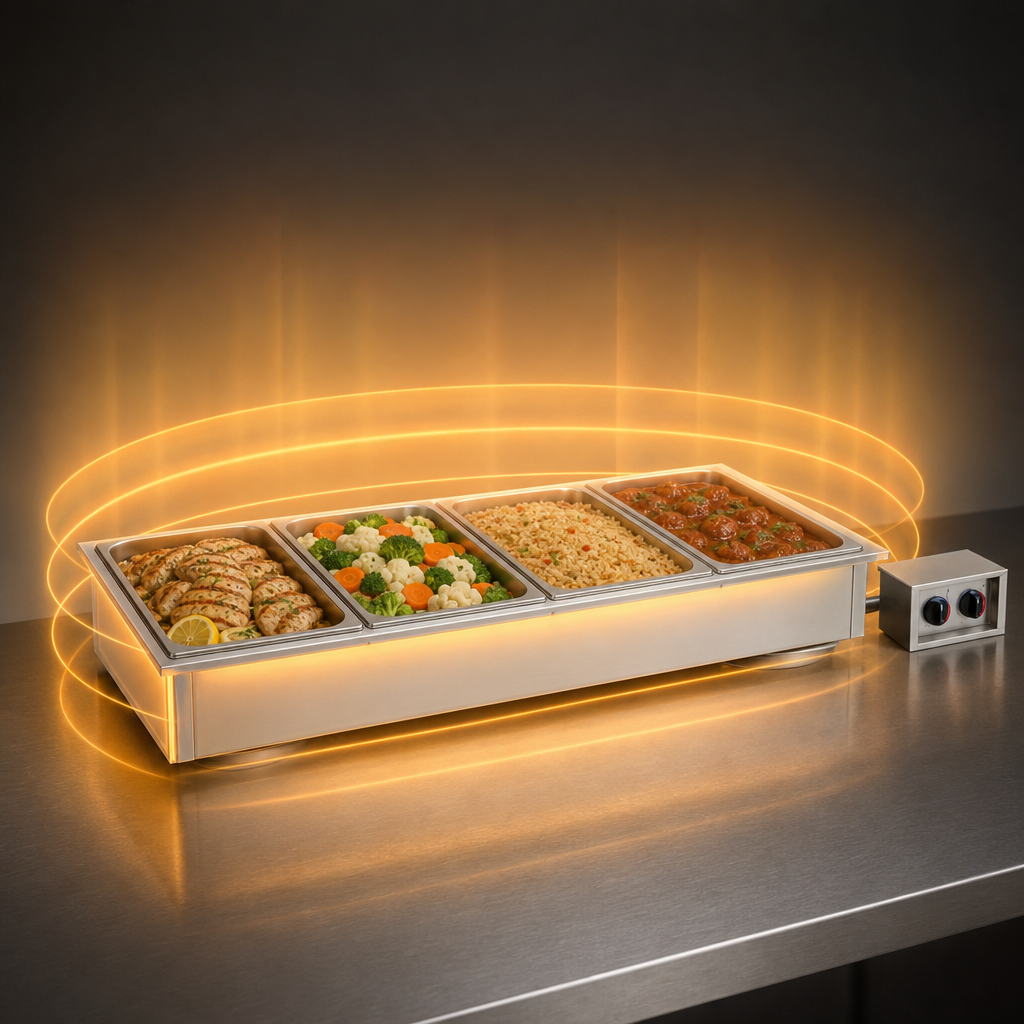

Keep menu items hot, fresh and ready to serve while slashing utility and maintenance costs. Alto-Shaam’s 400-HW/D4 uses gentle, radiant Halo Heat® technology to surround each pan with even heat—no boiling water, fans or harsh elements—so food quality and moisture stay locked in for hours.

Key benefits

  • Holds (4) full-size 12 × 20 in pans, 4 in deep (pans sold separately)
  • Waterless design eliminates plumbing, lime/scale build-up and steam hazards
  • Precise adjustable thermostat for each well—dial in the perfect holding temperature
  • Durable stainless steel well and flange resist corrosion and daily wear
  • EcoSmart® efficiency: only 243 BTU/hr heat gain to your kitchen
  • Third-party approvals: cULus, UL EPH Classified, CE, IPX3, TÜV NORD

Flexible pan capacity

  • 4 × full-size or GN 1/1 pans
  • 8 × half-size or GN 1/2 pans
  • 12 × third-size or GN 1/3 pans

Divider bars are included. Food pans are not included.

Technical specifications

Model 400-HW/D4
Exterior dimensions (H × W × D) 7-5/16 in × 54 in × 23-1/8 in (185 × 1371 × 586 mm)
Well dimensions (H × W × D) 4-3/8 in × 50-15/16 in × 20-3/16 in (111 × 1294 × 512 mm)
Well depth 4-3/8 in — ideal for 4 in-deep pans
Net weight 71 lb (32 kg)
Electrical options* 120 V / 1-ph / 20 A / 2.4 kW
208 V / 1-ph / 8.7 A / 1.8 kW
240 V / 1-ph / 10 A / 2.4 kW
230 V / 1-ph / 10.4 A / 2.4 kW
Cord & plug 6 ft (120 V) or 9 ft (208-240 V) cord; NEMA L5-30P, 6-15P or CEE 7/7 plug (per voltage)
Heat rejection 243 BTU/hr (0.07 kW)
Ingress protection IPX3 splash-proof
Certifications cULus, UL EPH, CE, TÜV NORD, EcoSmart®

*Select voltage at time of order.

What’s included

  • (8) half/third-size divider bars
  • (3) large pan divider bars
  • Remote or flush-mount control box with 6 ft conduit (back exit standard, bottom exit optional)
  • Comprehensive operator manual

Why operators love Halo Heat® wells

  • Up to 20 % energy savings compared with traditional steam wells
  • No drains, deliming or water filters—dramatically lower maintenance costs
  • Gentle radiant heat prevents product drying, shrinkage and flavor loss
  • Simple installation: drop in, plug in and start serving
Installation note: Unit must be installed level in a countertop able to withstand 200 °F (93 °C). Maintain a minimum 1 in (25 mm) clearance from combustible materials.

Warranty

Alto-Shaam backs this unit with a 1-year parts & labor warranty (15 months from ship date). See full warranty statement for terms and exclusions.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.31in

Width

54.0in

Depth

23.13in

Shipping Weight

125.0lbs

Drain

without drain

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Pan Capacity

(4) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (4) 12" x 20" full-size pan capacity (pans NOT included), 4-3/8" deep well, holds 4" deep pans, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
