Description

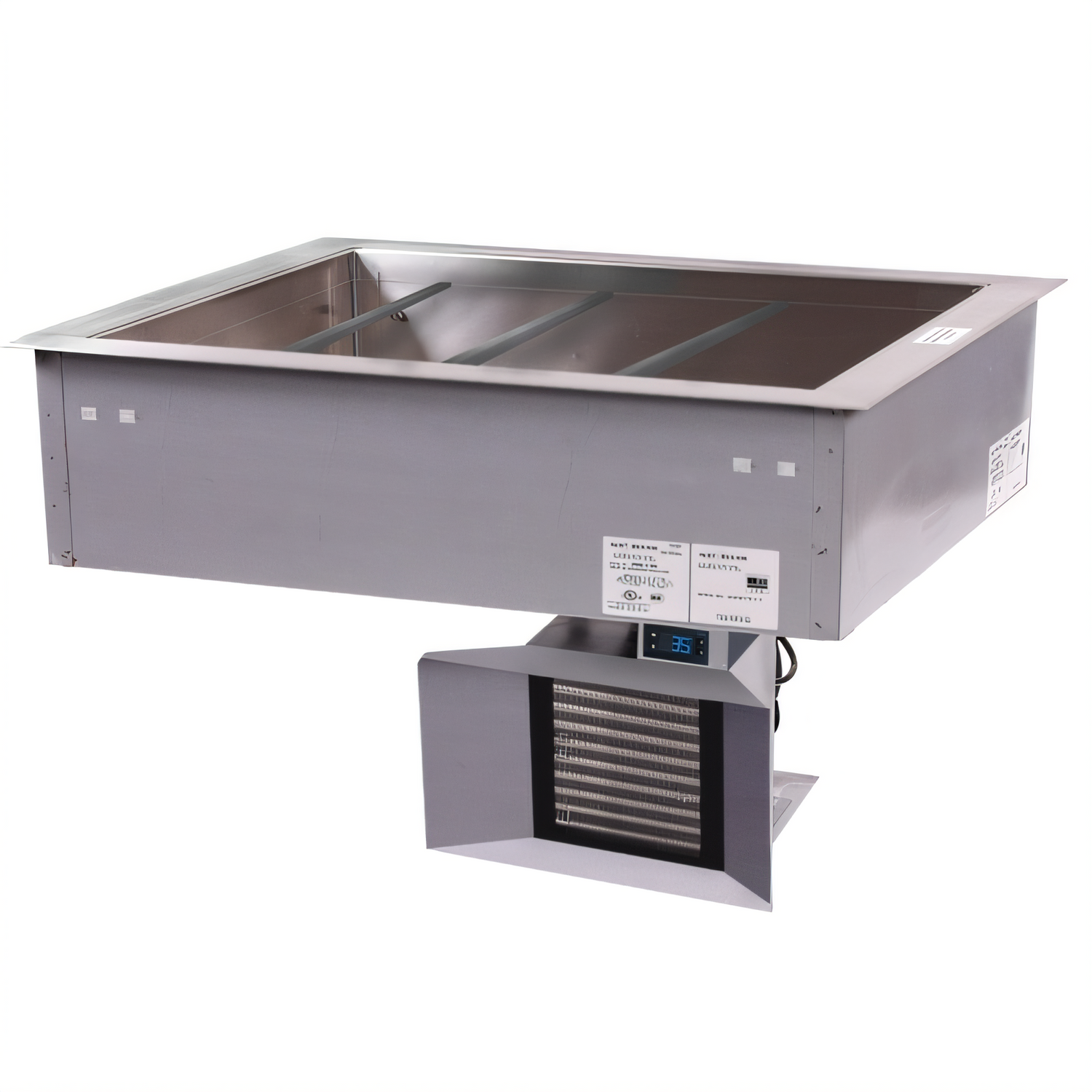

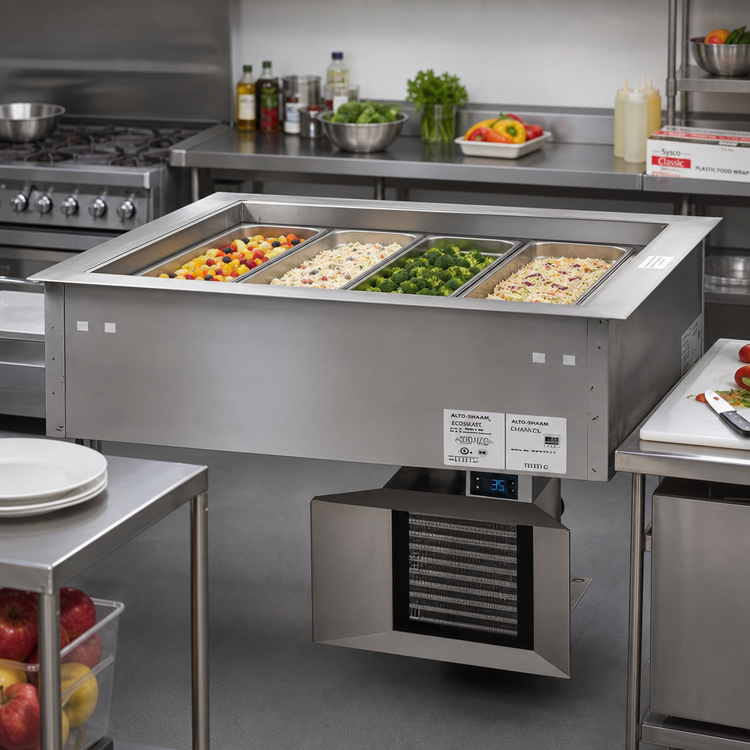

Alto-Shaam EcoSmart® 400-CW/R Remote Drop-In Cold Well

4-Pan Refrigerated Cold Display Unit  •  115 V

Keep salads, desserts and grab-n-go favorites safely chilled while preserving freshness and presentation. The EcoSmart 400-CW/R harnesses quiet, cold-wall conductive cooling—no drying fans—to hold food at 41 °F (5 °C) or below, meeting NSF 7 standards in any buffet, cafeteria or deli line.

Key Features

  • Cold-wall system delivers even, gentle cooling without forced air.

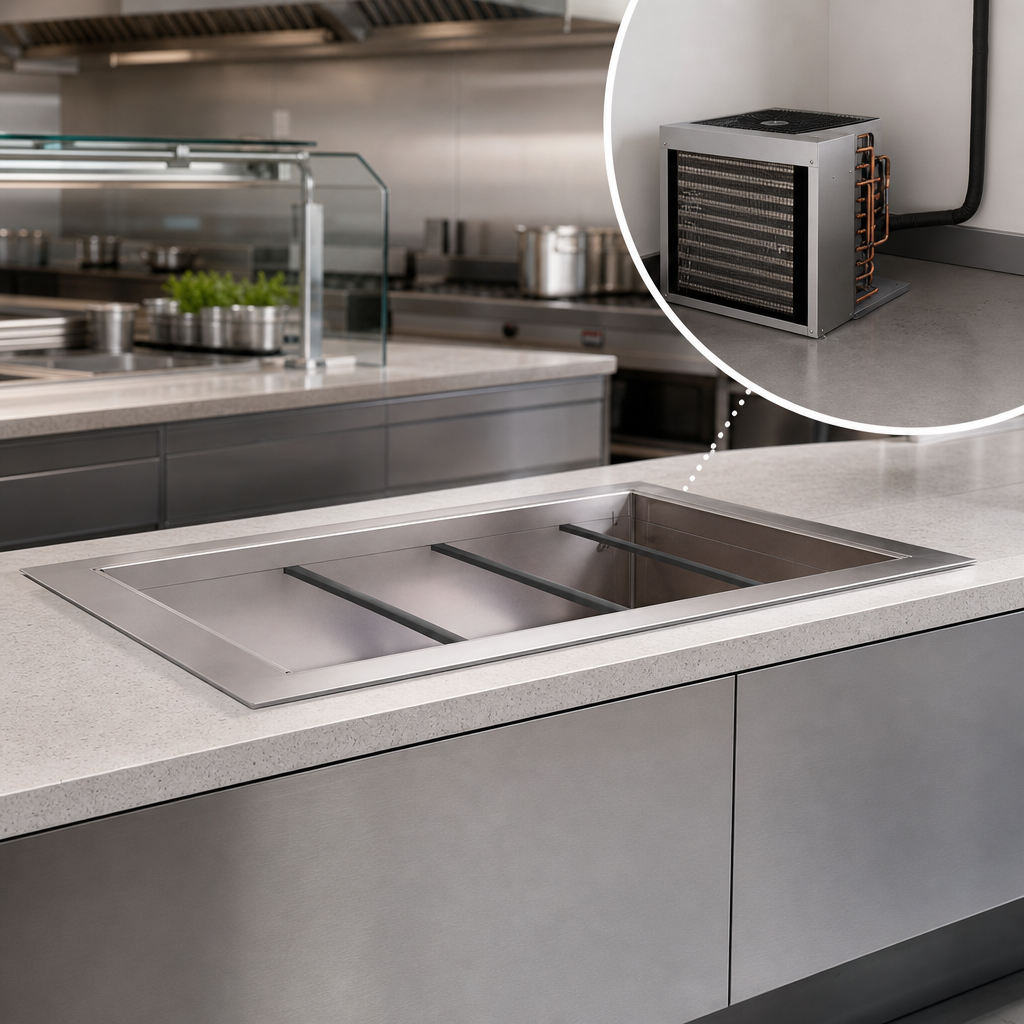

  • Remote refrigeration ready—connects to a field-supplied condensing unit (925 BTU load at –10 °F suction).
  • Digital thermostat with LED read-out for pinpoint temperature control.
  • Holds (4) full-size 12" × 20" pans—or 8 half-size / 12 third-size pans—up to 6" deep.
  • (5) 20" stainless-steel divider bars included for secure pan support.
  • Stainless-steel top and coved-corner interior; corrosion-resistant exterior.
  • CFC-free foamed-in-place polyurethane insulation boosts efficiency.
  • EcoSmart® energy design • cULus listed • NSF certified.
  • 9 ft pre-wired cord with NEMA 5-15P plug powers controls and lighting.

Capacity at a Glance

  • Full-size (GN 1/1) pans: 4
  • Half-size (GN 1/2) pans: 8
  • Third-size (GN 1/3) pans: 12
  • Maximum product weight: 144 lb (65.2 kg)
  • Maximum volume: 88 qt (84 L)

Specifications

Well Depth 6-1/4" (159 mm) – fits 6" deep pans
Overall (H × W × D) 25-5/16" × 57-1/4" × 27" (643 × 1453 × 686 mm)
Counter Cut-Out 55-5/8" × 25-1/2" (1413 × 648 mm)
Interior (H × W × D) 8-3/4" × 52-1/8" × 21-7/8" (222 × 1324 × 556 mm)
Electrical 115 V / 60 Hz / 1 ph – 600 W – 5 A – NEMA 5-15P, 9 ft (2.7 m) cord
Refrigerant R290 (propane), remote condenser required
Design BTU Load 925 BTU @ –10 °F (–23 °C) suction
Net / Ship Weight 265 lb (120 kg) / 315 lb (143 kg)
Certifications cULus • NSF • EcoSmart®
Remote condensing unit not included. Refrigeration line-set hookup must be completed by a licensed technician.

What’s in the Box

  • (5) 20" stainless-steel pan divider bars
  • Factory-installed digital control module
  • Installation & operation manual
  • Alto-Shaam limited warranty:
    • 1-year parts & labor on the unit
    • 5-year compressor coverage (when supplied by Alto-Shaam)

Food pans and remote compressor are sold separately.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

EcoSmart

Certifications

NSF, cULus

Height

27.5in

Width

57.25in

Depth

27.0in

Pan Qty

4-pan

Layout

straight

Width (side - side)

55 - 60 inches

Style

remote refrigeration (no compressor)

Pan Size

full-size (12" x 20")

Finish

corrosion resistant steel exterior

Insulation

insulated

Specifications

Coldwell Drop-in Refrigerated Cold Display Unit, designed for remote refrigeration, includes thermostatic control and (5) pan divider bars for side support, (4) 12" x 20" full-size pan capacity (pans NOT included), 6-1/4" deep well, holds 6" deep pans, EcoSmart®, 600 watts, 115v/60/1, 5.0 amps, 9' cord, NEMA 5-15P, cULus, NSF
