Alto-Shaam 400-CW EcoSmart Steam Tables & Food Wells
Description

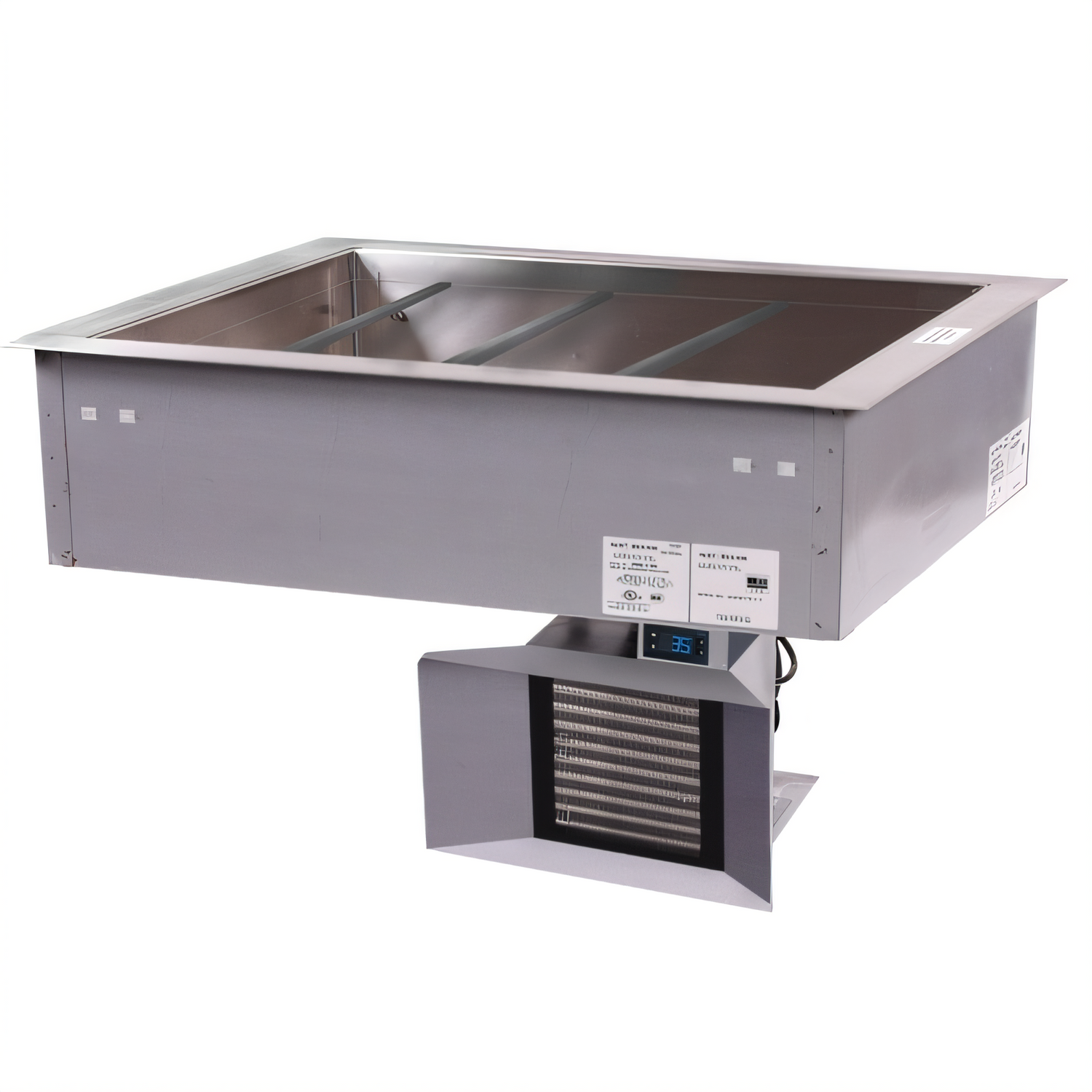

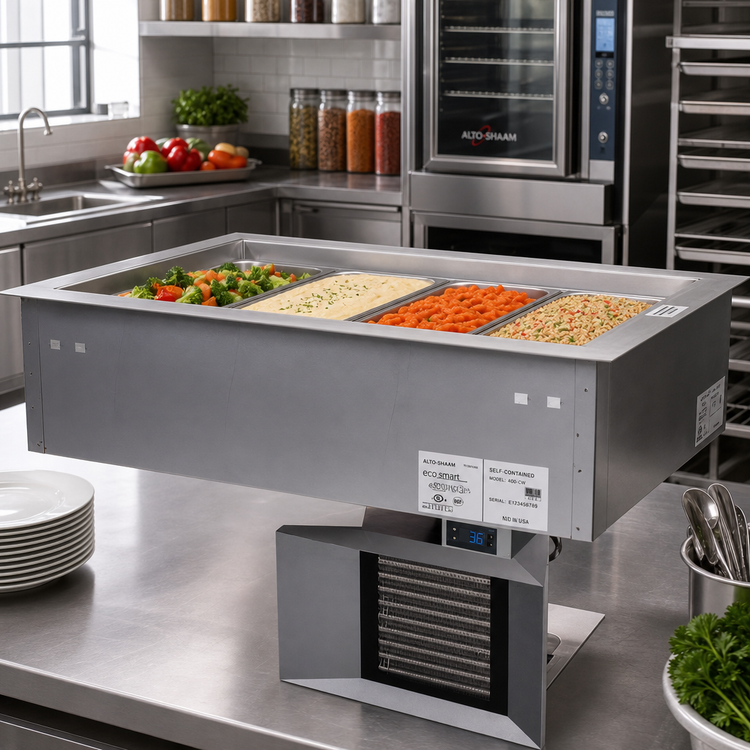

EcoSmart® 400-CW Self-Contained Drop-In Refrigerated Cold Well
4-Pan | Cold-Wall | R-290 | 115 VKeep salads, deli items, desserts, and grab-n-go favorites crisp and food-safe without sacrificing presentation. The Alto-Shaam EcoSmart® 400-CW cold well uses cold-wall, conductive refrigeration—no noisy fans, no dried-out product—so every bite is as fresh as the first.
Why You’ll Love It
- Cold-wall technology gently surrounds pans with uniform chill to 41 °F (5 °C) or below—ideal for any cold dish.

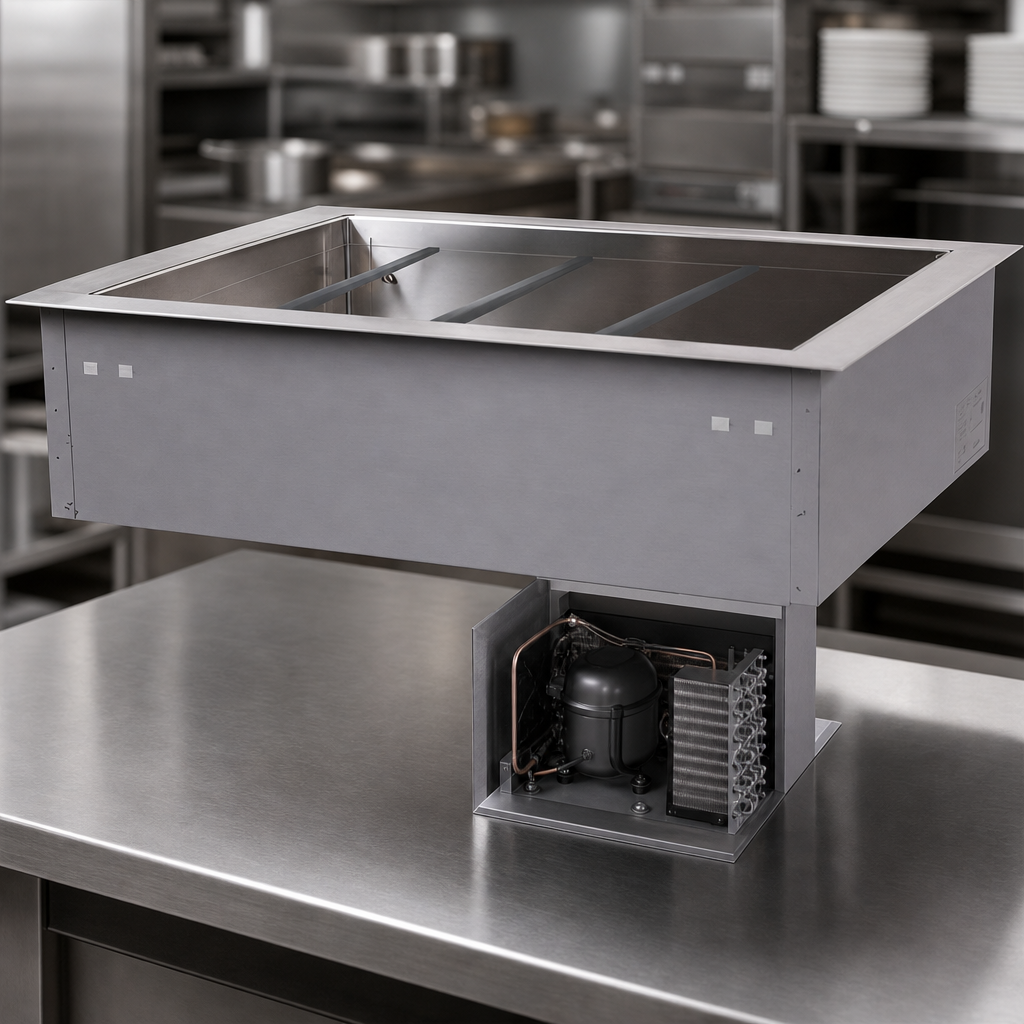

- Eco-friendly R-290 refrigerant and a ¼ hp compressor deliver powerful cooling with a lower environmental impact.
- Digital thermostat offers precise, menu-specific temperature control at the touch of a button.
- Corrosion-resistant stainless steel top, coved-corner interior, and insulated (CFC-free) body stand up to daily commercial use.
- Five pan-divider bars included for flexible GN 1/1, 1/2, or 1/3 configurations—straight from the box.
- Dual air-movement louver swivels 90° so you can vent intake/exhaust from any side of the counter.
- Ready for drop-in installation with a pre-wired 9 ft (2.7 m) cord and NEMA 5-15P plug.
Generous Capacity
- 4 × full-size 12" × 20" pans (6" deep)
- 8 × half-size pans
- 12 × third-size pans
- 88 qt (84 L) / 144 lb (65 kg) product maximum*
*Based on 6" (152 mm) deep pans. Pans are not included.
Technical Specifications
| Model | 400-CW (Self-Contained) |
|---|---|
| Refrigeration | Cold-wall, R-290, ¼ hp compressor |
| Temperature Range | ≤ 41 °F (5 °C) holding |
| Well Depth | 6-1/4" (accepts 6" pans) |
| Exterior Dimensions | 25-5/16" H × 57-1/4" W × 27" D (643 × 1453 × 686 mm) |
| Interior Dimensions | 8-3/4" H × 52-1/8" W × 21-7/8" D (222 × 1324 × 556 mm) |
| Counter Cut-Out | 55-5/8" × 25-1/2" (1413 × 648 mm) |
| Electrical | 115 V / 60 Hz / 1 ph • 600 W • 5.0 A • NEMA 5-15P |
| Cord Length | 9' (2.74 m) |
| Net / Ship Weight | 265 lb / 315 lb (120 kg / 143 kg) |
| Certifications | cULus, NSF, EcoSmart® |
| Warranty | 1 yr parts & labor 5 yr compressor |
Installation & Clearance
- Countertop surface must be water-resistant and level.
- Allow ¾" (19 mm) between adjacent wells and 4" (102 mm) in front of the louver for airflow.
- Do not install under a hood, four-way ceiling diffuser, or outdoors.
- A drain or catch basin is required; LED overhead lighting is recommended.
Peace-of-Mind Warranty
Alto-Shaam backs every EcoSmart® cold well with a 1-year parts & labor warranty and an industry-leading 5-year compressor warranty, so you can buy with confidence.
Need help planning your counter cut-out or pan layout? Contact our team for free design assistance.
