Description

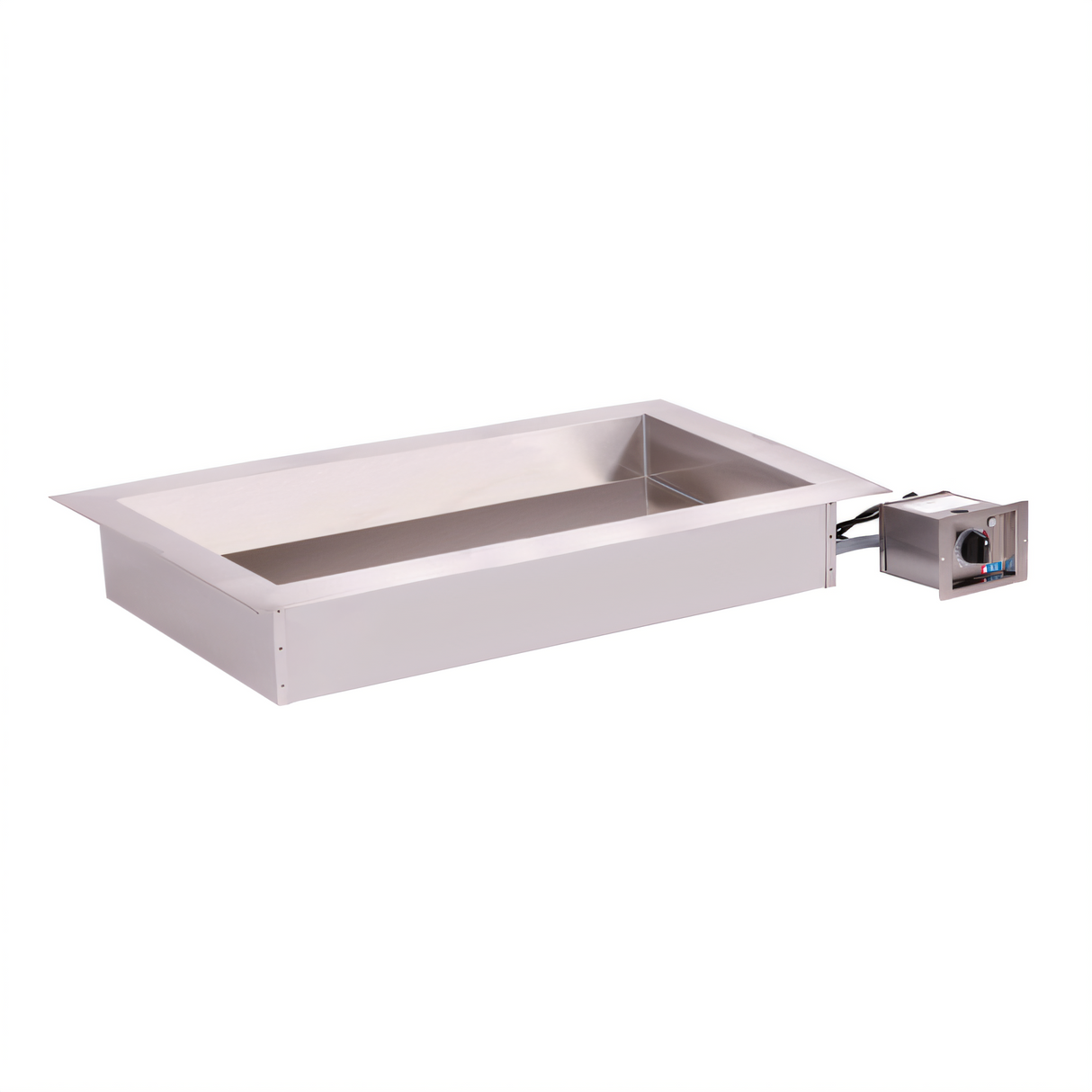

Alto-Shaam Halo Heat® Waterless Hot Food Well – Large Flange

Model 300-HWLF/D4 | 3 × 12" × 20" Full-Size Pans

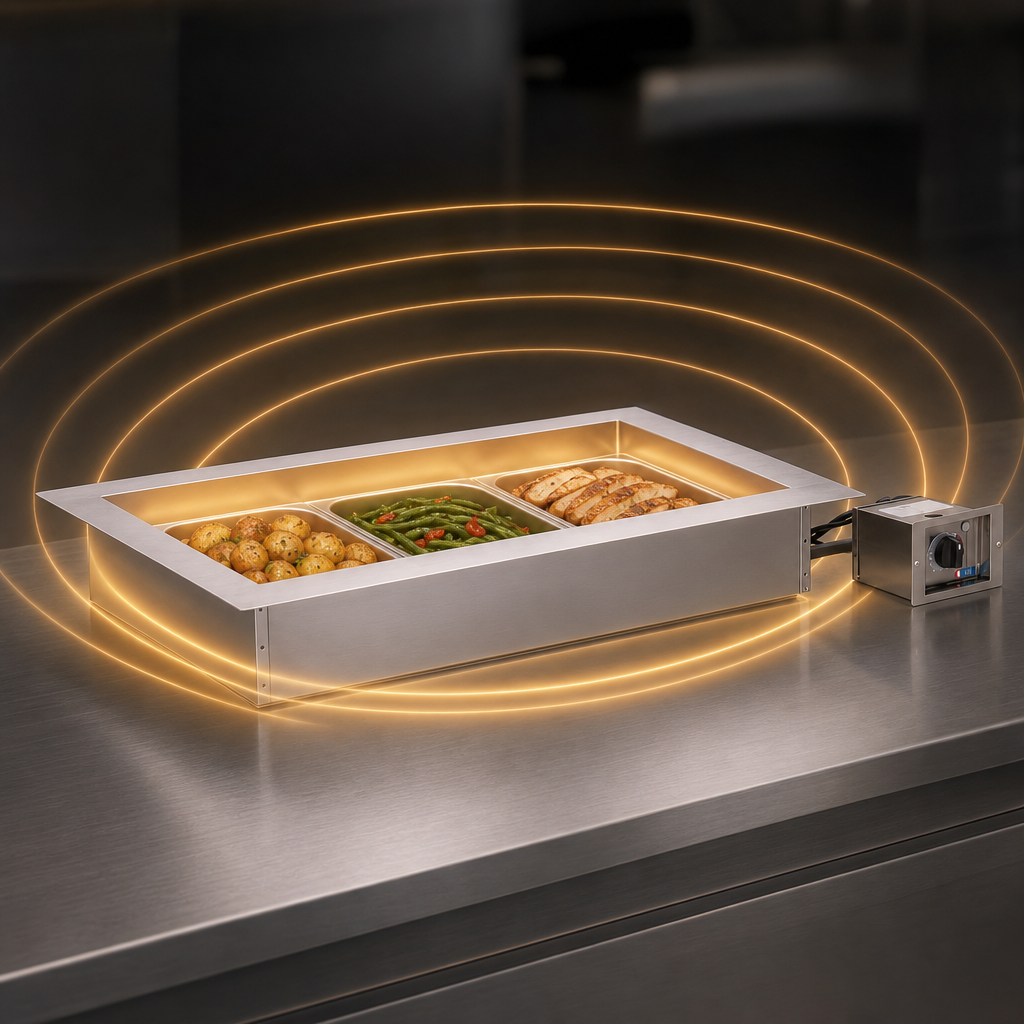

Serve every dish at its flavorful best with Alto-Shaam’s patented Halo Heat® technology. This drop-in, waterless well gently surrounds food with radiant heat—no steam, fans or hot spots—extending hold times, cutting utility costs and eliminating plumbing for good.

Key Advantages
  • Waterless Halo Heat® system delivers even, gentle heat without added humidity or boiling water.

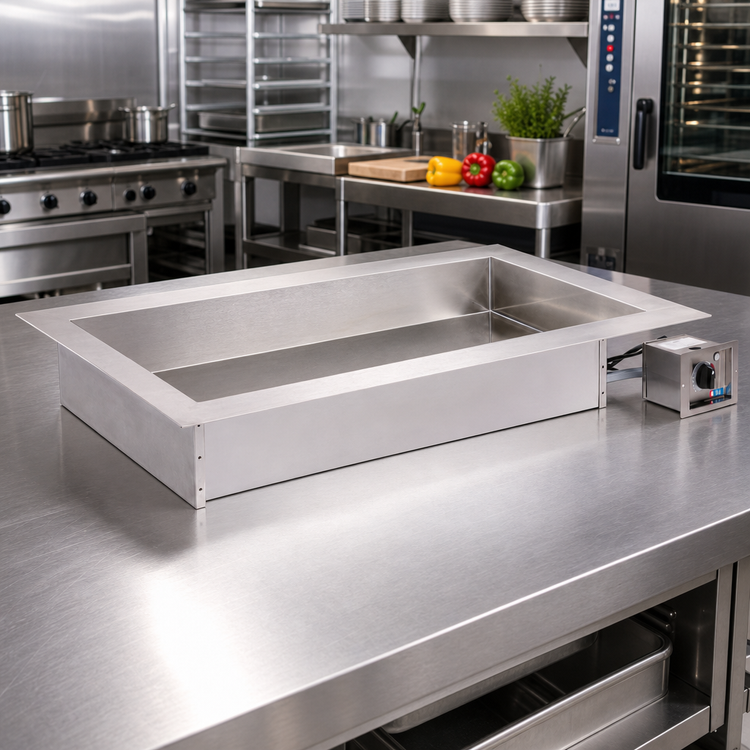

  • Large stainless steel flange installs flush for a clean, built-in look that contains spills.
  • Holds (3) full-size, 4"-deep pans—or mix & match with the included divider bars for half- and third-size pans.
  • Remote-mount adjustable thermostat (60–200 °F / 16–93 °C) ensures precise holding temperatures.
  • EcoSmart® design draws just 1.8 kW at 120 V to reduce energy consumption and operating costs.
  • Water-free operation means no lime or scale buildup, no leaks and dramatically lower maintenance.
  • All-stainless construction stands up to daily commercial use and cleans up fast.
  • Certified cULus, UL EPH Classified, CE, IPX3, TUV NORD & UKCA for worldwide compliance and peace of mind.
Specifications
Capacity (3) Full-size 12" × 20" pans up to 4" deep
(6) Half-size or (9) 1/3-size pans with included dividers
Well Depth 4-3/8" (111 mm)
Exterior (H × W × D) 7-5/16" × 44-1/4" × 27-1/16" (185 × 1123 × 686 mm)
Interior (H × W × D) 4-3/8" × 37-7/8" × 20-3/16" (111 × 962 × 512 mm)
Electrical 120 V, 1-ph, 15 A, 1.8 kW – NEMA 5-20P
208 V, 1-ph, 6.5 A, 1.4 kW – NEMA 6-15P
240 V, 1-ph, 7.5 A, 1.8 kW – NEMA 6-15P
Net Weight 58 lb (26 kg)
Construction Stainless steel well, housing & flange
Included Accessories (6) Half/third-size divider bars, (2) Full-size divider bars
Warranty 1-year parts & labor

Steam-table pans are not included.

Installation Note: For combustible countertops, cut-out size must be 41-13/16" × 24-1/8" (1062 × 613 mm) with 1" (25 mm) minimum clearance to combustible materials. Always verify local code compliance and monitor food temperatures per health regulations.
Perfect For
  • Restaurant & hotel buffets
  • Supermarket hot bars
  • C-store & cafeteria service lines
  • Catering and banquet operations

Elevate your presentation, protect food quality and simplify your workflow—invest in the Alto-Shaam Halo Heat® 300-HWLF/D4 today.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.31in

Width

44.25in

Depth

27.06in

Pan Capacity

(3) full size (12" x 20")

Drain

without drain

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit with large flange, Drop-In, Electric, (3) 12" x 20" full-size pan capacity (pans NOT included), 4-3/8" deep well, holds 4" deep pans, includes (6) half/third-size & (2) large pan divider bars, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
