Description

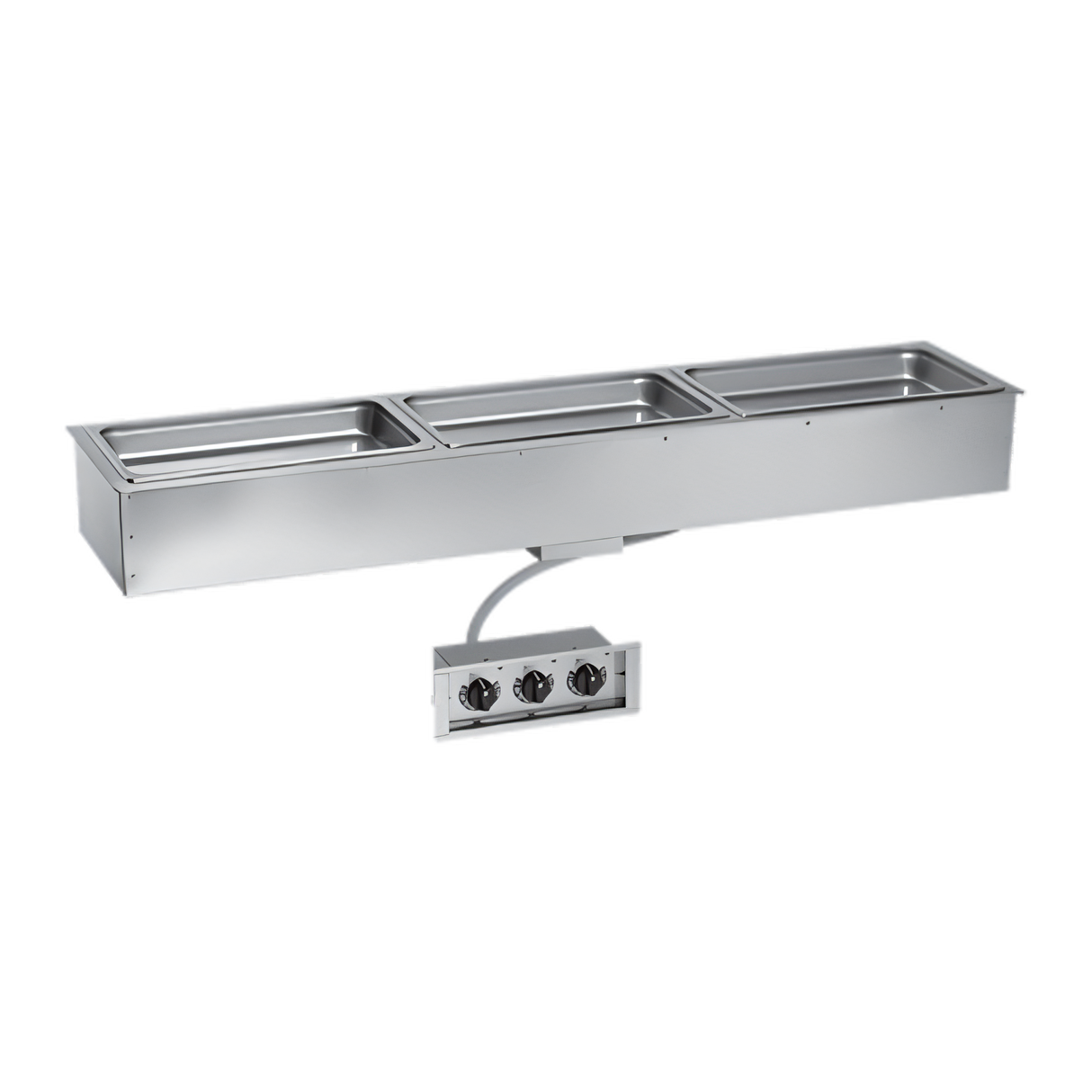

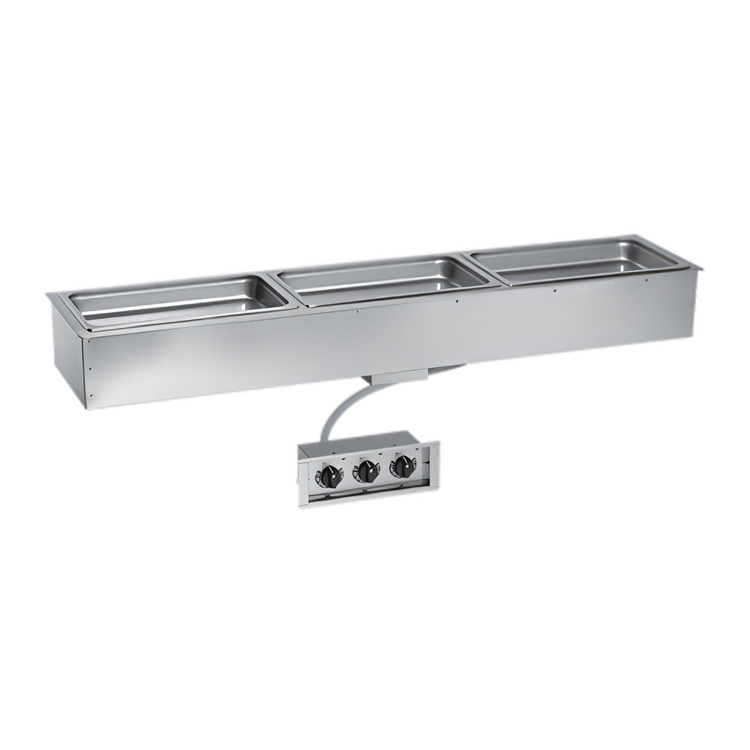

Alto-Shaam Halo Heat® Waterless Hot Food Well – 3-Well Drop-In (Model 300-HWIS)

65-5/8" W × 14-15/16" D • holds three full-size pans

Deliver perfectly held entrées without the hassles of water, steam or fans. Alto-Shaam’s patented Halo Heat® technology gently surrounds food with even radiant heat, extending hold times while preserving fresh-made quality and presentation.

Top Benefits
  • Waterless design – no plumbing, steam or scale build-up to worry about.
  • Independent thermostats for each well let you hold multiple menu items at their ideal temperature.
  • EcoSmart® efficiency consumes as little as 1.4 kW and rejects only 243 BTU/hr into the kitchen.
  • Stainless steel construction stands up to daily commercial use and wipes clean in seconds.
  • Flush-mount control box keeps customer-facing counters clean and clutter-free.
Pan Capacity
  • (3) full-size 12" × 20" hotel pans – up to 6" deep
  • or (6) half-size pans
  • or (9) third-size pans
  • Maximum product weight: 108 lb (49 kg)
  • Maximum volume: 66 qt (63 L)

Pans are not included.

Specifications
Exterior (H × W × D) 9-5/16" × 65-5/8" × 14-15/16" (236 × 1667 × 380 mm)
Well depth 6-3/8" (162 mm) – fits 6" pans
Cut-out (L × W) 64-3/4" × 13-13/16" (1645 × 351 mm)
Net / Ship weight 77.5 lb (35 kg) / 160 lb (73 kg)
Electrical options 120 V, 1 ph, 15 A, 1.8 kW – NEMA 5-20P
208 V, 1 ph, 6.5 A, 1.4 kW – NEMA 6-15P
240 V, 1 ph, 7.5 A, 1.8 kW
230 V, 1 ph, 7.8 A, 1.8 kW
Cord length 6 ft (120 V) • 9 ft (208–240 V/230 V)
Heat rejection 243 BTU/hr (0.07 kW)
Certifications cULus • UL EPH Classified • CE • IPX3 • TÜV NORD • EAC • EcoSmart®
Warranty 1-year parts & labor (see Alto-Shaam warranty for details)
What’s Included
  • Factory-installed control box with three independent thermostats
  • Six half/third-size pan divider bars
Optional Accessories
  • Locking kit for mobile counters (part #5020849)
  • Stainless steel heat shield for under-counter storage
  • Full-, half- or third-size hotel pans (up to 6" deep)

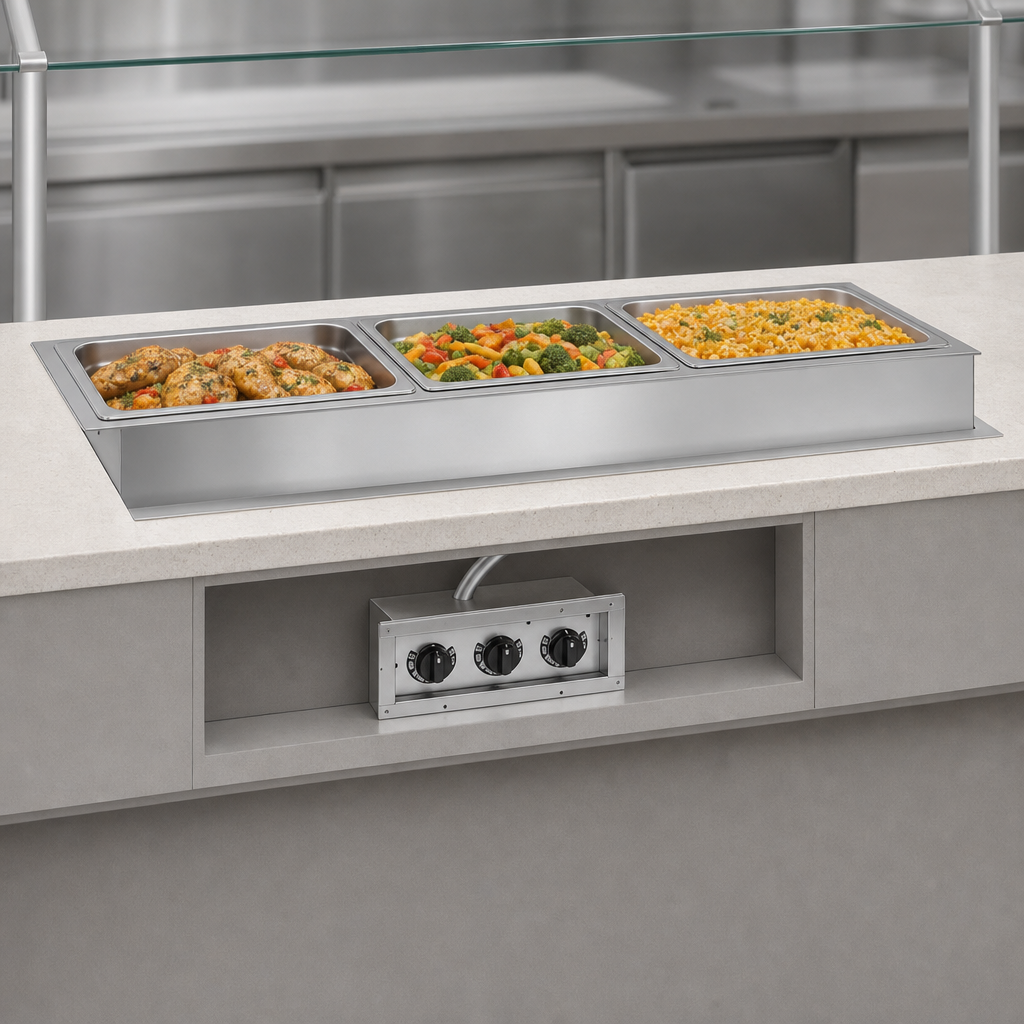

Installation note: Unit must be level, mounted in a non-combustible counter that can withstand 200 °F (93 °C), and kept at least 1" (25 mm) from combustible materials. Maintain 6" (152 mm) clearance from the control box to conduit bend.

Upgrade your serving line with the reliability, efficiency and food-quality advantages of Alto-Shaam Halo Heat®. Order your 3-well drop-in today and keep every plate looking—and tasting—its best.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

9.31in

Width

65.63in

Depth

14.94in

Shipping Weight

160.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Drain

without drain

Controls

thermostatic controls

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, 65-5/8"W x 14-15/16"D, (3) 12" x 20" full-size pan capacity (pans NOT included), 6-3/8" deep well, holds 6" deep pans, (3) individual adjustable thermostatic controllers, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD, EAC
