Alto-Shaam 300-HWILF/D6 Halo Heat Steam Tables & Food Wells
Description

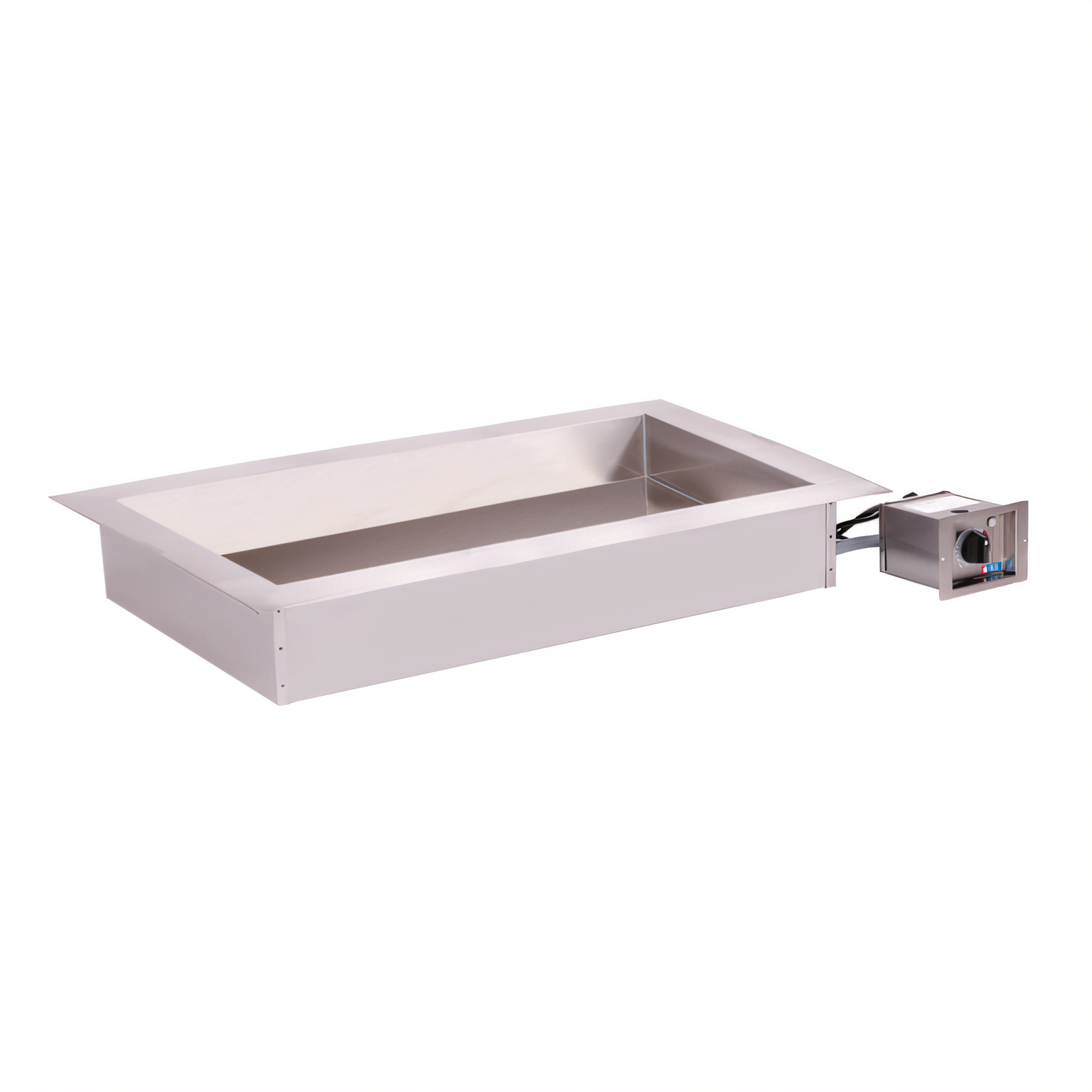

Alto-Shaam 300-HWILF/D6 Halo Heat® Waterless Hot Food Well
Drop-in, large-flange | 3 full-size (12" × 20") wells | Individual controlsGive every entrée the just-made taste guests expect—without the headaches of steam tables. Alto-Shaam’s patented Halo Heat® gently surrounds food with radiant, even warmth, keeping it at perfect serving temperature for hours while dramatically cutting water, energy and maintenance costs.
Why you’ll love it

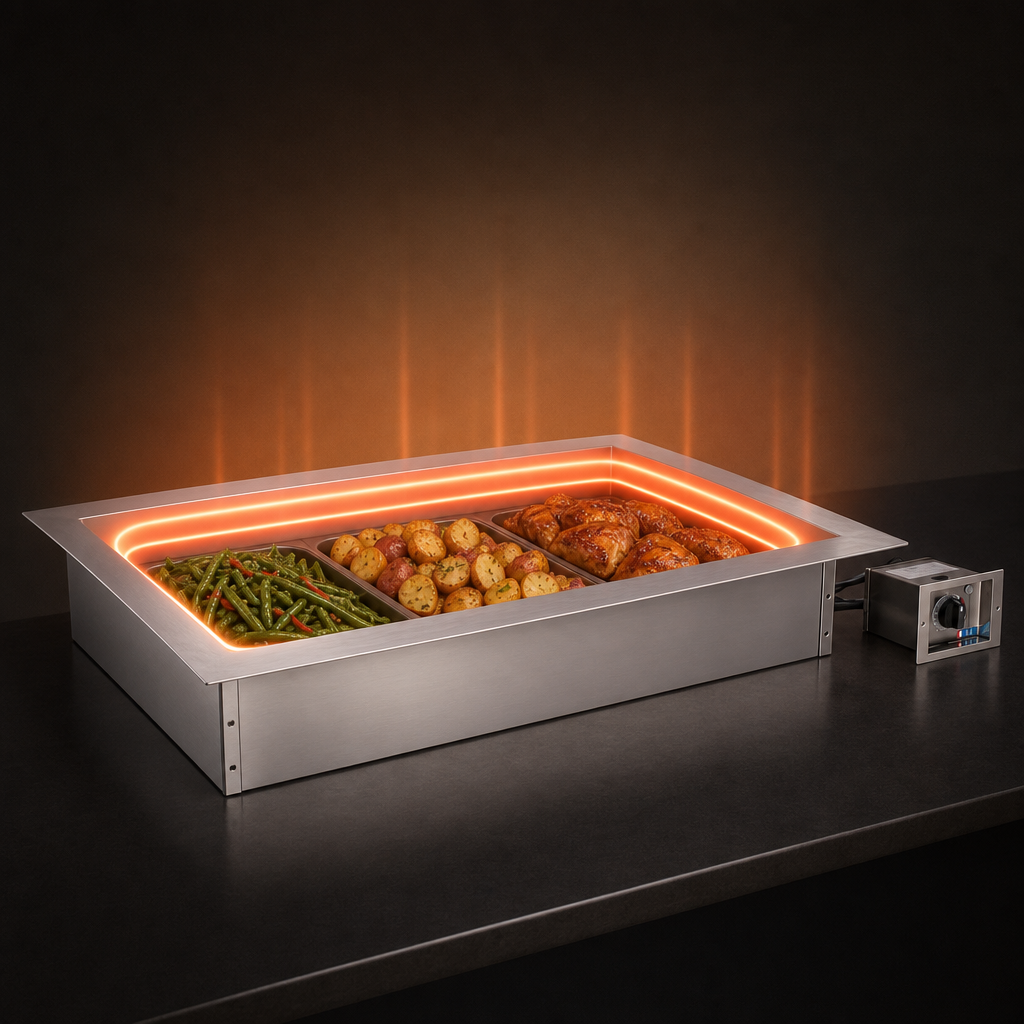

- Waterless Halo Heat® technology delivers uniform, moisture-friendly holding with no fans, cal rods or plumbing.
- Three independently controlled wells—dial in the ideal temperature for each menu item.

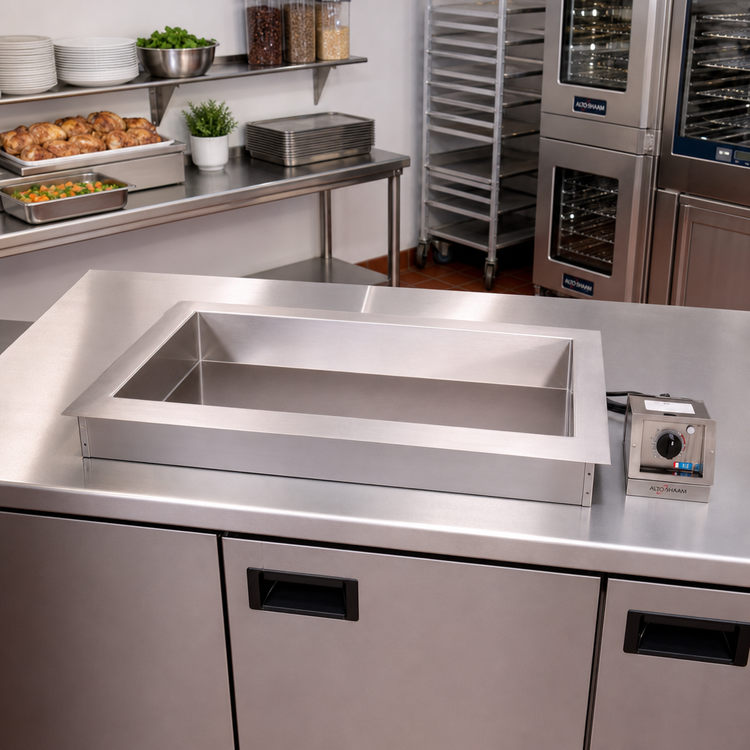

- Large stainless-steel flange creates a clean, flush look and hides cut edges for quick, worry-free installation.
- 6-3/8" deep wells accept up to 6" (150 mm) pans for maximum versatility and capacity.
- Includes six divider bars to convert wells from full-size to half- or third-size pans on the fly (pans not included).
- EcoSmart® efficiency slashes utility bills—up to 30 % lower operating cost than comparable steam wells.
- All-stainless construction stands up to the toughest commercial kitchens.
- Safety first: no boiling water, no steam, no lime-scale buildup and an IPX3 splash rating.
- Fully certified: cULus, UL EPH Classified, CE, TUV NORD, UKCA.
Technical specifications
| Model | 300-HWILF/D6 |
|---|---|
| Capacity | 3 × full-size 12" × 20" pans (or 6 half-size / 9 third-size with included dividers) |
| Well depth | 6-3/8" (162 mm) • fits 6" deep pans |
| Exterior dimensions | 9-1/4" H × 44-1/4" W × 27-1/16" D (234 × 1124 × 686 mm) |
| Cut-out (non-combustible) | 39-13/16" × 22-1/8" (1011 × 562 mm) |
| Cut-out (combustible) | 41-13/16" × 24-1/8" (1062 × 613 mm) |
| Electrical |
1-phase, field-selectable: • 120 V / 15.0 A / 1.8 kW / NEMA 5-20P • 208 V / 6.5 A / 1.4 kW / NEMA 6-15P • 240 V / 7.5 A / 1.8 kW / NEMA 6-15P • 230 V / 7.8 A / 1.8 kW / CEE 7/7 plug 9 ft (2.7 m) cord pre-wired |
| Net weight | 83 lb (38 kg) |
| Certifications | cULus, UL EPH, CE, IPX3, TUV NORD, UKCA |
| Warranty | 1-year parts & labor (USA/Canada) See full Alto-Shaam warranty for details. |
Ideal applications
- Supermarket service lines
- QSR & fast-casual build stations
- Hotel breakfast buffets & banquets
- C-stores and delis looking to reduce water/steam hazards
Heat of rejection: 243 BTU/hr (0.07 kW). Maintain 1" (25 mm) clearance from combustible surfaces underneath the counter.
