Alto-Shaam 300-HWILF/D4 Halo Heat Steam Tables & Food Wells
Description

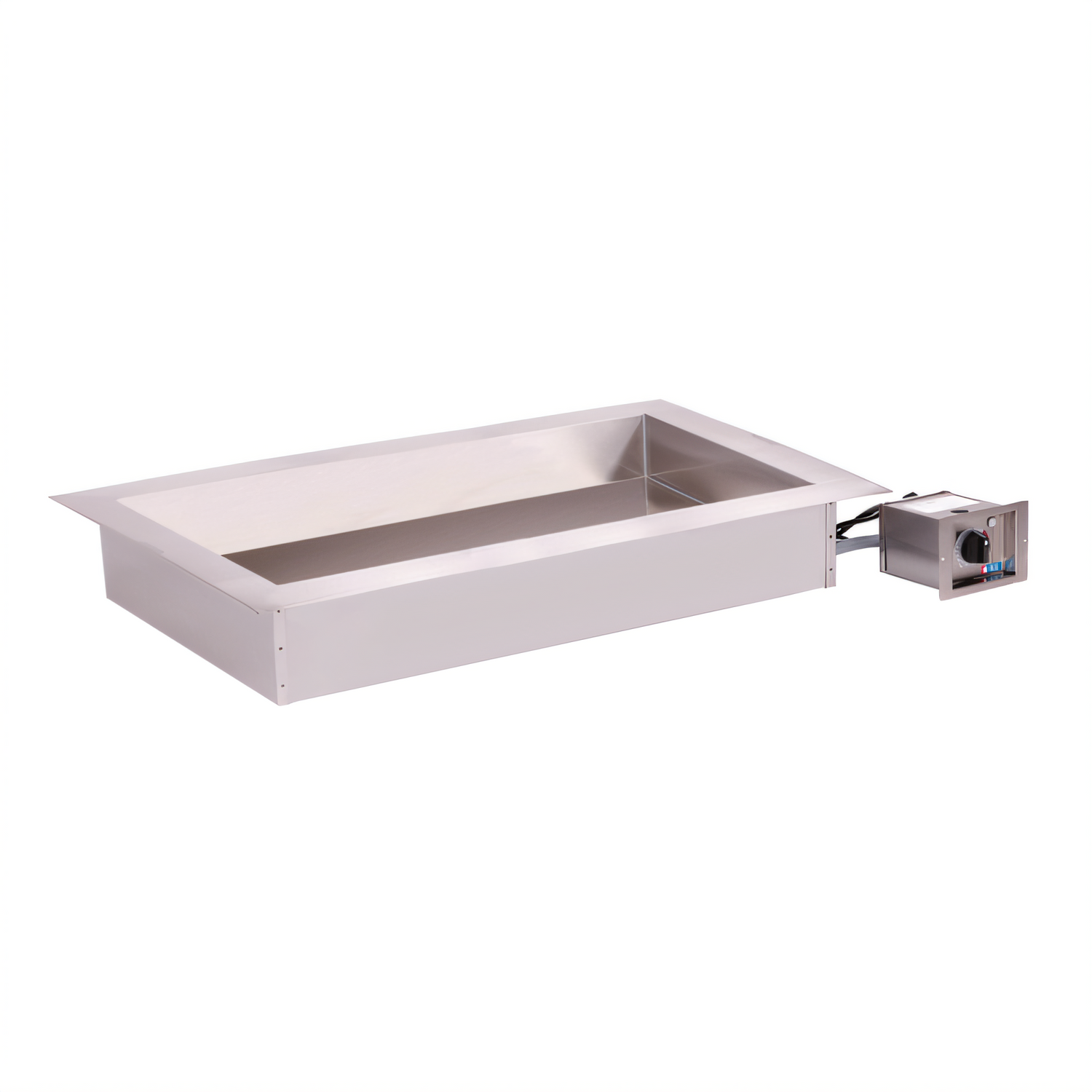

Alto-Shaam Halo Heat® 300-HWLF/D4 Waterless Hot Food Well

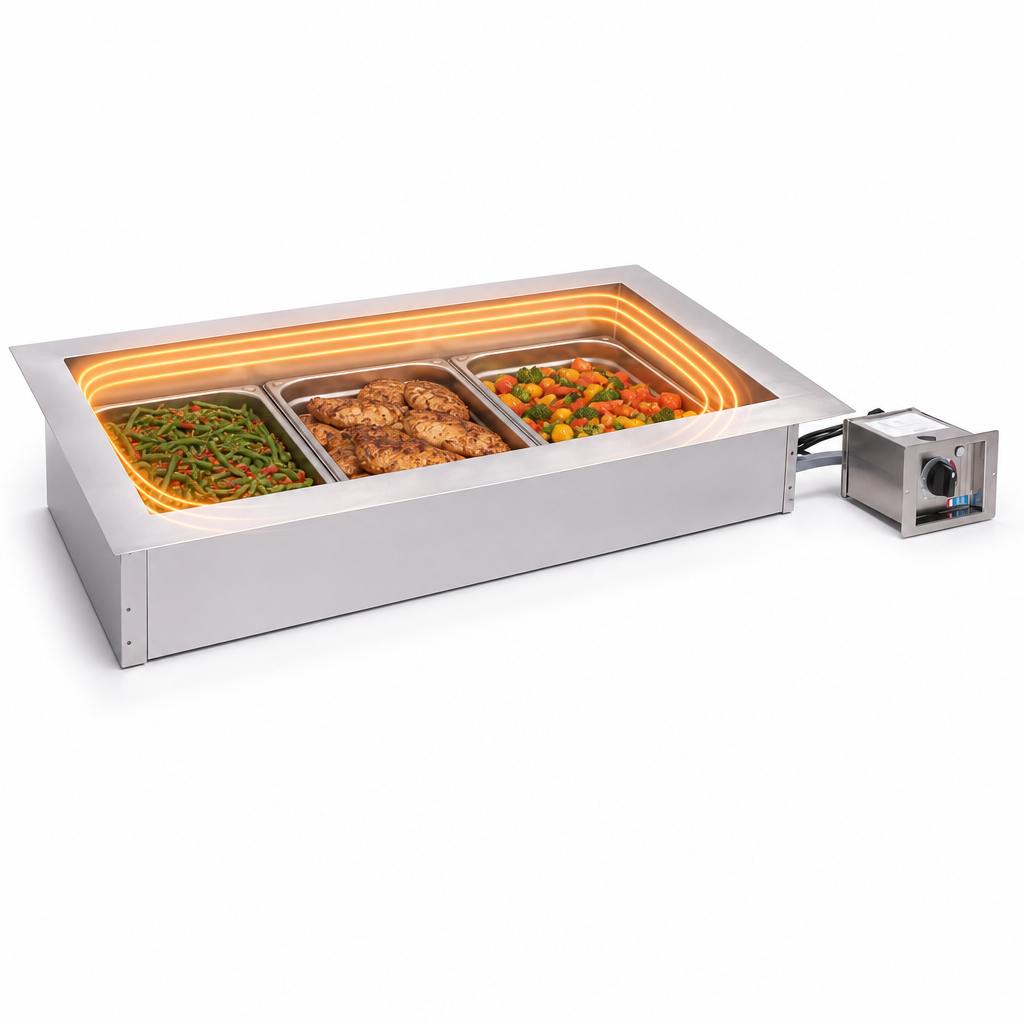

Large-flange, 3-pan drop-in unit with independent controlsKeep entrées and sides hot, fresh and picture-perfect without the hassles of steam tables. Alto-Shaam’s patented Halo Heat® technology radiates gentle, even heat around each pan—no water, no fans, no hot spots. Lower utility bills, eliminate lime-scale headaches and give your guests the quality they deserve, shift after shift.
Key benefits
- Waterless Halo Heat® design extends holding times and prevents dried-out food.
- Large 44-¼" flange speeds installation and gives a clean, flush counter finish.
- (3) independent, front-mounted thermostatic controllers let you fine-tune each pan well.
- EcoSmart® efficiency delivers up to 50 % lower operating costs versus traditional steam wells.
- All-stainless construction resists corrosion and wipes clean fast.
- No plumbing, drains or ventilation hoods required—drop it in, plug it in, start serving.
- Certified cULus, UL EPH Classified, CE, IPX3 & TÜV NORD for peace of mind worldwide.
What’s in the box
- 300-HWLF/D4 3-pan hot food well (pans not included)
- (6) half-/third-size stainless steel divider bars
- Factory-installed control box with 9 ft (2.7 m) cord & plug (see power options below)
- Operator’s manual
Technical specifications
| Pan capacity* | (3) 12 in × 20 in full-size
(6) half-size or (9) third-size with dividers |
|---|---|
| Well depth | 4-3/8 in (111 mm) – accepts 4 in (102 mm) deep pans |
| Exterior dimensions (H × W × D) | 7-5/16 in × 44-1/4 in × 27-1/16 in
(185 mm × 1123 mm × 686 mm) |
| Interior well size (H × W × D) | 4-3/8 in × 37-7/8 in × 20-3/16 in
(111 mm × 962 mm × 512 mm) |
| Net weight | 58 lb (26 kg) |
| Electrical |
120 V / 1 ph / 50-60 Hz – 15.0 A – 1.8 kW – NEMA 5-20P plug 208 V / 1 ph / 50-60 Hz – 6.5 A – 1.4 kW – NEMA 6-15P plug 240 V / 1 ph / 50-60 Hz – 7.5 A – 1.8 kW – NEMA 6-15P plug 230 V / 1 ph / 50-60 Hz – 7.8 A – 1.8 kW – CEE 7/7 plug |
| Certifications | EcoSmart®, cULus, UL EPH, CE, IPX3, TÜV NORD |
*Based on 4 in (102 mm) deep pans.
Optional accessories
- Additional half-/third-size divider bars (Part # 11318)
- Full-size pan divider bars (Part # 16019)
- Locking kit for theft-prone areas (Part # 5020849)
Warranty
1-year parts & labor (15 months from ship date whichever comes first). Heating elements on Halo Heat® ovens are covered for the life of the original owner. See full Alto-Shaam warranty for terms and exclusions.
