Description

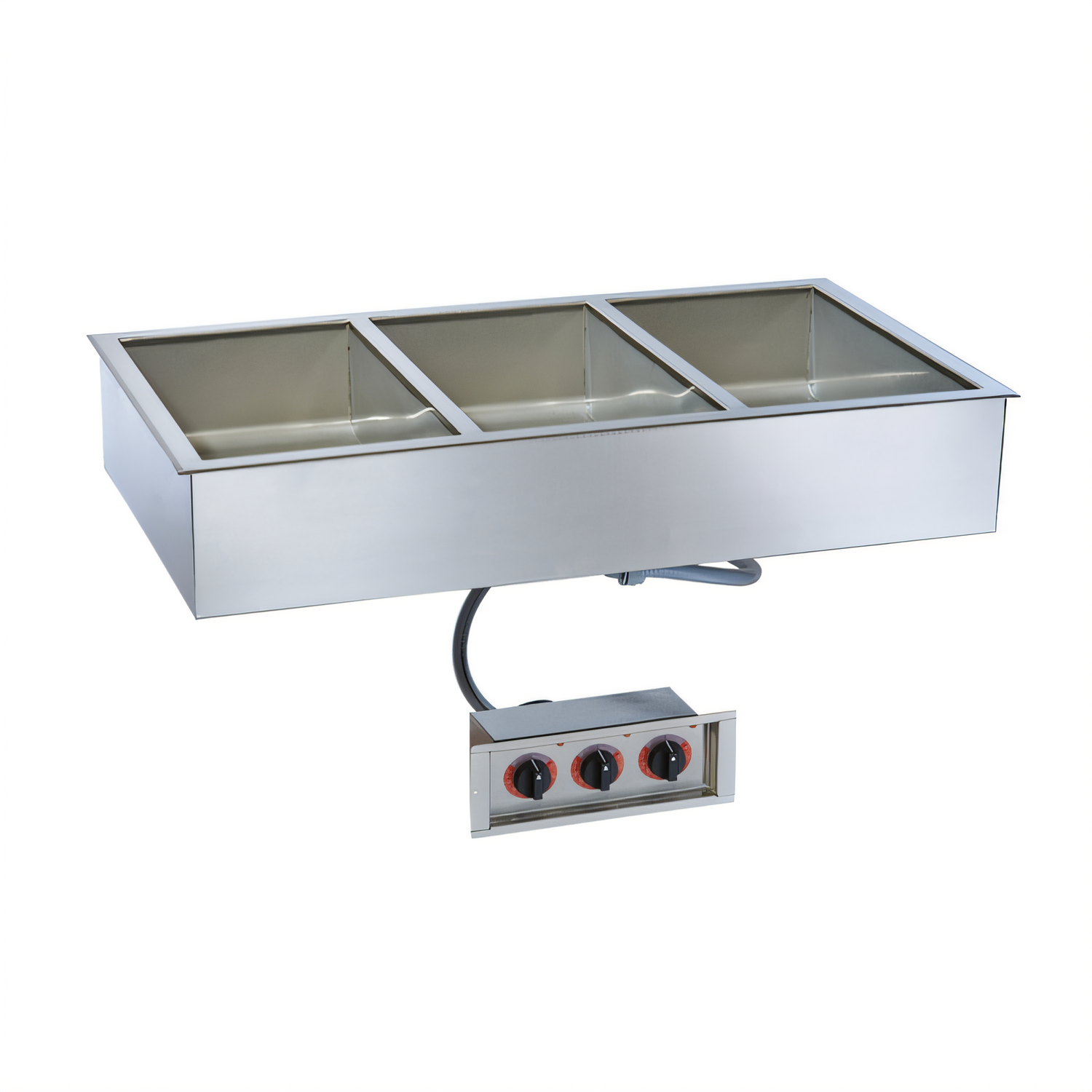

Alto-Shaam Halo Heat® Waterless Drop-In Hot Food Well – 3 Wells, 6 in Deep (Model 300-HWI/D6)
40-7/8" W × 23-3/16" D • Individual thermostatic controls • EcoSmart® electric operationGive customers hot, fresh and perfectly held menu items all day long without the hassles of water or steam. Alto-Shaam’s 300-HWI/D6 Halo Heat® drop-in well surrounds each pan with gentle, even radiant heat, extending hold times and slashing utility and maintenance costs. Three independently controlled wells let you dial-in the ideal temperature for every dish—from breakfast proteins to grab-and-go sides—while the stainless-steel, IPX3-rated construction stands up to the busiest commercial kitchens.
Why You’ll Love It

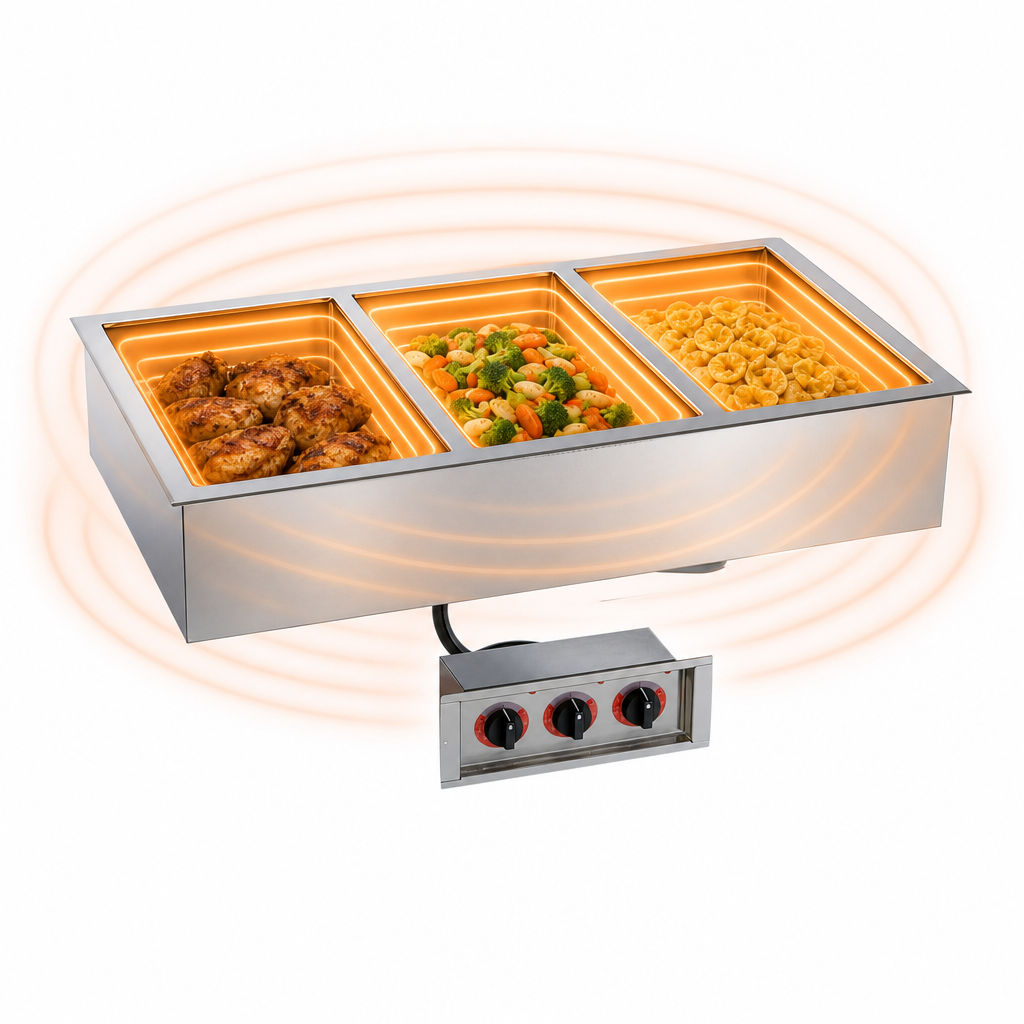

- Waterless Halo Heat® technology – no steam, fans or added humidity required.
- Even radiant heat keeps food at safe serving temps without drying out.
- Three independent thermostatic controllers for precise, menu-specific holding.
- 6-3/8" deep wells accommodate 6" deep 12 × 20 pans (or smaller pans with included dividers).
- No plumbing, drains or de-liming—installation is fast and operating costs stay low.
- EcoSmart® design minimises energy consumption and heat gain to the kitchen (only 243 BTU/hr).
- Heavy-duty stainless-steel well is cULus, UL EPH, CE, IPX3 & TÜV NORD certified.
What’s Included
- (1) 300-HWI/D6 drop-in hot food well
- (6) Half/third-size pan divider bars
- (3) Flush-mountable thermostat/control boxes with 48" conduit
- Owner’s manual & 1-year parts & labour warranty
Pans are not included.
At-a-Glance Specs
Pan Capacity | (3) Full-size 12" × 20" pans (6) Half-size or GN 1/2 pans |
---|---|
Well Depth | 6-3/8" (162 mm) |
Exterior Dimensions | 9-1/4" H × 40-7/8" W × 23-3/16" D (234 mm × 1038 mm × 588 mm) |
Controls | (3) Independent adjustable thermostats, 60 °F – 200 °F (16 °C – 93 °C) |
Electrical (select one) |
120 V, 1 ph, 20.3 A, 2.4 kW — NEMA L5-30P 208–240 V, 1 ph, 8.8–10.1 A, 1.8–2.4 kW — NEMA 6-15P 230 V, 1 ph, 10.6 A, 2.4 kW — CEE 7/7 plug |
Net / Ship Weight | 77.5 lb / 125 lb (35 kg / 57 kg) |
Certifications | cULus, UL EPH Classified, CE, IPX3, TÜV NORD |
Optional Accessories
- Additional half/third-size divider bar (PN 11318)
- Full-size divider bar (PN 16019)
- Locking kit for extra-secure installation (PN 5020849)
Need help with cut-out dimensions or voltage selection? Our food-service specialists are here to help—just reach out via chat or call.
