Alto-Shaam 300-HWI/D4 Halo Heat Steam Tables & Food Wells
Alto-Shaam 300-HWI/D4 Halo Heat Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Alto-Shaam 300-HWI/D4 Halo Heat Steam Tables & Food Wells
Description

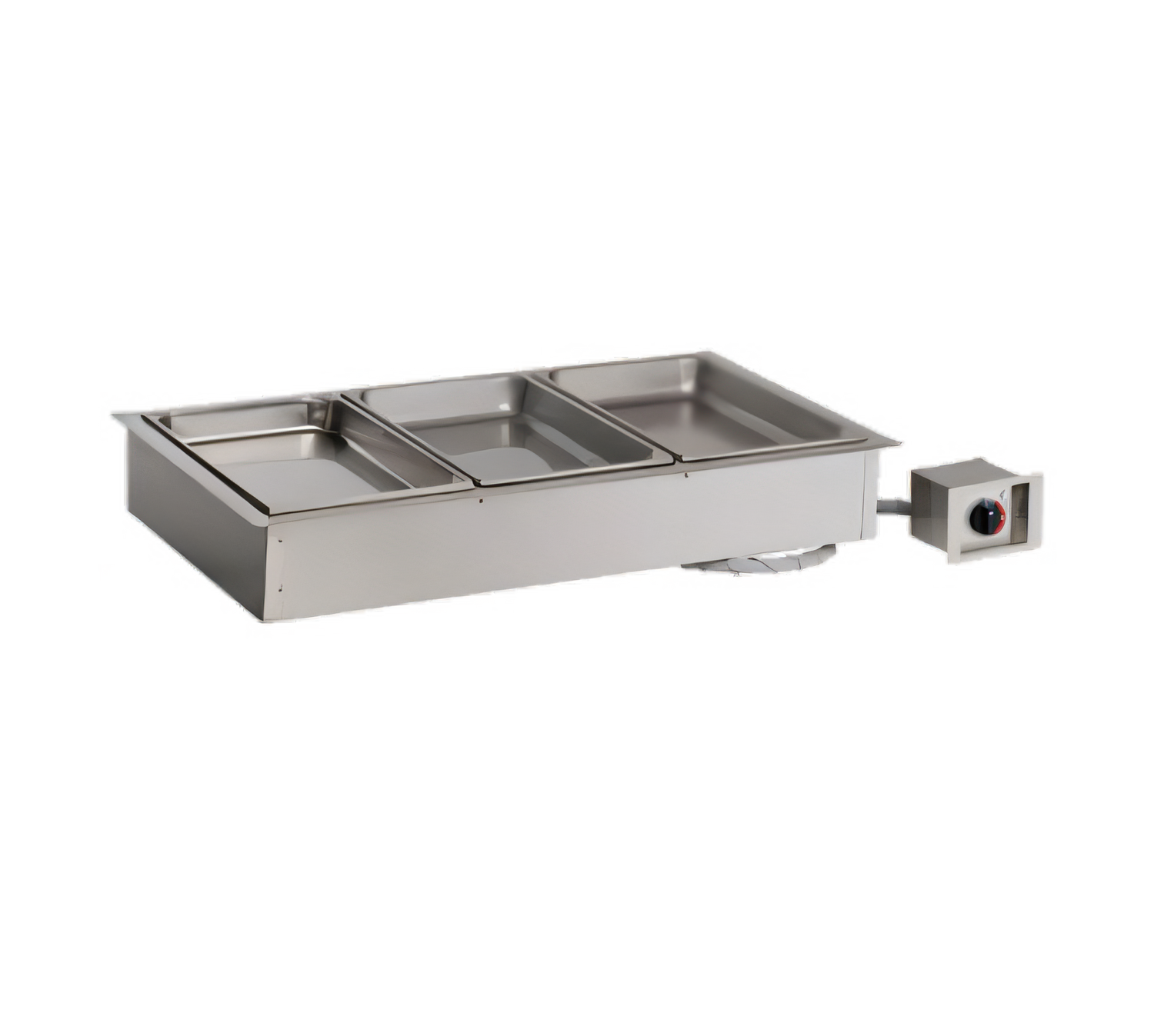

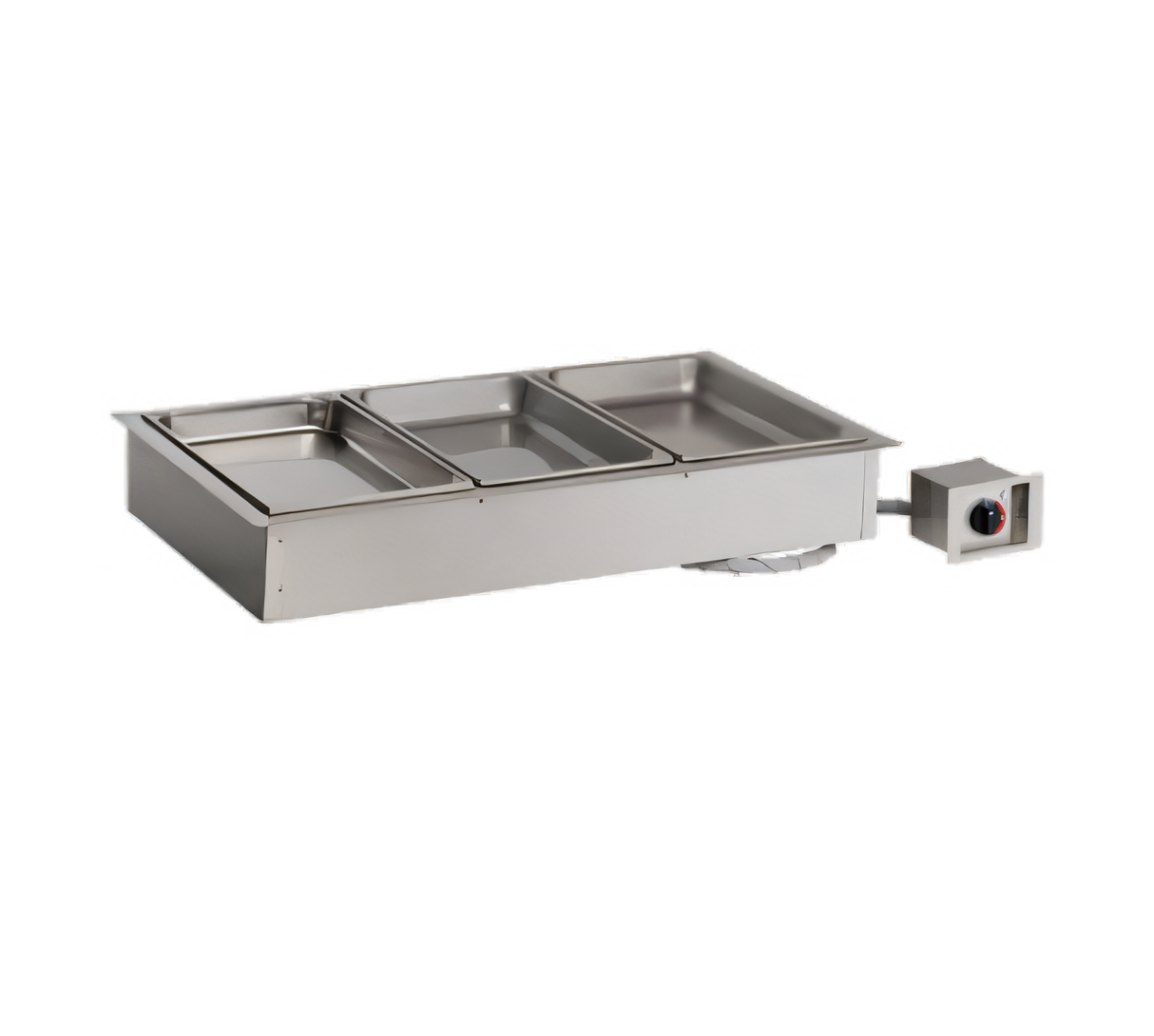

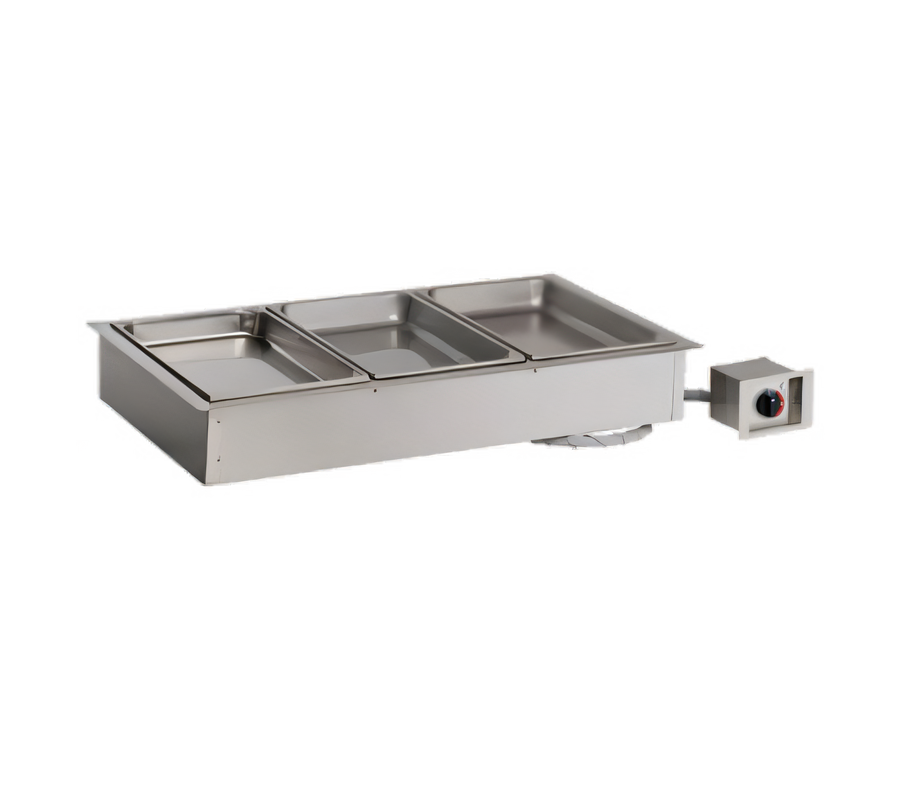

Alto-Shaam Halo Heat® Drop-In Hot Food Well – 3 Pan, Electric (Model 300-HW/D4)

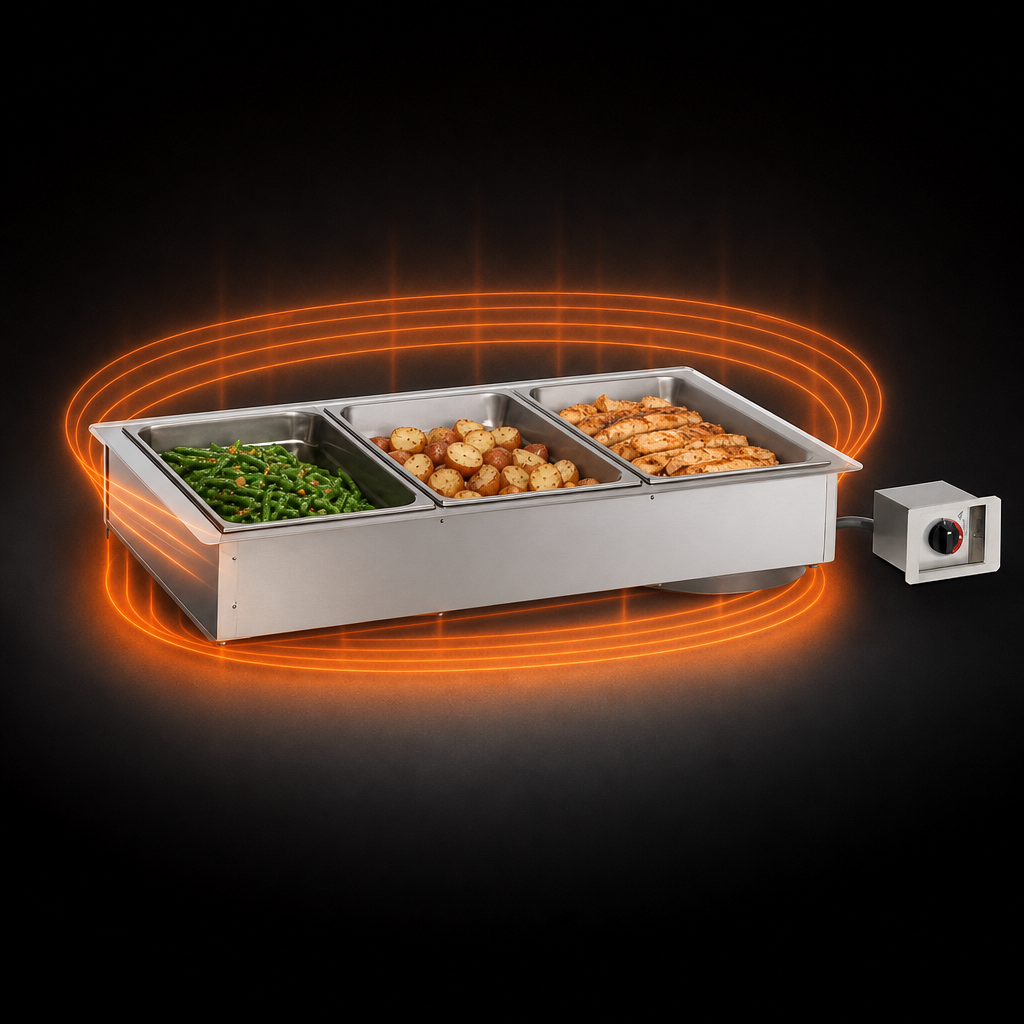

Waterless holding technology for consistently fresh, ready-to-serve foodGive your buffet, cafeteria line or made-to-order station the unbeatable holding performance of Alto-Shaam’s patented Halo Heat®. This gentle, radiant heat surrounds food evenly—no water, steam or fans required—so every bite tastes as fresh as the first while you slash utility and maintenance costs.
Why Operators Love It
- Waterless Halo Heat® design extends holding times without scorching or drying food.
- No plumbing or drains to install—drop it in, plug it in, start serving.
- Three independent thermostatic controls let you fine-tune each 12" × 20" well section.
- EcoSmart® efficiency lowers energy use and eliminates lime/scale service calls.
- 304 stainless steel well and flange stand up to daily commercial abuse.
- Includes six half/third-size divider bars for flexible pan layouts (pans not included).
- Cool-to-touch exterior improves employee safety and guest comfort.
- Fully certified: cULus, UL EPH, CE, IPX3 & TÜV NORD for hassle-free code compliance.
At-a-Glance Specs
| Pan Capacity* | 3 × Full-Size 12" × 20" 6 × Half-Size 9 × Third-Size |
|---|---|
| Well Depth | 4-3/8" – accepts 4" deep pans |
| Overall (H × W × D) | 7-5/16" × 40-15/16" × 23-1/8" (185 × 1039 × 586 mm) |
| Cut-Out (non-combustible) | 39-13/16" × 22-1/8" (1011 × 562 mm) |
| Interior Well (H × W × D) | 4-3/8" × 37-7/8" × 20-3/16" (111 × 962 × 512 mm) |
| Electrical |
120 V 1 ph 50/60 Hz 1.8 kW 15 A (NEMA 5-20P) 208 V 1 ph 50/60 Hz 1.4 kW 6.5 A (NEMA 6-15P) 240 V 1 ph 50/60 Hz 1.8 kW 7.5 A (NEMA 6-15P) 230 V 1 ph 50/60 Hz 1.8 kW 7.8 A (CEE 7/7) |
| Construction | 304 stainless steel well & flange, insulated housing, attached control box |
| Certifications | cULus, UL EPH, CE, IPX3, TÜV NORD, UK CA |
| Warranty | 1 year parts & labor (15 months from ship date, whichever occurs first) |
*Based on 4" deep pans. Unit will also accommodate 2-1/2" deep pans.
What’s in the Box
- Halo Heat® 300-HW/D4 drop-in hot food well
- Integrated control box with 3 independent thermostats (approx. 9 ft cord, voltage-dependent)
- 6 half/third-size pan divider bars
- Installation & operation manual
Perfect For
- Buffet & self-service lines
- Grab-and-go merchandising stations
- Cafeterias & corporate dining
- QSR & fast-casual make-up lines
- Catering drop-in stations
Upgrade your serving line with the performance chefs trust worldwide—add the Alto-Shaam Halo Heat® drop-in hot well to your cart today and keep every plate picture-perfect.
