Alto-Shaam  |  Halo Heat  |  SKU: 300-HW/D643

Alto-Shaam 300-HW/D643 Halo Heat Steam Tables & Food Wells

$3,020.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - ce Spec sheet - spanish Owner's manual Terms & conditions Spec sheet - french canadian Spec sheet - ul Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

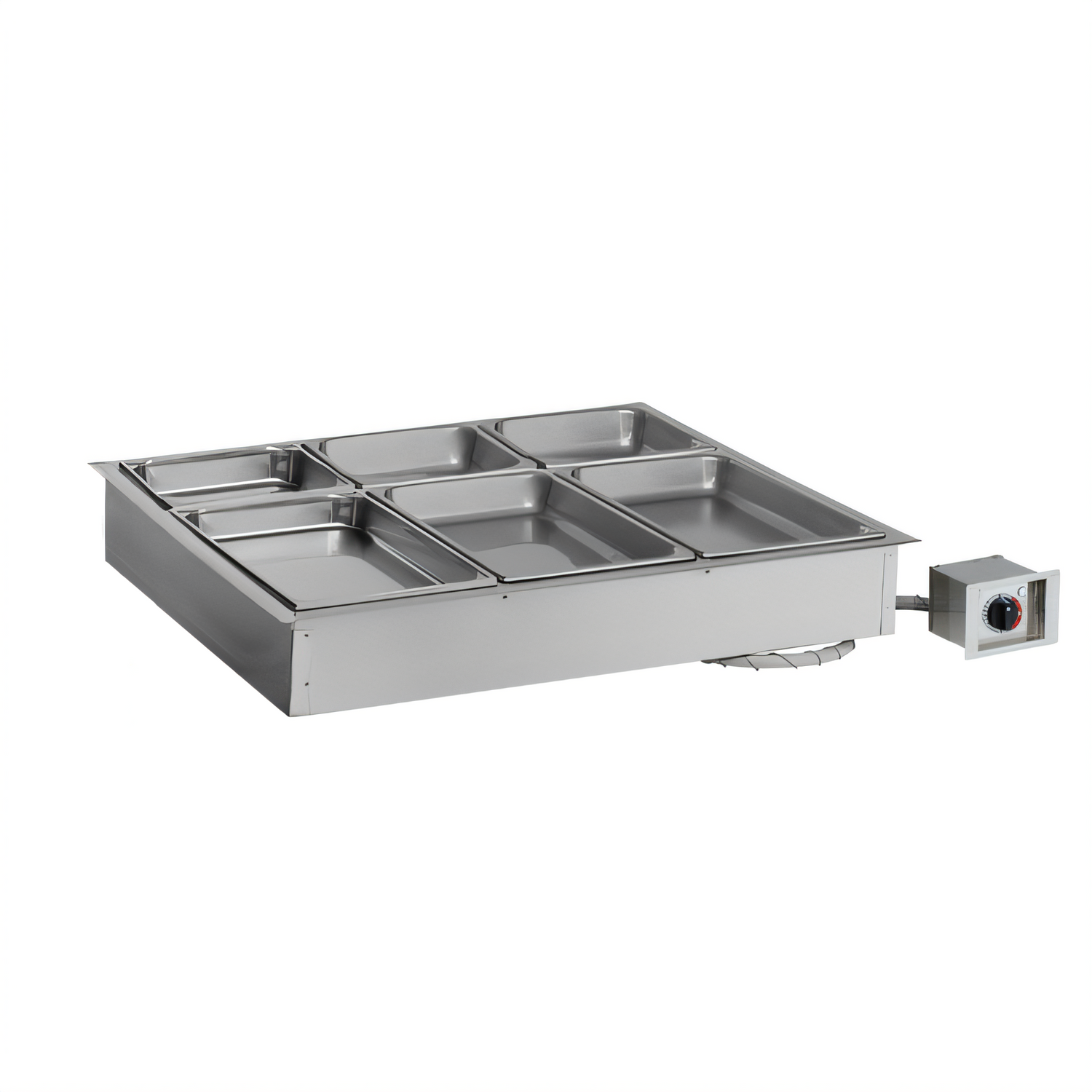

Alto-Shaam 300-HW/D643 Halo Heat® Drop-In Waterless Hot Food Well

3 Full-Size + 3 Third-Size Pan Capacity | 6-3/8" Deep | EcoSmart® Electric

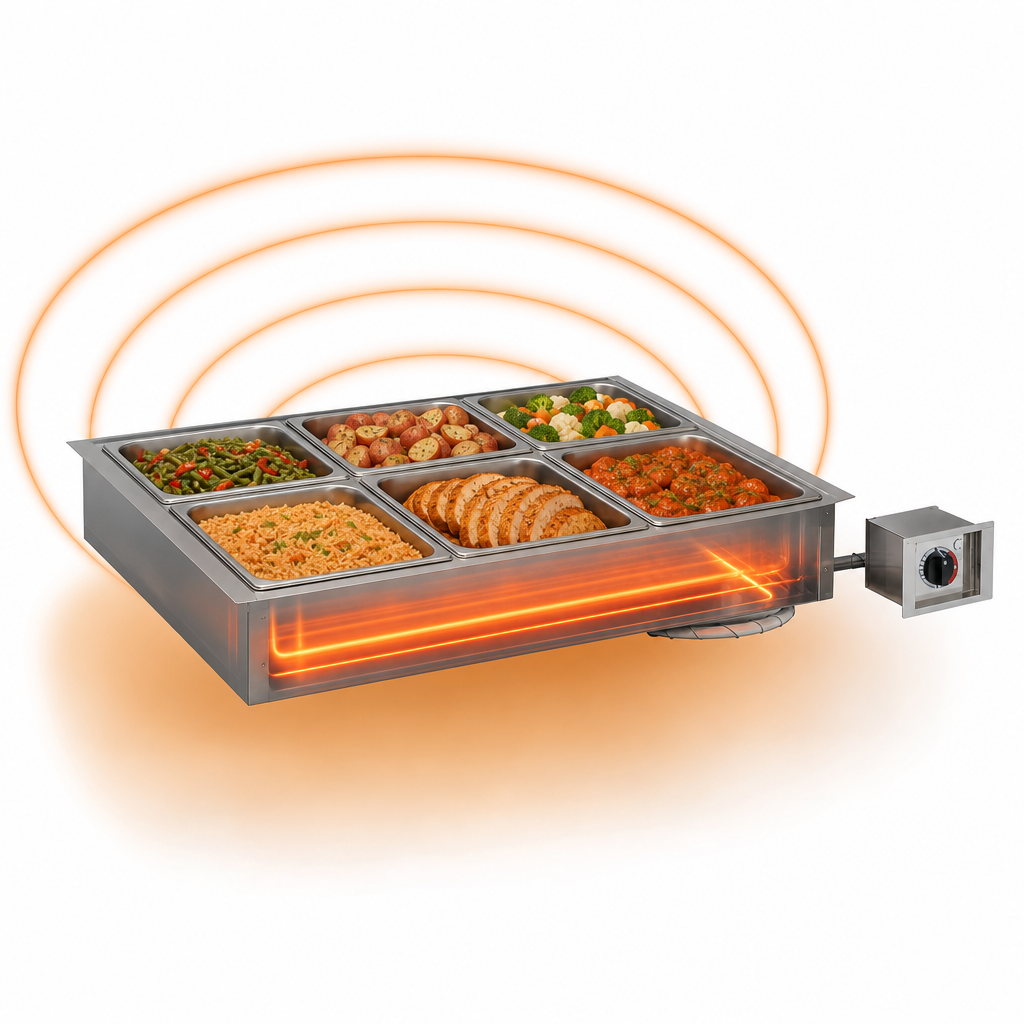

Replace old-fashioned steam tables with the power-saving performance of Halo Heat®. This drop-in well delivers gentle, even radiant heat—no water, fans or plumbing required—so every bite tastes as good at the end of service as it did when it left the kitchen.

Key benefits

  • Waterless Halo Heat® surrounds food evenly, extending hold times without drying or scorching.
  • Holds (3) 12" × 20" full-size pans and (3) 12" × 6" third-size pans, or up to 12 GN 1/3 pans.
  • Extra-deep 6-3/8" well easily accommodates 6" pans for high-volume service.
  • Flush-mount adjustable thermostat offers precise temperature control at a glance.
  • Stainless steel construction stands up to daily commercial use and simplifies cleanup.
  • Water-free design eliminates lime/scale build-up and costly plumbing connections.
  • EcoSmart® engineering draws as little as 1.4 kW for lower utility bills and a cooler kitchen.
  • Safety & sanitation assured—cULus, UL EPH Classified, CE, IPX3, TUV NORD & UKCA listed.

What’s included

  • (9) Half/third-size pan divider bars
  • (2) Large pan divider bars
  • 6 ft (1.8 m) power cord with plug (voltage dependent)
  • Comprehensive operator’s manual

Technical specifications

Model 300-HW/D643
Pan capacity (3) 12" × 20" full-size + (3) 12" × 6" third-size (pans not included)
Well depth 6-3/8" (162 mm)
Interior (H × W × D) 6-3/8" × 37-7/8" × 27-1/4" (162 × 962 × 691 mm)
Exterior (H × W × D) 9-3/16" × 40-15/16" × 30-3/16" (233 × 1039 × 765 mm)
Net weight 75 lb (34 kg)
Electrical 120 V 1 ph – 1.8 kW / 15 A
208 V 1 ph – 1.4 kW / 6.5 A
240 V 1 ph – 1.8 kW / 7.5 A
230 V 1 ph – 1.8 kW / 7.8 A
Standard plug 120 V: NEMA 5-20P
208–240 V: NEMA 6-15P
230 V: CEE 7/7 (region specific)
Certifications EcoSmart®, cULus, UL EPH, CE, IPX3, TUV NORD, UKCA

Alternative voltages, control-box locations and optional stainless-steel heat shields are available. Contact us for details.

Heads up: Food pans shown in photos are for illustration only and are not included with the unit.

Warranty

Alto-Shaam backs this unit with a 1-year parts & labor warranty (15 months from ship date, whichever comes first). Full terms and exclusions available upon request.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

9.19in

Width

40.88in

Depth

30.19in

Shipping Weight

160.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

without drain

Pan Capacity

(3) full size (12" x 20")

Controls

thermostatic controls

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (3) 12" x 20" full-size and (3) 12" x 6" third-size pan capacity (pans NOT included), 6-3/8" deep well, holds 6" deep pans, includes (9) half/third-size & (2) large pan divider bars, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
