Alto-Shaam 300-HW/D6 Halo Heat Steam Tables & Food Wells
Description

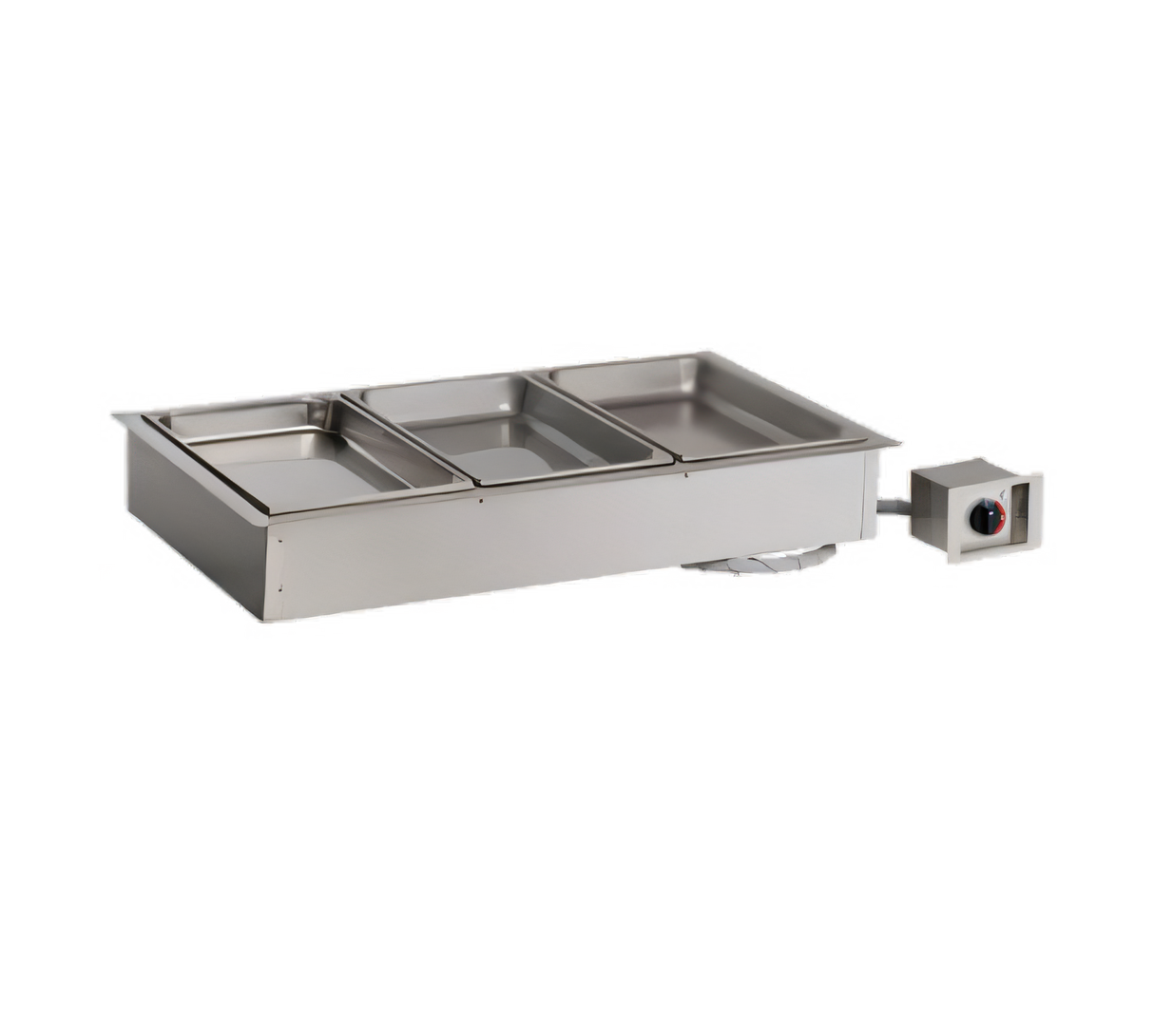

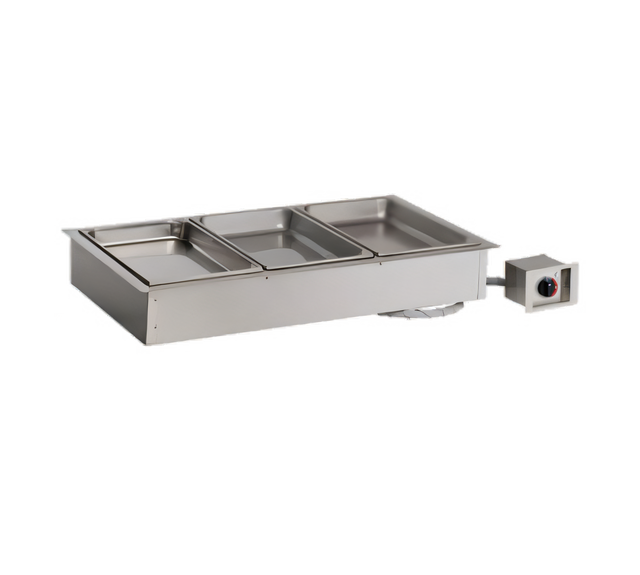

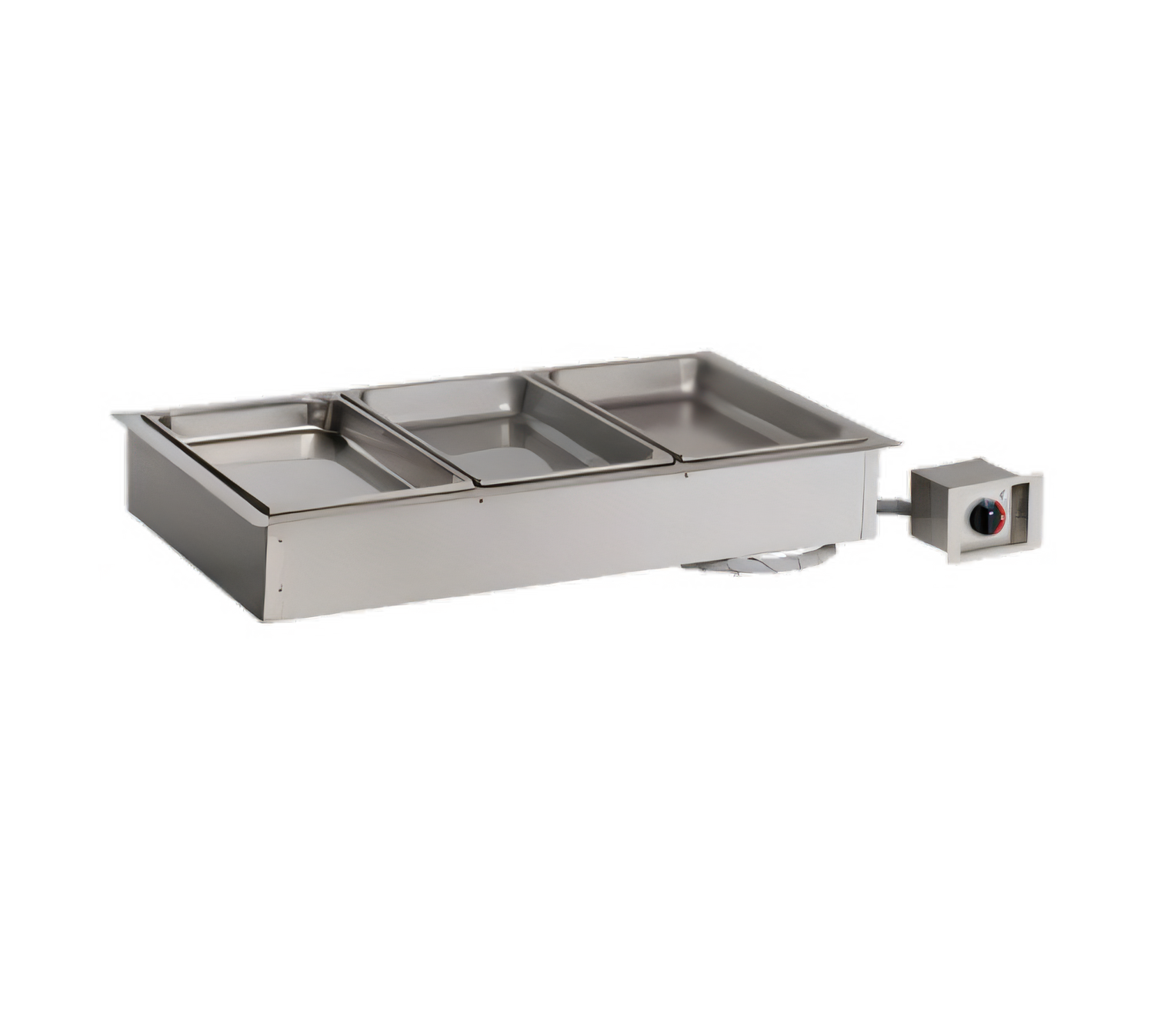

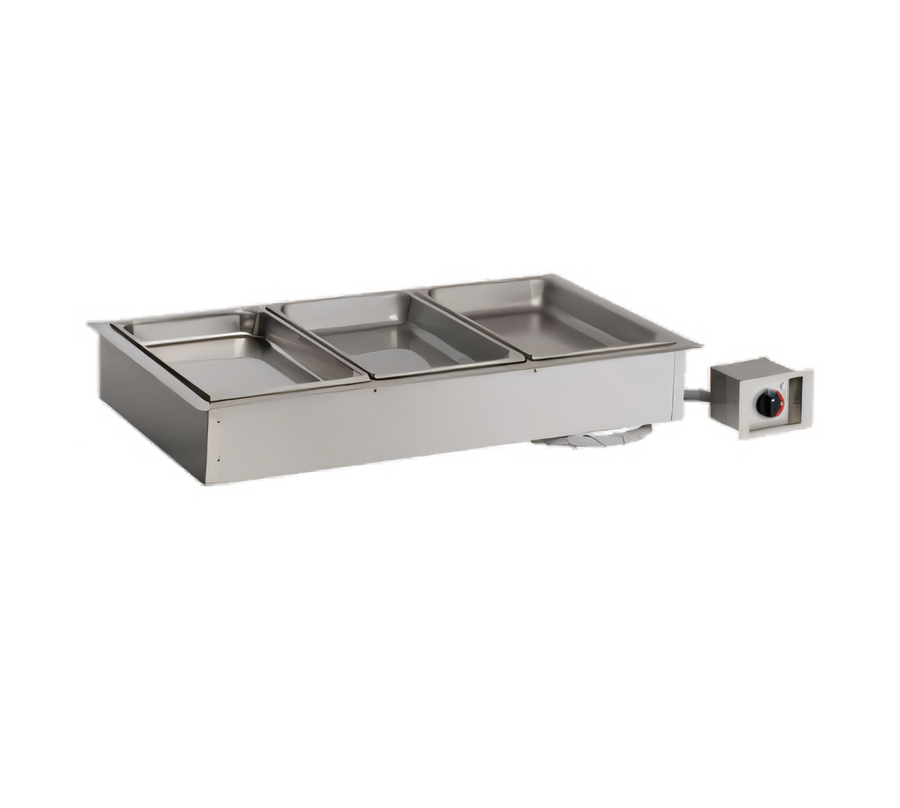

Alto-Shaam Halo Heat® 300-HW/D6 Waterless Hot Food Well

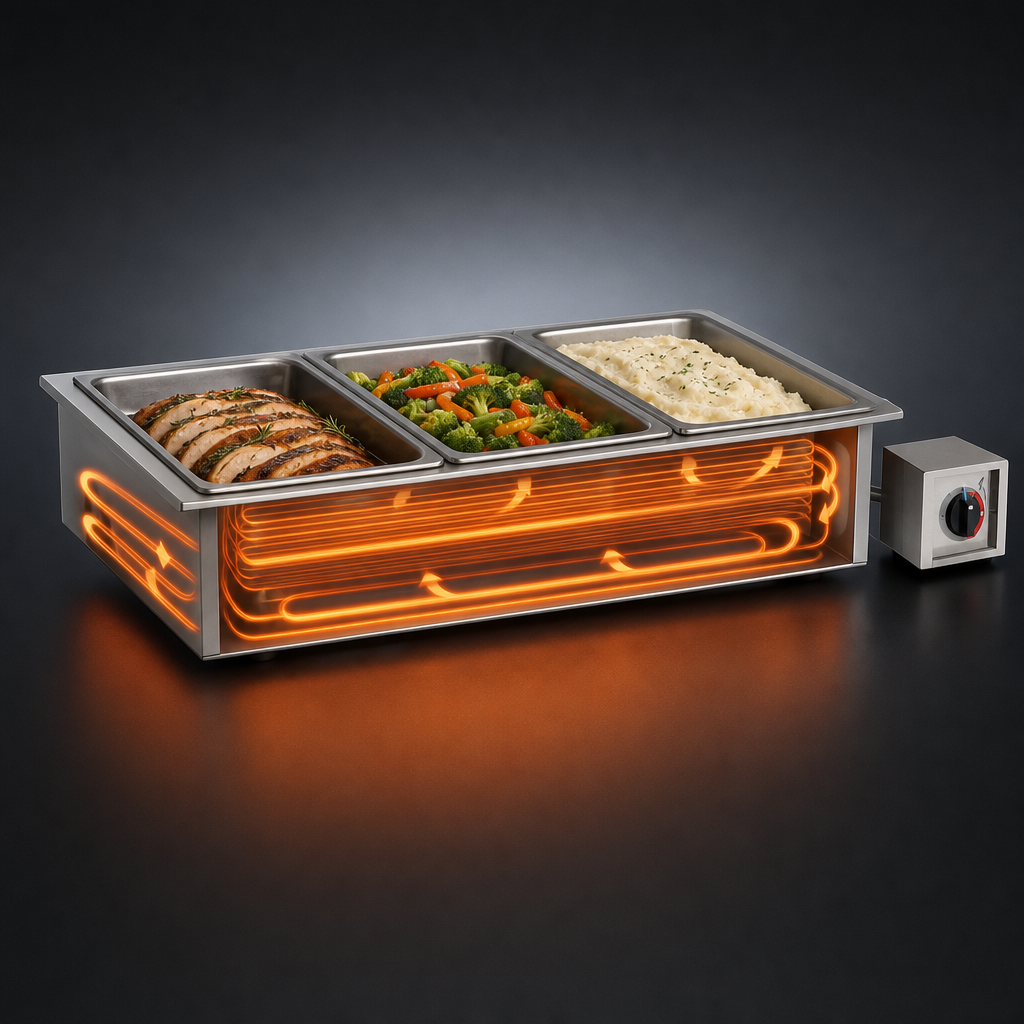

Drop-In • 3 × Full-Size Pans • 6-in Deep • EcoSmart® EfficiencyDeliver consistently hot, freshly-tasting food without the hassles of steam tables. The Alto-Shaam 300-HW/D6 uses patented Halo Heat® technology to gently surround pans with radiant heat—no water, plumbing or fans required. Lower utility costs, extend hold times and give customers the quality they expect.
Why You’ll Love It- Waterless Halo Heat® radiant system eliminates lime/scale and costly plumbing.
- Even temperature profile from corner to corner; reduces drying, scorching and waste.
- Holds three 12 × 20 in (GN 1/1) pans up to 6 in deep—or mix & match smaller pans with the supplied divider bars.
- Includes 6 half/third-size and 2 large pan divider bars for limitless menu flexibility.
- Flush-mount adjustable thermostat keeps controls hidden from guests but close at hand for staff.
- Durable all-stainless-steel well and flange for easy cleaning and years of service.
- EcoSmart® design draws as little as 1.4 kW, cutting energy consumption versus traditional steam wells.
- cULus, UL EPH Classified, CE, IPX3 & TUV NORD listed for worldwide peace of mind.
| Model | 300-HW/D6 |
|---|---|
| Pan Capacity | 3 full-size 12 × 20 in • 6 half-size • 9 third-size* |
| Well Depth | 6-3/8 in (162 mm) |
| Exterior (H × W × D) | 9-1/4 in × 40-15/16 in × 23-1/8 in (234 × 1039 × 586 mm) |
| Cut-Out (non-combustible) | 39-13/16 in × 22-1/8 in (1011 × 562 mm) |
| Net Weight | 61 lb (28 kg) |
| Electrical |
120 V / 1 ph / 15 A / 1.8 kW – NEMA 5-20P 208-240 V / 1 ph / 6.5–7.5 A / 1.4–1.8 kW – NEMA 6-15P 230 V / 1 ph / 7.8 A / 1.8 kW – CEE 7/7 plug |
| Construction | Stainless steel well, flange & housing |
| Warranty | 1-year parts & labor |
*Capacities based on 2-1/2–4 in pan depth; this unit accepts pans up to 6 in deep.
Perfect For- Supermarket & c-store hot bars
- Hotel breakfast buffets
- College & corporate cafeterias
- Catering drop-off stations
- Any operation looking to eliminate steam table maintenance
- (1) Halo Heat® waterless hot food well – model 300-HW/D6
- (6) Half/third-size pan divider bars
- (2) Large pan divider bars
- 9 ft (2.7 m) power cord with applicable plug
Important: Food pans are sold separately. Unit must be installed in a cut-out that meets the published dimensions and clearances.
