Alto-Shaam 300-HW/D443 Halo Heat Steam Tables & Food Wells
Description

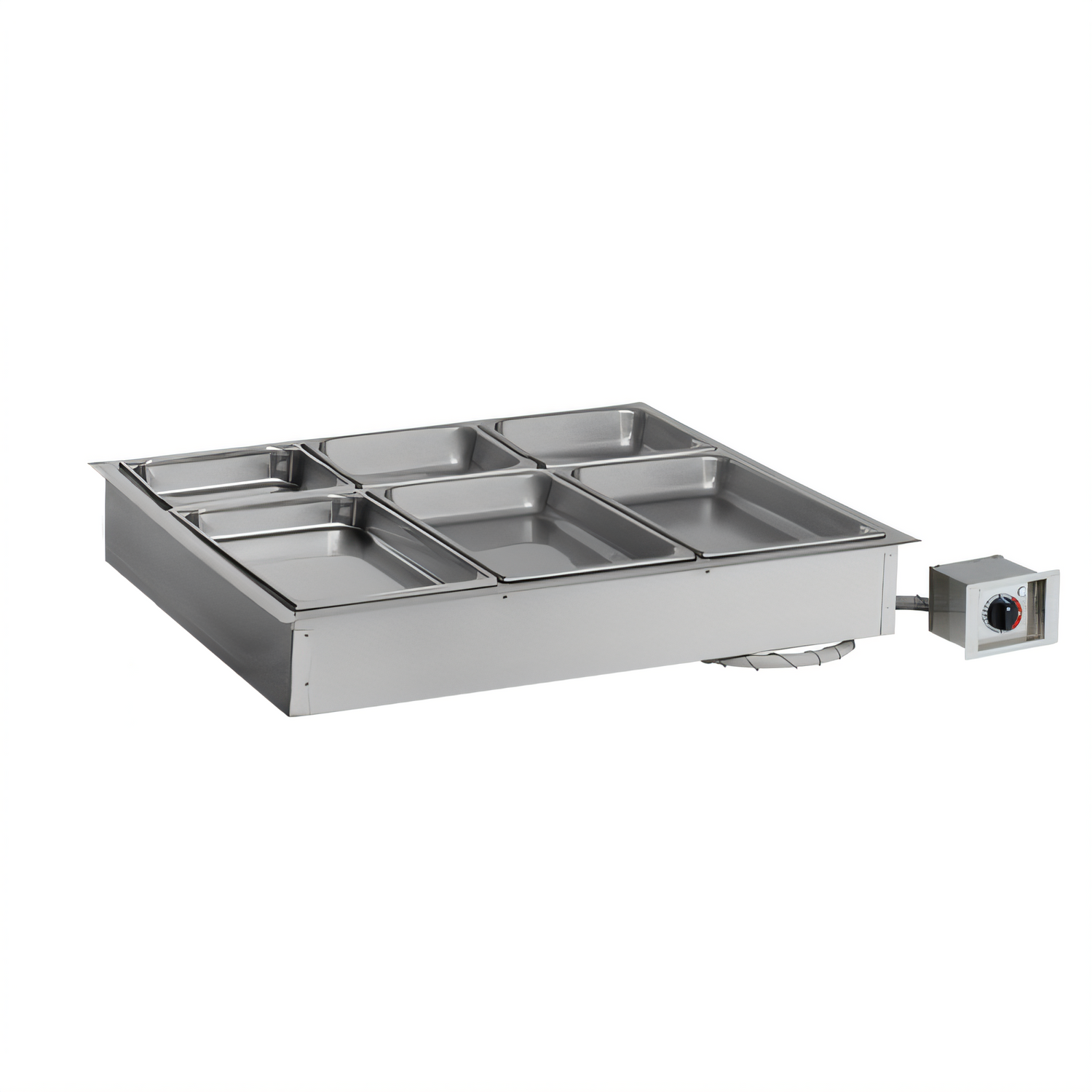

Alto-Shaam 300-HW/D443 Halo Heat® Drop-In Hot Food Well
Waterless • 3 Full-size + 3 Third-size Pan Capacity • EcoSmart®Serve every dish at its absolute best with Alto-Shaam’s patented Halo Heat® technology. The 300-HW/D443 drop-in hot well delivers gentle, even radiant heat—no water, steam or fans—so your food stays fresh, colourful and delicious for hours while you slash utility and maintenance costs.
Why you’ll love it

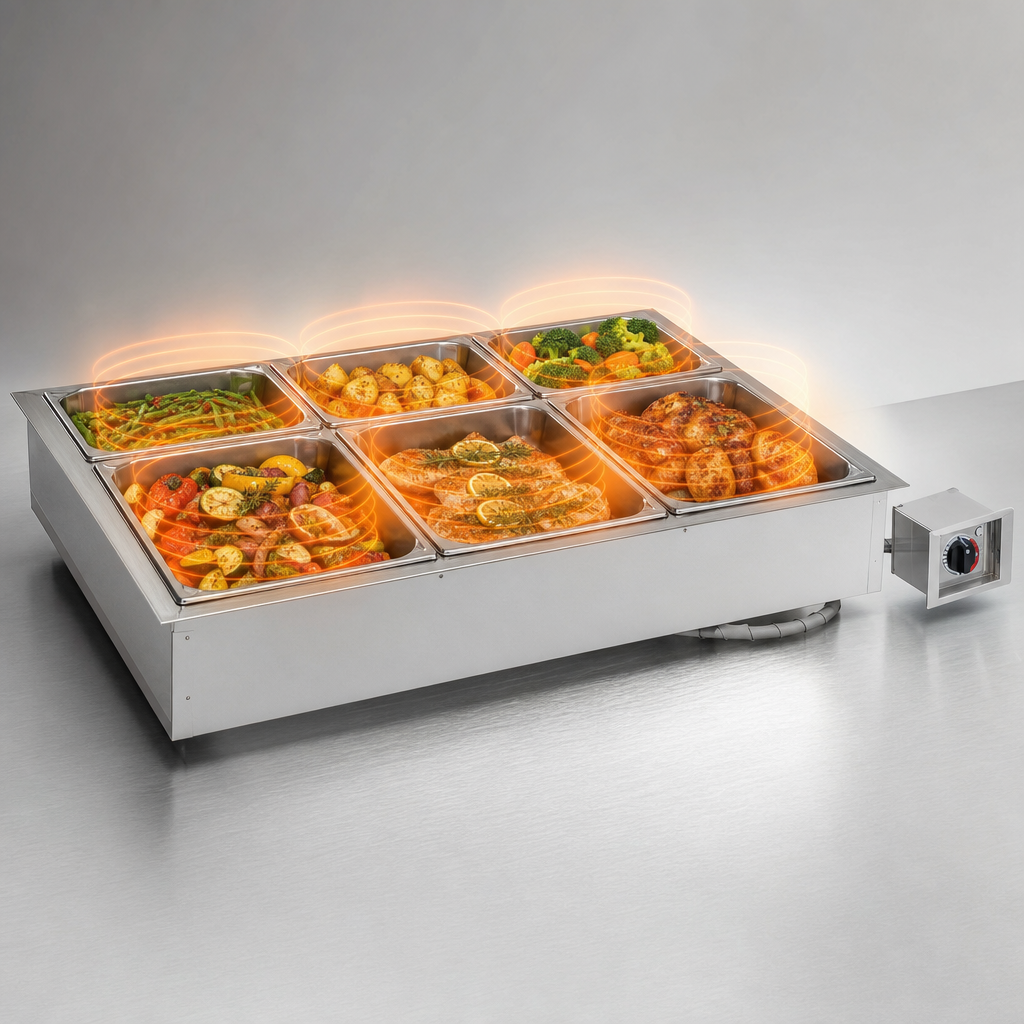

- Waterless Halo Heat® surrounds food with uniform radiant warmth—no hot spots or drying out.
- Flexible layout fits (3) 12" × 20" full-size pans, (6) half-size pans or up to (12) 1/3-size pans.
- Includes (9) half/third-size and (2) large divider bars for limitless pan configurations.
- 4-3/8" deep well holds standard 4" (100 mm) pans; also accepts 2 ½" deep pans.
- Adjustable thermostatic controller (flush-mountable) lets you dial in the perfect holding temperature for any menu item.
- All-stainless-steel construction with IPX3 splash protection stands up to the toughest commercial kitchens.
- No plumbing required—eliminates lime/scale build-up and reduces installation cost.
- EcoSmart® design draws only 0.07 kW of heat gain (243 BTU/hr) for lower HVAC load and energy bills.
Pan capacity at a glance
| Full-size 12" × 20" | 3 pans |
|---|---|
| Half-size 12" × 10" | 6 pans |
| Third-size 12" × 6" | 12 pans (or 3 when combined with 3 full-size) |
| Maximum product load* | 96 lb / 43.5 kg | 56.6 qt / 53.3 L |
*Based on 4" deep pans.
Technical specifications
| Model | 300-HW/D443 |
|---|---|
| Exterior (H × W × D) | 7-5/16" × 40-15/16" × 30-3/16" (185 × 1039 × 765 mm) |
| Interior well (H × W × D) | 4-3/8" × 37-7/8" × 27-1/4" (111 × 962 × 691 mm) |
| Net weight | 68 lb (31 kg) |
| Electrical |
120 V, 1Φ, 50/60 Hz, 20.3 A, 2.4 kW – NEMA L5-30P plug 208-240 V, 1Φ, 50/60 Hz, 8.8-10.1 A, 2.4 kW – NEMA L6-15P plug 230 V, 1Φ, 50/60 Hz, 10.6 A, 2.4 kW – CEE 7/7 plug |
| Certifications | cULus, UL EPH Classified, CE, IPX3, TUV NORD |
| Eco rating | EcoSmart® |
What’s in the box
- (9) Half/third-size pan divider bars – part #11318
- (2) Large pan divider bars – part #16019
- Remote control box with thermostatic dial and 9 ft (2.7 m) cord
- Installation & operation manual
Peace-of-mind warranty
Alto-Shaam backs your hot well with a one-year parts & labor warranty (15 months from ship date), plus outstanding technical support directly from the manufacturer.
