Alto-Shaam  |  EcoSmart  |  SKU: 300-CW/R

Alto-Shaam 300-CW/R EcoSmart Steam Tables & Food Wells

$5,815.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - spanish Spec sheet - ul Spec sheet - french canadian Terms & conditions Warranty sheet Warranty sheet
Related Searches
Alto-Shaam Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

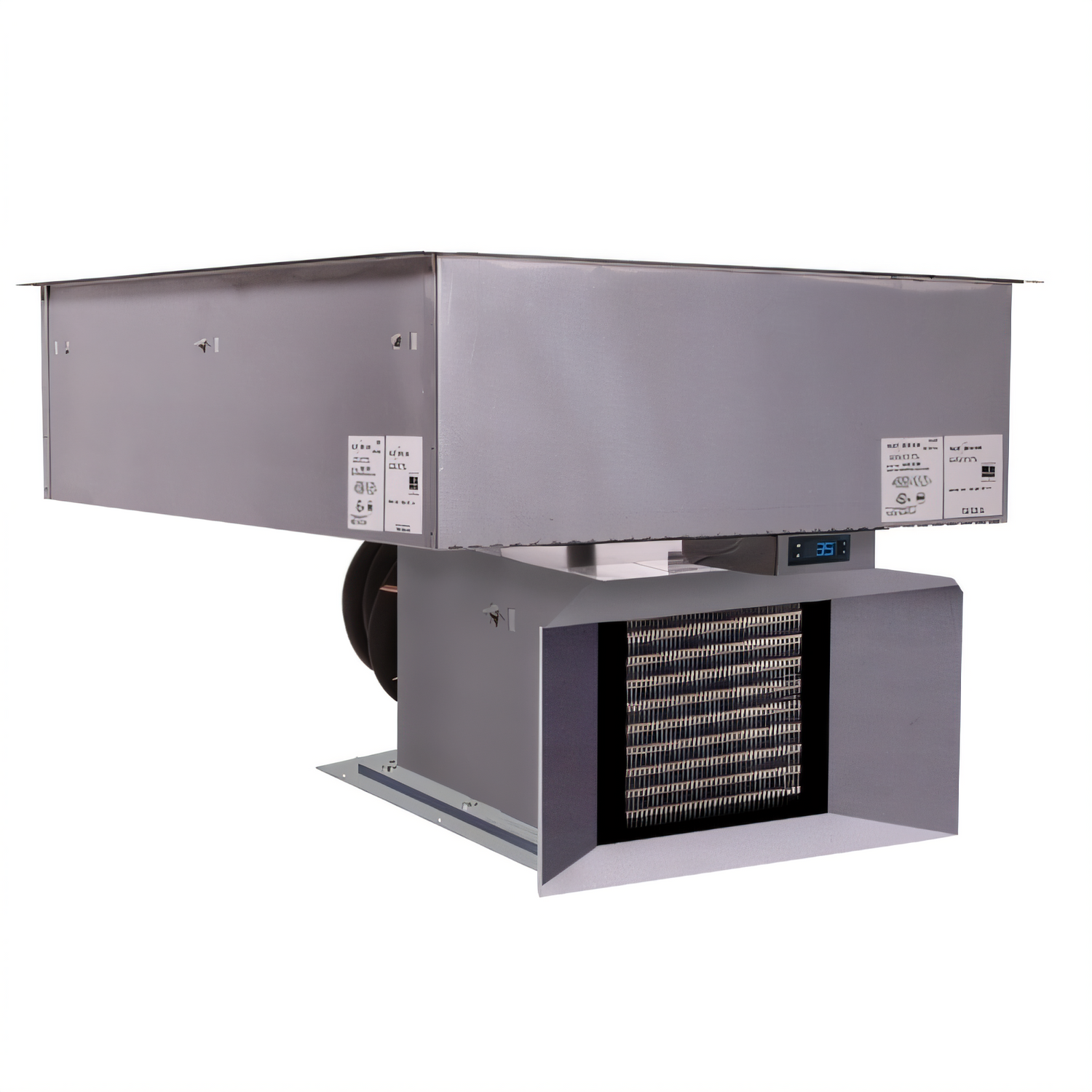

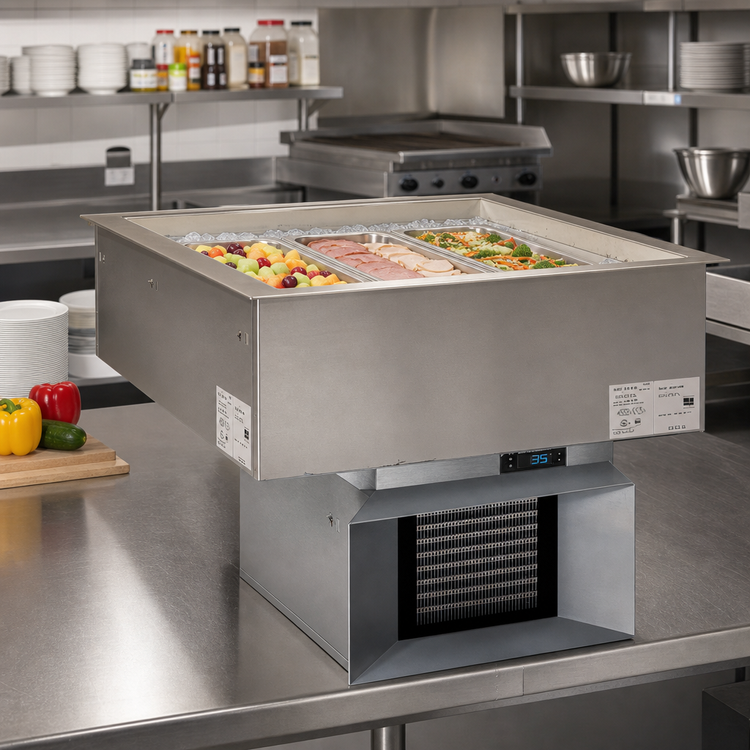

Alto-Shaam EcoSmart 300-CW/R Drop-In Refrigerated Cold Well

Remote-compressor, 3-pan, cold-wall performance for premium presentation

Safely hold salads, desserts, garnishes and grab-n-go favorites at 41 °F (5 °C) or below without the drying effect of forced air. The EcoSmart cold-wall system gently envelops pans in conductive chill, maintaining fresh appearance and flavor for hours while reducing operating costs.

Why you’ll love it

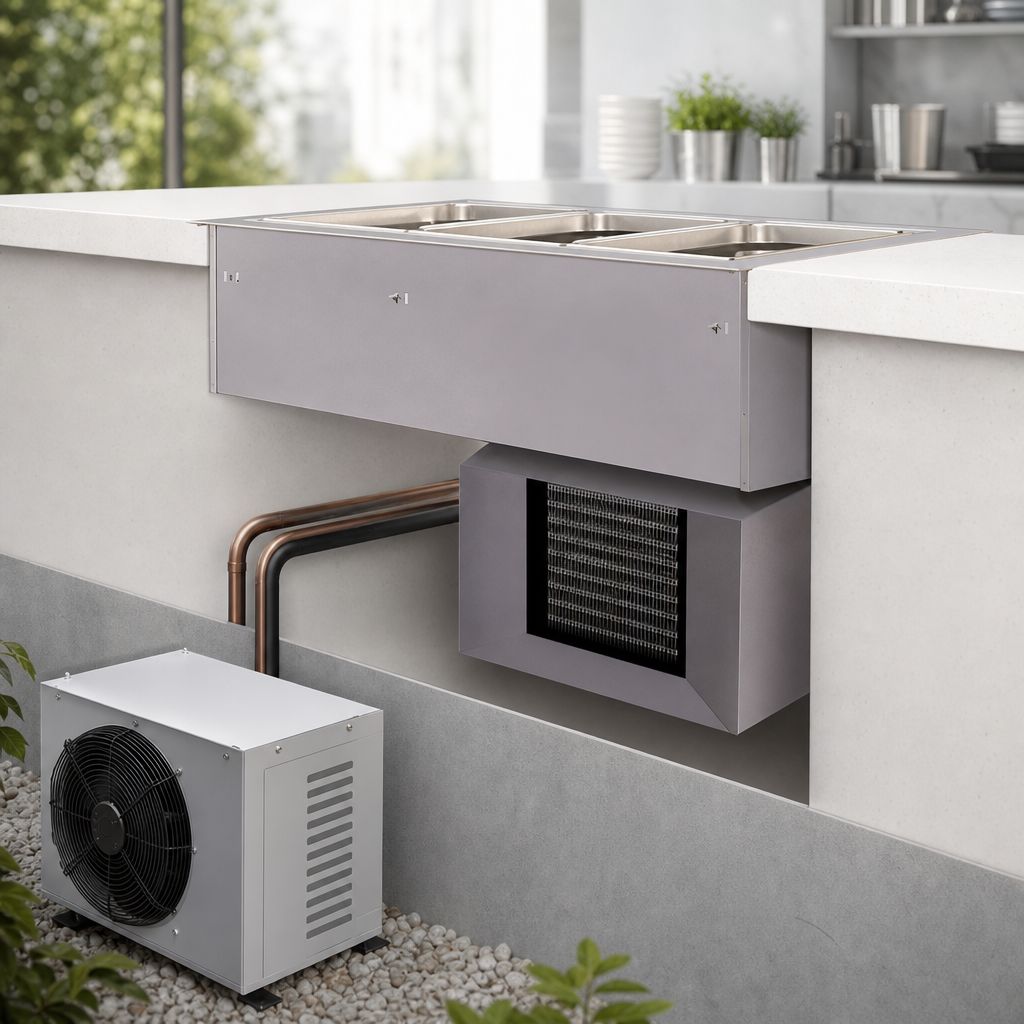

  • Remote refrigeration design keeps heat and noise out of the serving area (remote condensing unit required, sold separately).
  • Cold-wall conductive cooling – no fans, no drafts, no product dehydration.
  • Digital thermostat for precise, adjustable holding temperature.
  • NSF 7 certified to hold food at or below 41 °F (5 °C).
  • Room for three full-size 12" × 20" pans up to 6" deep (pans not included).
  • Includes four 20" pan divider bars to support fractional pans.
  • 6-1/4" deep stainless-steel well with coved corners for easy cleaning.
  • CFC-free foamed-in-place insulation locks in cold and saves energy.
  • Corrosion-resistant exterior and recessed stainless pan ledge for a polished built-in look.
Quick specs
Brand / Model Alto-Shaam EcoSmart 300-CW/R
Capacity (3) full-size 12" × 20" pans | 108 lb (48.9 kg) max product
Well Depth 6-1/4" (159 mm) – accepts 2-1/2", 4" or 6" pans
Exterior Dimensions 25-5/16" H × 44-1/4" W × 27" D (643 × 1124 × 686 mm)
Countertop Cut-out 42-3/4" L × 25-1/2" W (1085 × 648 mm)
Electrical 115 V / 60 Hz / 1-ph, 600 W, 5 A, 9' cord, NEMA 5-15P
Remote Refrigeration Requires low-temp compressor, -10 °F suction, 700 BTU load (not included)
Certifications cULus, NSF 7, EcoSmart
Warranty 1-yr parts & labor on unit; 5-yr compressor (with registration)
Ideal applications
  • Buffets and salad bars
  • Convenience stores & grab-and-go merchandising
  • Corporate & campus dining
  • Stadiums and concessions
Installation note: Unit must be installed level in a water-resistant countertop with adequate clearance for the dual-air movement louver. Remote condensing unit, drain line, and water catch basin are required and not supplied.

Need a self-contained version? Search for Alto-Shaam model 300-CW.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

EcoSmart

Certifications

NSF, cULus

Height

27.5in

Width

44.25in

Depth

27.0in

Layout

straight

Finish

corrosion resistant steel exterior

Style

remote refrigeration (no compressor)

Pan Qty

3-pan

Width (side - side)

43 - 48 inches

Insulation

insulated

Pan Size

full-size (12" x 20")

Specifications

Coldwell Drop-in Refrigerated Cold Display Unit, designed for remote refrigeration, includes thermostatic control and (4) pan divider bars for side support, (3) 12" x 20" full-size pan capacity (pans NOT included), 6-1/4" deep well, holds 6" deep pans, EcoSmart®, 600 watts, 115v/60/1, 5.0 amps, 9' cord, NEMA 5-15P, cULus, NSF
