Alto-Shaam 300-CW EcoSmart Steam Tables & Food Wells
Description

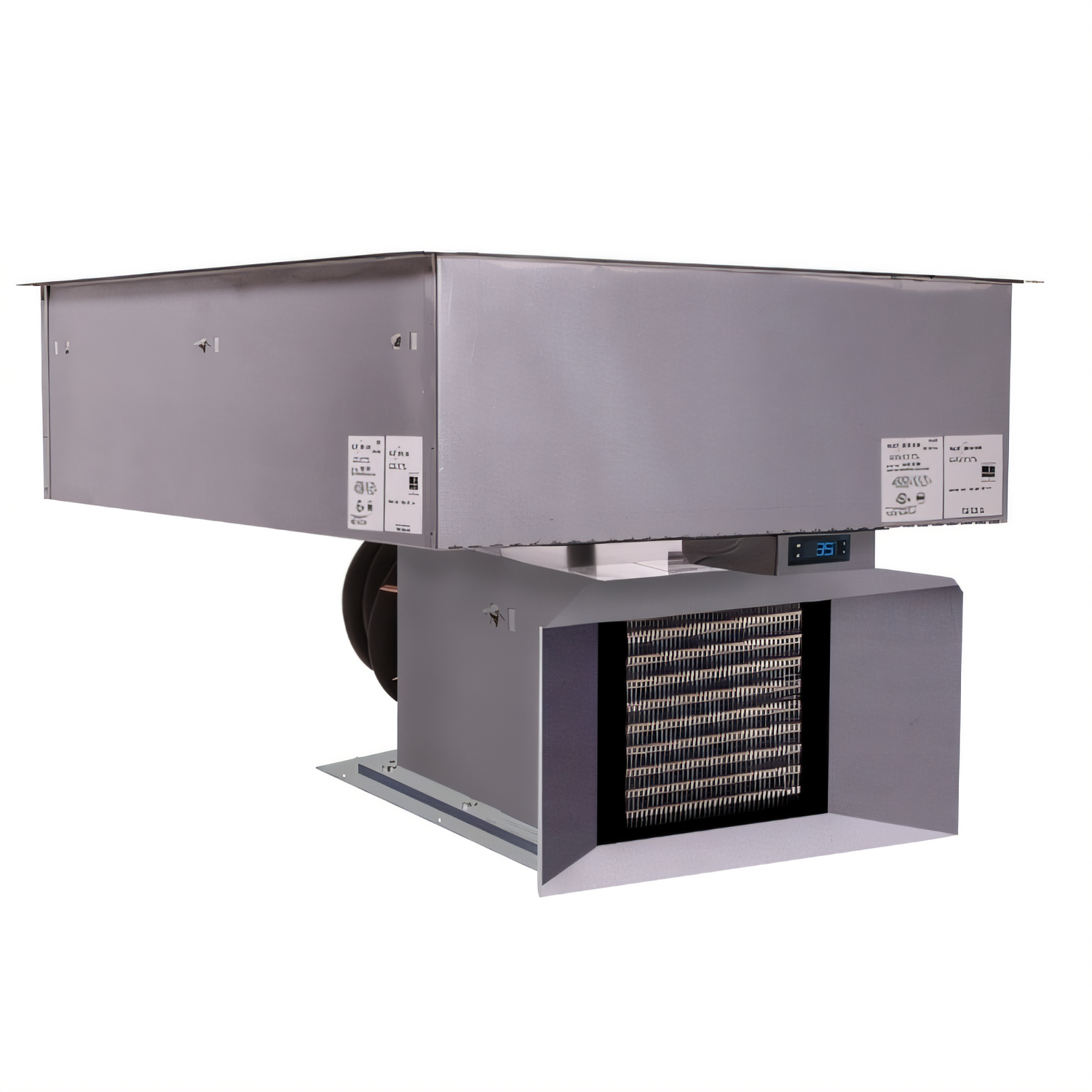

Alto-Shaam EcoSmart® 300-CW Drop-In Refrigerated Cold Well
Self-Contained • 3 Full-Size Pan Capacity • Natural R-290 RefrigerantKeep salads, deli items, desserts and more safely below 41°F (5°C) without the drying effects of forced air. Alto-Shaam’s cold-wall conductive cooling and digital temperature control deliver consistent, energy-smart performance in a space-saving, drop-in design that integrates seamlessly into any counter line-up.
Why You’ll Love It
- Cold-wall refrigerated well—no fans blowing across food, so moisture and presentation stay intact.
- EcoSmart® 1/4 hp self-contained system uses natural R-290 refrigerant for lower GWP and faster pull-down.
- Digital thermostat with easy-read display lets you dial in and hold the perfect temperature.
- Corrosion-resistant steel exterior with CFC-free foamed-in-place polyurethane insulation.
- Sliding shroud and dual air-movement louver optimize airflow; louver panel can rotate 90° for flexible installation.
- (4) included pan divider bars support multiple pan configurations.
- NSF Std. 7 certified for holding cold foods at or below 41°F; cULus listed for electrical safety.
- Ships ready to plug in—NEMA 5-15P with 9 ft (2.7 m) cord.
Pan Capacity & Depth
- 3 × full-size 12" × 20" (GN 1/1) pans (pans not included)
- 6 × half-size (GN 1/2) pans
- 9 × third-size (GN 1/3) pans
- Well depth: 6-1/4" – designed for 6" deep pans
- Maximum product load: 108 lb • 66 qt
Technical Specifications
| Exterior (H × W × D) | 25-5/16" × 44-1/4" × 27" (643 × 1124 × 686 mm) |
|---|---|
| Interior Well (H × W × D) | 8-3/4" × 39-1/4" × 21-7/8" (222 × 997 × 556 mm) |
| Counter Cut-Out (L × W) | 42-3/4" × 25-1/2" (1085 × 648 mm) |
| Electrical | 115 V / 60 Hz / 1 ph • 5.0 A • 600 W (0.6 kW) |
| Power Connection | NEMA 5-15P, 9 ft (2.7 m) cord |
| Compressor | 1/4 hp, self-contained, R-290 refrigerant |
| Net Weight | 210 lb (95 kg) |
| Certifications | cULus, NSF 7, EcoSmart® |
Installation Notes
- Countertop material must be water-resistant and level.
- Provide at least 3/4" (19 mm) clearance between wells for cleaning; 4" (102 mm) clearance in front of the louver for airflow.
- A water drain or catch basin is required beneath the well.
- Unit is not designed for outdoor use or installation under exhaust hoods or 4-way ceiling diffusers.
Peace-of-Mind Warranty
1-year parts & labor coverage plus 5-year compressor warranty from Alto-Shaam.
