Alto-Shaam  |  Halo Heat  |  SKU: 200-HWLF/D6

Alto-Shaam 200-HWLF/D6 Halo Heat Steam Tables & Food Wells

$2,714.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Spec sheet - spanish Spec sheet - ul Terms & conditions Spec sheet - ce Spec sheet - french canadian Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

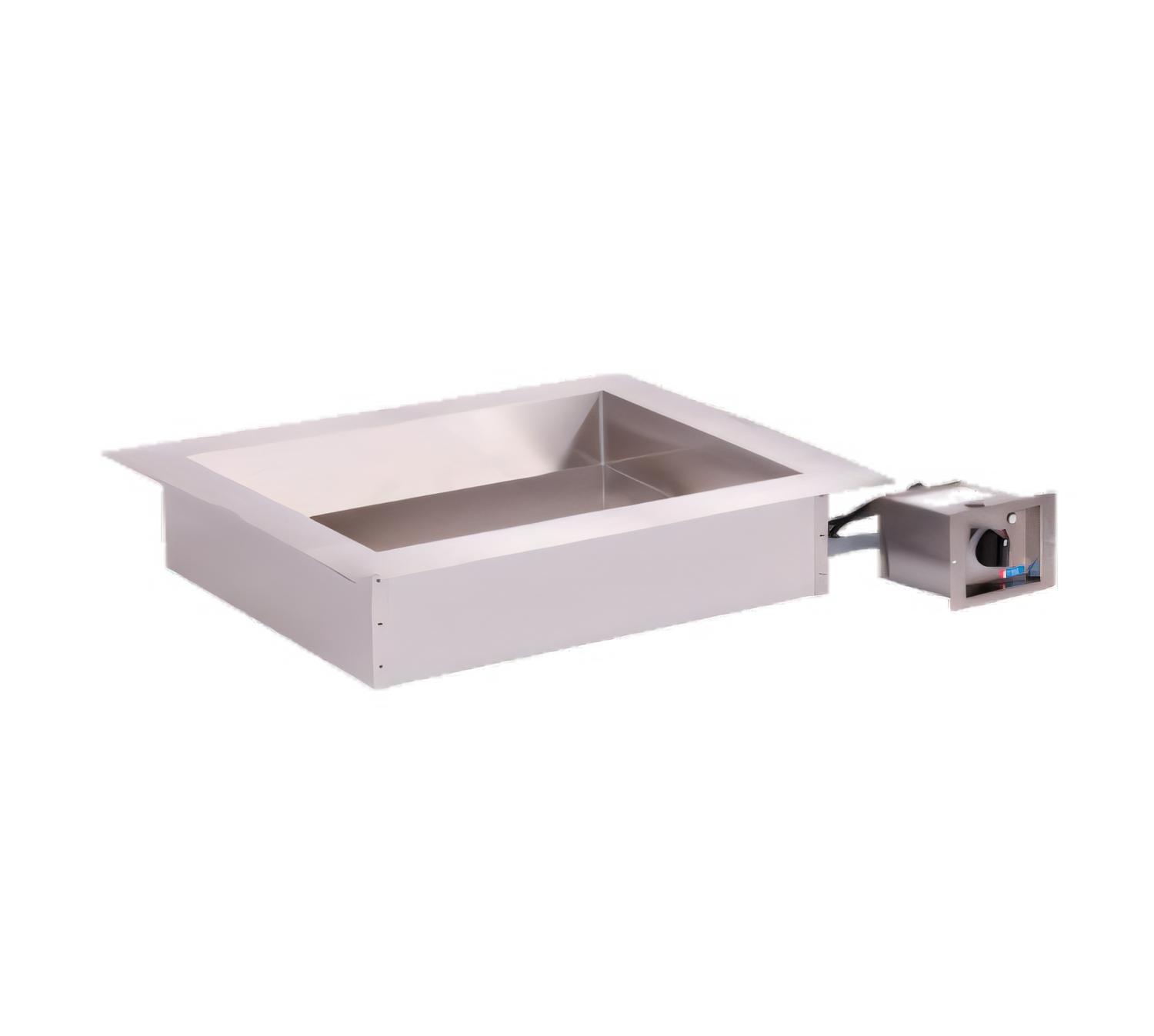

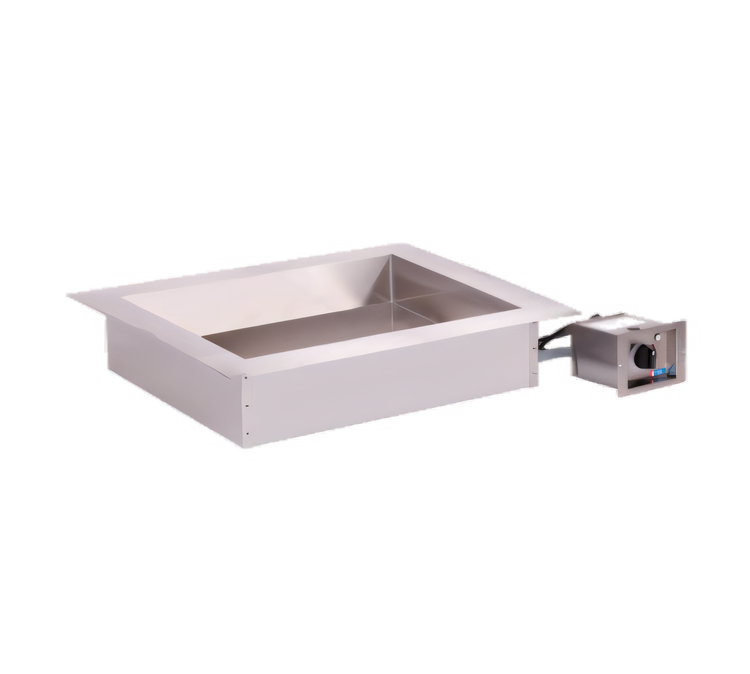

Alto-Shaam Halo Heat® Waterless Hot Food Well – Large Flange, 2 Pan, Drop-In (Model 200-HWLF/D6)

Electric • EcoSmart® • Stainless Steel • 6-3/8" Deep Well

Serve every guest the very first-bite experience—hours after cooking—without the mess, cost or safety concerns of steam. Alto-Shaam’s large-flange Halo Heat® drop-in well surrounds food with gentle, even radiant heat that locks in freshness and flavour while slashing water, energy and maintenance costs.

Key benefits

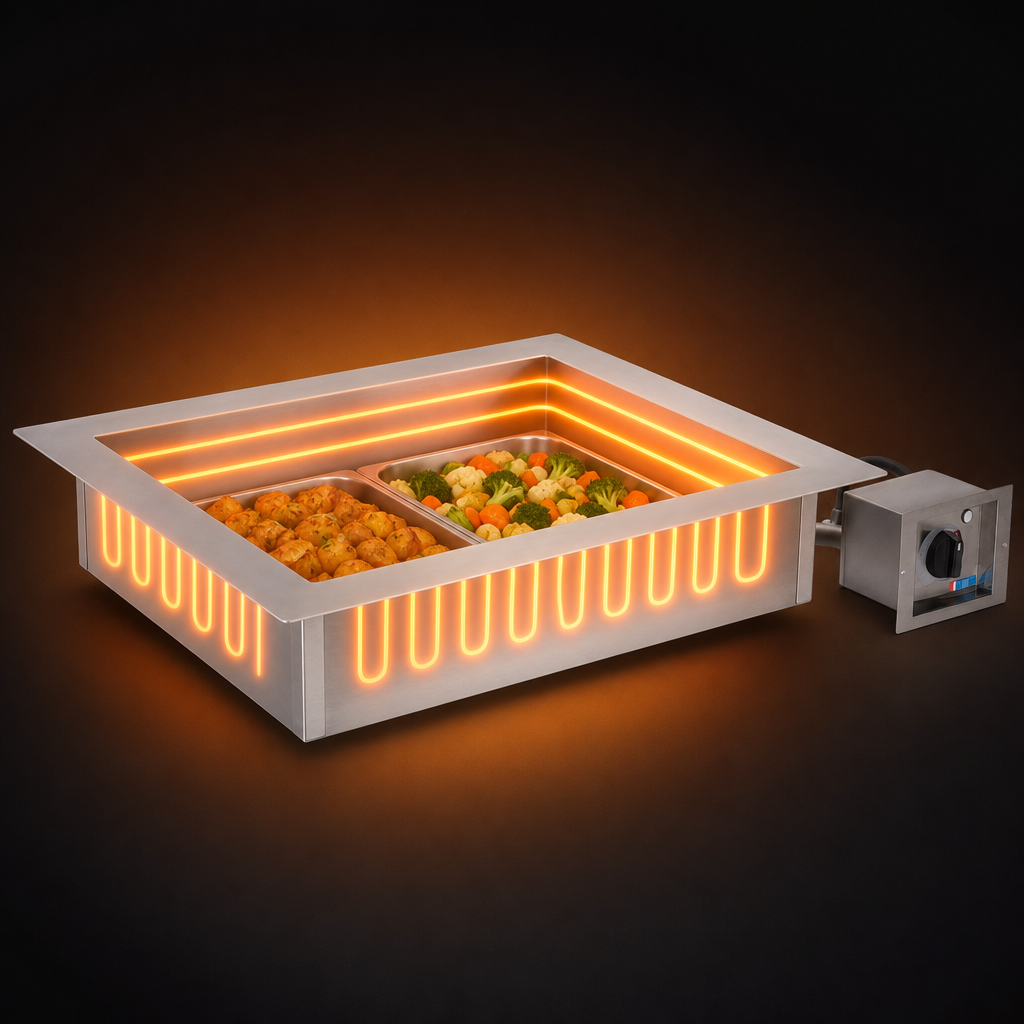

  • Waterless Halo Heat® technology—no fans, steam or added humidity needed.

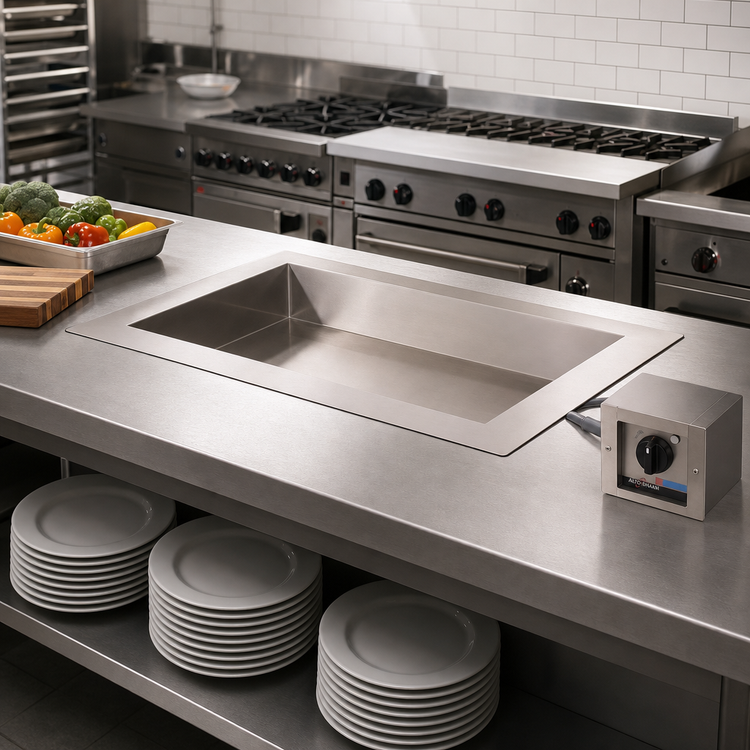

  • Large, 1-piece flange conceals cut-outs for a clean, professional installation.
  • Holds two 12" × 20" full-size pans up to 6" deep; mix & match with the included divider bars.
  • Adjustable, flush-mount thermostat delivers precise holding temperatures for any menu item.
  • EcoSmart® design draws only 1.2 kW (120 V), cutting energy use up to 30 % versus steam tables.
  • All-stainless construction resists corrosion and wipes clean fast.
  • No water lines, drains or descaling—eliminate lime/scale build-up and related service calls.
  • Certified cULus, UL EPH Classified, CE, IPX3 & TÜV NORD for worldwide compliance.

What’s included

  • (1) 200-HWLF/D6 drop-in well with control box
  • (4) Half/third-size pan divider bars
  • (1) Large pan divider bar
  • Installation & operation manual

Food pans are shown for illustration only and are not included.

At-a-glance specifications

Pan capacity 2 × 12" × 20" full-size • 4 half-size • 6 third-size
Well depth 6-3/8" (162 mm)
Exterior (H × W × D) 9-1/4" × 31-3/8" × 27-1/16" (234 × 796 × 686 mm)
Interior (H × W × D) 6-3/8" × 25" × 20-3/16" (162 × 635 × 512 mm)
Net weight 48 lb (22 kg)
Electrical 120 V, 208–240 V or 230 V • 1 ph • 50/60 Hz • 1.2 kW
Max product load 72 lb (33 kg) / 44 qt (42 L)
Certifications EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TÜV NORD
Warranty 1-year parts & labour (see warranty tab)
Installation note: Unit must be installed level in a non-combustible counter top. Allow 6" (152 mm) clearance from the control box to the conduit bend. Refer to the specification sheet for exact cut-out dimensions and electrical requirements.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

9.25in

Width

31.38in

Depth

27.06in

Shipping Weight

110.0lbs

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

without drain

Wet or Dry operation

dry

Pan Capacity

(2) full size (12" x 20")

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit with large flange, Drop-In, Electric, (2) 12" x 20" full-size pan capacity (pans NOT included), 6-3/8" deep well, holds 6" deep pans, includes (4) half/third-size & (1) large pan divider bars, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
