Alto-Shaam  |  Halo Heat  |  SKU: 200-HWLF/D4

Alto-Shaam 200-HWLF/D4 Halo Heat Steam Tables & Food Wells

$2,426.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - spanish Spec sheet - ce Owner's manual Spec sheet - french canadian Terms & conditions Spec sheet - ul Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

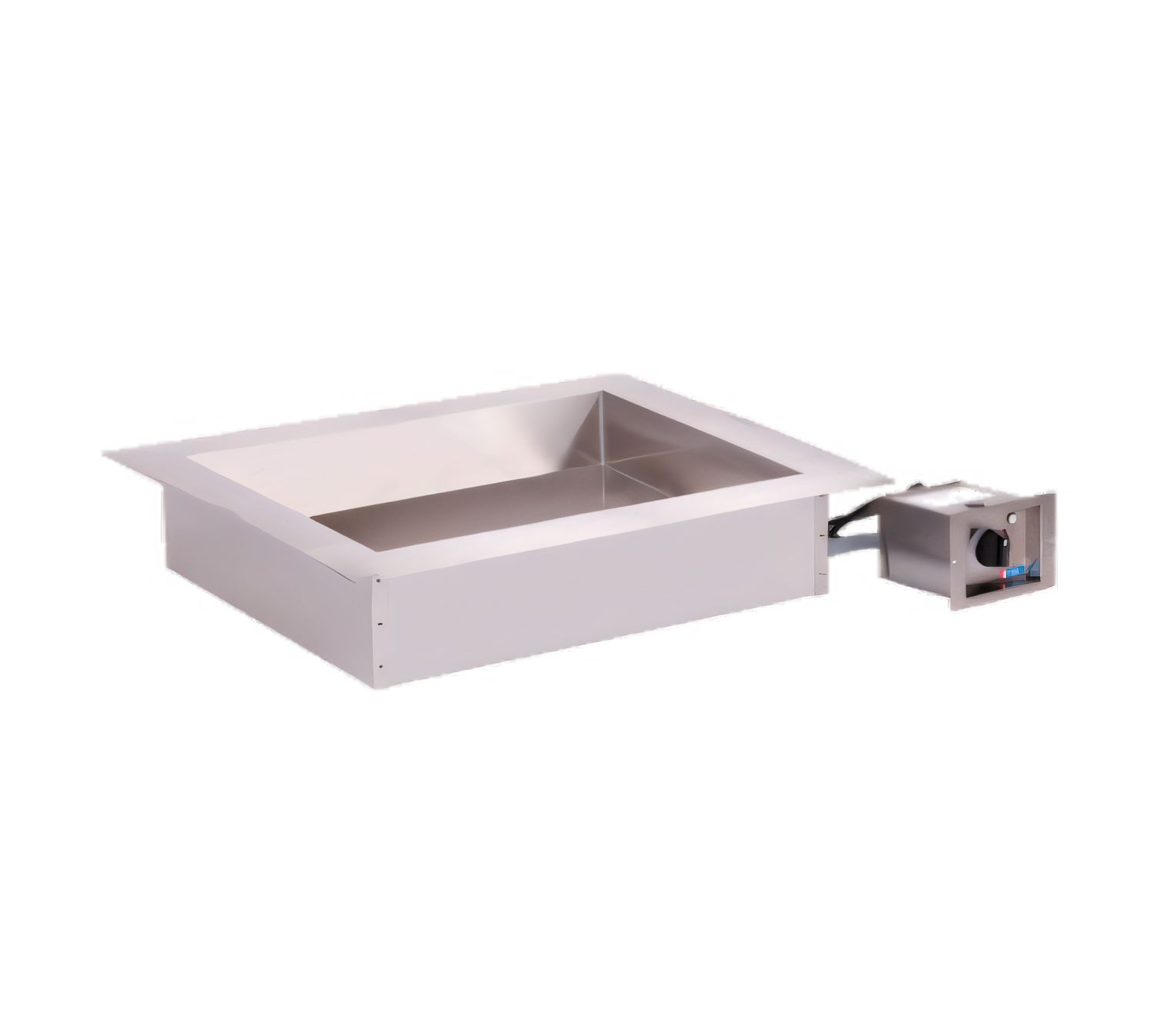

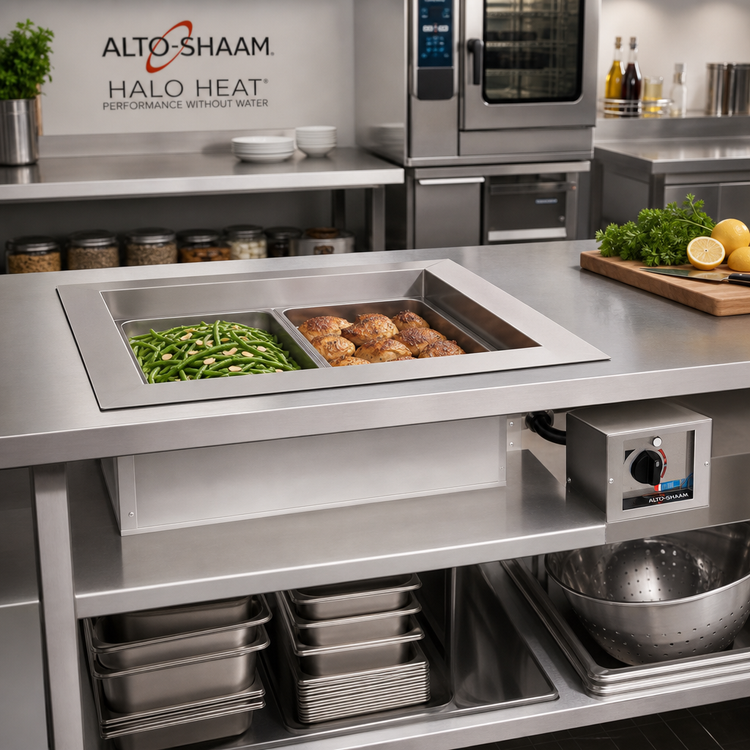

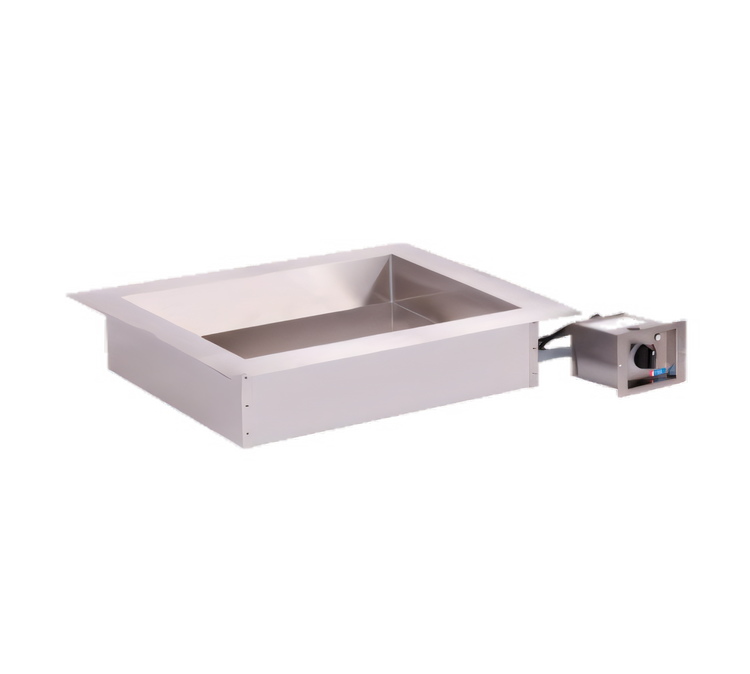

Alto-Shaam Halo Heat® Waterless Hot Food Well – Large Flange, 2-Pan (200-HWLF/D4)

Drop-in, electric hot food well with patented Halo Heat® precision holding

Upgrade your serving line with Alto-Shaam’s EcoSmart® 200-HWLF/D4 hot food well. Using gentle, waterless Halo Heat® technology instead of steam, this large-flange, 2-pan well delivers longer hold times, lower utility costs and unbeatable food quality—no plumbing required.

Why you’ll love it

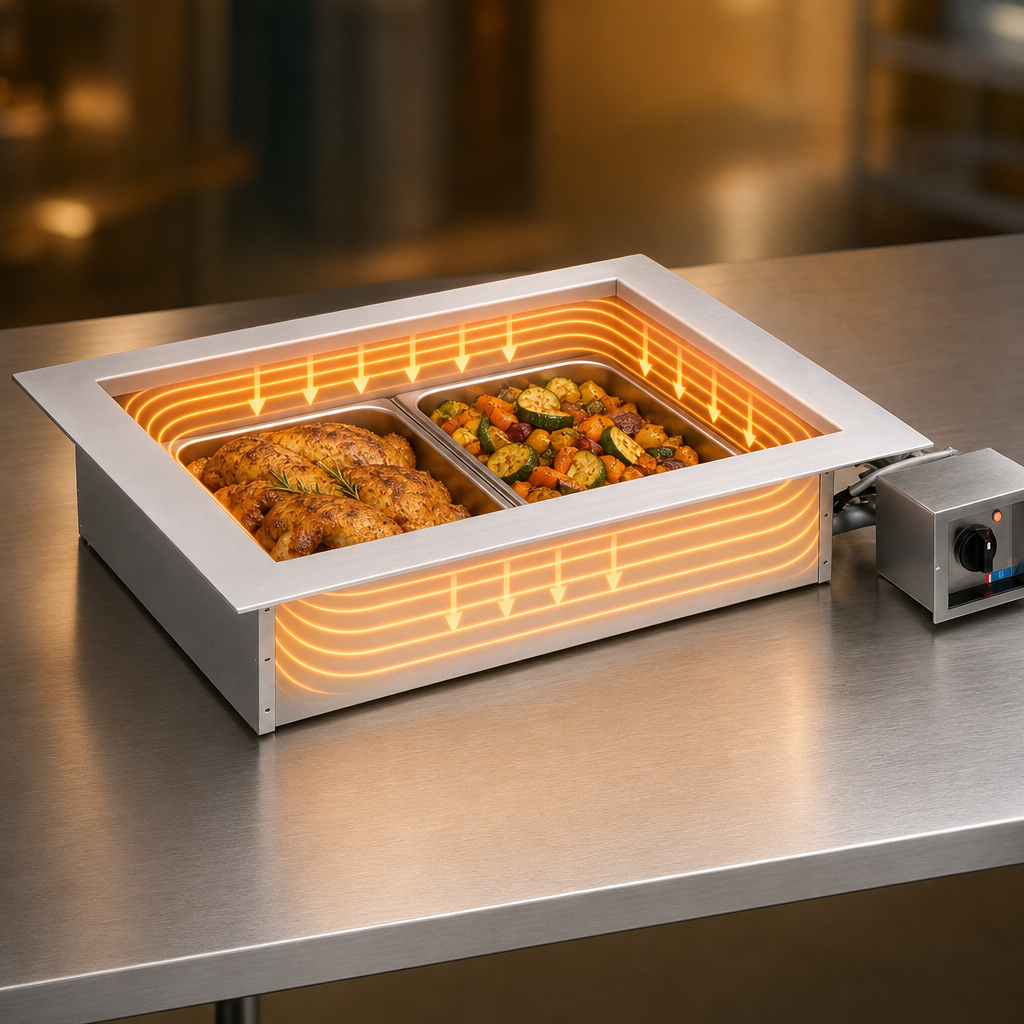

  • Waterless Halo Heat® surrounds food evenly without harsh elements, humidity or fans.
  • Large flange design drops flush into fabricated or combustible counters for a seamless look.
  • Holds two full-size 12" x 20" pans (4" deep) – or mix and match using the included divider bars (4 half/third-size & 1 large).
  • Adjustable thermostatic controller lets you set perfect holding temperatures for any menu item.
  • EcoSmart® efficiency cuts installation, energy and maintenance costs—no water lines, drains or descaling.
  • Stainless steel construction built for busy commercial kitchens; IPX3 splash-proof rating.
  • Certified safe & sanitary: cULus, UL EPH Classified, CE, TUV NORD.

At-a-glance specs

Model 200-HWLF/D4 (large flange)
Pan capacity (2) 12" x 20" full-size | (4) ½-size | (6) ⅓-size*
*Divider bars included; pans not included.
Well depth 4-3/8" (111 mm) – ideal for 4" deep pans
Exterior (H × W × D) 7-5/16" × 31-3/8" × 27-1/16" (185 × 796 × 686 mm)
Cut-out (non-combustible) 26-13/16" × 22-1/8" (681 × 562 mm)
Electrical 120 V / 1 ph / 50-60 Hz / 10 A / 1.2 kW – NEMA 5-15P plug
208-240 V / 1 ph / 50-60 Hz / 4.3-5 A / 0.9-1.2 kW – NEMA 6-15P plug
230 V / 1 ph / 50-60 Hz / 5.2 A / 1.2 kW – CEE 7/7 plug (EU/UK)
6 ft (1.8 m) cord supplied.
Net weight 43 lb (20 kg)
Certifications EcoSmart®, cULus, UL EPH, CE, IPX3, TUV NORD
Warranty 1-year parts & labor (USA/Canada)

What’s in the box

  • 200-HWLF/D4 hot food well with factory-installed control box & cord
  • (4) half/third-size pan divider bars
  • (1) large pan divider bar
  • Owner’s manual & warranty registration
Heads-up: Steam table pans are shown for reference only and are not included. Install level, with 1" (25 mm) clearance from combustible surfaces. Counter material must withstand temperatures up to 200 °F (93 °C).

EcoSmart® products are engineered to lower energy and water usage, helping you meet sustainability goals without sacrificing performance.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.31in

Width

31.38in

Depth

27.06in

Shipping Weight

100.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

without drain

Controls

thermostatic controls

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit with large flange, Drop-In, Electric, (2) 12" x 20" full-size pan capacity (pans NOT included), 4-3/8" deep well, holds 4" deep pans, includes (4) half/third-size & (1) large pan divider bars, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
