Alto-Shaam 200-HWILF/D6 Halo Heat Steam Tables & Food Wells
Description

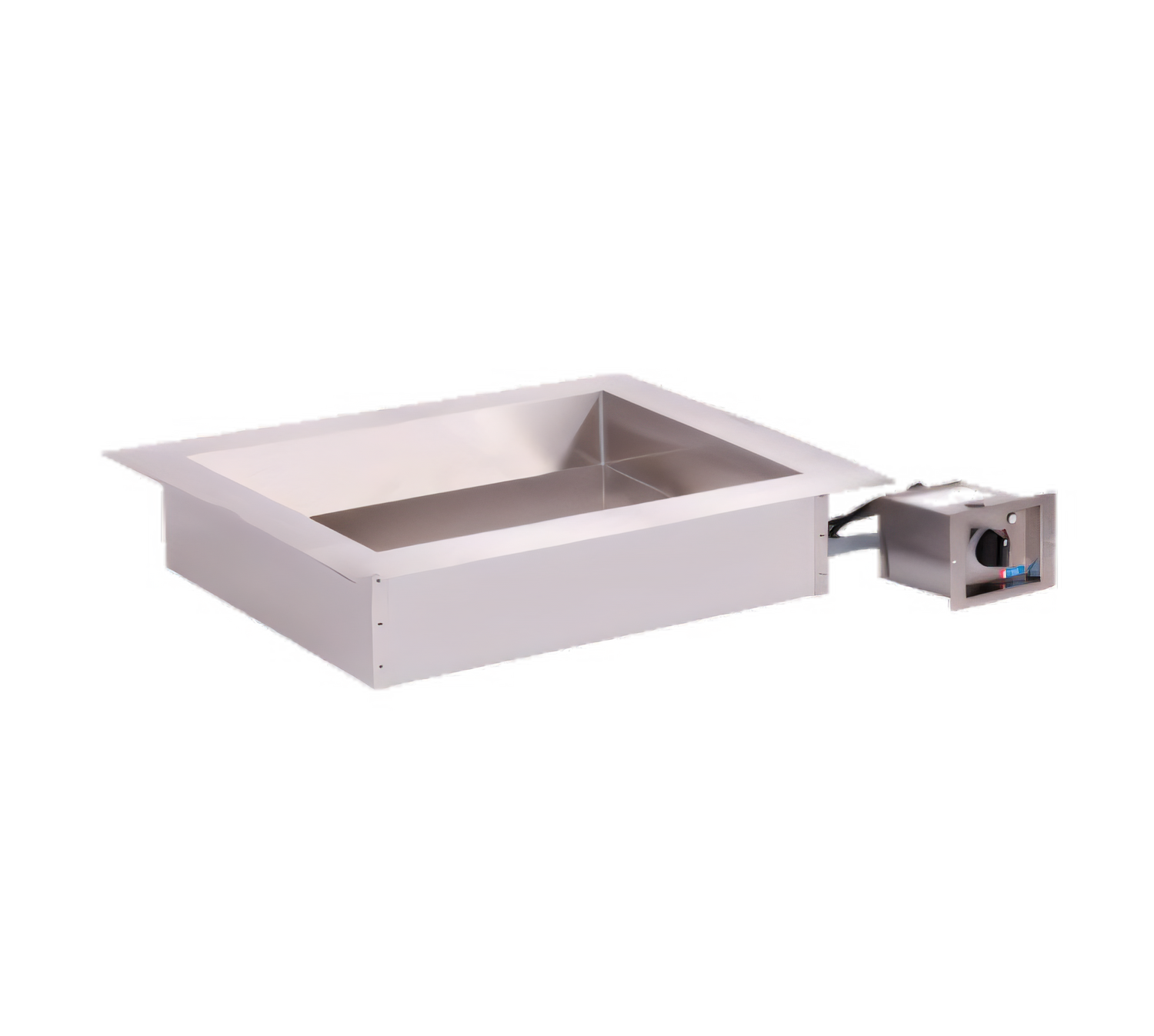

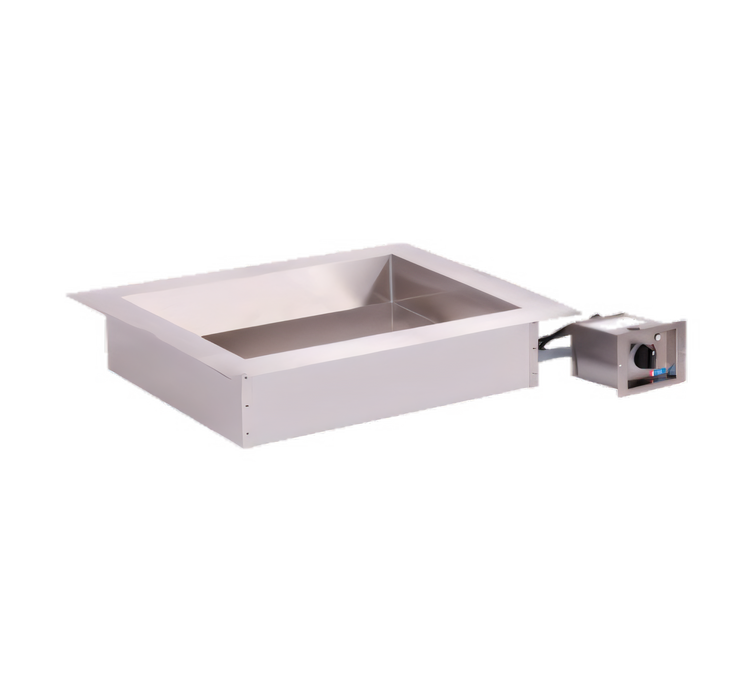

Alto-Shaam Halo Heat® Waterless Drop-In Hot Food Well – Large Flange, Dual Control (Model 200-HWILF/D6)

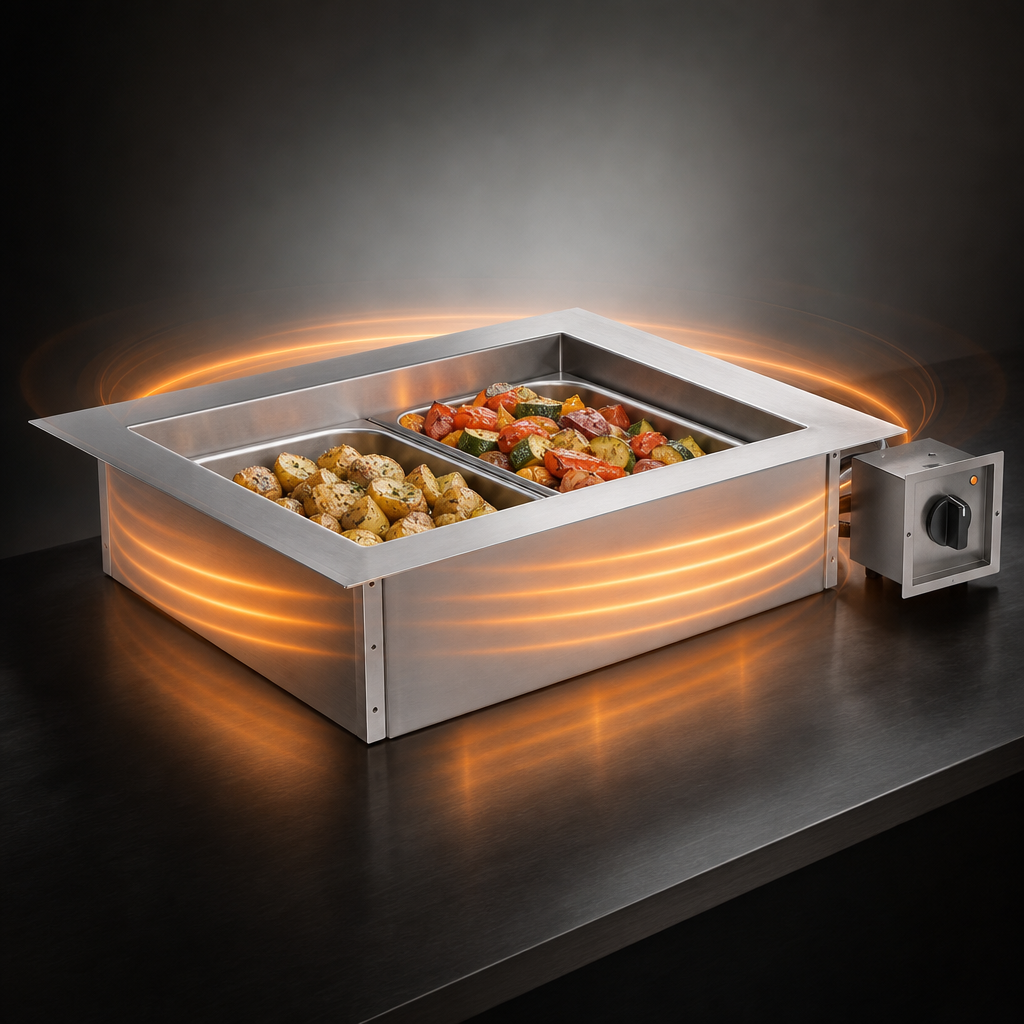

2 × Full-Size Pan Capacity • 6-3/8 in. Deep Well • EcoSmart® EfficiencyGive every guest the “just-cooked” experience. Alto-Shaam’s patented Halo Heat® technology gently surrounds food with precise, radiant warmth—no steam, no water, no hot spots. The result is longer hold times, superior food quality and lower operating costs, all in a sleek drop-in package that installs flush with your countertop.
The 200-HWILF/D6 features a large 2-3/16 in. flange for a seamless presentation and two individually controlled wells, each ready to accept a full-size 12 × 20 in. pan up to 6 in. deep (pans not included). Independent thermostats let you dial in the perfect temperature for every menu item—ideal for buffets, cafeterias and grab-and-go hot bars.
Why you’ll love it
- Waterless Halo Heat® system—no plumbing, steam or scale build-up
- Large flange drop-in design for a clean, front-of-house look
- Two separate adjustable thermostatic controllers (one per well)
- 6-3/8 in. (162 mm) deep stainless-steel wells hold standard 6 in. pans
- Includes four (4) third-size pan divider bars for flexible pan layouts
- EcoSmart® technology delivers only 162 BTU/hr heat gain—energy- and HVAC-friendly
- No water means lower utility bills and virtually no maintenance
- Certified cULus, UL EPH Classified, CE, IPX3 & TÜV NORD for global compliance
Technical specifications
| Model | 200-HWILF/D6 |
|---|---|
| Pan capacity | (2) full-size 12 × 20 in. pans up to 6 in. deep (4) half-size or (6) third-size pans with included dividers |
| Well depth | 6-3/8 in. (162 mm) |
| Exterior (H × W × D) | 9-5/16 × 31-1/4 × 27-1/16 in. (235 × 792 × 686 mm) |
| Interior per well | 6-3/8 × 12 × 20-3/16 in. (162 × 304 × 512 mm) |
| Net weight | 60.5 lb (27 kg) |
| Electrical | 120 V 1 Φ 10 A 1.2 kW 208 V 1 Φ 4.3 A 0.9 kW 240 V 1 Φ 5.0 A 1.2 kW 230 V 1 Φ 5.2 A 1.2 kW |
| Heat rejection | 162 BTU/hr (0.05 kW) |
| Certifications | cULus • UL EPH • CE • IPX3 • TÜV NORD |
| Warranty | 1-year parts & labor* |
*See Alto-Shaam warranty statement for complete terms and conditions.
Perfect for
- Self-service buffets & cafeterias
- Supermarket hot bars & delis
- Stadium, arena & concessions stands
- C-stores and grab-and-go programs
- Catering holding stations & banquet service
Upgrade your serving line with the waterless efficiency and gentle precision of Alto-Shaam Halo Heat®—and keep every plate tasting as good as it looks.
