Alto-Shaam  |  Halo Heat  |  SKU: 200-HWILF/D4

Alto-Shaam 200-HWILF/D4 Halo Heat Steam Tables & Food Wells

$3,020.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Owner's manual Spec sheet - ce Spec sheet - spanish Spec sheet - french canadian Spec sheet - ul Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

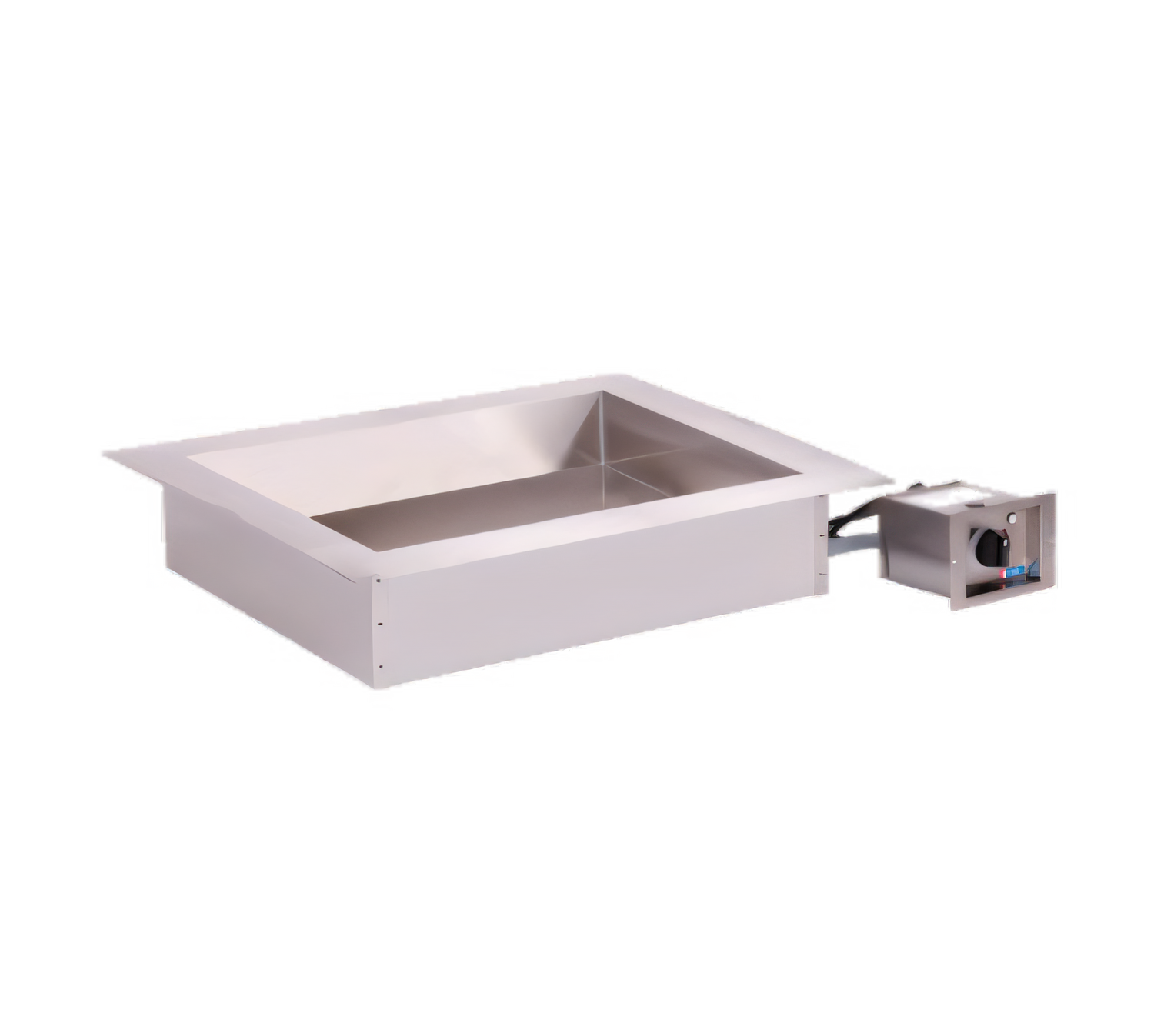

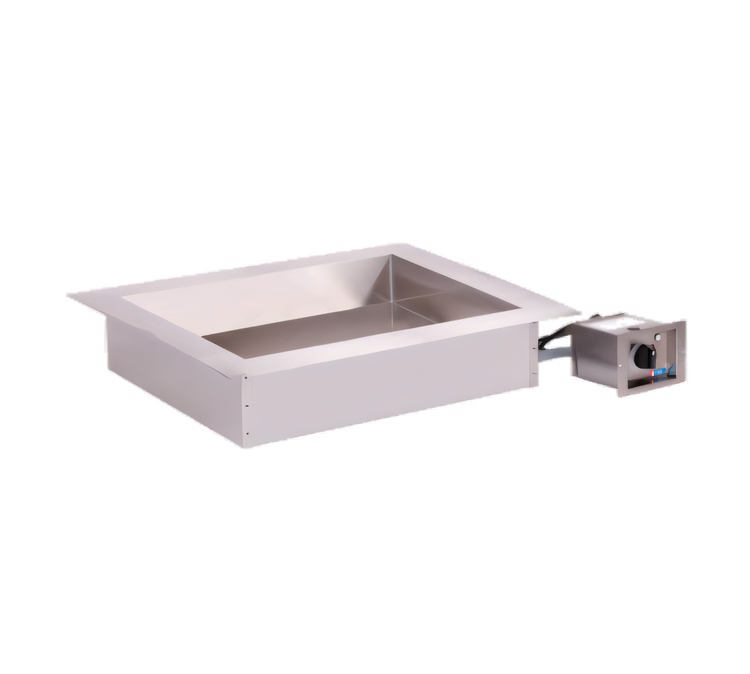

Alto-Shaam Halo Heat® Waterless Hot Food Well – Large Flange, Drop-In, Electric

Model 200-HWLF/D4 | 2 × Full-Size Pan Capacity

Upgrade your serving line with the reliability of Alto-Shaam’s patented Halo Heat® technology. This EcoSmart® large-flange drop-in well delivers gentle, waterless radiant heat that keeps food hot, fresh and ready for service—without the plumbing, steam or lime-scale headaches of traditional wells.

Key Advantages

  • Waterless design eliminates steam, plumbing and de-liming costs.

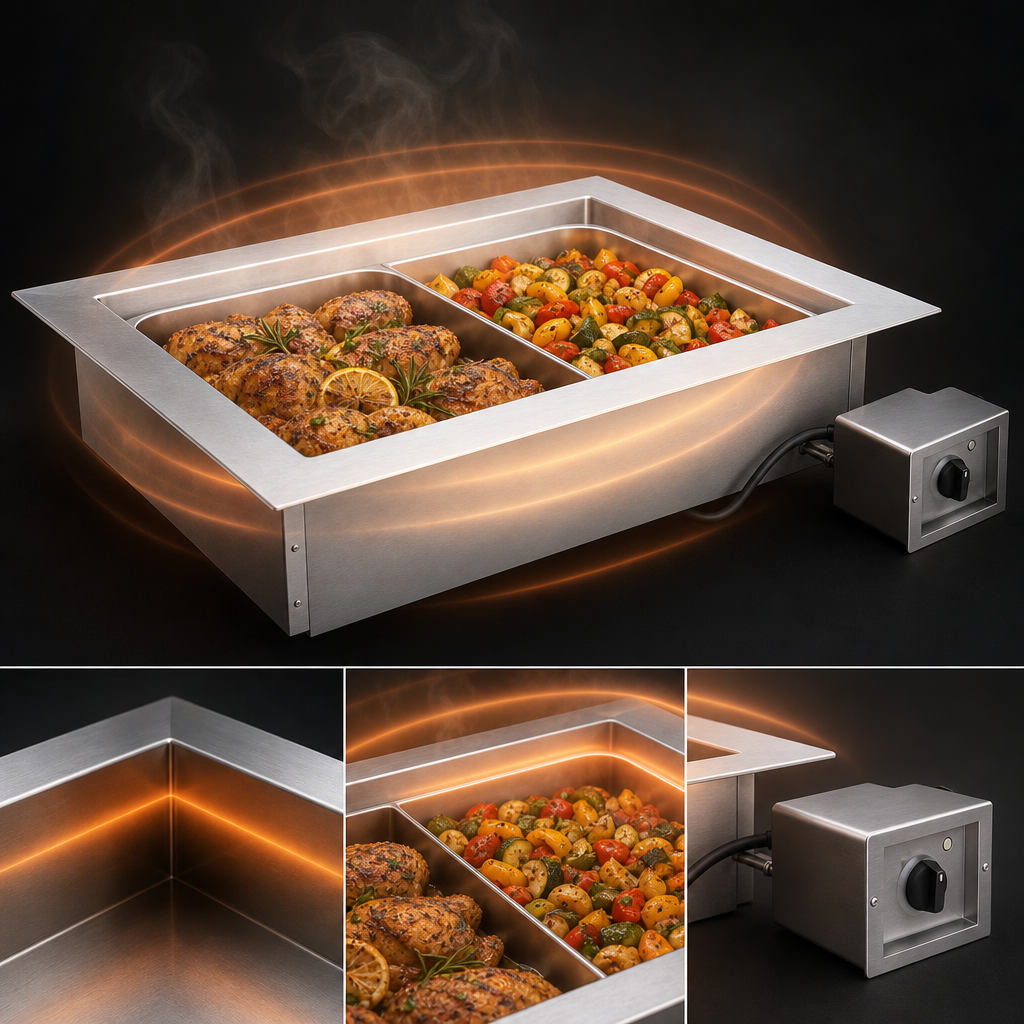

  • Halo Heat® evenly surrounds food for longer hold times and minimal shrinkage.
  • Large one-piece flange covers cut-out edges for a clean, professional look.
  • Two independent, front-mounted thermostatic controls for precise zone heating.
  • Ships with four (4) third-size divider bars for flexible pan layouts.
  • Heavy-duty stainless steel well resists corrosion and wipes clean quickly.
  • EcoSmart® engineering delivers up to 40 % energy savings over steam tables.
  • Certified cULus, UL EPH Classified (NSF equivalent), CE, TÜV NORD & IPX3.

At-a-Glance Specifications

Pan Capacity (2) full-size 12 in × 20 in pans, up to 4 in deep (pans not included)
Well Depth 4-3/8 in (111 mm)
Exterior (H × W × D) 7-5/16 in × 31-3/8 in × 27-1/16 in (185 × 796 × 686 mm)
Interior (H × W × D) 4-3/8 in × 25 in × 20-3/16 in (111 × 635 × 512 mm)
Net Weight 43 lb (20 kg)
Construction Welded stainless steel well with integrated large flange
Controls (2) independent thermostatic dials, 60–200 °F (16–93 °C)
Electrical Options 120 V 1 ph 1.2 kW 10 A – NEMA 5-15P
208–240 V 1 ph 0.9–1.2 kW 4.3–5.0 A – NEMA 6-15P (USA)
230 V 1 ph 1.2 kW 5.2 A – CEE 7/7 plug (EU/UK)
Heat Rejection 162 BTU/hr (0.05 kW)
Certifications cULus, UL EPH, CE, TÜV NORD, IPX3, EcoSmart®
Warranty 1-year parts & labor (15 months from ship date)

Perfect For

  • Supermarket hot bars & deli counters
  • School & hospital cafeterias
  • QSR and fast-casual makelines
  • Buffet and catering stations
Installation Reminder: Unit must be mounted level in a non-combustible counter surface and connected by a qualified electrician. Always verify food is held at safe serving temperatures.

Looking for a 6 in deep well or narrow-flange version? Explore additional Alto-Shaam Halo Heat® models in our store.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.31in

Width

31.25in

Depth

27.06in

Shipping Weight

100.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Drain

without drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit with large flange, Drop-In, Electric, (2) 12" x 20" full-size pan capacity (pans NOT included), 4-3/8" deep well, holds 4" deep pans, includes (4) third-size pan divider bars, (2) individual adjustable thermostatic controllers, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
