Alto-Shaam 200-HWI/D643 Halo Heat Steam Tables & Food Wells
Description
Alto-Shaam Halo Heat® Waterless Drop-In Hot Food Well – 6-3/8 in Deep

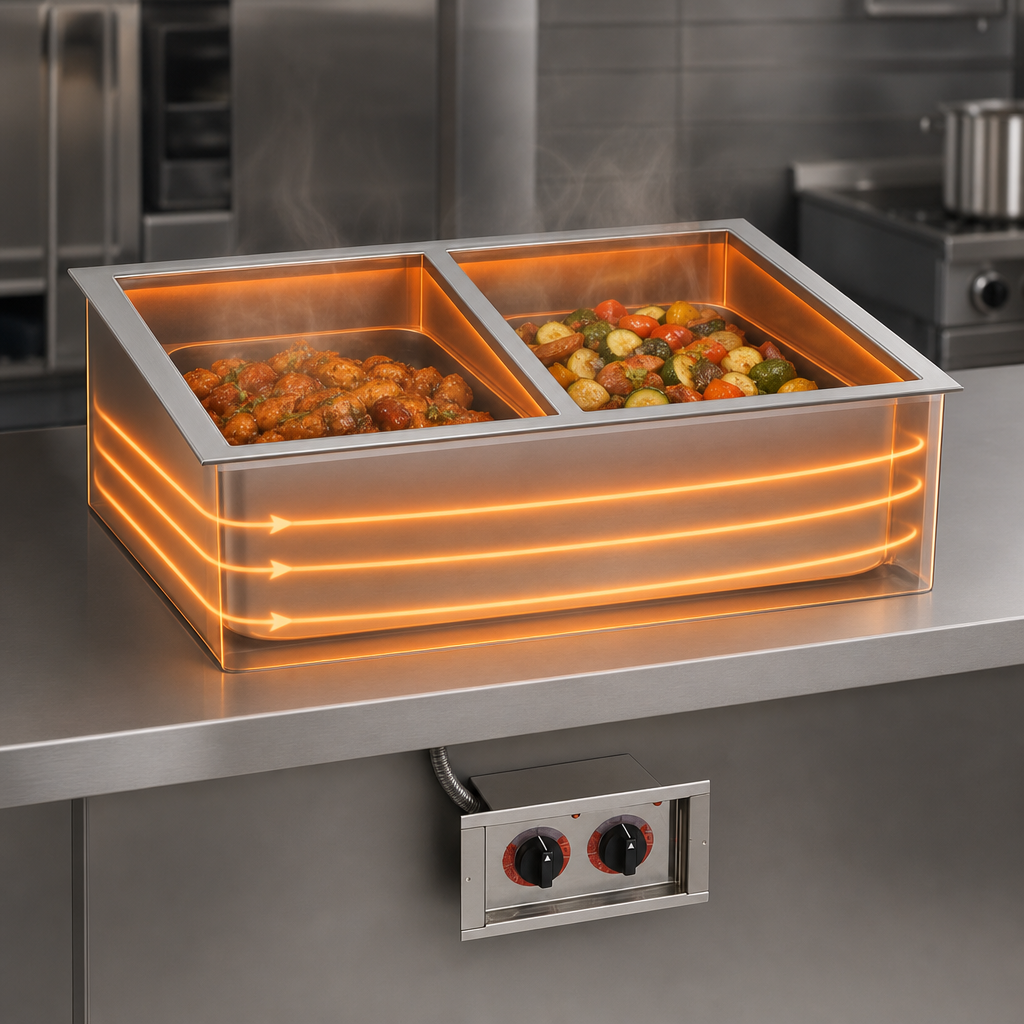

Model 200-HW/D643 | Dual-Zone | EcoSmart®Hold, display and serve signature dishes at perfect, food-safe temperatures without the hassles of water, steam or fans. Alto-Shaam’s patented Halo Heat® technology gently surrounds each pan with even, radiant warmth—preserving moisture, flavor and presentation for hours while trimming energy, installation and maintenance costs.
Why you’ll love it
- Waterless design eliminates plumbing, lime/scale build-up and daily refills.
- 6-3/8 in (162 mm) deep well accepts 6 in deep hotel pans for maximum capacity.
- Configurable pan layout – ship-standard (6) 1/3-size divider bars let you hold:
• (2) 12 × 20 in full-size + (2) 1/3-size pans, or
• up to eight 1/3-size pans (pans not included). - Two independent, front-mounted thermostatic controls create separate heat zones for flexible menus and portion control.
- Gentle, fan-less Halo Heat® extends hold times without overcooking or drying food.
- EcoSmart® engineering lowers energy use (only 1.6 kW) and heat rejection – perfect for front-of-house service lines.
- All-stainless construction and IPX3 splash rating stand up to daily commercial use.
- Certified for global compliance – cULus, UL EPH Classified, CE, TUV NORD.
Specifications
| Model | 200-HW/D643 (Drop-In, Electric) |
|---|---|
| Well depth / pan depth | 6-3/8 in well • fits 6 in (150 mm) deep pans |
| Pan capacity (divider bars included) |
• (2) full-size 12 × 20 in • (2) 1/3-size 12 × 6 in • or up to (8) 1/3-size pans total |
| Controls | (2) independent adjustable thermostats, 60 °F – 200 °F (16 °C – 93 °C) |
| Exterior dimensions (H × W × D) | 9-3/16 × 28-1/16 × 30-3/16 in (233 × 712 × 765 mm) |
| Cut-out (non-combustible) | 26-13/16 × 29-1/8 in (681 × 740 mm) |
| Net weight | 56 lb (25 kg) |
| Electrical field-wired, single phase |
120 V / 1 ph / 50-60 Hz – 13.5 A • 1.6 kW 208 V / 1 ph / 50-60 Hz – 5.8 A • 1.6 kW 240 V / 1 ph / 50-60 Hz – 6.8 A • 1.6 kW 230 V / 1 ph / 50-60 Hz – 6.5 A • 1.6 kW |
| Certifications | EcoSmart®, cULus, UL EPH, CE, IPX3, TUV NORD |
| Warranty | 1-year parts & labor (see Alto-Shaam full warranty for details) |
Need help with sizing, cut-out templates or optional accessories? Contact our food-service specialists – we’re here to assist.
