Alto-Shaam 200-HWI/D443 Halo Heat Steam Tables & Food Wells
Description

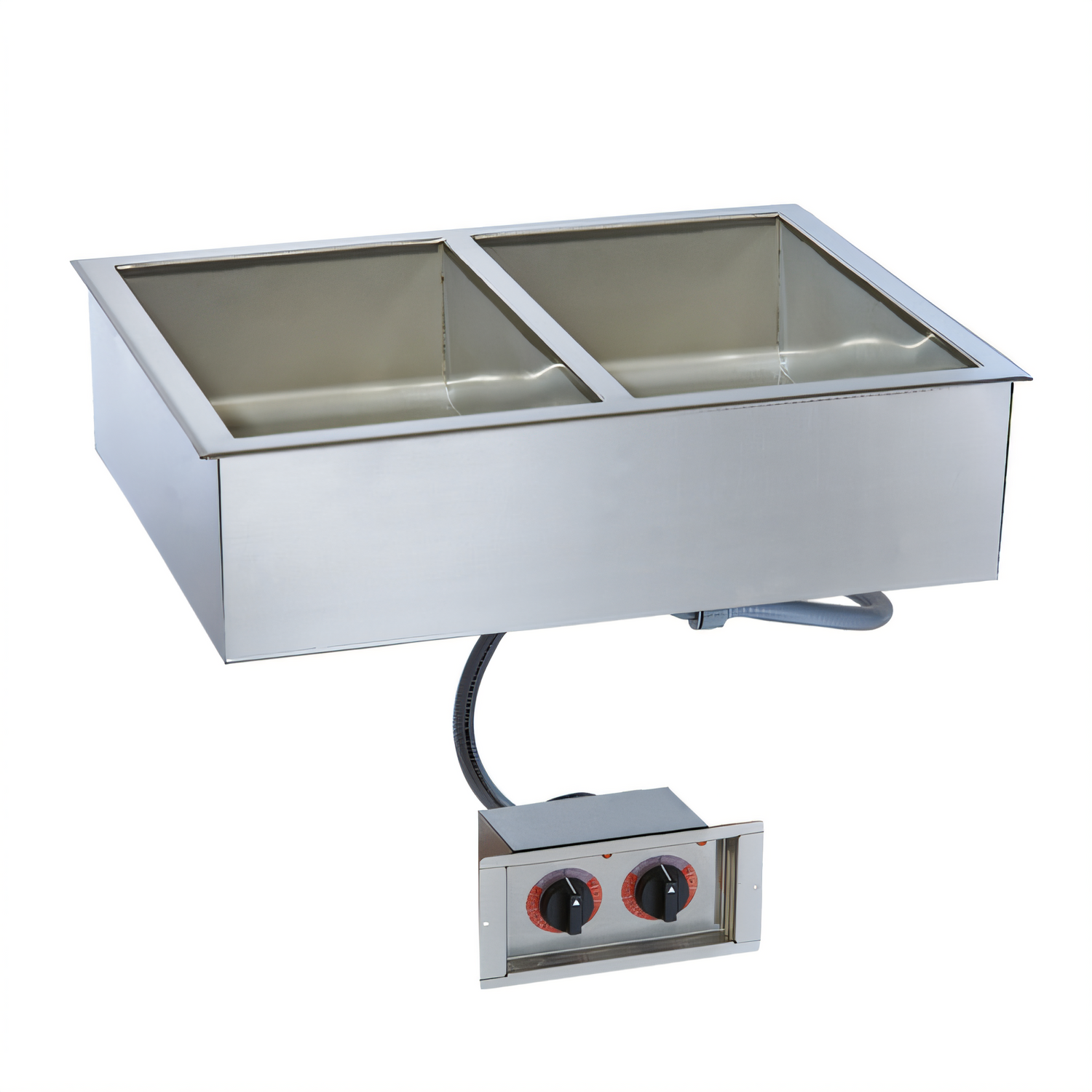

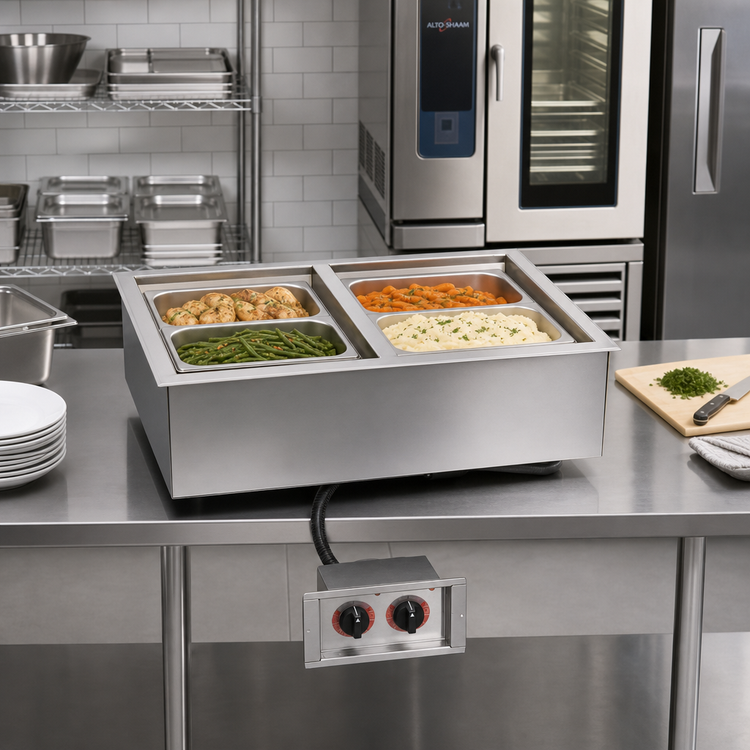

Halo Heat® Drop-In Hot Food Well – 2 Full-Size & 2 Third-Size Pan Capacity
Alto-Shaam 200-HW Series • Waterless EcoSmart® TechnologyElevate your buffet or serving station with Alto-Shaam’s signature Halo Heat®—a waterless radiant system that delivers precise, even heat without steam, humidity or fans. Enjoy longer hold times, reduced utility costs and an impressive ROI.
Key Benefits

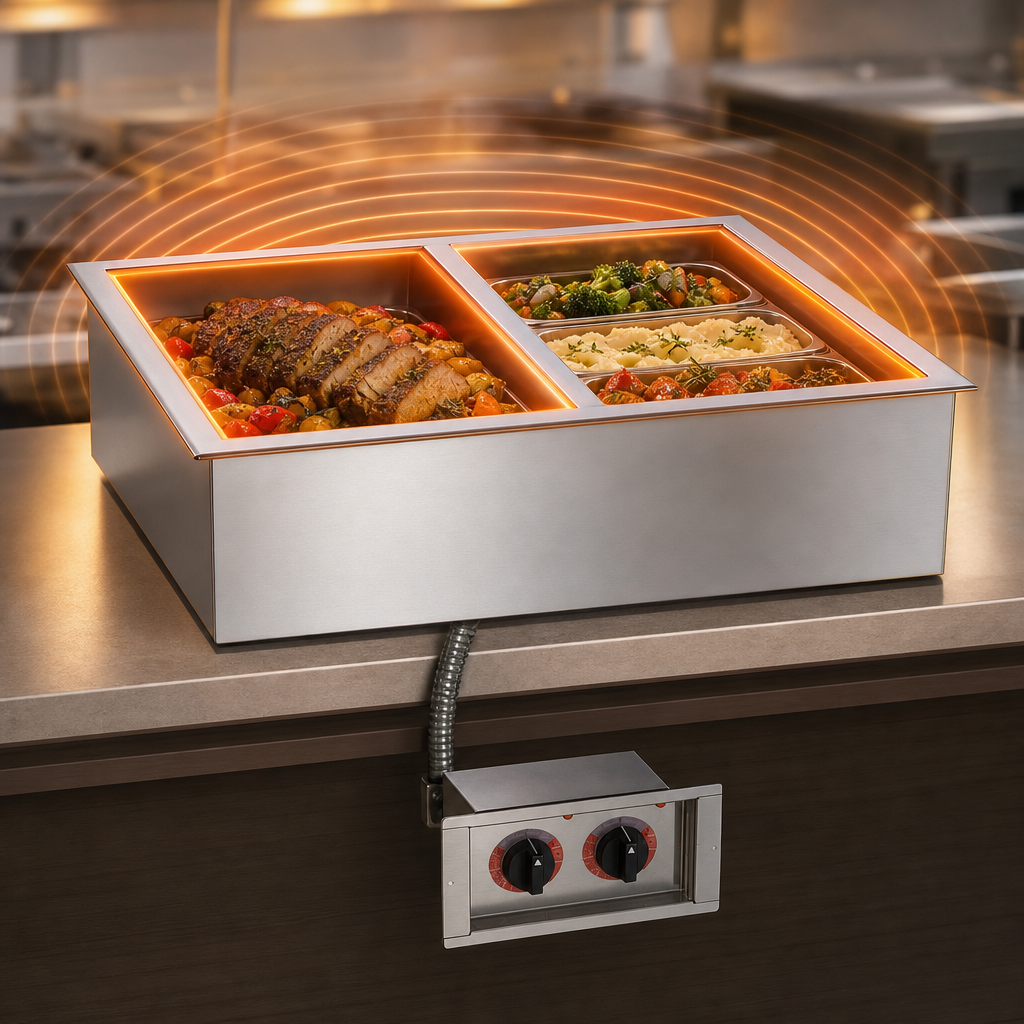

- Waterless Halo Heat® technology surrounds food with gentle, even radiant heat—no hot spots or drying out.
- (2) Independent thermostatic controls let you fine-tune temperatures for each well.
- Pan layout accepts (2) 12" × 20" full-size pans plus (2) 12" × 6" third-size pans (pans not included).
- 4-3/8" deep well accommodates standard 4" deep hotel pans.
- Ships with (6) third-size divider bars for fast, flexible re-configuration.
- No water or plumbing required—cuts installation, descaling and lime-build-up costs.
- Cooler, safer operation by eliminating live steam and boiling water.
- Entire unit is heavy-gauge stainless steel for maximum durability and easy sanitation.
Certifications & Compliance
- cULus Listed
- UL EPH Classified for foodservice sanitation
- CE Marked
- IPX3 splash-proof rating
- TUV NORD safety certified
Technical Specifications
| Pan Capacity | (2) Full-size 12" × 20" (GN 1/1) & (2) Third-size 12" × 6" (GN 1/3) |
|---|---|
| Well Depth | 4-3/8" / 111 mm |
| Heating System | Radiant Halo Heat® – waterless, fan-less |
| Controls | (2) Independent, adjustable thermostats (0–200 °F / 0–93 °C) |
| Construction | 304 stainless steel well & flange; insulated housing |
| Electrical | 120 V 1 ph 1.2 kW 10 A 208-240 V 1 ph 0.9–1.2 kW 4.3–5.0 A 230 V 1 ph 1.2 kW 5.2 A |
| Exterior Dimensions* | 7-5/16" H × 28-1/16" W × 23-1/8" D (185 × 712 × 586 mm) |
| Cut-Out (non-combustible)* | 26-13/16" × 22-1/8" (681 × 562 mm) |
| Net Weight | 40 lb / 18 kg |
*Dimensions and weight based on the core 200-HW/D4 chassis used for this configuration. Always confirm cut-out requirements in the installation manual before fabrication.
What’s Included
- Halo Heat® drop-in hot food well assembly
- Remote control box with 6 ft (1.8 m) cord – back-exit (standard)
- (6) Third-size stainless steel divider bars
- Installation & operation manual
Why Operators Prefer Halo Heat®
Traditional steam tables can shock food with high temperatures and constant moisture. Halo Heat® maintains food quality up to 30 % longer while reducing energy use by as much as 18 %.
- No daily draining or descaling—save labor every shift.
- Food stays vibrant and appetizing for extended service windows.
- Lower exhaust and HVAC loads thanks to minimal heat and humidity release.
One-year parts & labor warranty included. See full Alto-Shaam warranty statement for terms.
