Alto-Shaam  |  Halo Heat  |  SKU: 200-HW/D643

Alto-Shaam 200-HW/D643 Halo Heat Steam Tables & Food Wells

$2,925.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Owner's manual Spec sheet - spanish Spec sheet - ce Spec sheet - ul Spec sheet - french canadian Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

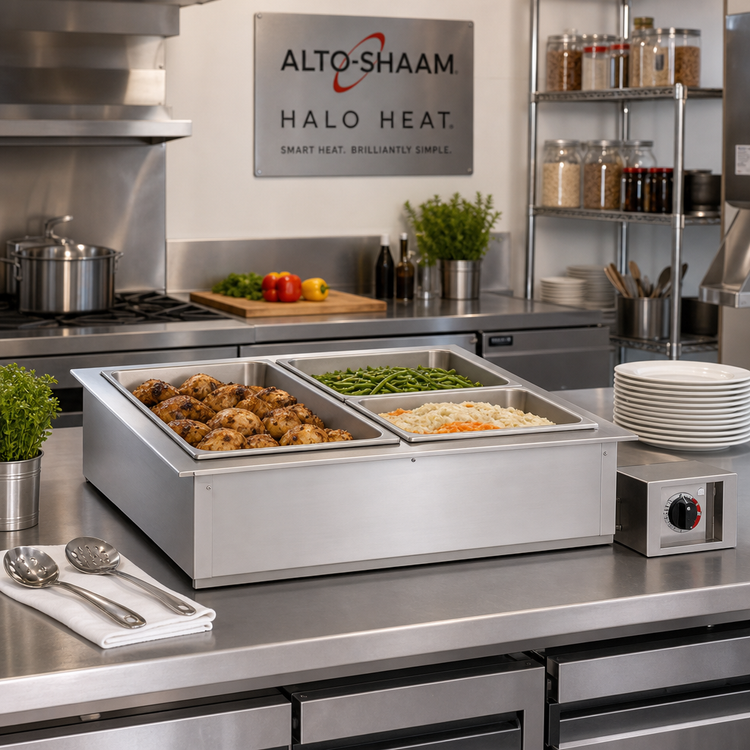

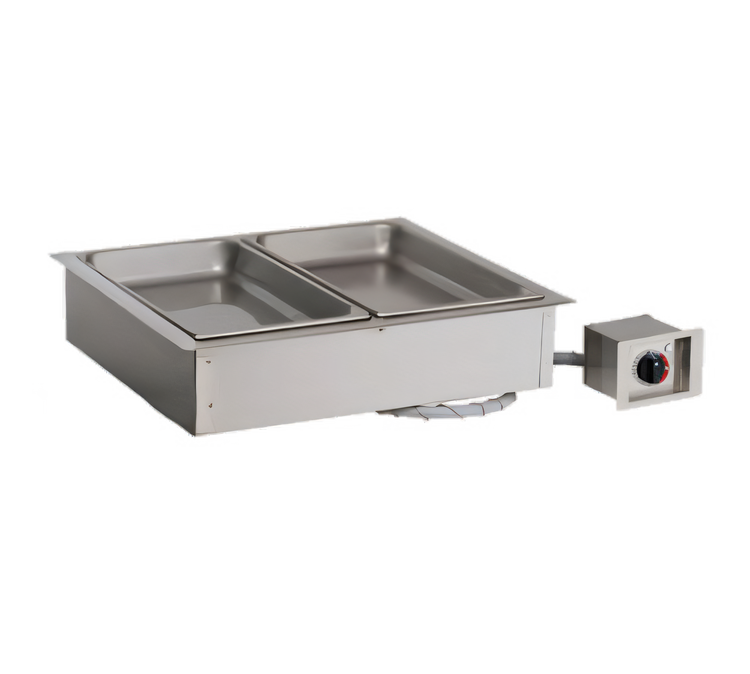

Alto-Shaam Halo Heat® Drop-In Hot Food Well – 2 Full-Size / 2 Third-Size Pans

Model 200-HW | Waterless • EcoSmart® • 6-3/8 in Deep

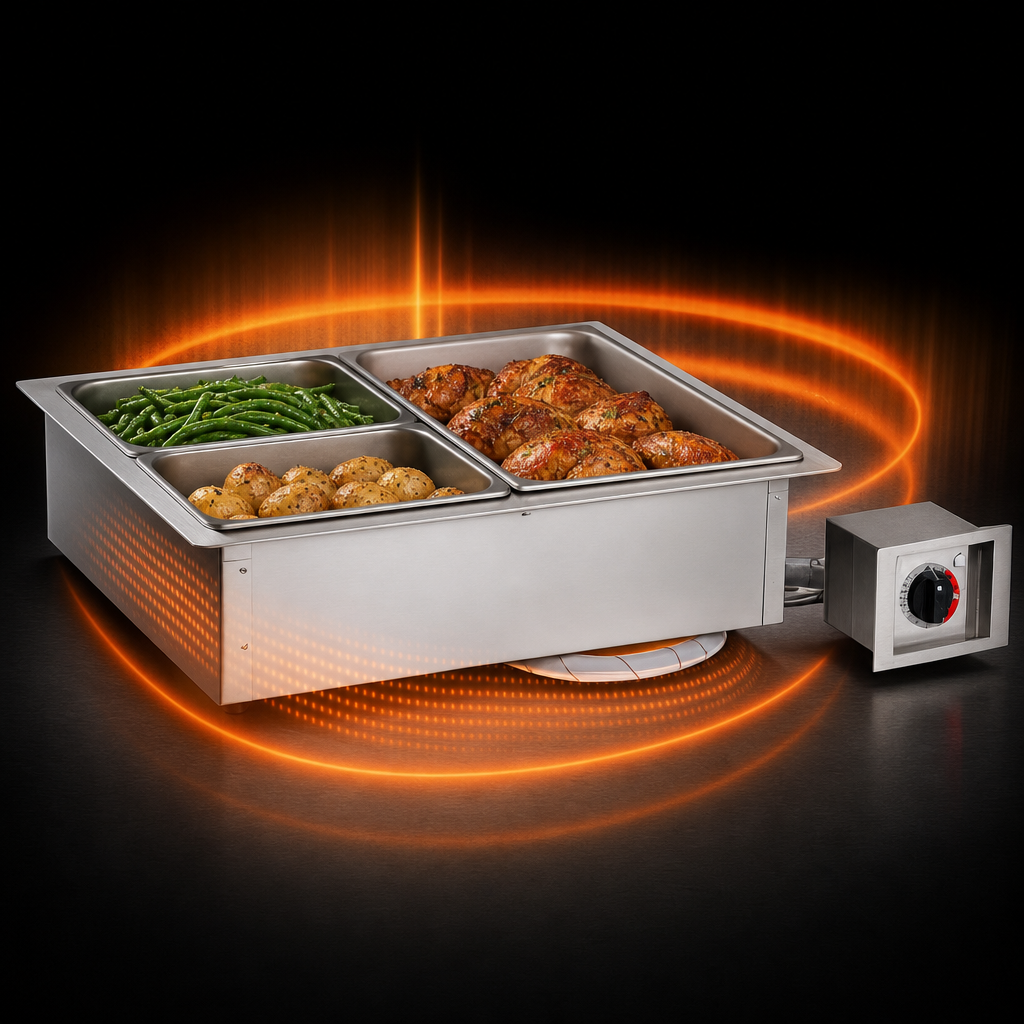

Serve every dish at its best with Alto-Shaam’s patented Halo Heat® technology. This waterless, drop-in hot food well gently surrounds pans with uniform radiant heat—no hot elements, steam or fans—so food stays fresh, moist and ready to sell while you save on installation, energy and maintenance.

Key Features & Benefits
  • Waterless design eliminates plumbing, drains, steam and lime/scale build-up.
  • Halo Heat® radiant blanket maintains precise temperatures without hot spots.
  • 6-3/8 in (162 mm) deep well holds standard 6 in pans for extended holding times.
  • Adjustable thermostatic controller can be flush-mounted or located out of view.
  • EcoSmart® efficiency keeps heat gain to only 162 BTU/hr, reducing HVAC load.
  • Heavy-duty stainless-steel construction built for busy commercial kitchens.
  • Certified cULus, UL EPH Classified, CE, IPX3 & TÜV NORD for worldwide compliance.
What’s Included
  • (6) third-size pan divider bars
  • (1) large pan divider bar
  • Remote control box with 6 ft (1.8 m) cord – back exit standard

Steam table pans are shown for reference only and are not included.

Technical Specifications
Pan Capacity (2) 12 in × 20 in full-size & (2) 12 in × 6 in third-size – up to 6 in deep
Well Depth 6-3/8 in (162 mm)
Exterior Dimensions (H × W × D) 9-5/16 in × 28-1/16 in × 23-1/8 in  (235 mm × 712 mm × 586 mm)
Cut-Out (non-combustible) 26-13/16 in × 22-1/8 in  (681 mm × 562 mm)
Net Weight 45.5 lb (21 kg)
Electrical Options 120 V / 1 ph / 10 A – 1.2 kW
208–240 V / 1 ph / 4.3–5.0 A – 0.9–1.2 kW
230 V / 1 ph / 5.2 A – 1.2 kW
Heat Gain 162 BTU/hr (0.05 kW)
Certifications cULus, UL EPH, CE, IPX3, TÜV NORD
Warranty 1-year parts & labor; see full Alto-Shaam warranty for details.
Why Go Waterless?
  • No water bills, deliming chemicals or heating elements submerged in water.
  • Improved employee safety—no hot water or steam eruptions.
  • Instant changeover between menu items; simply swap pans and adjust the dial.
Installation Note: Unit must be installed level in a counter material rated to 200 °F (93 °C) and kept clear of dripping water, grease or other severe conditions. Maintain 1 in (25 mm) clearance from combustible surfaces.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

9.19in

Width

28.06in

Depth

30.19in

Shipping Weight

120.0lbs

Controls

thermostatic controls

Drain

without drain

Insulated or Non-Insulated

insulated

Style

individual pans

Wet or Dry operation

dry

Pan Capacity

(2) full size (12" x 20")

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (2) 12" x 20" full-size pan & (2) 12" x 6" third-size pan capacity (pans NOT included), 6-3/8" deep well, holds 6" deep pans, includes (6) third-size & (1) large pan divider bars, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
