Alto-Shaam  |  Halo Heat  |  SKU: 200-HW/D6

Alto-Shaam 200-HW/D6 Halo Heat Steam Tables & Food Wells

$2,714.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - ul Spec sheet - french canadian Spec sheet - ce Terms & conditions Owner's manual Spec sheet - spanish Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

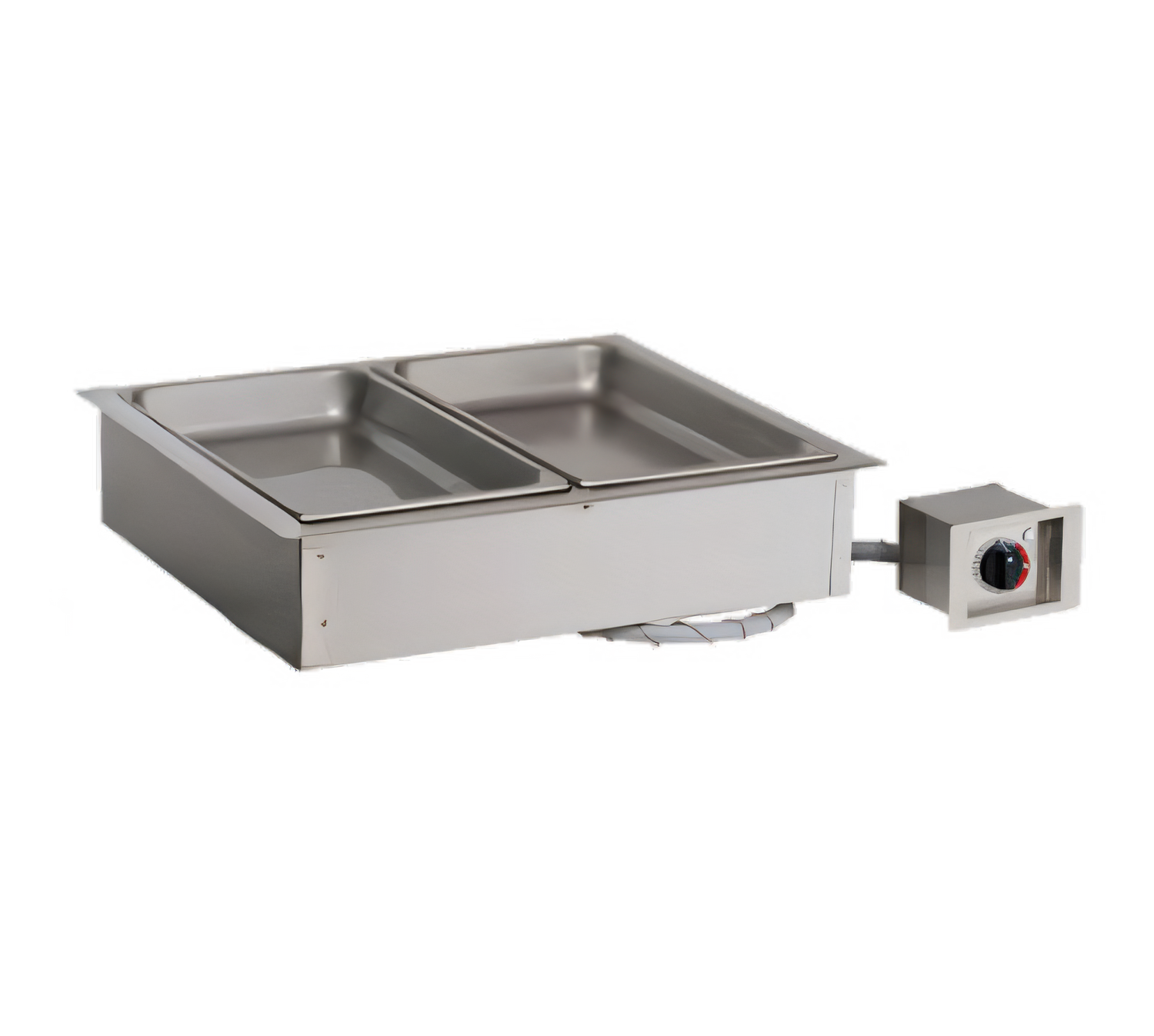

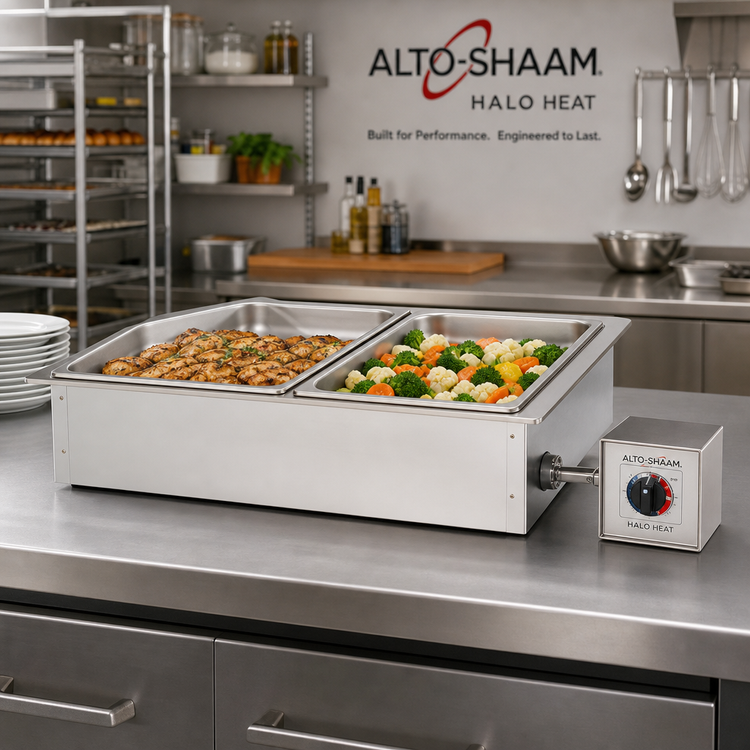

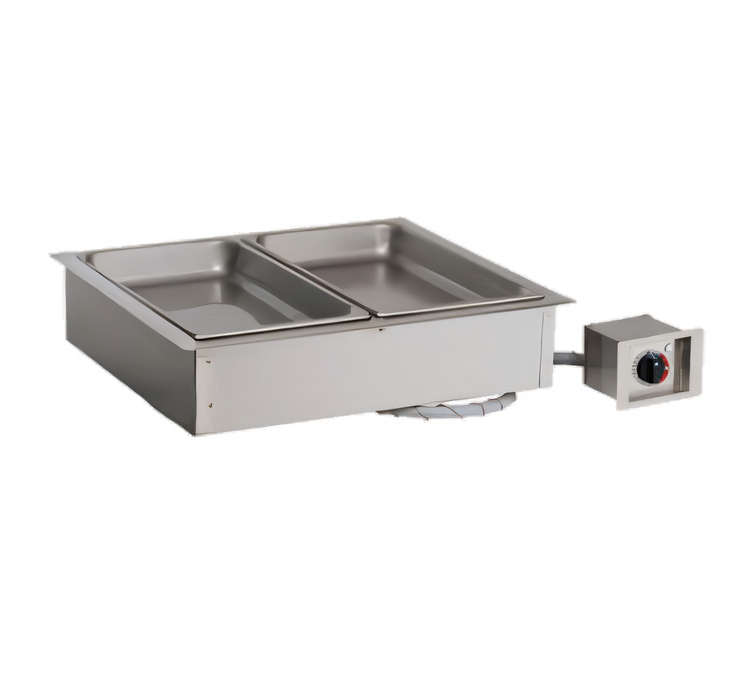

Alto-Shaam 200-HW/D6 Halo Heat® Waterless Drop-In Hot Food Well

2 Full-Size Pan Capacity • 6-3/8 in Deep Well • EcoSmart® Efficiency

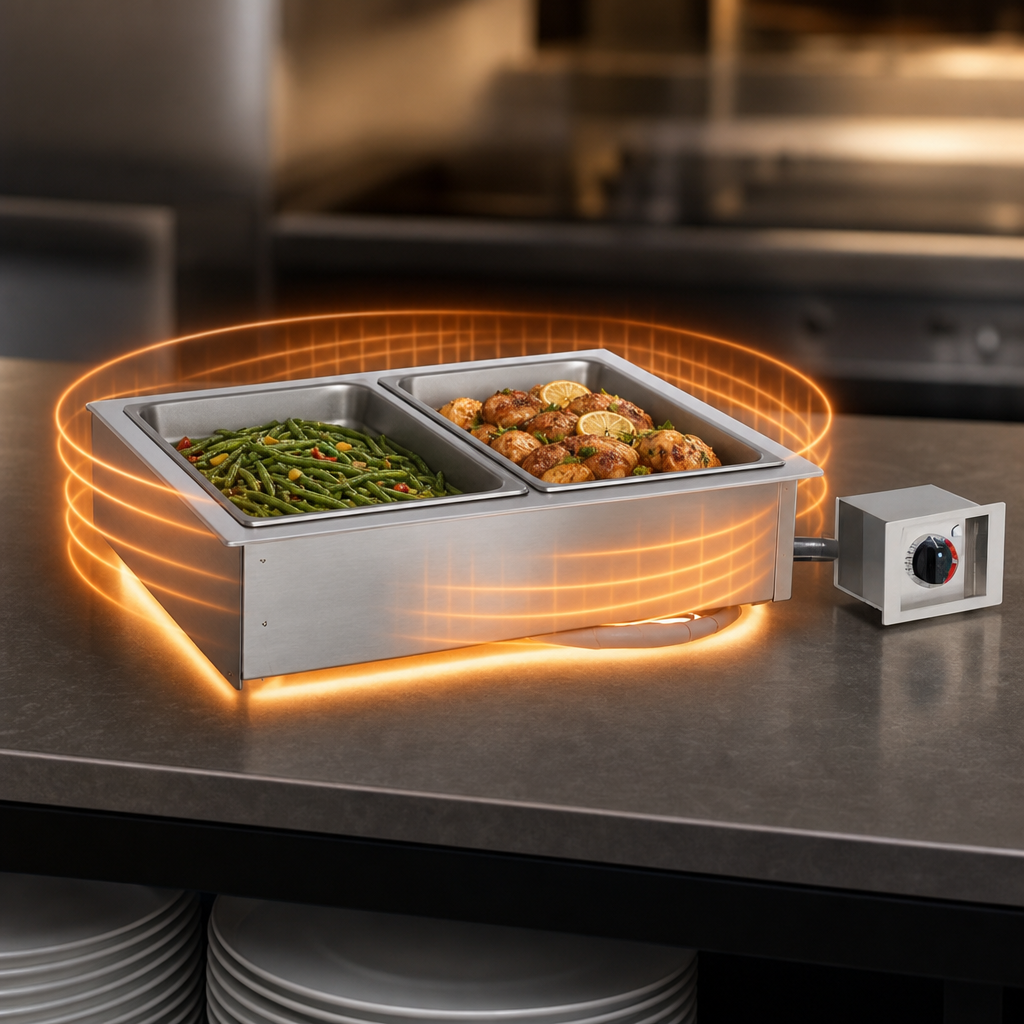

Keep every serving hot, fresh and picture-perfect without the hassles of steam tables. The Alto-Shaam 200-HW/D6 uses gentle Halo Heat® radiant technology to hold food at the ideal temperature—no water, no fans, no hot spots—while lowering utility and maintenance costs.

Why You’ll Love It

  • Halo Heat® surrounds food evenly to prevent drying, shrinkage and flavor loss.
  • Waterless design eliminates plumbing, lime/scale buildup and steam-related safety risks.
  • 6-3/8 in (162 mm) deep well accommodates 6 in-deep pans for longer hold times.
  • Holds (2) 12 × 20 in full-size pans—or mix and match fractional pans with the included dividers.
  • Front-mounted adjustable thermostat (flush-mount capable) for precise temperature control.
  • EcoSmart® construction rejects just 162 BTU/hr for outstanding energy savings.
  • All-stainless steel well and flange wipe clean fast and stand up to demanding kitchens.
  • cULus, UL EPH, CE, IPX3 and TUV NORD certifications for confidence worldwide.

What’s in the Box

  • (4) Half/third-size divider bars
  • (1) Large pan divider bar
  • Remote control box with 6 ft (1.8 m) cord – back exit (bottom exit optional)

Technical Specifications

Model 200-HW/D6
Pan Capacity (2) Full-size 12 × 20 in • up to 6 in deep
or (4) Half-size • or (6) Third-size (using dividers)
Interior Well (H × W × D) 6-3/8 in × 25 in × 20-3/16 in
(162 × 635 × 512 mm)
Exterior (H × W × D) 9-5/16 in × 28-1/16 in × 23-1/8 in
(235 × 712 × 586 mm)
Cut-Out (non-combustible) 26-13/16 in × 22-1/8 in
(681 × 562 mm)
Net Weight 45.5 lb (21 kg)
Electrical Options 120 V / 1 ph / 1.2 kW / 10 A – NEMA 5-15P
208-240 V / 1 ph / 0.9–1.2 kW / 4.3–5 A – NEMA 6-15P
230 V / 1 ph / 1.2 kW / 5.2 A – CEE 7/7 plug
Heat Rejection 162 BTU/hr (0.05 kW)
Certifications EcoSmart®, cULus, UL EPH, CE, IPX3, TUV NORD
Warranty 1 year parts & labor

Optional Accessories

  • Additional divider bars (half/third, full-size, or D443/D643 sizes)
  • Locking kit for secure installation
  • Stainless steel heat shield
Important: Food pans are shown for illustration only and are not included.

Need help with cut-out sizing or voltage selection? Contact our foodservice team—we’re happy to assist.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

9.31in

Width

28.06in

Depth

23.13in

Shipping Weight

110.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Drain

without drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (2) 12" x 20" full-size pan capacity (pans NOT included), 6-3/8" deep well, holds 6" deep pans, includes (4) half/third-size & (1) large pan divider bars, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
