Alto-Shaam  |  Halo Heat  |  SKU: 200-HW/D443

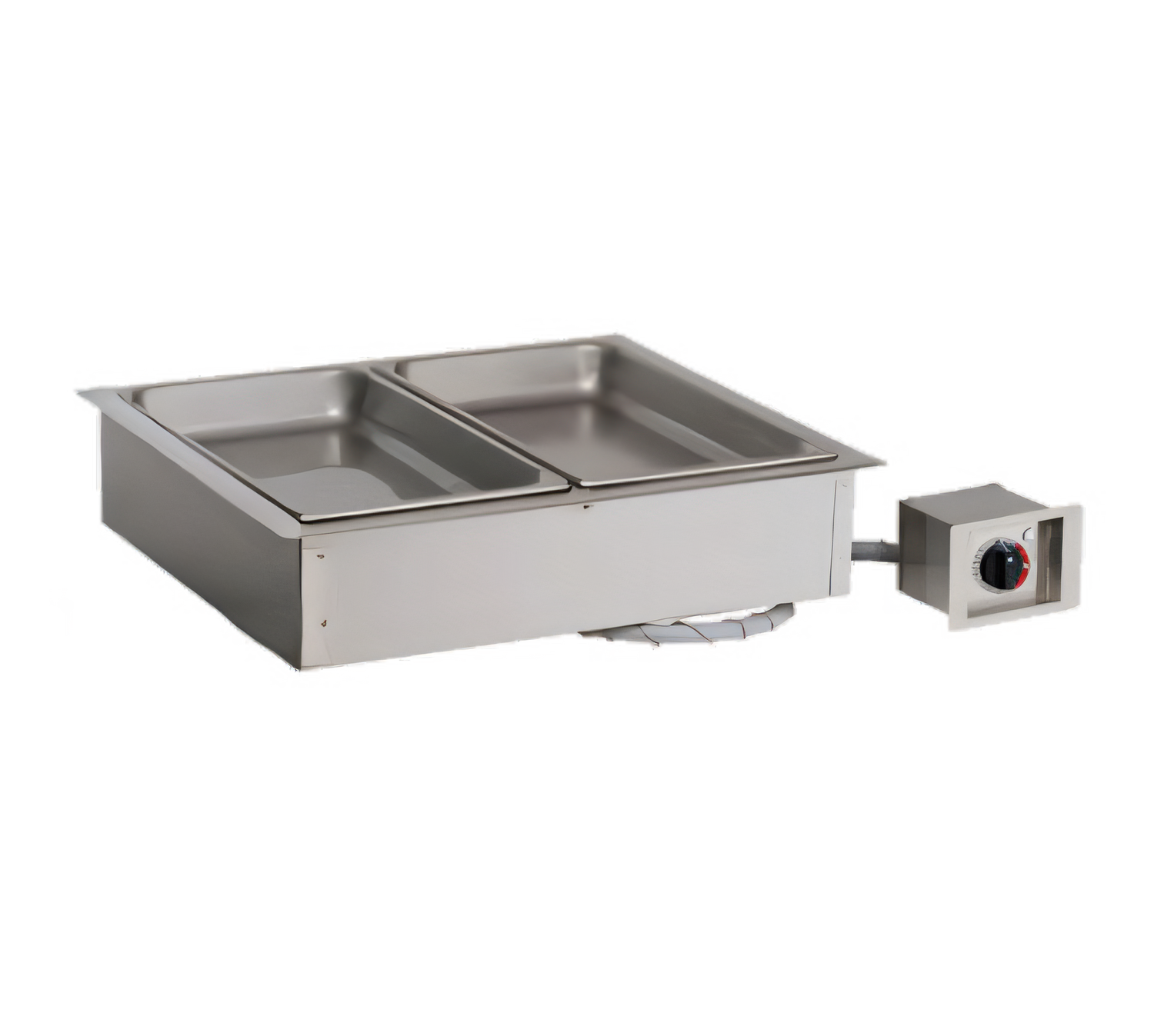

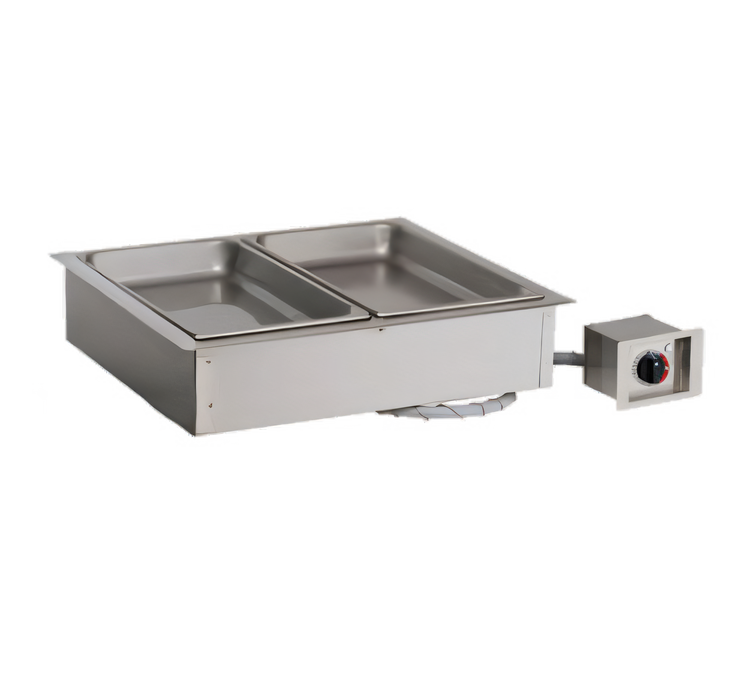

Alto-Shaam 200-HW/D443 Halo Heat Steam Tables & Food Wells

$2,847.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - ul Owner's manual Spec sheet - spanish Spec sheet - ce Spec sheet - french canadian Terms & conditions Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Halo Heat® Waterless Drop-In Hot Food Well

2 Full-Size + 2 Third-Size Pan Capacity | Model 200-HW/D4 • EcoSmart®

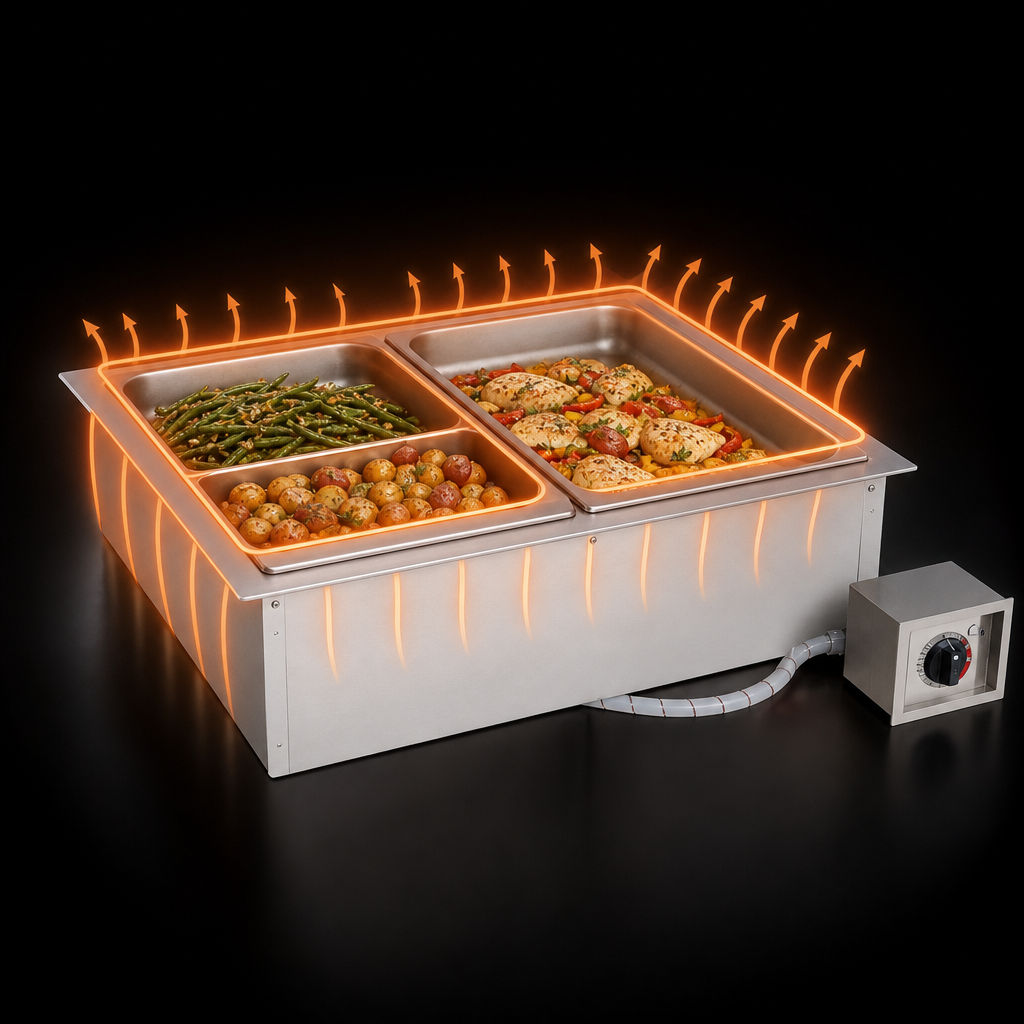

Serve every dish at its flavorful best—without the plumbing, scale build-up or high energy draw of a steam table. Alto-Shaam’s patented Halo Heat® technology gently envelopes pans with even, radiant warmth so food stays fresh, moist and ready to impress for hours.

Why You’ll Love It

  • Waterless Halo Heat® design eliminates steam, fans and mandatory plumbing.
  • Holds (2) 12 × 20 in. full-size and (2) 12 × 6 in. third-size pans, up to 4 in. (100 mm) deep. (Pans sold separately.)
  • 4-3/8 in. deep well provides full pan immersion for consistent holding temperatures.
  • Includes (6) third-size and (1) large pan divider bars for flexible layouts.
  • Remote or flush-mount adjustable thermostat for precise, individual well control.
  • Heavy-duty 304 stainless steel well and flange built to withstand busy service lines.
  • EcoSmart® operation lowers energy usage and reduces operating costs.
  • No hot water or steam means a safer line for both staff and guests.
  • Certified cULus, UL EPH Classified, CE, IPX3 & TUV NORD for global code compliance.

At-a-Glance Specs

Pan Capacity (2) Full-size 12 × 20 in. (GN 1/1) & (2) Third-size 12 × 6 in. (GN 1/3)
Well Depth 4-3/8 in. (111 mm) – fits pans up to 4 in. deep
Exterior (H × W × D) 7-5/16 × 28-1/16 × 23-1/8 in. (185 × 712 × 586 mm)
Interior (H × W × D) 4-3/8 × 25 × 20-3/16 in. (111 × 635 × 512 mm)
Electrical Options 120 V / 1 ph / 10 A / 1.2 kW
208 V / 1 ph / 4.3 A / 0.9 kW
240 V / 1 ph / 5.0 A / 1.2 kW
230 V / 1 ph / 5.2 A / 1.2 kW
Cord & Plug NEMA 5-15P (120 V) or NEMA 6-15P (208-240 V) – 6-9 ft (1.8-2.7 m) cord
Heat Rejection 162 BTU/hr  •  0.05 kW
Net Weight 40 lb (18 kg)
Warranty 1-year parts & labor from installation (15 months from ship date)
Certifications cULus, UL EPH Classified, CE, IPX3, TUV NORD, EcoSmart®
Installation Note: Counter cut-out for non-combustible surfaces must measure 26-13/16 × 22-1/8 in. (681 × 562 mm). Unit must be installed level and kept clear of steam, grease or dripping water sources.

Need a different size or voltage? Reach out to our team—we’re here to help you build the perfect serving line.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX3

Height

7.31in

Width

28.06in

Depth

30.19in

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

without drain

Wet or Dry operation

dry

Pan Capacity

(2) full size (12" x 20")

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (2) 12" x 20" full-size pan & (2) 12" x 6" third-size pan capacity (pans NOT included), 4-3/8" deep well, holds 4" deep pans, includes (6) third-size & (1) large pan divider bars, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
