Alto-Shaam 200-HW/D4 Halo Heat Steam Tables & Food Wells
Description

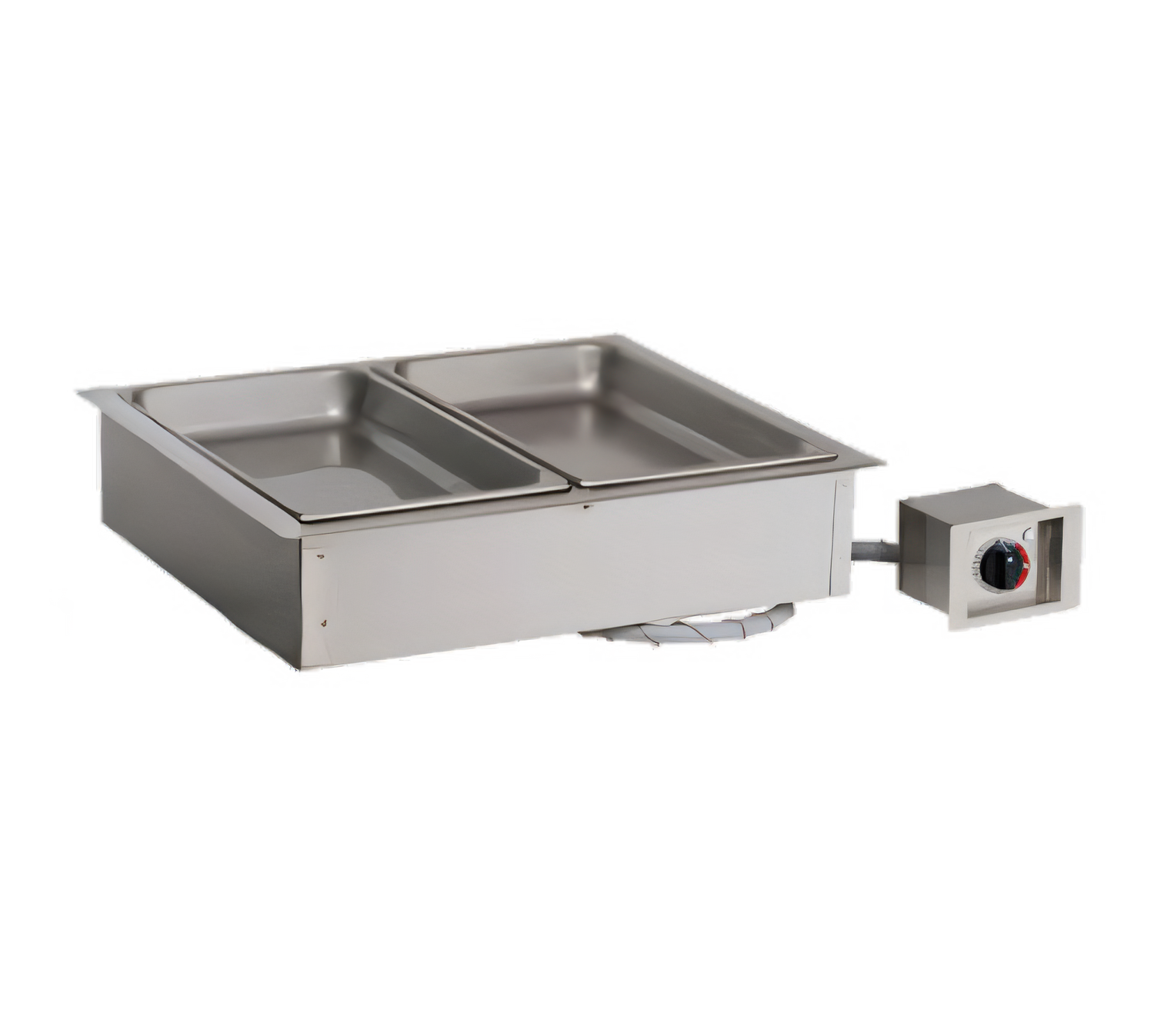

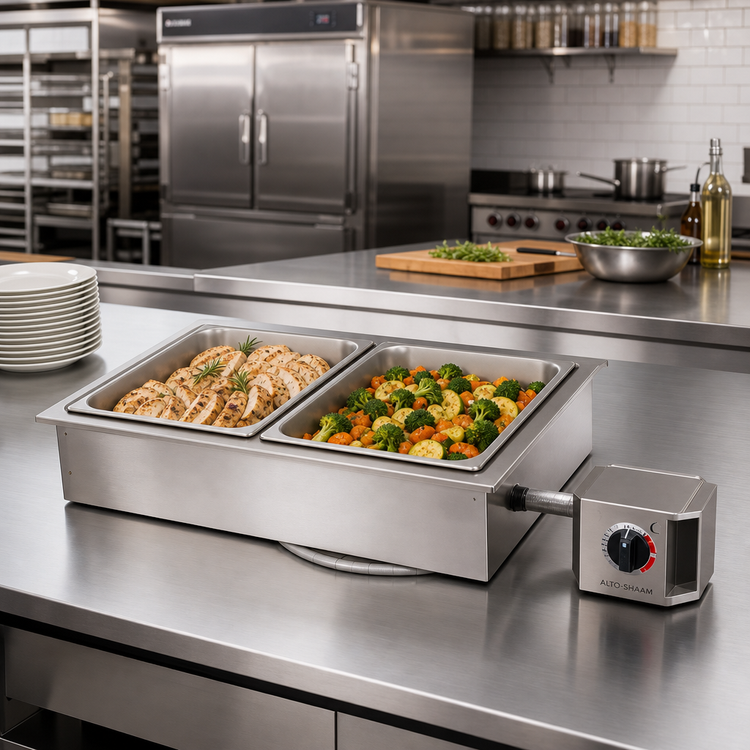

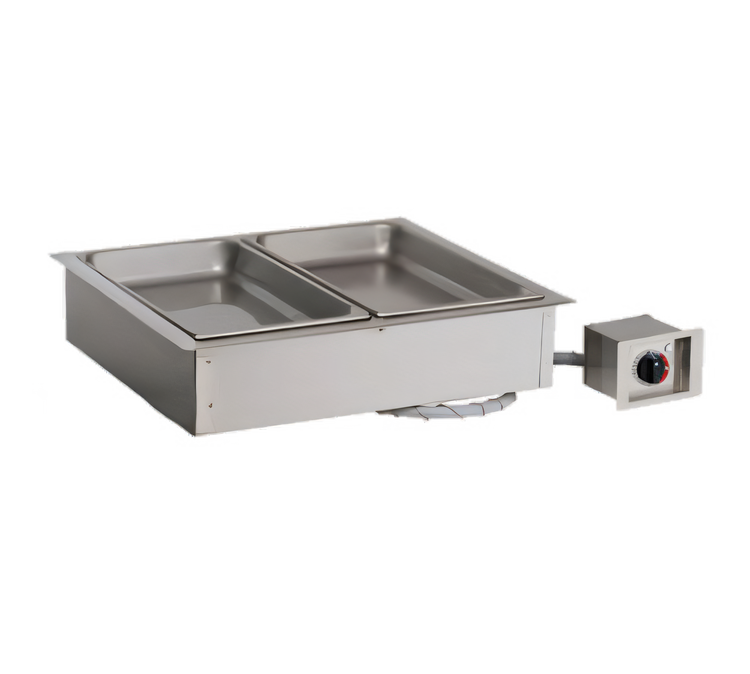

Alto-Shaam 200-HW/D4 Halo Heat® Waterless Drop-In Hot Food Well

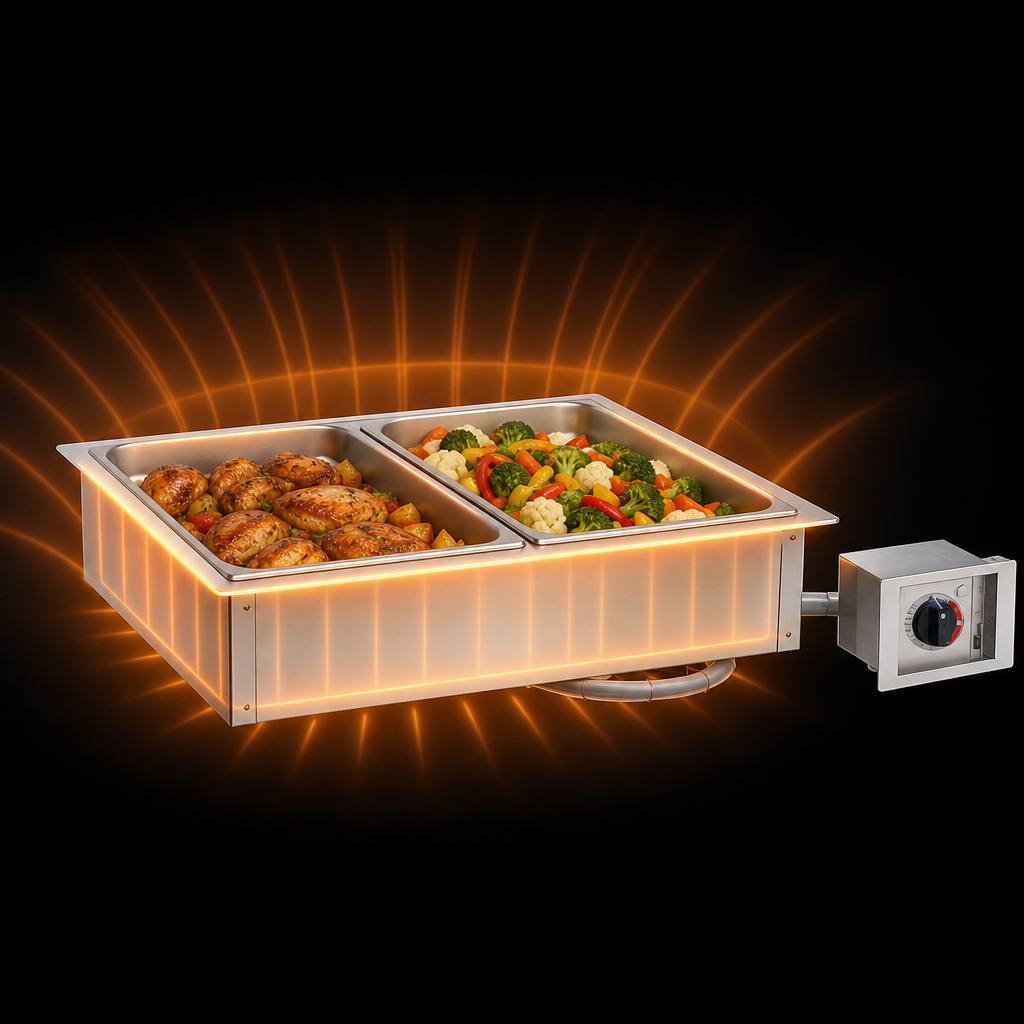

2 × Full-Size (12" × 20") Pan Capacity | 4-3/8" Deep Well | EcoSmart®Give your buffet, cafeteria line, or made-to-order station a consistent edge in presentation and product quality—with no water, no plumbing and no steam. Alto-Shaam’s patented Halo Heat® technology gently blankets food in radiant heat, keeping it at safe serving temperatures without hotspots, dehydration or costly maintenance.
- Holds two full-size (12" × 20") or four half-size pans in a compact 4-3/8" deep well.
- Waterless design eliminates lime/scale build-up and reduces utility & installation costs.
- Precise, flush-mount adjustable thermostat (0–10) for optimal holding of any menu item.
- Even, gentle Halo Heat® keeps food moist longer—extend hold times and minimise waste.
- Includes pan divider kit: (4) half/third-size bars + (1) large bar for flexible layouts.
- All-stainless construction with IPX3 splash rating stands up to busy commercial kitchens.
- EcoSmart® design delivers just 1.2 kW (120 V) of power consumption and 162 BTU/hr heat gain.
- Certified safe & sanitary: cULus, UL EPH Classified, CE, TÜV NORD.
Technical Specifications
| Model | 200-HW/D4 |
|---|---|
| Pan Capacity | 2 × Full-Size (12" × 20") OR 4 × Half-Size OR 6 × 1/3-Size |
| Well Depth | 4-3/8" (111 mm) – accommodates 4" deep pans |
| Included Divider Bars | (4) Half/Third-Size & (1) Large |
| Exterior Dimensions (H×W×D) | 7-5/16" × 28-1/16" × 23-1/8" (185 × 712 × 586 mm) |
| Cut-out (Non-combustible) | 26-13/16" × 22-1/8" (681 × 562 mm) |
| Interior Well (H×W×D) | 4-3/8" × 25" × 20-3/16" (111 × 635 × 512 mm) |
| Net / Ship Weight | 40 lb (18 kg) / 115 lb (52 kg) |
| Electrical (standard) | 120 V, 1 ph, 50/60 Hz, 10 A, 1.2 kW, NEMA 5-15P, 6 ft cord |
| Alternative Voltages | 208 V 0.9 kW (4.3 A) • 240 V 1.2 kW (5.0 A) • 230 V 1.2 kW (5.2 A) |
| Heat Rejection | 162 BTU/hr (0.05 kW) |
| Ingress Protection | IPX3 (splash-proof) |
| Certifications | cULus • UL EPH • CE • TÜV NORD • EcoSmart® |
| Warranty | 1-Year Parts & Labor (U.S./Canada) |
Perfect For
- Buffet lines & self-service counters
- Supermarket delis & grab-&-go islands
- C-stores and QSR holding stations
- Any venue where plumbing access is limited
Appliance must be installed level in a counter cut-out as specified. Allow 6" (152 mm) clearance from control box to conduit bend.
