Alto-Shaam 200-CW/R EcoSmart Steam Tables & Food Wells
Description

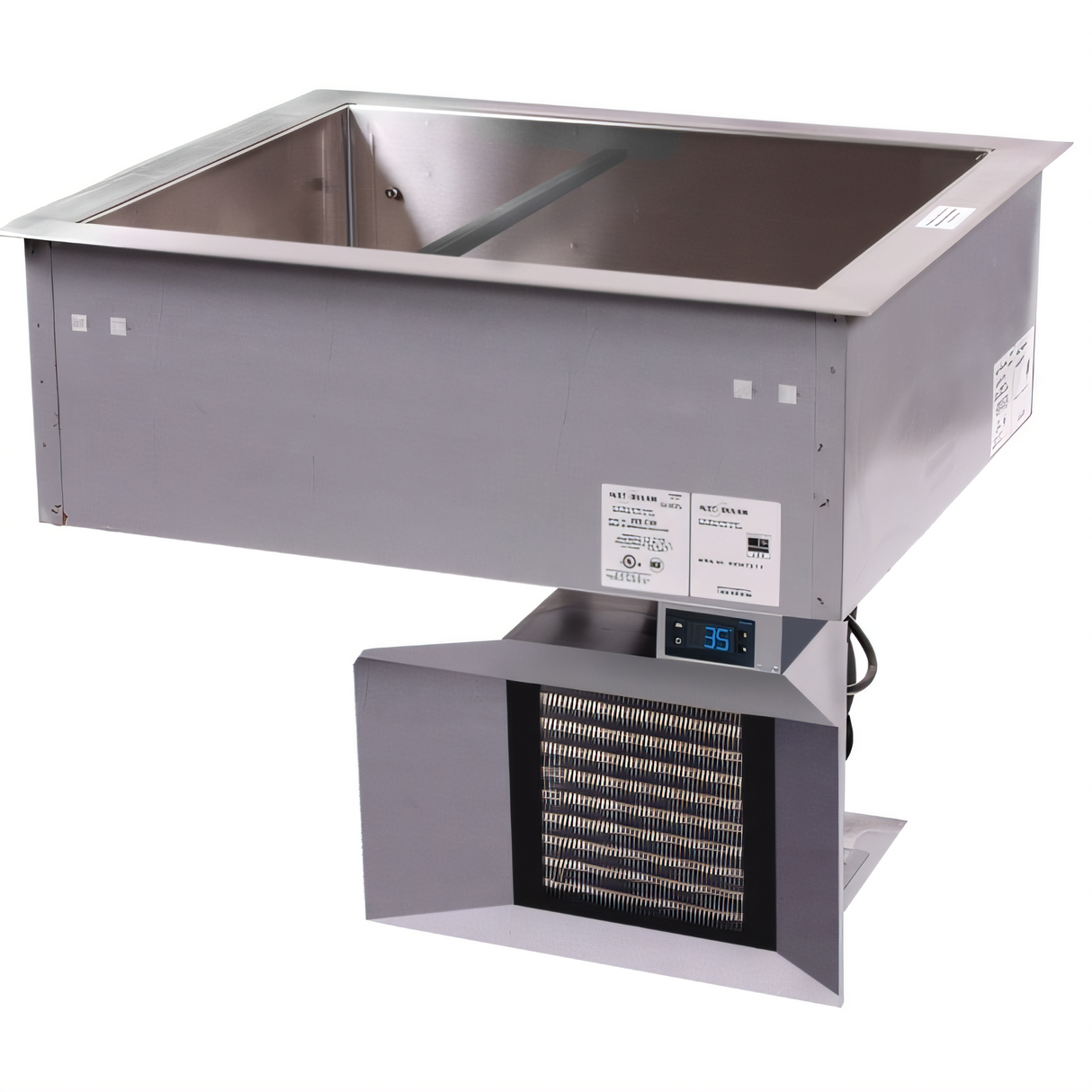

Alto-Shaam EcoSmart® 200-CW/R Remote Drop-In Cold Well
Remote-Refrigerated • 2 Full-Size Pan Capacity • 115 VDeliver perfectly chilled menu items—without the product-drying turbulence of forced-air wells. The EcoSmart® 200-CW/R uses cold-wall conductive cooling and a digital thermostat to hold food safely at or below 41 °F (5 °C), meeting NSF 7 standards while providing a sleek, flush-mount display.
Key advantages
- Cold-wall drop-in design eliminates forced air for superior product moisture and quality.

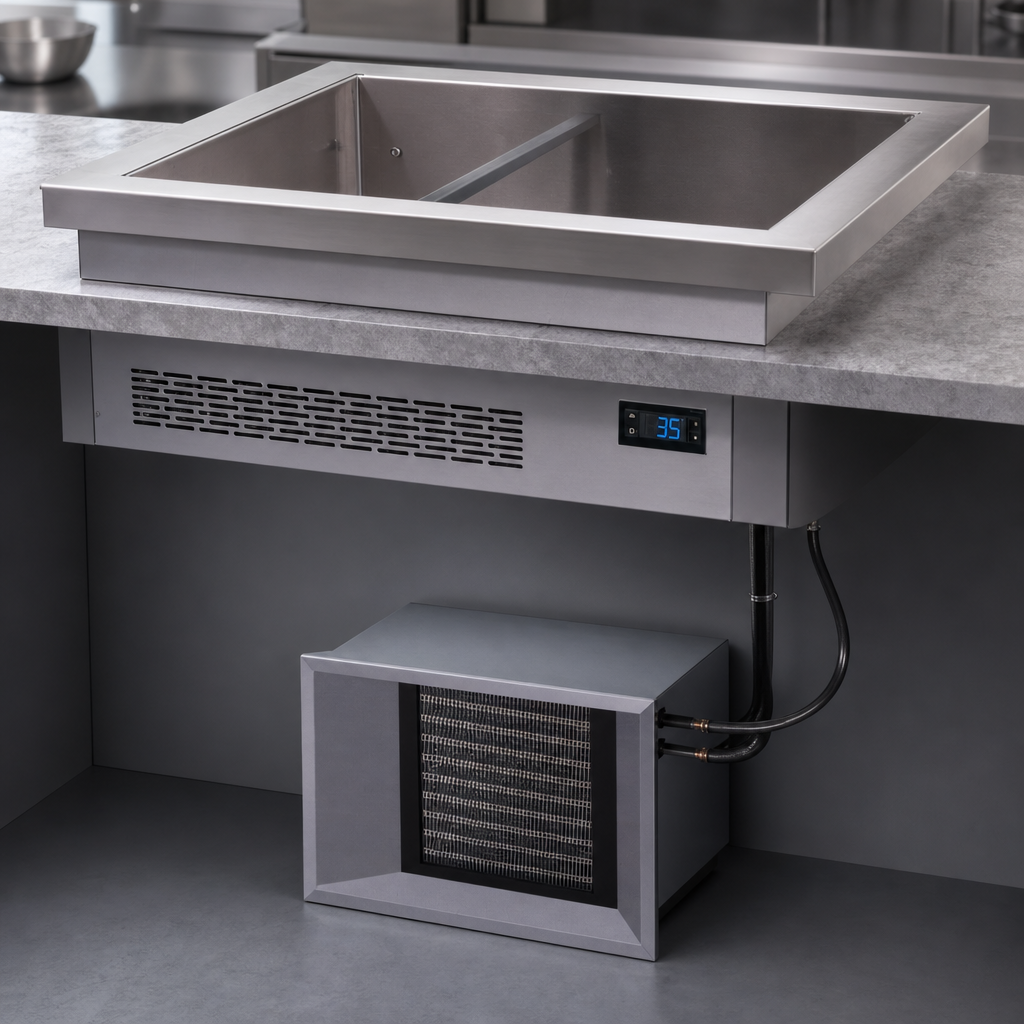

- Remote refrigeration hookup keeps heat and noise out of the serving area (474 BTU load, R290 refrigerant).
- Precise digital thermostat for adjustable holding temperatures.
- (3) 20" pan divider bars included—reconfigure from two full-size pans to four 1/2-size or six 1/3-size pans in seconds.
Food pans sold separately. - 6-1/4" deep, coved-corner stainless steel well for easy cleaning and full 6"-deep pan clearance.
- CFC-free, foamed-in-place polyurethane insulation maximizes efficiency.
- Corrosion-resistant exterior and recessed stainless steel ledge for long-term durability.
- EcoSmart® design draws just 600 W and 5 A—plug-and-play with the included 9 ft (2.7 m) cord and NEMA 5-15P.
- cULus, NSF listed for peace of mind.
Capacity at a glance
- 2 × Full-size 12" × 20" (GN 1/1) pans – up to 6" deep
- 4 × Half-size (GN 1/2) pans
- 6 × Third-size (GN 1/3) pans
- Maximum product load: 72 lb / 44 qt (32.6 kg / 42 L)
Technical specifications
| Model | 200-CW/R EcoSmart® Remote Drop-In Cold Well |
|---|---|
| Electrical | 115 V, 60 Hz, 1-phase, 600 W, 5.0 A, NEMA 5-15P, 9 ft cord |
| Pan Capacity | 2 full-size (12" × 20") pans – 6" deep |
| Well Depth | 6-1/4" (158 mm) |
| Exterior (H × W × D) | 25-5/16" × 31-7/16" × 27" (643 × 799 × 686 mm) |
| Countertop Cut-out | 29-7/8" × 25-1/2" (759 × 648 mm) |
| Remote BTU Load | 474 BTU @ –10 °F (–23 °C) suction line |
| Refrigerant | R290 (propane), field-charged with remote condensing unit |
| Certifications | cULus, NSF, EcoSmart® |
| Net Weight | 170 lb (77 kg) |
Installation notes
- Unit must be installed level in a water-resistant countertop.
- Provide at least 3/4" (19 mm) between multiple wells for sanitation clearance.
- Maintain 4" (102 mm) clearance in front of the dual-air movement louver.
- Do not install under a hood, in direct steam/grease, or outdoors.
- Remote condensing unit, line-sets, and refrigerant charge are not included.
Warranty coverage
• 1-year parts & labor on the well and controls
• 5-year parts on the compressor when supplied by Alto-Shaam
Refer to Alto-Shaam’s full warranty statement for terms and exclusions.
