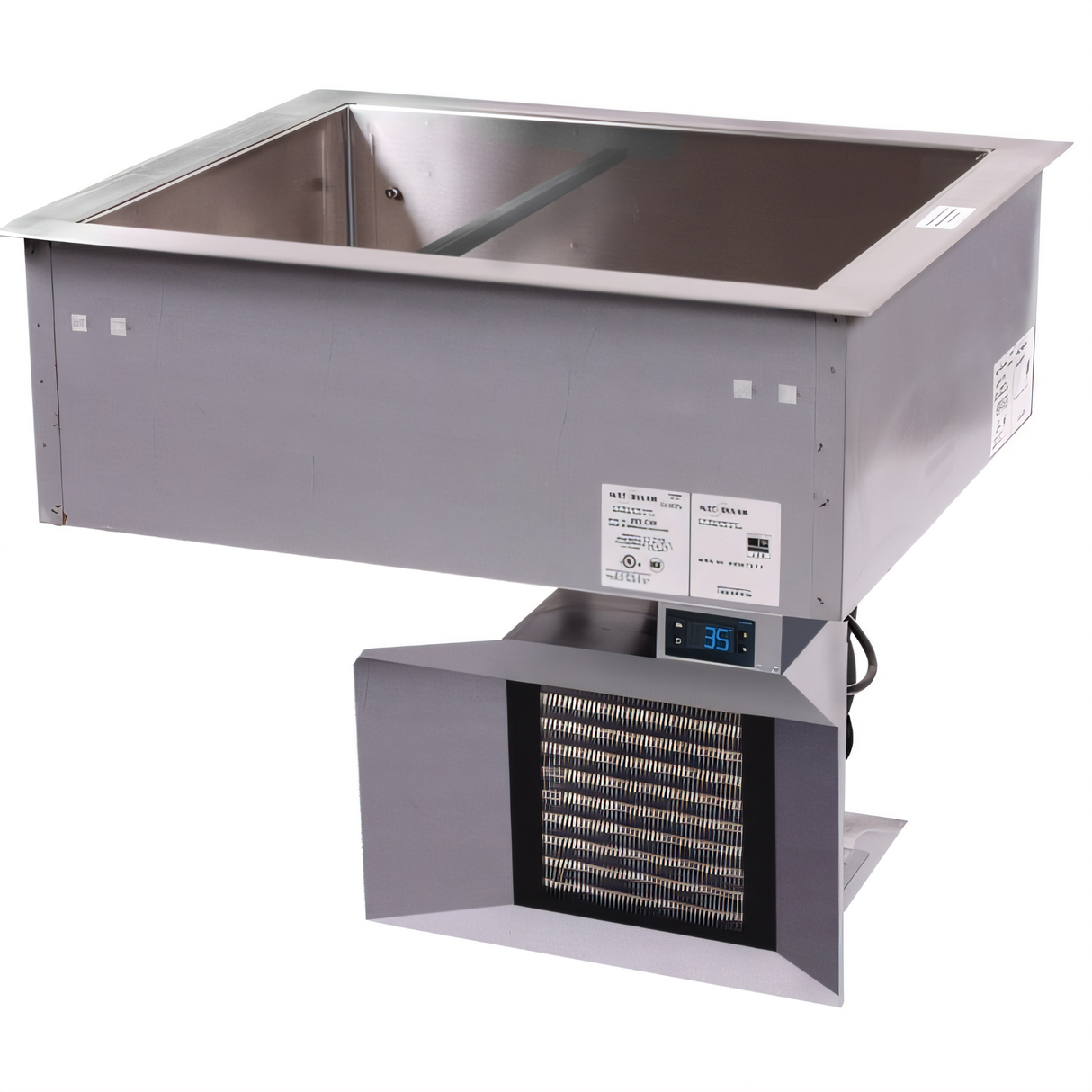

Alto-Shaam EcoSmart 200-CW Drop-In Self-Contained Refrigerated Cold Well, 2 Full-Size Pan Capacity

Cold Wall Design, 115V, R-290

Keep cold foods safely at serving temperature with a drop-in cold well that combines cold wall cooling, digital control, and a self-contained R-290 refrigeration system.

  • Self-contained cold wall refrigeration helps maintain food quality without forced air.
  • Holds 2 full-size or GN 1/1 pans, with flexibility for smaller pan configurations using divider bars.
  • Digital thermostat provides accurate cold-holding control.
  • Corrosion-resistant steel exterior with stainless steel top and interior surfaces.
  • 1/4 hp compressor, R-290 refrigerant, 115V operation, and NEMA 5-15P plug for simple setup.

Overall Dimensions:

31.44"W x 27.0"D x 27.5"H

Product Weight:

220.0 lb

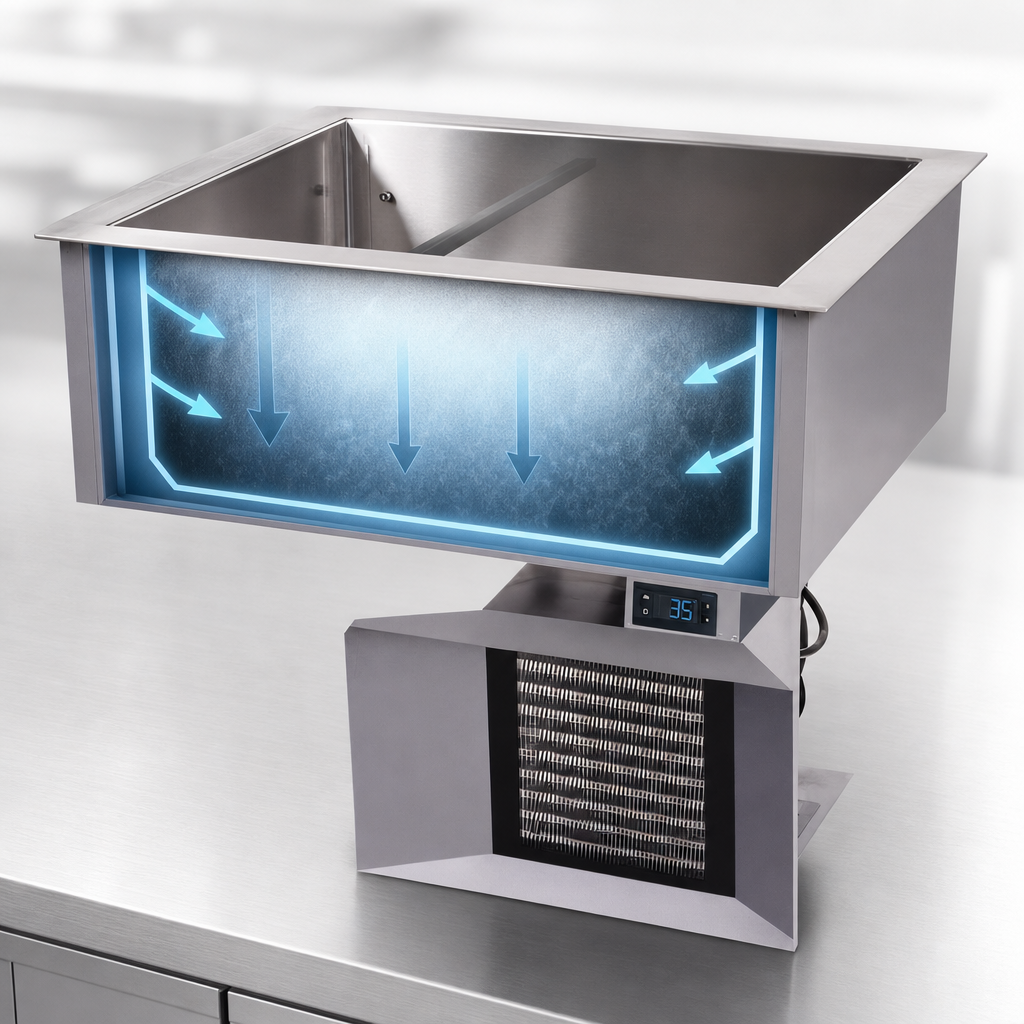

Cold Wall Conductive Cooling

Uses conductive cooling instead of forced air to help preserve food texture and appearance.

Digital Thermostat Control

Provides flexible temperature control for reliable cold holding.

Self-Contained 1/4 HP Compressor

Built-in refrigeration system supports drop-in installation without a remote compressor.

R-290 Refrigerant

Designed to operate with R-290 refrigerant.

Corrosion-Resistant Steel Exterior

Durable exterior construction for busy foodservice environments.

Stainless Steel Top and Interior

Includes a stainless steel top and coved corner interior for easier cleaning.

Dual Air Movement Louver

Helps manage airflow, and the condensing unit can rotate for side louver positioning.

Flexible Pan Support System

Includes recessed stainless steel pan support, adaptor bars, and three 20-inch divider bars for pan organization.

Type Cold Well
Style Self-Contained Refrigeration
Installation Type Drop-In
Controls Digital
Temperature Range 41°F (5°C) or Below
Capacity 44 Quarts
Pan Capacity 2 Full-Size Pans
Pan Size 12 x 20 Inches
Material Corrosion Resistant Steel
Interior Finish Stainless Steel
Finish Corrosion Resistant Steel Exterior
Refrigerant Type R-290
Refrigeration Type Cold Wall
Drain Connection Required
Voltage 115 Volts
Amps 5.0 Amps
Watts 600 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Shipping Width 32 Inches
Shipping Depth 36-1/2 Inches
Shipping Height 36-1/2 Inches
Shipping Weight 220 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor; 5 years on refrigeration compressor.

Documents

PDF Cutsheet PDF Download PDF Spec sheet - ul PDF Download PDF Spec sheet - spanish PDF Download PDF Terms & conditions PDF Download PDF Spec sheet - french canadian PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. Pans are not included.
It holds 2 full-size or GN 1/1 pans, 4 half-size or GN 1/2 pans, or 6 third-size or GN 1/3 pans based on 6-inch deep pans; it also accepts 2-1/2-inch and 4-inch deep pans.
115V, 60 Hz, single-phase, 5.0 amps, 600 watts, with a NEMA 5-15P plug and 9-foot cord.
It uses R-290 refrigerant.
Yes. The 200-CW/R is the remote-compressor version.
A water drain or water catch basin is required, and the unit should not be installed under a hood or in areas exposed to steam, grease, dripping water, or other severe conditions.
