Alto-Shaam 20-20W Combimate Heated Cabinets & Holding Shelves
Description

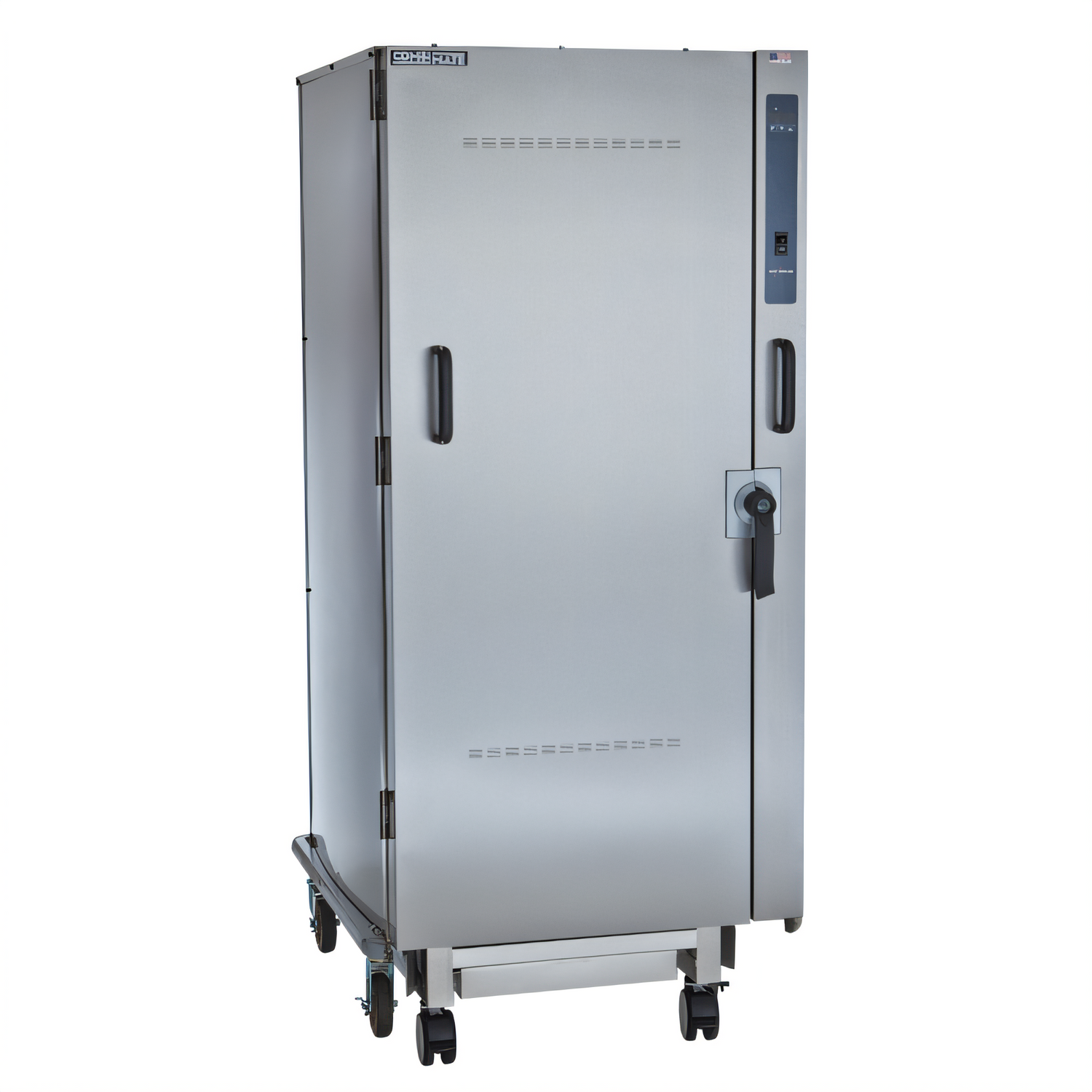

Combimate™ Halo Heat® Holding Cabinet

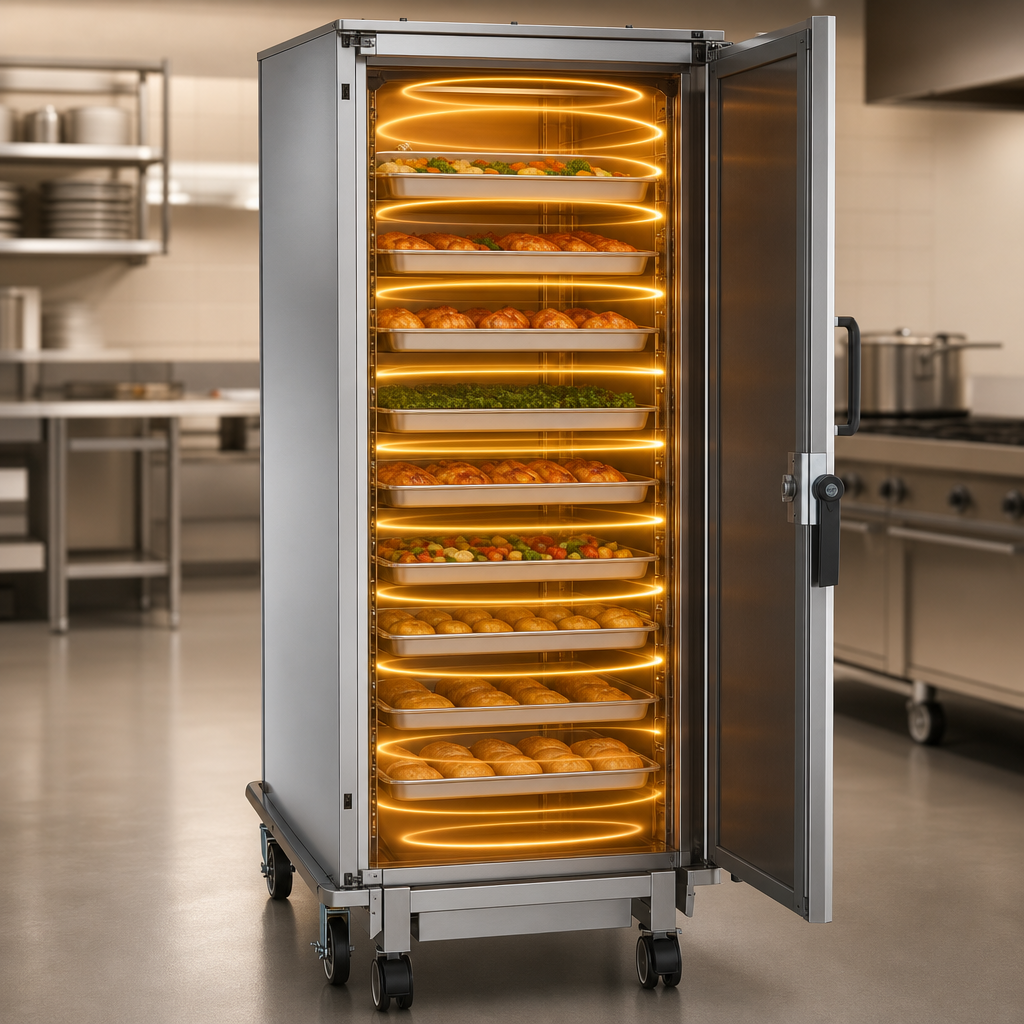

40 Pan | Single-Door | Stationary | EcoSmart®Built around Alto-Shaam’s exclusive Halo Heat® technology, the Combimate™ gently surrounds food with a uniform blanket of radiant heat— no fans, no harsh heating elements, and no added humidity. The result is food that looks and tastes exactly the way it should, held safely between service periods while using dramatically less energy than conventional holding methods.
Why You’ll Love It
- Generous capacity: Holds up to forty 12" × 20" hotel pans or ten 18" × 26" sheet pans.
- Halo Heat® system: Precise, gentle radiant heat extends holding life and maintains product quality without added water or fans.
- Simple touch control: Intuitive icons, one-touch ON/OFF switch, and a bright heat indicator light keep operation effortless.
- Fast heat recovery: Digital sensors react instantly to temperature drops for consistent holding temperatures.
- Wide temperature range: 60 °F – 200 °F (16 °C – 93 °C) to accommodate everything from delicate pastries to hearty roasts.

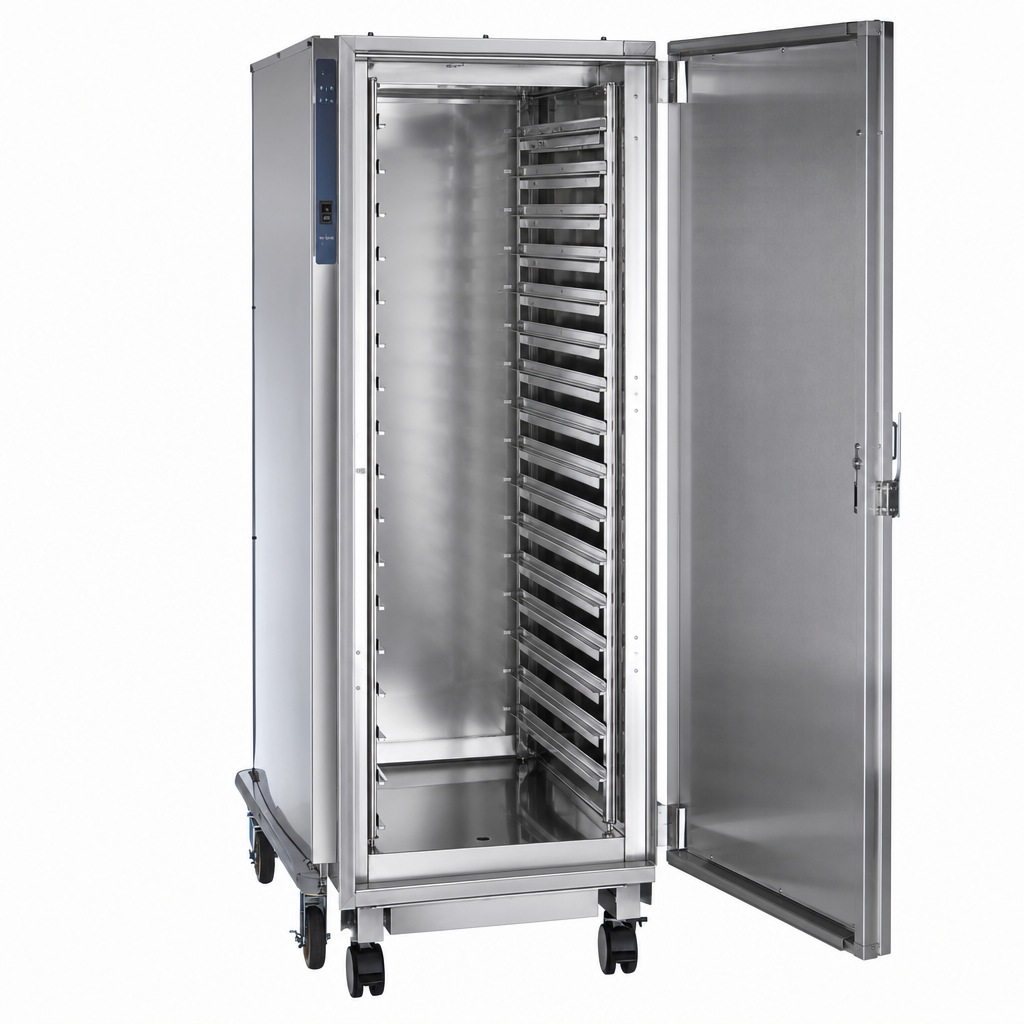

- Stainless-steel construction: Durable, corrosion-resistant cabinet inside and out.
- Heavy-duty legs: Four adjustable equipment legs provide a rock-solid, stationary footprint.
- EcoSmart® efficiency: Low heat of rejection (≈ 608 BTU/hr) reduces HVAC load and energy costs.
- Certified for peace of mind: cULus, UL EPH, ANSI/NSF 4, CE, IPX4, TÜV NORD, and EAC listed.
Technical Specifications
| Pan Capacity | (40) 12" × 20" full-size hotel pans (10) 18" × 26" full-size sheet pans |
|---|---|
| Temperature Range | 60 °F – 200 °F (16 °C – 93 °C) |
| Exterior Dimensions (H × W × D) | 74-3/4" × 35" × 41-5/16" (1 898 mm × 888 mm × 1 049 mm) |
| Interior Dimensions (H × W × D) | 59-1/4" × 24-3/16" × 33-5/16" (1 505 mm × 614 mm × 846 mm) |
| Electrical | 208–240 V / 1 ph / 50-60 Hz • 2.2 – 3.0 kW • 10.8 – 12.5 A Factory-installed 9-ft (2.7 m) cord with NEMA 6-15P plug (USA) |
| Net Weight | 419 lb (190 kg) |
| Certifications | cULus, UL EPH, ANSI/NSF 4, CE, IPX4, TÜV NORD, EAC |
Popular Accessories (Sold Separately)
- Preheat sealing strip (part #5016989)
- Stainless-steel shelf 25-1/8" × 20-7/8" (part #SH-22473)
- Roll-in pan and plate trolleys for high-volume banquet service
Backed by Alto-Shaam’s one-year parts & labor warranty. See full warranty statement for terms and exclusions.
