Alto-Shaam 20-20MW Combimate Heated Cabinets & Holding Shelves
Description

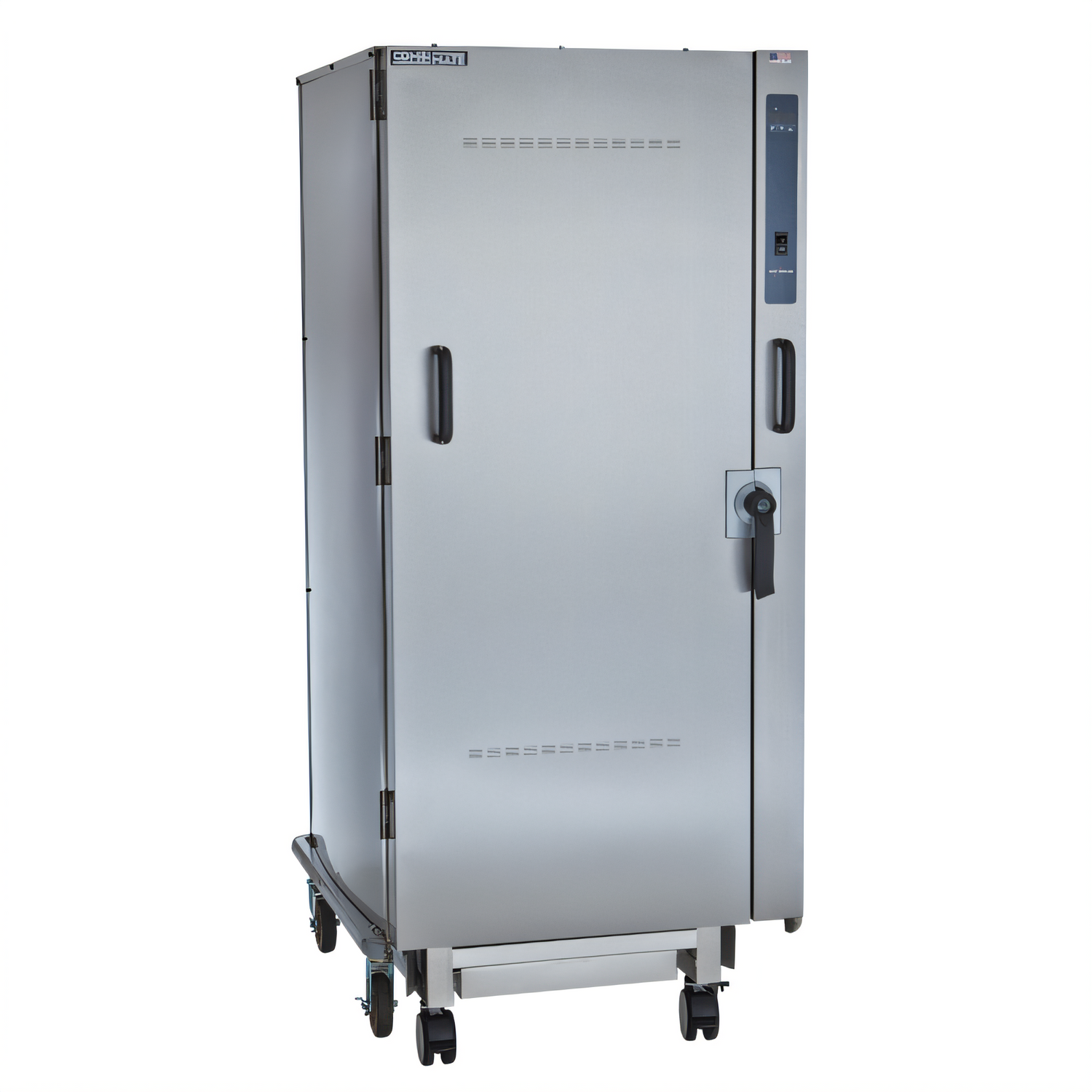

Alto-Shaam Combimate Halo Heat® Mobile Holding Cabinet
40 Full-Size Pan | Single-Door | Touch-Control | EcoSmart®Preserve the just-cooked quality of your menu items without over-cooking or drying them out. The Combimate holding cabinet surrounds food with gentle, even Halo Heat®—extending holding time, improving taste & texture, and reducing labour on every shift. Built for high-volume banqueting, QSR, and institutional kitchens, this stainless-steel unit rolls easily on heavy-duty casters and plugs into a single 208-240 V circuit for fast, flexible installation.
Why Choose Combimate?
- Halo Heat® technology delivers uniform radiant heat—no fans, added humidity, or harsh elements.
- Large 40 × 12 × 20 in pan (GN 1/1) or 10 × 18 × 26 in sheet-pan capacity.

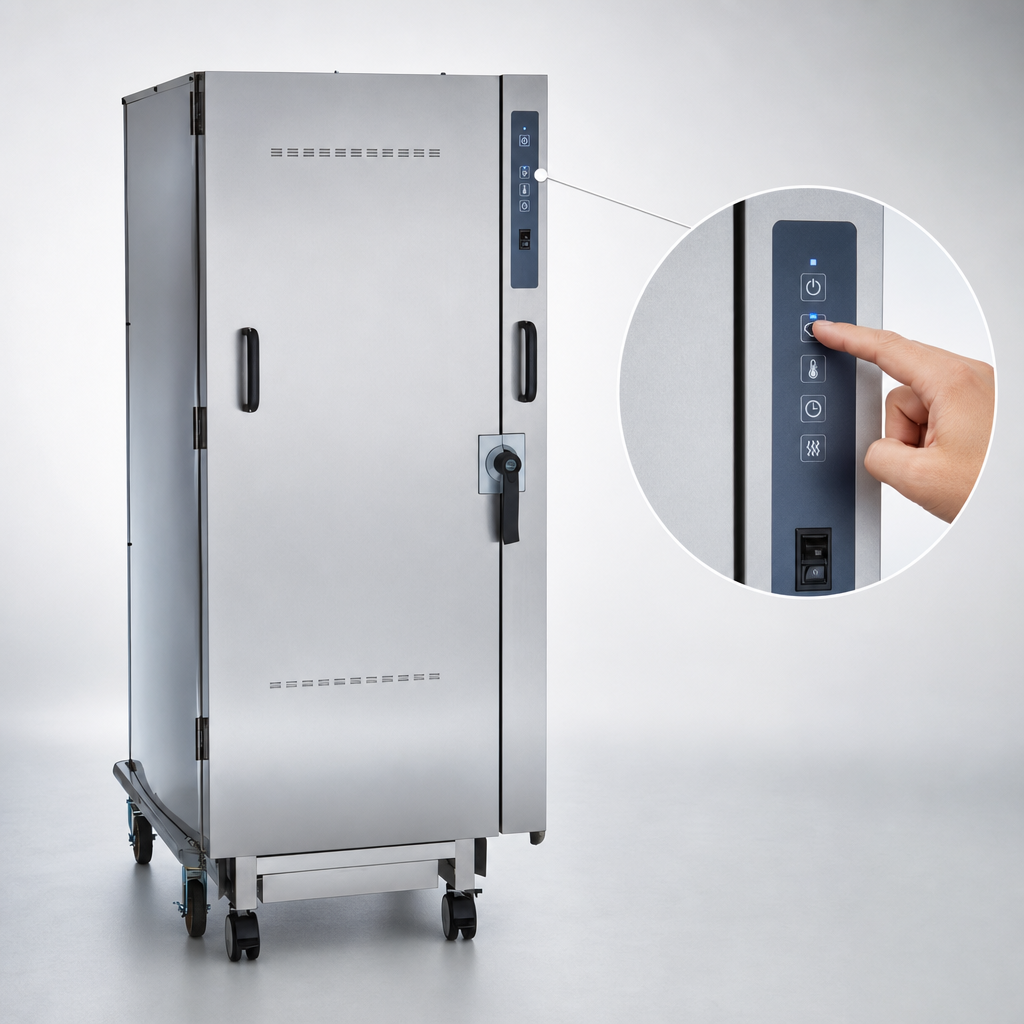

- Touch-button control with heat indicator light and easy ON/OFF power switch.
- Precision temperature range: 60 °F – 200 °F (16 °C – 93 °C) for holding everything from proofed dough to crispy fried foods.
- Field-reversible, gasketed door with venting feature keeps fried or baked items crisp.
- Fully welded, corrosion-resistant stainless-steel interior and exterior.
- (4) 5 in heavy-duty casters—two swivel locking—for effortless mobility.
- EcoSmart® design lowers energy use, heat gain (only 608 BTU/hr), and operating costs.
- Independently certified: cULus, UL EPH/ANSI NSF 4, CE, IPX4, TÜV NORD, EAC.
Pan & Product Capacity
- 40 × 12 × 20 in steam-table pans (2.5 in deep) or
- 20 × GN 2/1 pans
- 10 × full-size 18 × 26 in sheet pans (with optional shelves)
- Maximum load: 480 lb (218 kg) / 300 qt (284 L)
Technical Specifications
| Exterior Dimensions (H × W × D) | 74-3/4 in × 35 in × 41-5/16 in (1 898 mm × 888 mm × 1 049 mm) |
|---|---|
| Interior Dimensions (H × W × D) | 59-1/4 in × 24-3/16 in × 33-5/16 in (1 505 mm × 614 mm × 846 mm) |
| Temperature Range | 60 °F – 200 °F (16 °C – 93 °C) |
| Electrical | 208–240 V / 1 ph / 50-60 Hz | 10.8 – 12.5 A | 2.2 – 3.0 kW 230 V / 1 ph / 50-60 Hz | 12.0 A | 2.8 kW |
| Power Connection | 9 ft (2.74 m) cord with NEMA 6-15P (U.S.) or region-specific 250 V plug |
| Heat Rejection | 608 BTU/hr (0.18 kW) |
| Net / Ship Weight | 419 lb (190 kg) / 538 lb (244 kg) |
| Clearances | Top 2 in | Back 3 in | Left/Right 1 in |
| Mobility | (4) 5 in casters – 2 rigid, 2 swivel w/ brakes |
| Construction | All stainless steel; fully insulated; single left-hinged door (right-hinge optional) |
| Certifications | cULus, UL EPH/ANSI NSF 4, CE, IPX4, TÜV NORD, EAC |
Backed by Alto-Shaam’s 1-year parts & labour warranty (15 months from ship date) and lifetime Halo Heat® element coverage for the original owner. See full warranty for terms & exclusions.
