Alto-Shaam 1200-UP-QS Quick Ship Heated Cabinets & Holding Shelves
Description

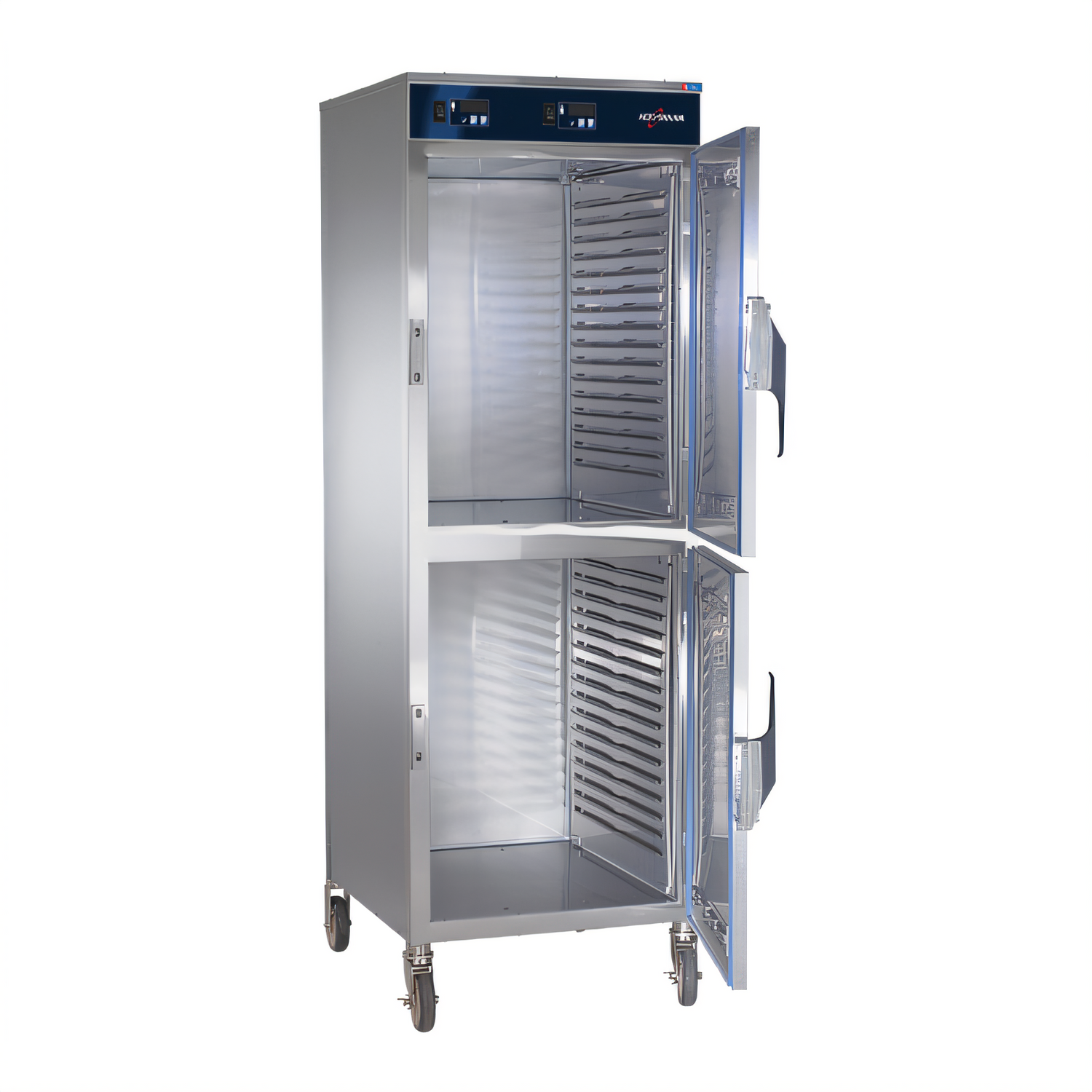

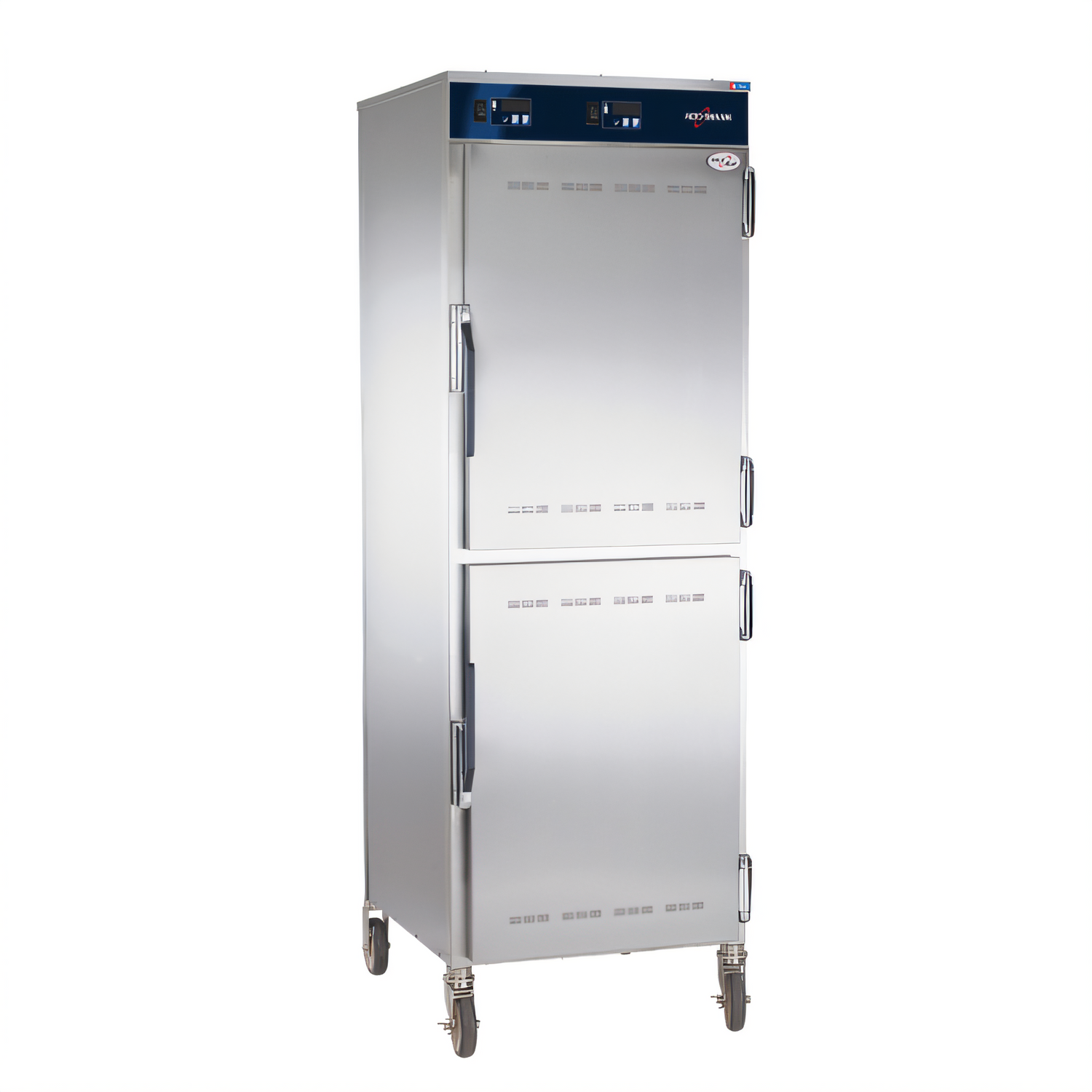

Alto-Shaam 1200-UP Halo Heat® Low-Temperature Holding Cabinet – Quick Ship
Item #221400 · Double Compartment · Simple Control · 5" CastersKeep entrées at peak quality for hours. Powered by Alto-Shaam’s exclusive Halo Heat® technology, the 1200-UP surrounds food with gentle, even heat—no fans, no added humidity, no hot spots. This Quick Ship configuration ships within 48 business hours so you can start protecting product quality and profits right away.
Why operators love it

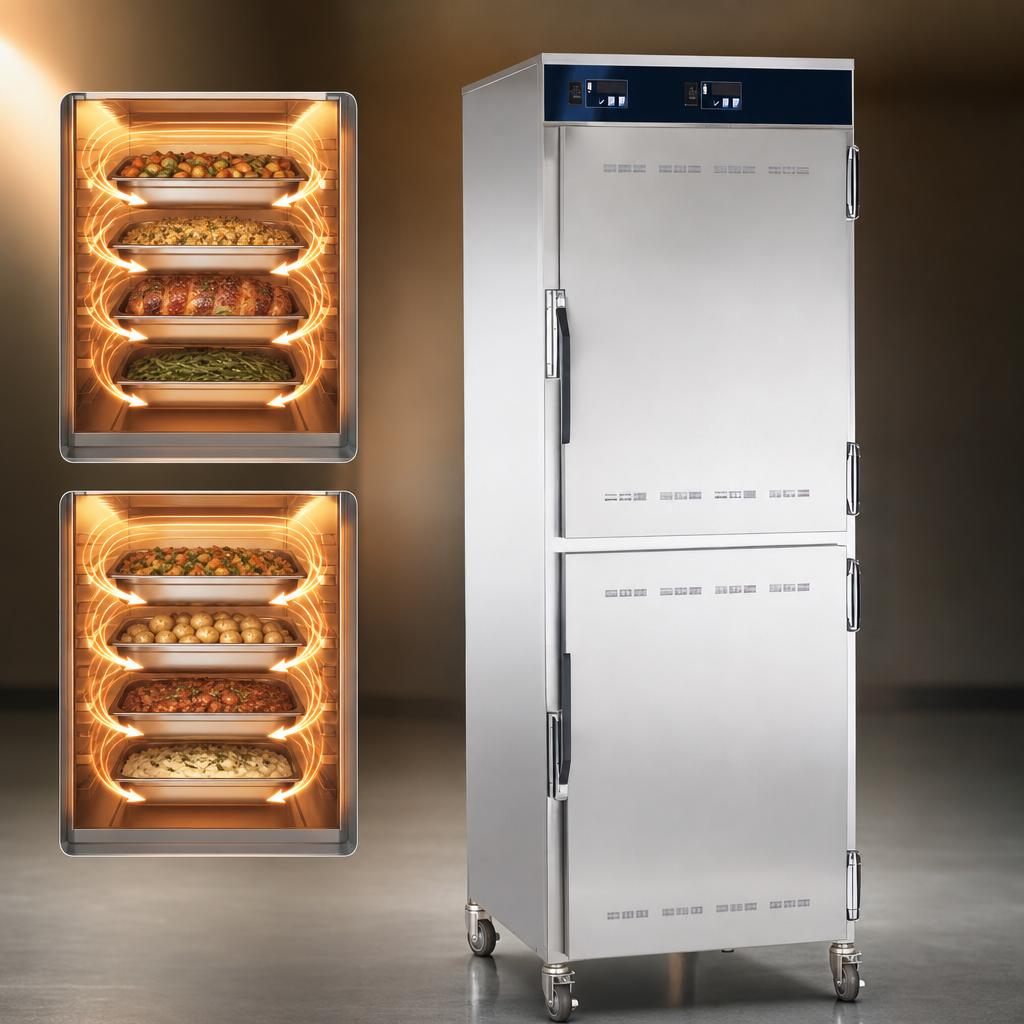

- Halo Heat® radiant technology preserves natural moisture and flavor without overcooking or drying out food.

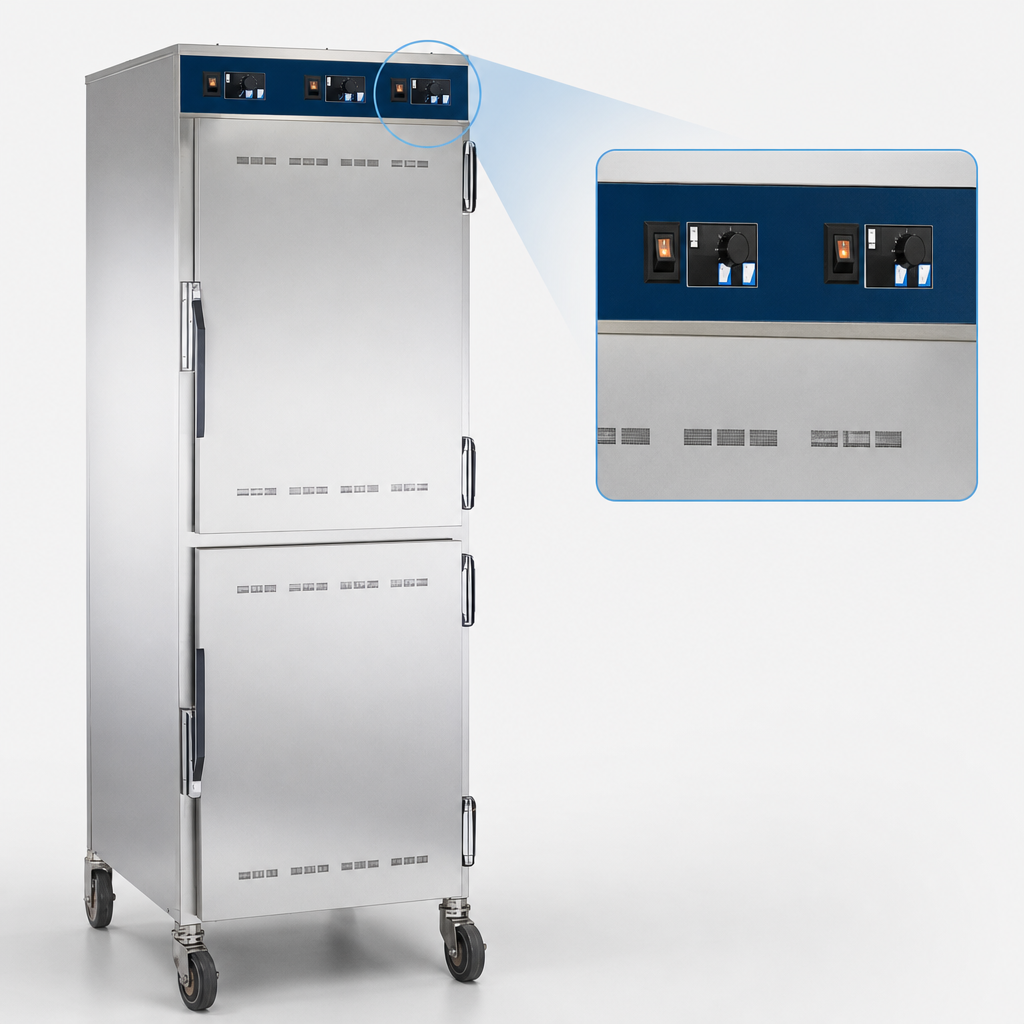

- Simple on/off controller with individual thermostats (60 °F – 200 °F / 16 °C – 93 °C) and status indicator light.
- High-volume capacity—holds sixteen 20" × 12" × 2½" full-size pans (eight per compartment).
- (4) Universal pan slide sets + (2) chrome-plated side rails included for flexible loading.
- Heavy-duty stainless steel exterior & interior resist corrosion and clean up fast.
- EcoSmart® design draws less than $2 of electricity per day (1.9 kW at 120 V).
- Roll-and-lock mobility: (4) 5" casters—2 rigid, 2 swivel with brakes.
- Safety & sanitation assured: cULus, UL EPH Classified, CE, IPX4, TUV NORD & EAC listed.
Pan capacity
| Pan size / depth | Capacity |
|---|---|
| Full-size steam-table, 2½" (65 mm) | 16 pans |
| Full-size steam-table, 4" (100 mm) | 8 pans |
| Full-size steam-table, 6" (150 mm) | 8 pans |
| Full-size sheet pans | 4 pans |
| Maximum product load | 192 lb (87 kg) |
Technical specifications
| Model / Item # | 1200-UP / 221400 (Quick Ship) |
|---|---|
| Compartments | 2 (reach-in) |
| Temperature range | 60 °F – 200 °F (16 °C – 93 °C) |
| Exterior dimensions (H × W × D) | 75-13/16" × 26-7/16" × 32-3/16" (1924 × 671 × 817 mm) |
| Interior – each compartment | 28-3/4" × 21-5/16" × 26-1/2" (730 × 541 × 673 mm) |
| Electrical (standard) | 120 V, 1 ph, 50/60 Hz, 16 A, 1.9 kW • NEMA 5-20P |
| Net / ship weight | 333 lb (151 kg) / 393 lb (178 kg) |
What’s in the box
- (2) Chrome-plated universal side rails
- (4) Universal pan slide sets
- (4) 5" casters (2 swivel with brakes, 2 rigid)
- Factory-installed EcoSmart® insulation
Need optional accessories such as bumpers, push/pull handles, or security locks? Contact us for factory-installed options.
