Alto-Shaam  |  Halo Heat  |  SKU: 1200-UP

Alto-Shaam 1200-UP Halo Heat Heated Cabinets & Holding Shelves

$6,444.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Spec sheet - french canadian User's guide Terms & conditions Spec sheet - spanish Spec sheet - ul & ce Operators manual Warranty sheet Warranty sheet
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

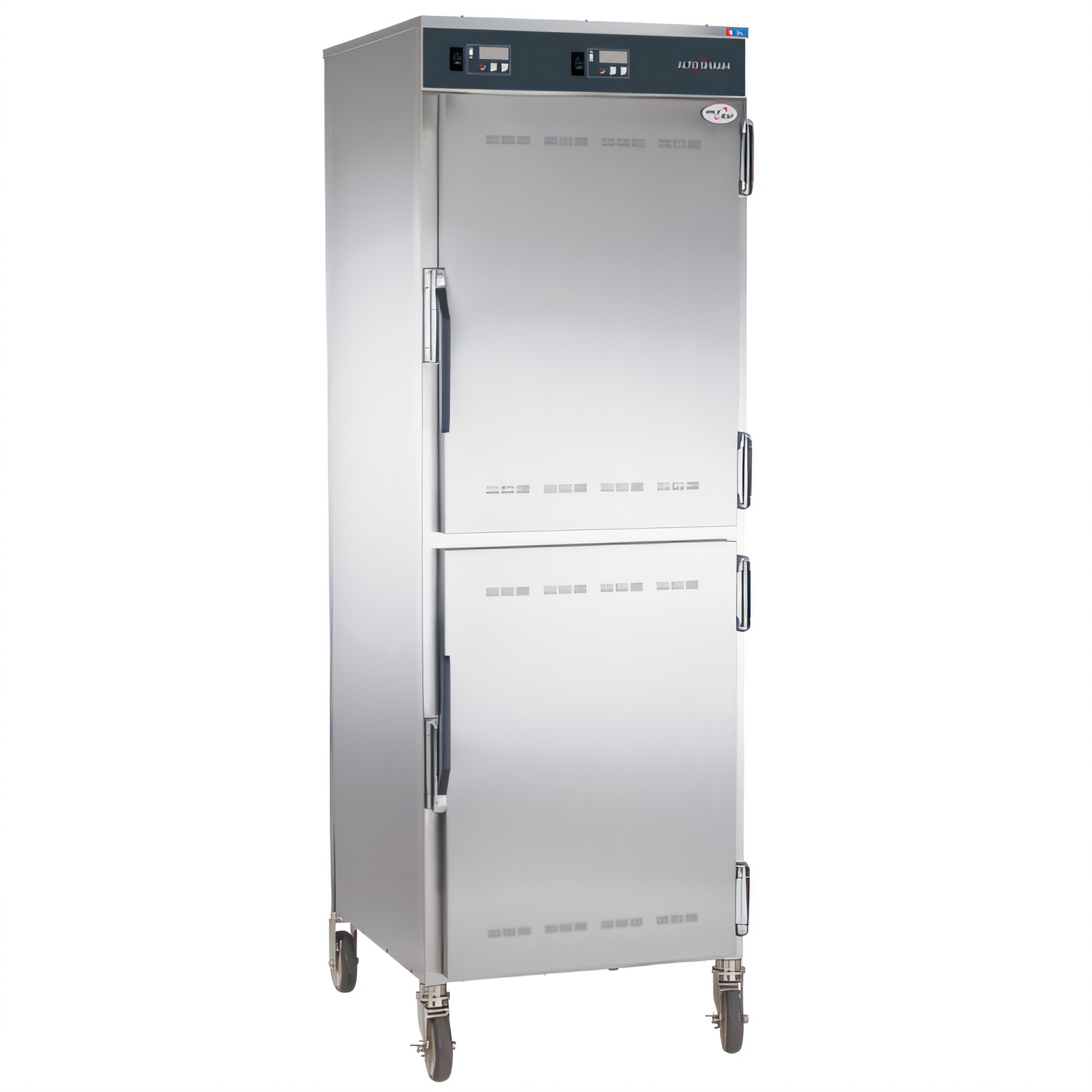

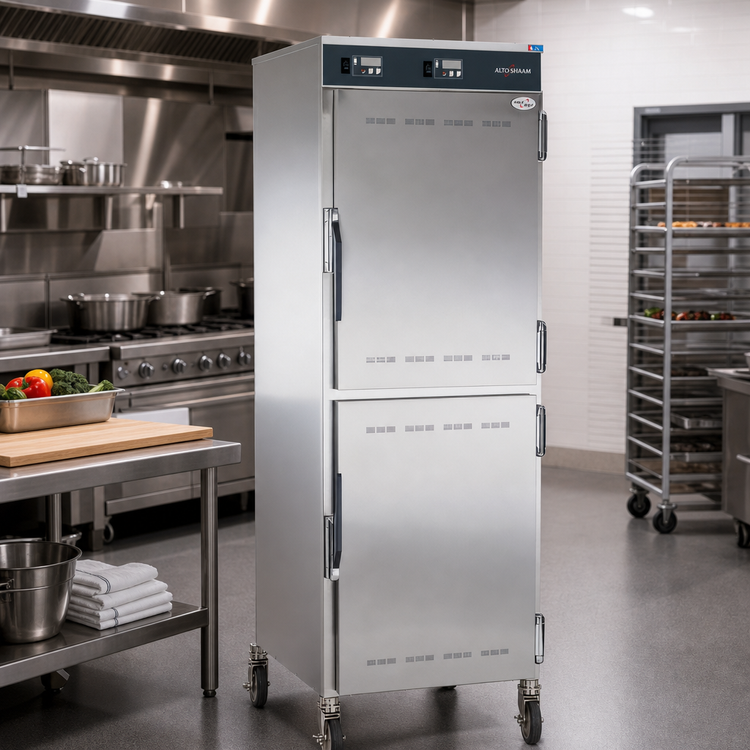

Alto-Shaam Halo Heat® 1200-UP Low-Temperature Holding Cabinet

Double-compartment | Simple mechanical controls | 16-pan capacity

Preserve just-cooked quality for hours without fans, added humidity, or guesswork. The ENERGY STAR® qualified Halo Heat® 1200-UP surrounds food with gentle, even radiant heat, keeping it moist, flavorful, and ready for service—whenever the rush hits.

Key benefits
  • Exclusive Halo Heat® technology maintains 60 – 200 °F (16 – 93 °C) with no drying hot spots.
  • Simple on/off controller with independent adjustable thermostats & indicator lights for each cavity.

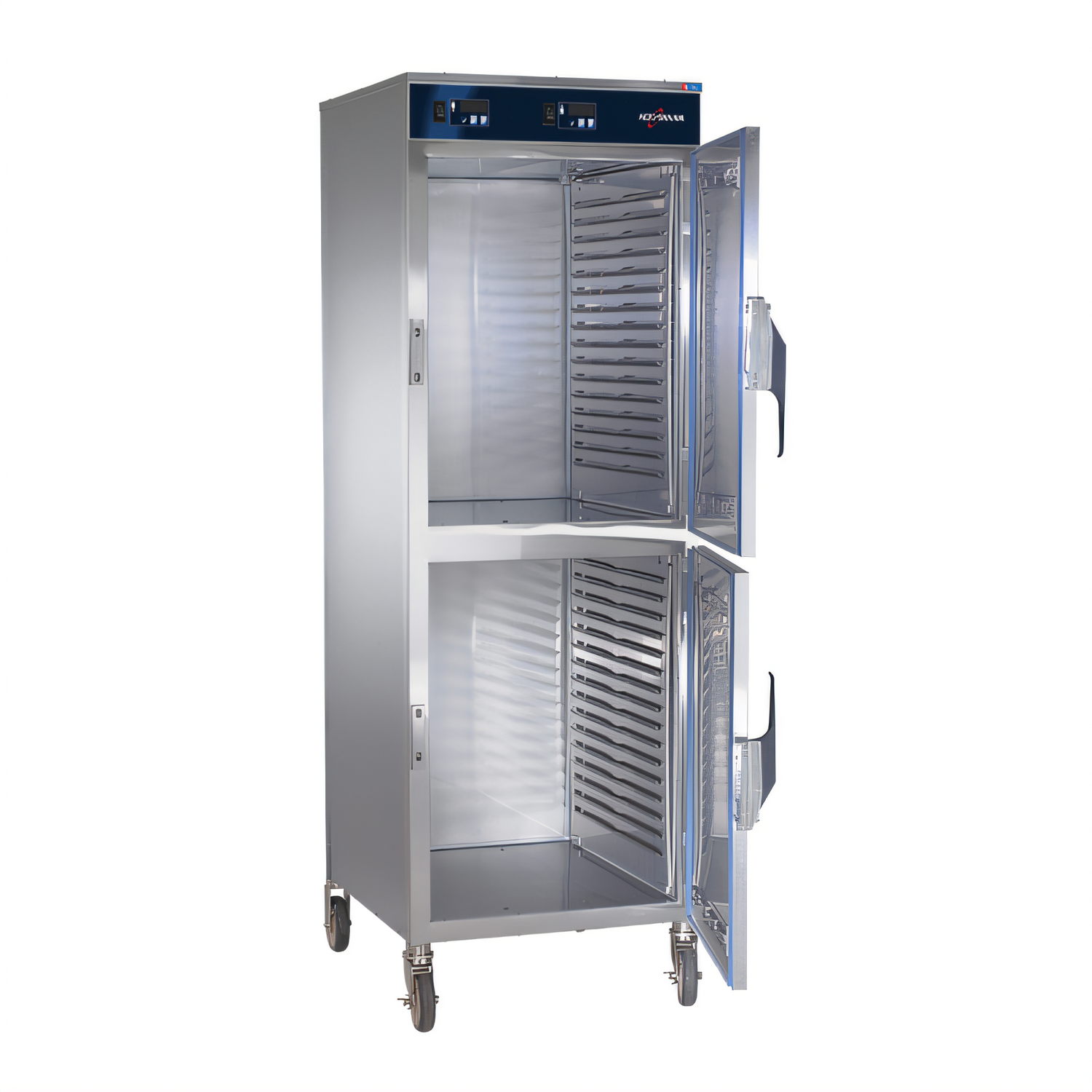

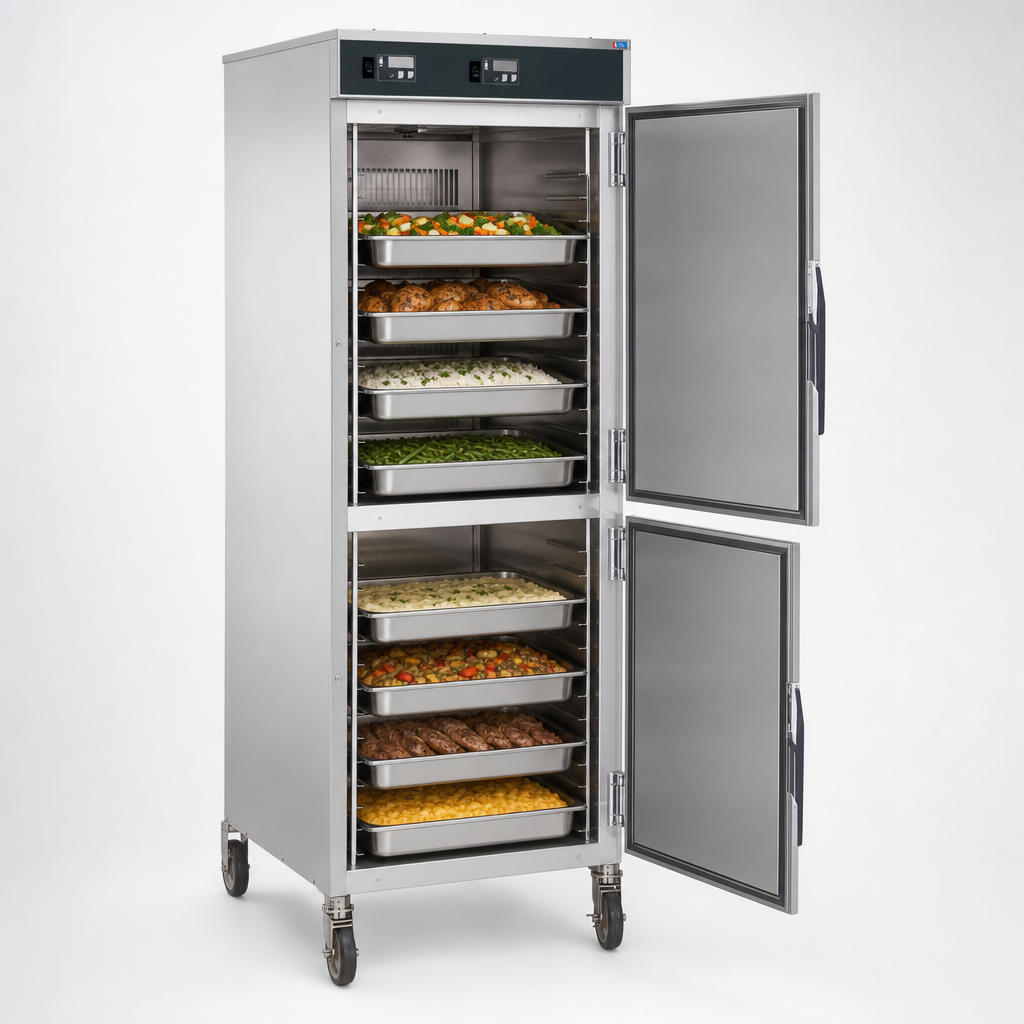

  • Massive 16-pan capacity (full-size 2.5" deep hotel pans) across two fully independent compartments.
  • Heavy-gauge stainless steel exterior & stainless interior resist corrosion and daily wear.
  • (2) chrome-plated universal side rails & (4) sets of pan slides included—load hotel, GN or sheet pans with ease.
  • 5" casters—2 rigid & 2 swivel with brakes—make the unit easy to roll, lock, and clean around.
  • EcoSmart® design plus ENERGY STAR® efficiency lowers utility costs and reduces food waste.
  • Certified cULus, UL EPH, CE, IPX4, TUV NORD & EAC for global compliance.
At-a-glance specifications
Model 1200-UP (double compartment)
Controller On/Off mechanical—independent per cavity
Temperature range 60 °F – 200 °F (16 °C – 93 °C)
Total capacity 16 × 20" × 12" × 2-1/2" hotel pans
Exterior (H × W × D) 75-13/16" × 26-7/16" × 32-3/16" (1924 × 671 × 817 mm)
Interior (each cavity) 28-3/4" × 21-5/16" × 26-1/2" (730 × 541 × 673 mm)
Net weight 333 lb (151 kg)
Mobility 5" casters – 2 rigid, 2 swivel w/ brakes
Construction All stainless steel with chrome-plated rails & slides
Certifications ENERGY STAR®, EcoSmart®, cULus, UL EPH, CE, IPX4, TUV NORD, EAC
Electrical options
  • 120 V / 1 ph / 1.9 kW – NEMA 5-20P
  • 208–240 V / 1 ph / 2.0 kW – NEMA 6-15P (USA only)
  • 208–240 V / 1 ph / 4.0 kW – field wired (no cord/plug)
  • 230 V international plugs (CEE 7/7, CH2-16p, BS 1363, AS/NZS 3112)
Included in the box
  • 2 × chrome-plated universal side rail sets
  • 4 × adjustable pan slide sets
  • Operator’s manual & quick-start guide
Installation note: Provide 2" (51 mm) clearance on top, 1" (25 mm) on each side, and 3" (76 mm) at the rear. Unit must be leveled and secured according to local codes.

Supported by Alto-Shaam’s 1-year parts & labor warranty (see full warranty for details).

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Certifications

CE, cULus, UL EPH Classified, IPX4, ENERGY STAR

Height

75.81in

Width

26.44in

Depth

32.19in

Shipping Weight

393.0lbs

Door Style

dutch / split doors

Energy Efficiency

ENERGY STAR®

Full Size Hotel Pan Capacity

(16) 12" x 20" pans

Size

2 compartment

Slide Centers

adjustable on 1-3/4"

Section

1 section

Height

73" - 78"

Door Type

solid

Exterior Finish

all stainless steel exterior

Heater

top mounted

Insulation

insulated

Specifications

Halo Heat® Low Temperature Holding Cabinet, double compartment, on/off simple controller with adjustable thermostats, indicator light, (2) sets of chrome plated universal side rails, (4) sets of pan slides, (16) 20" x 12" x 2-1/2" full size pan capacity, heavy stainless steel exterior, 5" casters; 2 rigid, 2 swivel with brakes, EcoSmart®, cULus, UL EPH Classified, CE, IPX4, TUV NORD, EAC, ENERGY STAR®
