Alto-Shaam 1000-UP/P Halo Heat Dough Proofers & Retarders
Description
Halo Heat® Mobile Proofing Cabinet – Double Compartment
Alto-Shaam | Model 1000-UP/P • Window Doors • Simple On/Off ControlRise dough and hold delicate baked goods at the perfect temperature with Alto-Shaam’s patented Halo Heat® technology. Gentle, even radiant heat surrounds product without fans, harsh elements or added humidity—so breads, pastries and croissants stay light, moist and ready for a flawless finish.
Why this cabinet stands out

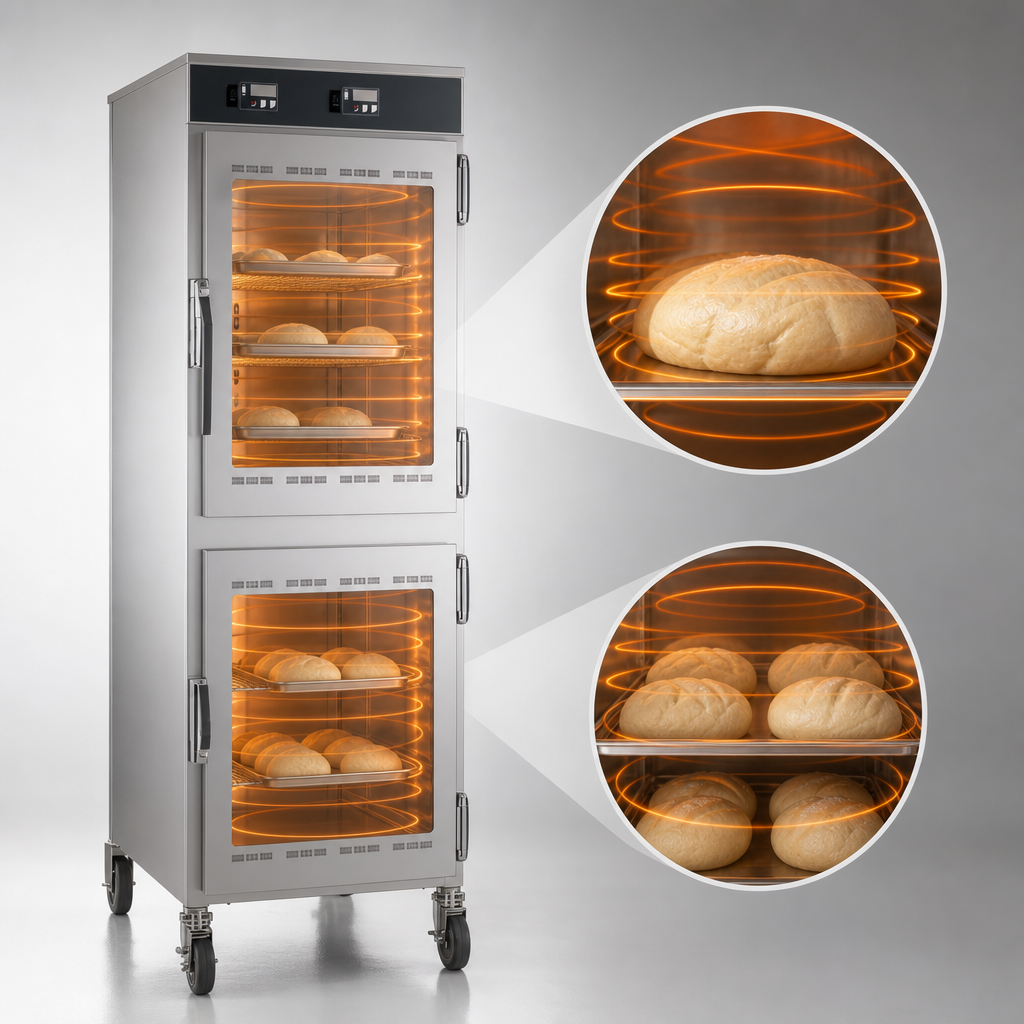

- Halo Heat® system delivers uniform, low-velocity radiant heat—no hot spots, no drying out.

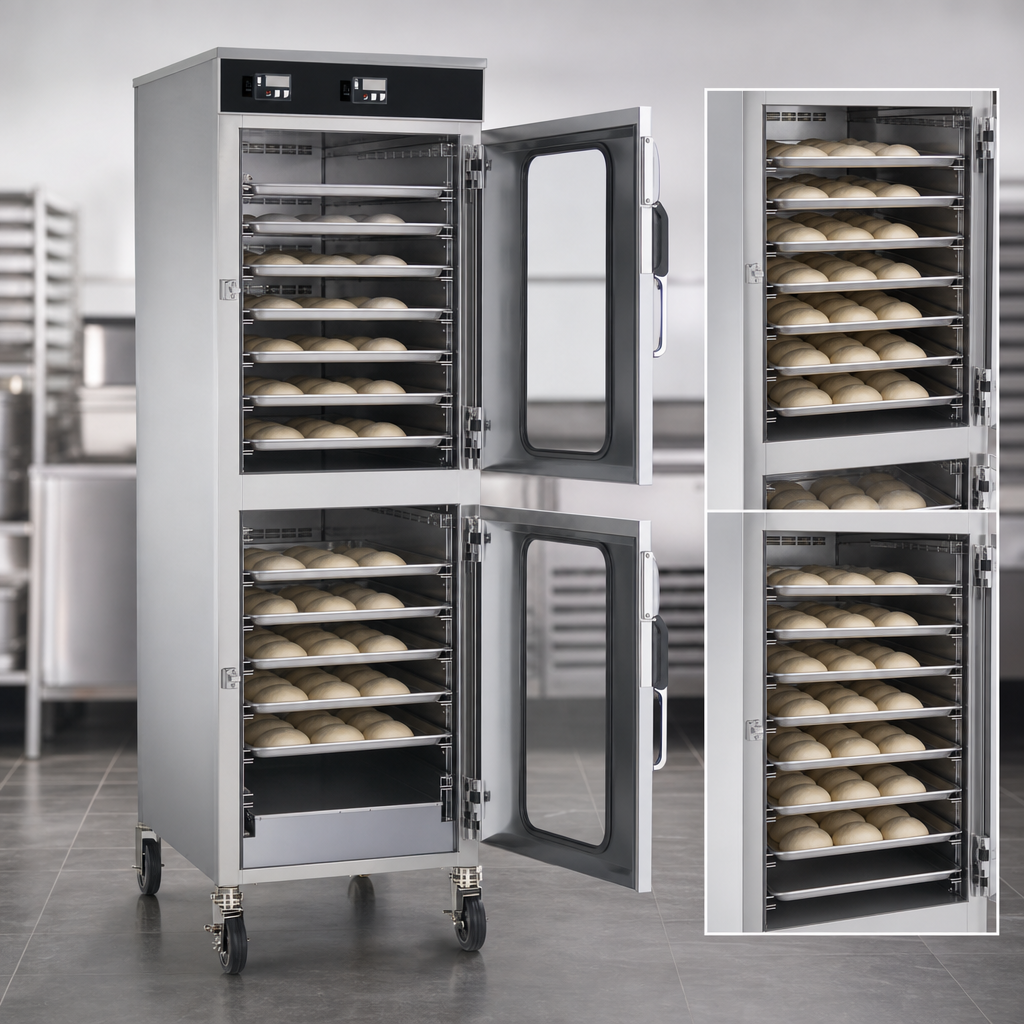

- Two completely independent cavities; each holds 8 full-size sheet pans (18 × 26 × 1").
- Simple rocker switch & separate thermostats per cavity (60 °F – 200 °F / 16 °C – 93 °C).
- Insulated, 304 stainless-steel interior & exterior for long-term durability and easy cleaning.
- Full-view window doors reduce heat loss by letting staff check product without opening.
- 5" (127 mm) heavy-duty casters – 2 rigid, 2 swivel with brake – glide smoothly and lock securely.
- EcoSmart® design lowers operating costs (heat rejection only 385 BTU/hr).
- Safety & sanitation certified: cULus, UL EPH NSF 4, CE, IPX3 splash protection, TUV NORD.
Capacity at a glance
| Compartments | 2 independent cavities |
|---|---|
| Sheet pans | 8 × 18 " × 26 " per cavity | 16 total |
| Maximum product load | 120 lb (54 kg) per cavity |
Technical specifications
| Exterior (H × W × D) | 75-13/16" × 23-15/16" × 32-11/16" (1924 × 608 × 804 mm) |
|---|---|
| Interior – each cavity | 26-7/8" × 18-7/8" × 26-1/2" (682 × 479 × 673 mm) |
| Net weight | 282 lb (128 kg) |
| Temperature range | 60 °F – 200 °F (16 °C – 93 °C) |
| Electrical |
120 V 1 ph 16 A 1.9 kW (NEMA 5-20P) 208 V 1 ph 7 A 1.4 kW (NEMA 6-15P) 230 V 1 ph 7.7 A 1.8 kW (CEE 7/7, CH2-16P, BS 1363, AS/NZS 3112) |
| Recommended clearances | Top 2" | Sides 1" | Back 3" |
What’s included
- (2) chrome-plated side racks – 8 positions each
- Built-in water reservoir pan & cover for proofing humidity control
- Antimicrobial door handles
- Pre-installed 5" caster set
Popular accessories (sold separately)
- Full-perimeter protective bumper
- Keyed door locks & security panel
- Wire pan grids and stainless-steel shelves
- Drip pan (with or without drain)
- 6" flanged legs for permanent installations
Questions about electrical configurations or accessories? Chat with our food-service specialists or call 800-558-8744.
