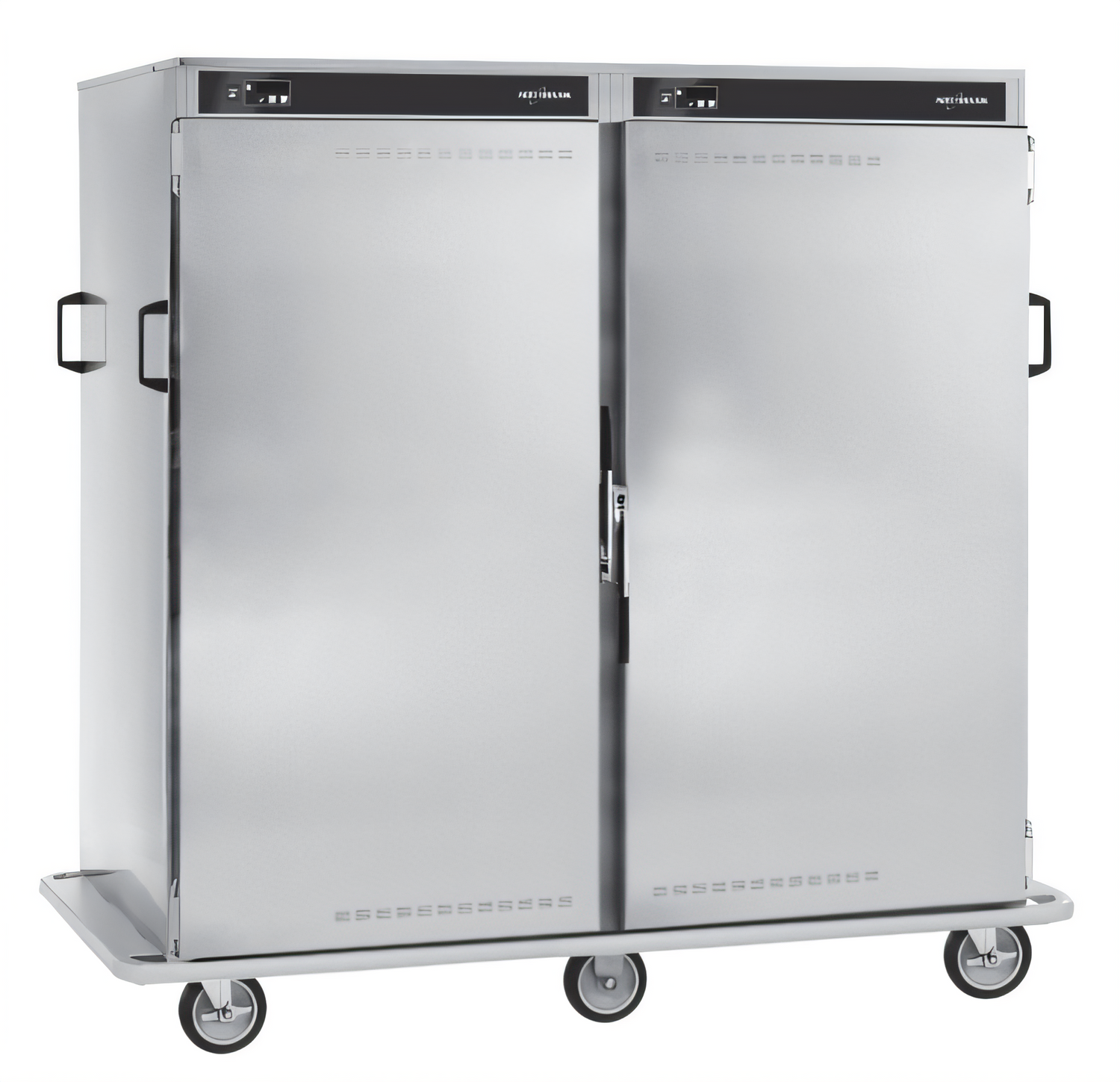

Alto-Shaam 1000-BQ2/192 Halo Heat® Banquet Cart
EcoSmart® hot-holding solution for up to 192 covered platesDeliver banquets faster—and fresher—without the headaches of canned heat or water pans. The Alto-Shaam 1000-BQ2/192 uses gentle, even Halo Heat® technology to surround every plate with uniform heat, keeping food at peak quality for hours while you focus on flawless service.
Why you’ll love it

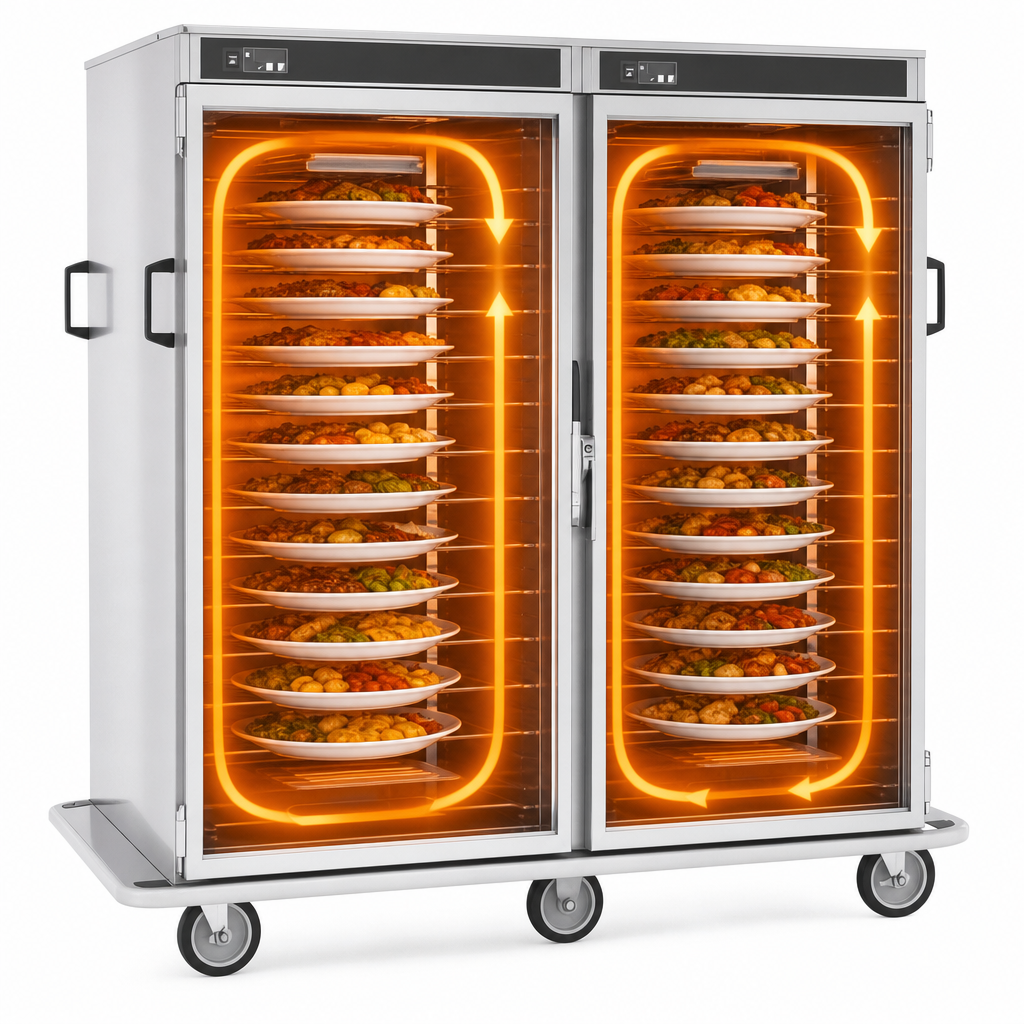

- Halo Heat® surrounds food with low-temperature radiant heat—no fans, water or humidity pans required.
- True 192-plate capacity (9–10" / 229–254 mm plates with covers) in an ultra-compact footprint.

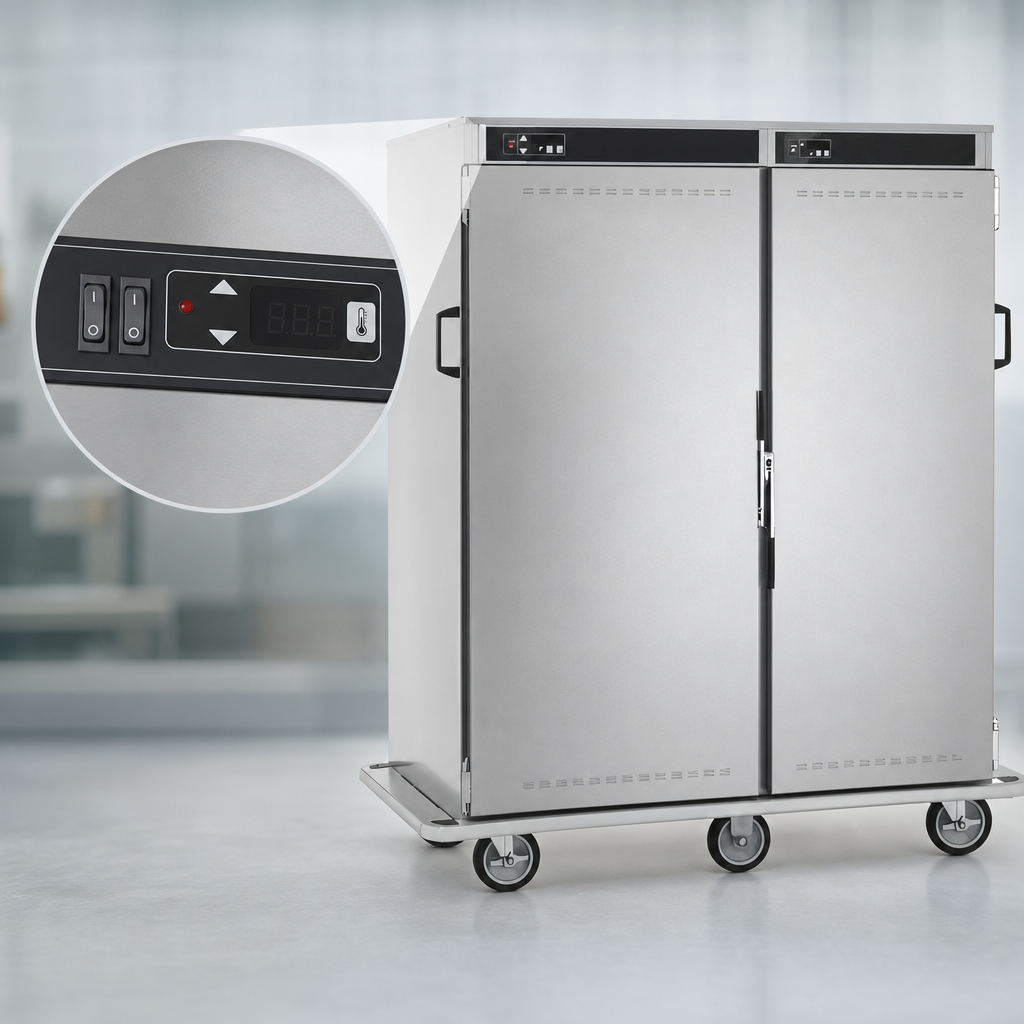

- Independent electronic controls for each compartment: ON/OFF switch, up/down arrows, digital temperature display and heat indicator light.
- 60 – 200 °F (16 – 93 °C) holding range with tight temperature tolerance from top-to-bottom and side-to-side.
- Flexible interiors accept stacked plates, plate carriers, trays, or full/half GN pans with additional shelves.
- Built for transport—full-perimeter bumper, recessed push handles, and six 6" (152 mm) heavy-duty casters (2 rigid, 4 swivel with brakes).
- Non-magnetic stainless-steel inside and out for maximum durability and easy sanitation.
- EcoSmart® design reduces energy consumption versus traditional heated holding methods.
- Certified cULus, UL EPH (NSF 4), CE, IPX4, TUV NORD, and EAC for worldwide peace of mind.
Plate & pan capacities
Plates (with covers) | 8–8 ¾" (203–222 mm): 256 plates (8 per shelf) |
---|---|
9–10" (229–254 mm): 192 plates (6 per shelf) ★ full-capacity model spec | |
10 ¼–12 ¾" (260–324 mm): 128 plates (4 per shelf) | |
Pans (per shelf) | 2 × GN 1/1 (12" × 20") 4 × GN 1/2 (12" × 10") |
Maximum shelves | 32 wire shelves (spacing 3 ¹⁄₈"/80 mm on center) |
Total volume | 300 qt / 380 L |
Technical specifications
Exterior dimensions (H × W × D) | 67-5/8" × 68-11/16" × 30-13/16" (1716 × 1744 × 783 mm) |
---|---|
Interior opening (per door) | 52-7/8" × 28-1/4" × 25-1/2" (1342 × 717 × 647 mm) |
Net weight | 618 lb / 280 kg |
Shipping weight | 750 lb / 340 kg |
Electrical (single phase) |
120 V 60 Hz | 24 A 2.9 kW (High) 208 V 60 Hz | 11.8 A 2.5 kW 240 V 60 Hz | 13.6 A 3.3 kW 230 V 50/60 Hz | 13.0 A 3.0 kW |
Power cord |
120 V: NEMA 5-20P (72" / 1829 mm) 208–240 V: NEMA 6-15P (96" / 2438 mm) 230 V: CEE 7/7 or equivalent |
Casters | 6 × 6" heavy-duty (2 rigid, 4 swivel with brakes) |
Construction | All stainless steel, solid doors, full-perimeter bumper |
Certifications | cULus, UL EPH/NSF 4, CE, IPX4, TUV NORD, EAC |
Popular options & accessories
- Chrome-plated plate carriers (covered or uncovered) – 48 or 32 carriers per cart.
- Additional wire shelves & shelf support clips for pan service.
- Keyed door lock kit for added security.
- Security device package with tamper-proof screws & control-panel cover.

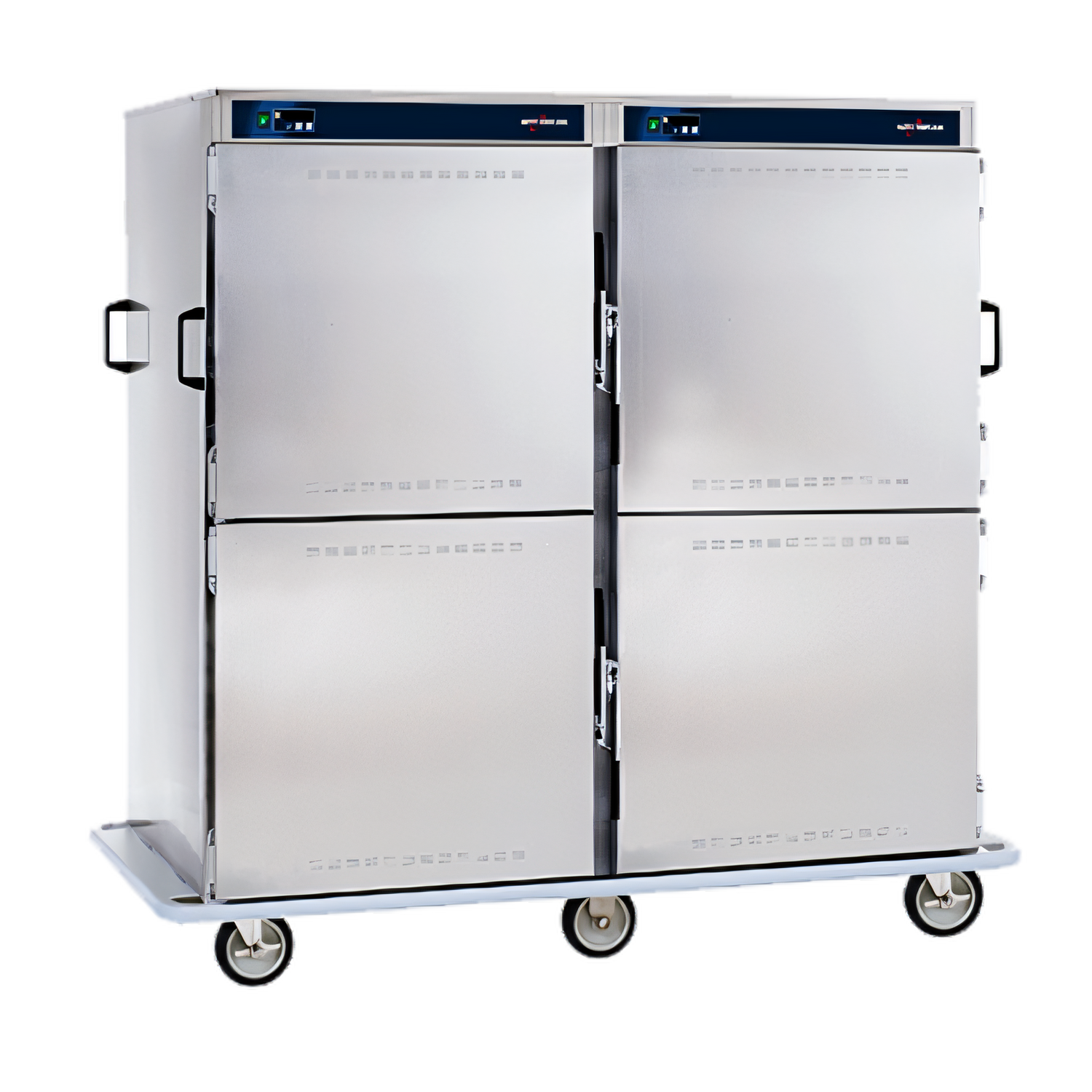

- Split doors and trailer hitch (factory installed).
Warranty
1-year parts & labor warranty (15 months from ship date) plus lifetime coverage on Halo Heat elements for Cook & Hold ovens. See full Alto-Shaam warranty statement for details.
