Alto-Shaam  |  Halo Heat  |  SKU: 100-HWRS/D6

Alto-Shaam 100-HWRS/D6 Halo Heat Steam Tables & Food Wells

$2,553.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Spec sheet - french canadian Spec sheet - spanish Spec sheet - ul & ce Warranty sheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

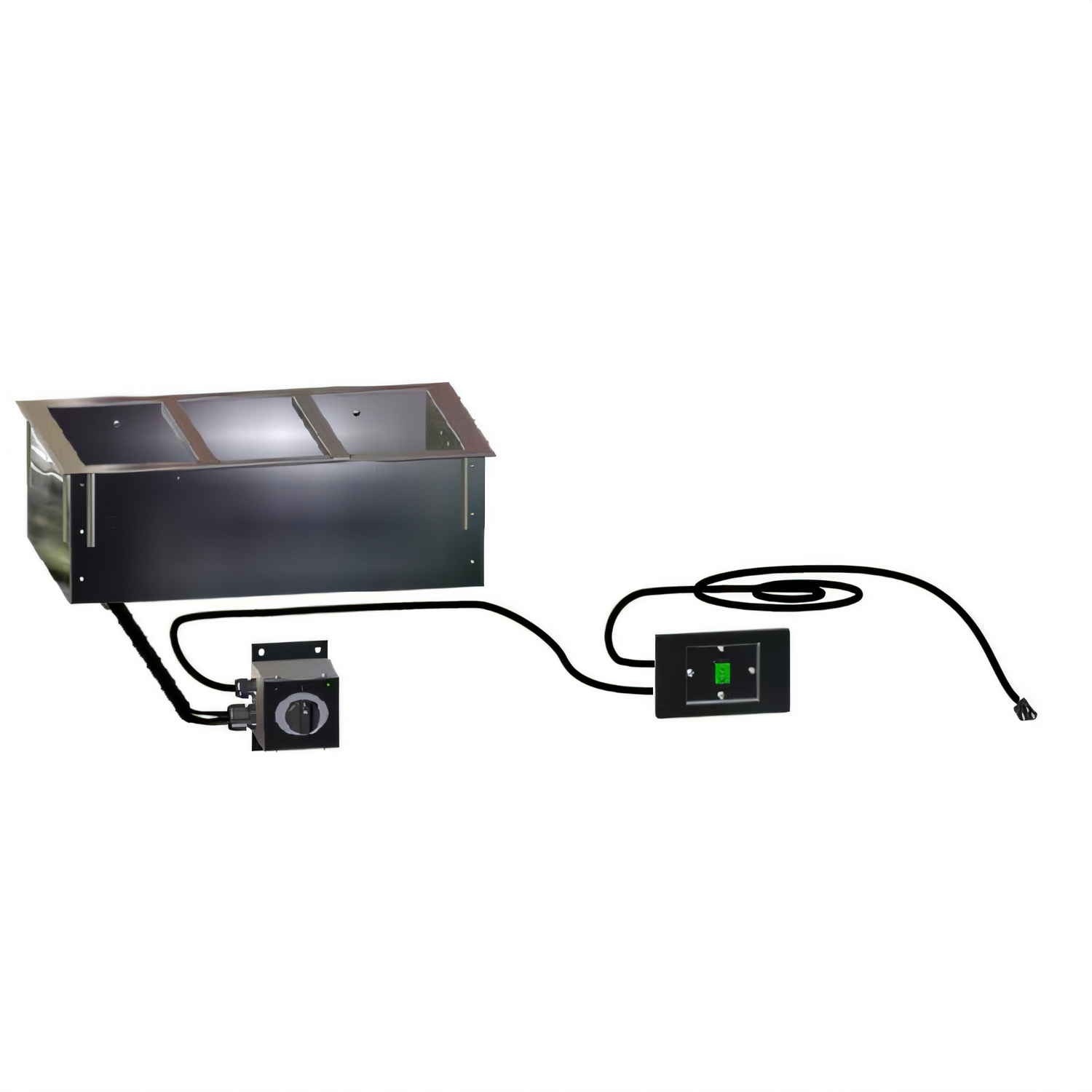

Alto-Shaam 100-HWRS/D6 Halo Heat® Drop-In Hot Food Well

Waterless • Single 12" × 20" Well • EcoSmart® Energy Savings

Give every dish the “just-made” appeal it deserves—without steam, water lines or lime scale. Alto-Shaam’s patented Halo Heat® technology gently surrounds food with uniform radiant heat, holding quality, moisture and flavor for hours while cutting your operating costs.

Top Benefits

  • Waterless design eliminates plumbing, steam, and messy refills—install almost anywhere.
  • Gentle, even Halo Heat® technology extends hold times without overcooking or drying out food.
  • Remote, adjustable thermostat (90 °F–200 °F) lets you dial in the perfect temperature and mount controls out of sight.
  • Stainless-steel construction and IPX3 splash rating for a long, trouble-free service life.
  • EcoSmart® efficiency uses only 1.0 kW, cutting energy costs versus traditional steam tables.
  • No water = no lime or scale buildup, dramatically reducing maintenance and service calls.
  • Certified safe & sanitary: cULus, UL EPH Classified, CE, TÜV NORD.

Perfect for

  • Self-service buffets & cafeterias
  • QSR & fast-casual holding lines
  • C-stores and delis looking to upgrade from steam wells
  • Catering drop-in stations

Pan Capacity

  • (1) Full-size 12" × 20" pan up to 6" deep (36 lb / 22 qt max)
  • Compatible with fractional pans using optional divider bars (two divider bars included)

Pans are not included.

Technical Specifications

Model 100-HWRS/D6
Heat System Radiant Halo Heat®, waterless
Well Dimensions (H × W × D) 6-3/8" × 12" × 20-3/16" (162 × 304 × 512 mm)
Exterior Dimensions (H × W × D) 8-7/8" × 15" × 23-1/8" (225 × 380 × 585 mm)
Counter Cut-Out 13-13/16" × 22-1/8" (351 × 562 mm) – non-combustible surface
Electrical 120 V / 1 ph / 60 Hz – 8.4 A – 1.0 kW – NEMA 5-15P cord & plug (6' power cord)
Certifications cULus, UL EPH, CE, IPX3, TÜV NORD, EcoSmart®
Net Weight 29 lb (13 kg)
Warranty 1-year parts & labor (see Alto-Shaam warranty statement for details)

Included & Optional Accessories

  • (2) Half/third-size divider bars – included
  • Undermount kit (5020793) – optional
  • Locking kit (5020849) – optional

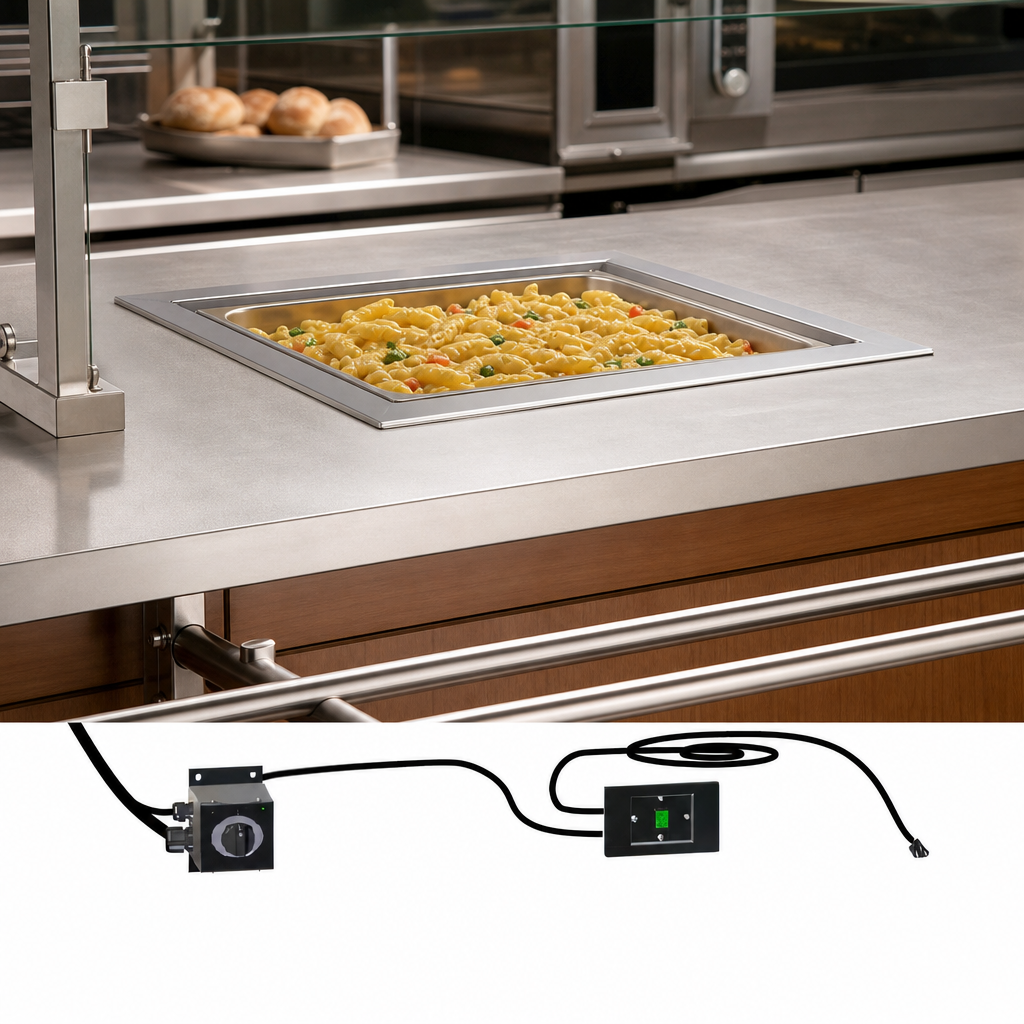

Installation Note: Unit must be installed level in a non-combustible counter able to withstand 200 °F (93 °C). Maintain 1" clearance from combustible materials. Some menu items may require supplemental overhead heat.

Replace steam, reduce energy, and keep your menu fresh & profitable with the Alto-Shaam 100-HWRS/D6 Halo Heat® Hot Food Well. Order today and experience the waterless difference!

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

Halo Heat

Height

8.88in

Width

15.0in

Depth

23.13in

Shipping Weight

75.0lbs

Pan Capacity

(1) full size (12" x 20")

Controls

thermostatic controls

Drain

without drain

Insulated or Non-Insulated

insulated

Style

individual pans

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Halo Heat® Hot Food Well Unit, Drop-In, Electric, (1) 12" x 20" full-size pan capacity (pans NOT included), 6-3/8" deep well, hold 6" deep pans, remote switch, adjustable thermostatic controller, stainless steel construction, EcoSmart®, cULus, UL EPH Classified, CE, IPX3, TUV NORD
