Alto-Shaam 100-HWLF/D6 Halo Heat Steam Tables & Food Wells
Description

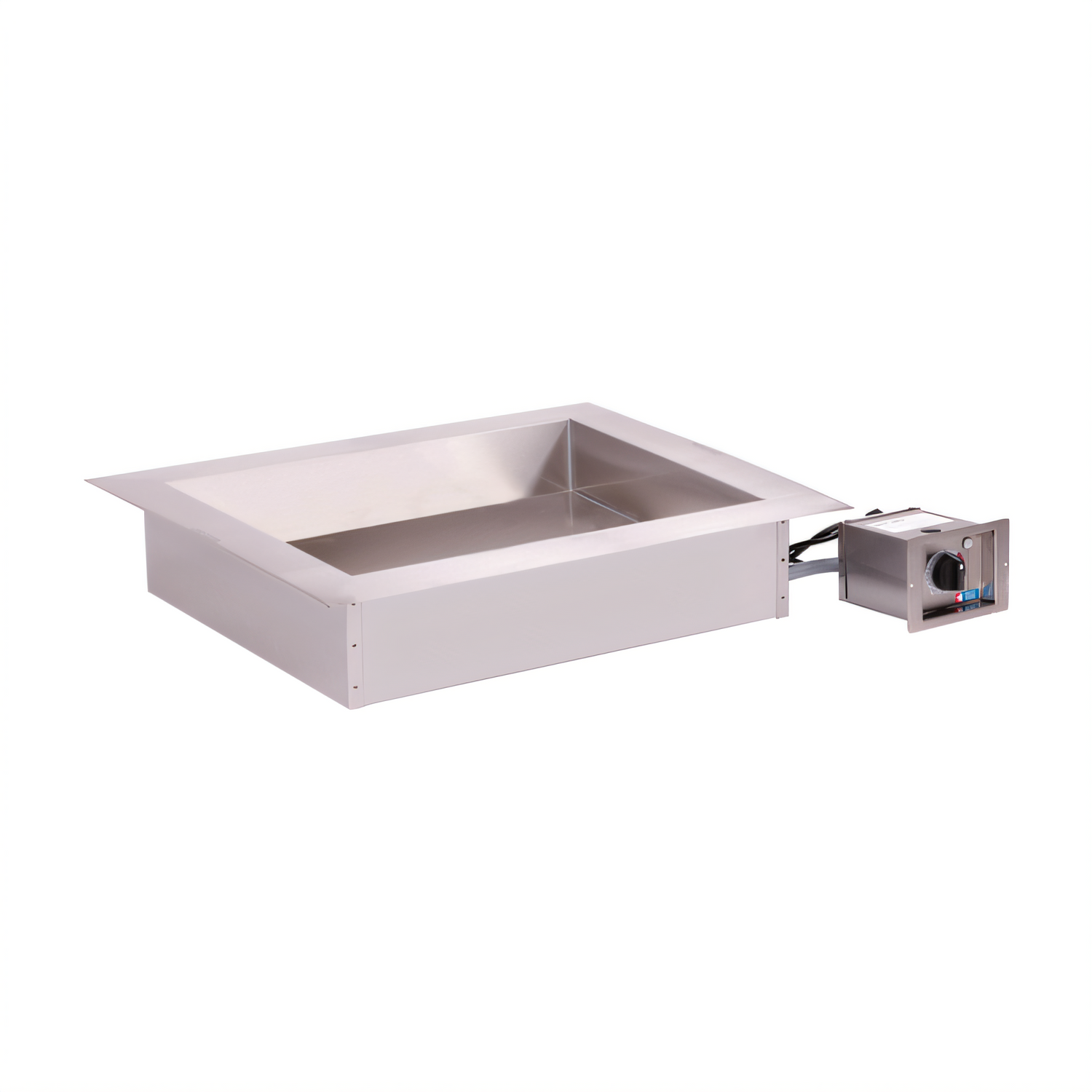

Alto-Shaam 100-HWLF/D6 Halo Heat® Waterless Hot Food Well
Large-Flange | Drop-In | Electric | 1 × 12" × 20" Full-Size Pan*Replace high-maintenance steam tables with Alto-Shaam’s proven Halo Heat® technology. The 100-HWLF/D6 surrounds food with gentle, radiant heat—no water, fans or extreme elements—extending hold times, maintaining fresh-made quality and slashing utility costs.
Key Advantages

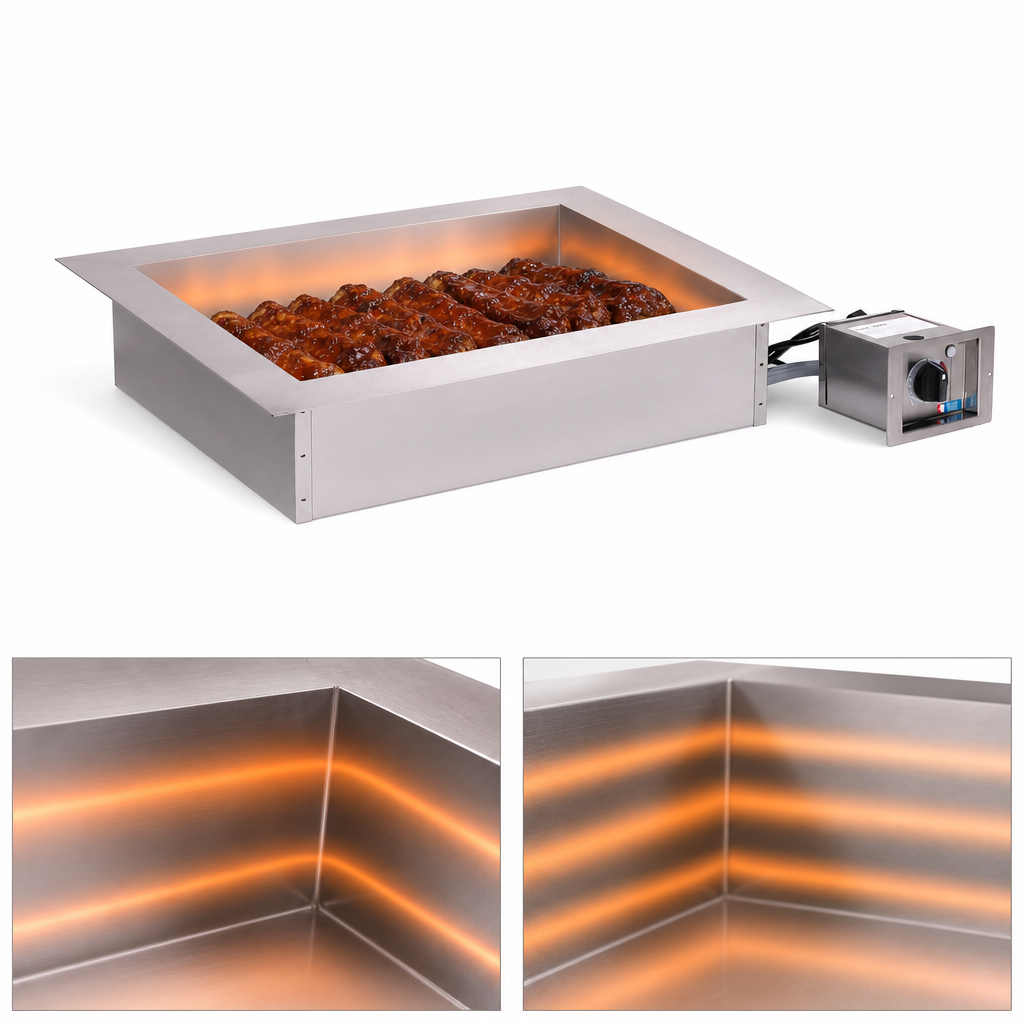

- Waterless Halo Heat® – Even, radiant heat eliminates lime scale, drains and plumbing.
- Large flange – Clean, finished trim hides cut edges for a fast, professional drop-in install.
- 6-3/8" deep well – Accepts 6" (150 mm) pans for maximum product capacity & flexibility.
- EcoSmart® efficiency – Only 0.6 kW at 120 V; dramatically lower operating costs vs. steam.
- Adjustable thermostat – Precise, individual well control mounts flush or remotely.
- Safer operation – No hot water or steam means cooler counters and lower burn risk.
- Built to last – Heavy-gauge stainless steel construction with IPX3 splash protection.
Specifications
| Pan Capacity | 1 × full-size (12" × 20") – pans not included |
|---|---|
| Well Depth | 6-3/8" (162 mm) – holds up to 6" deep pans |
| Exterior (H × W × D) | 8-7/8" × 18-5/16" × 27-1/16" (225 mm × 465 mm × 686 mm) |
| Interior Well (H × W × D) | 6-3/8" × 12" × 20-3/16" (162 mm × 304 mm × 512 mm) |
| Counter Cutout | 13-13/16" × 22-1/8" (351 mm × 562 mm) |
| Net Weight | 31 lb (14 kg) |
| Electrical |
120 V, 1 ph, 5 A, 0.6 kW |
208 V, 1 ph, 2.2 A, 0.45 kW |
240 V, 1 ph, 2.5 A, 0.6 kW |
230 V, 1 ph, 2.6 A, 0.6 kW
6 ft (1.8 m) cord, NEMA 5-15P or 6-15P (per voltage) |
| Construction | All stainless steel; large perimeter flange; IPX3 splash rating |
| Certifications | cULus, UL EPH Classified, CE, EcoSmart®, IPX3, TÜV NORD |
| Warranty | 1-year parts & labor (see Alto-Shaam warranty for details) |
What’s Included
- 100-HWLF/D6 single well with attached control box
- Adjustable thermostatic controller (flush-mount kit)
- 6-ft (1.8 m) pre-wired power cord
- Installation & operation manual
Popular Accessories (sold separately)
- Pan divider bar – half/third-size (11318)
- Undermount kit (5020793)
- Security locking kit (5020849)
Appliance must be installed level and in counters that withstand 200 °F (93 °C). Always monitor food temperatures and supplement with overhead heat when required.
