Alto-Shaam 100-HWLF/D4 Halo Heat Steam Tables & Food Wells
Description

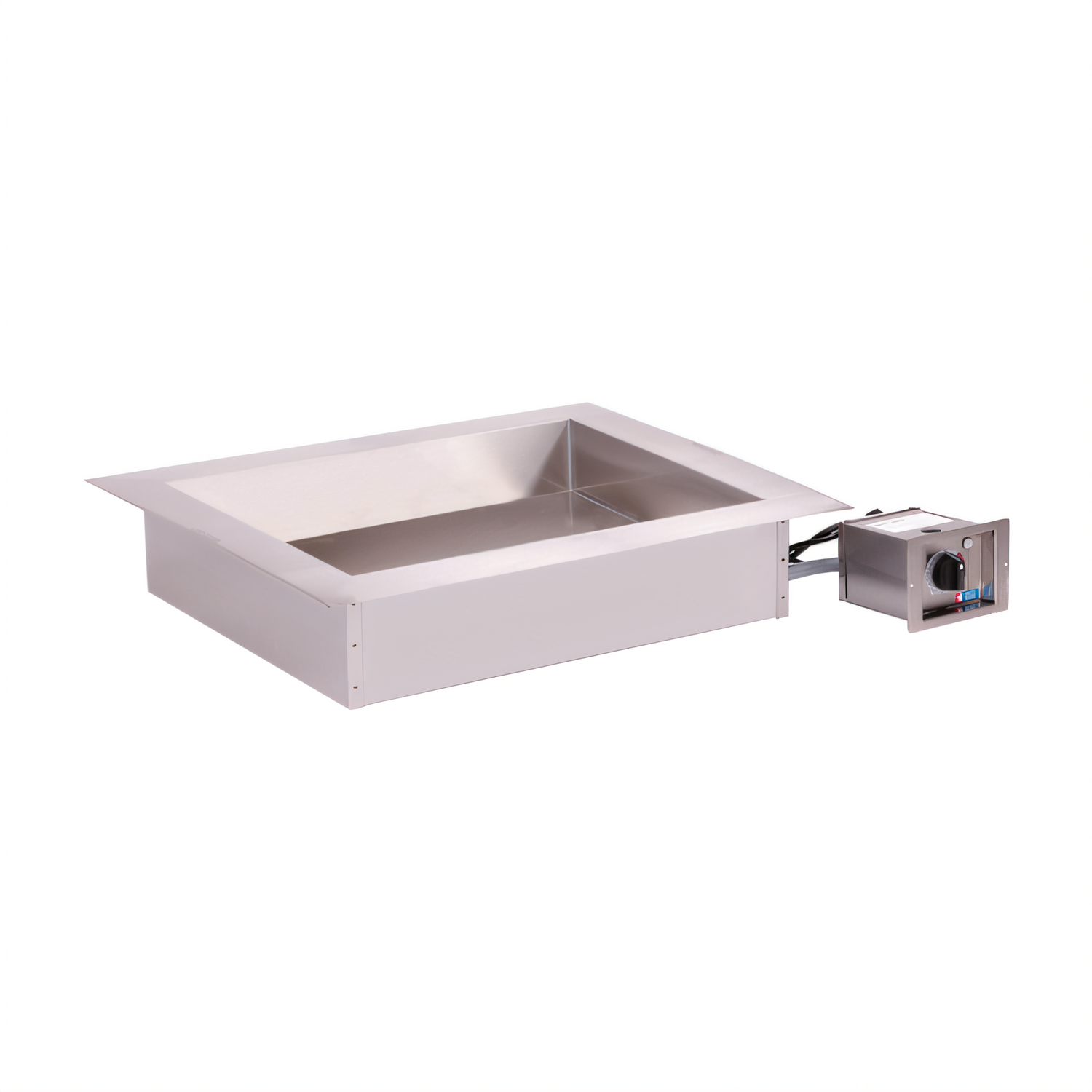

Alto-Shaam Halo Heat® Drop-In Hot Food Well – Large Flange, Single Well
Model 100-HWLF/D4Give every menu item the just-made look and taste it deserves. Powered by exclusive Halo Heat® radiant technology, this waterless drop-in well surrounds food with gentle, even heat—no steam, no fans, no hot spots. A perfect fit for self-serve bars, buffet lines and à-la-carte stations that demand consistent quality with lower operating costs.
Why you’ll love it
- Waterless design – eliminate plumbing, water refill labour, lime/scale build-up and heavy maintenance.

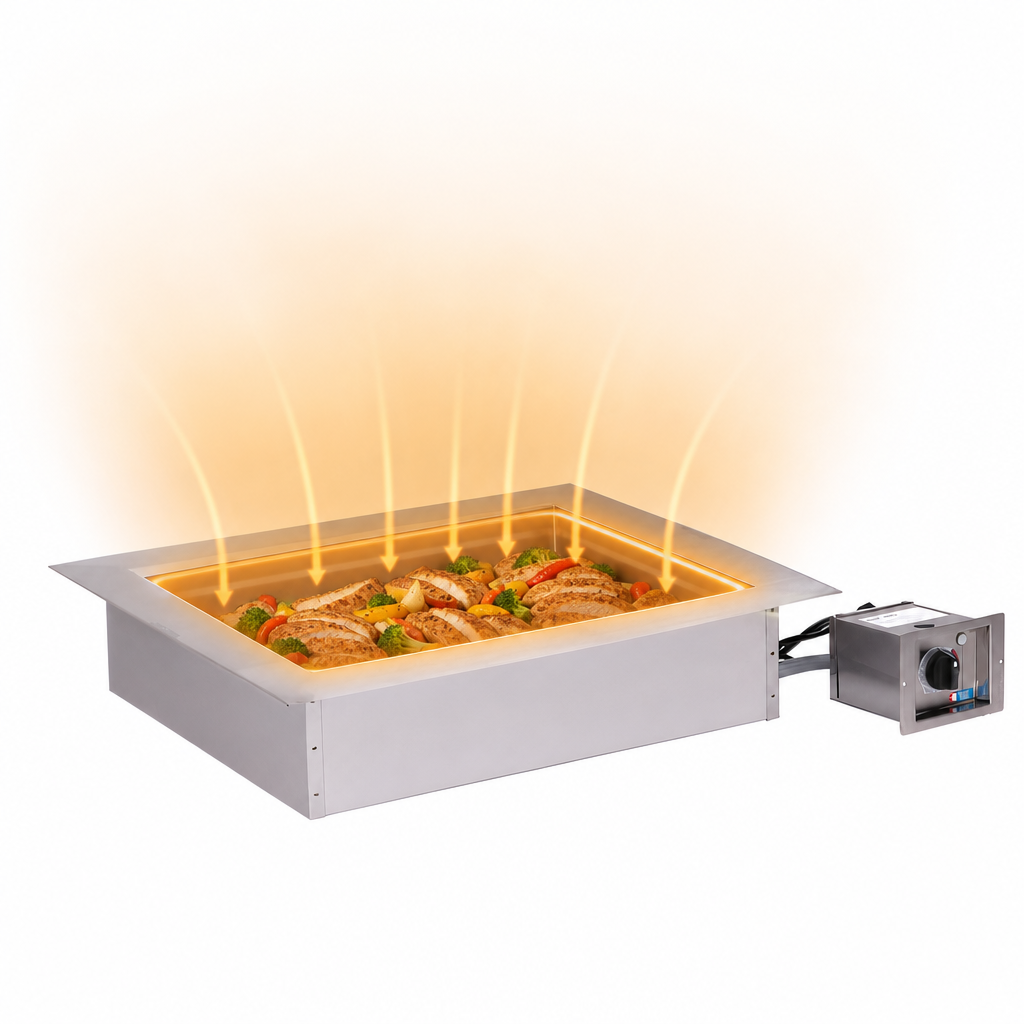

- Halo Heat® technology surrounds the pan on all sides for up to 30 % longer hold times without over-cooking.
- Large 1.6" (44 mm) flange creates a clean, finished look and seals the cut-out to stop crumbs or spills.
- Front-mounted, variable thermostat (flush-mount capable) lets you dial in the ideal temperature for any dish.
- EcoSmart® efficiency draws only 0.6 kW at 120 V—cut operating costs while keeping food safe and appetising.
- Cooler, safer work area: no open steam, boiling water or scorching elements.
- cULus, UL EPH Classified, CE, IPX3 & TUV NORD listed for worry-free code compliance worldwide.
Pan capacity
| Full-size (12" × 20") | 1 pan – up to 4" (100 mm) deep |
|---|---|
| Half-size (12" × 10") | 2 pans with optional divider bar |
| Third-size (12" × 6⅔") | 3 pans with optional divider bar |
Pans and divider bars sold separately.
Technical specifications
| Exterior size (H × W × D) | 7" × 18 5⁄16" × 27 1⁄16" (177 mm × 465 mm × 686 mm) |
|---|---|
| Well interior (H × W × D) | 4 3⁄8" × 12" × 20 3⁄16" (111 mm × 304 mm × 512 mm) |
| Cut-out (L × W) | 13 13⁄16" × 22 1⁄8" (351 mm × 562 mm) |
| Electrical | 120 V, 1 ph, 50/60 Hz, 5.0 A, 0.6 kW 6 ft (1.8 m) cord with NEMA 5-15P plug |
| Net weight | 31 lb (14 kg) |
| Construction | Heavy-gauge stainless steel well & flange |
| Certifications | cULus, UL EPH, CE, IPX3, TUV NORD, EcoSmart® |
| Warranty | 1-year parts & labour (see warranty statement) |
Perfect for
- Grab-and-go kiosks & c-stores
- Hotel breakfast buffets
- Supermarket hot bars
- Cafeteria serving lines
- Catering drop-off stations
What’s included
- Single 12" × 20" Halo Heat® well with large flange
- Adjustable thermostatic control box with 6' conduit
- Factory-installed power cord & plug
- One-year limited parts & labour warranty
Popular accessories
- Half/Third-size divider bar (11318)
- Locking kit (5020849) for secure flush mount
- Undermount kit (5020793) for hidden flange-free look
Upgrade your service line with the most trusted name in gentle holding technology. Add the Alto-Shaam Halo Heat® drop-in well to your cart today and keep guests coming back for food that stays fresh, flavorful and ready to serve.
