Alto-Shaam 100-HW/D6 Halo Heat Steam Tables & Food Wells
Description

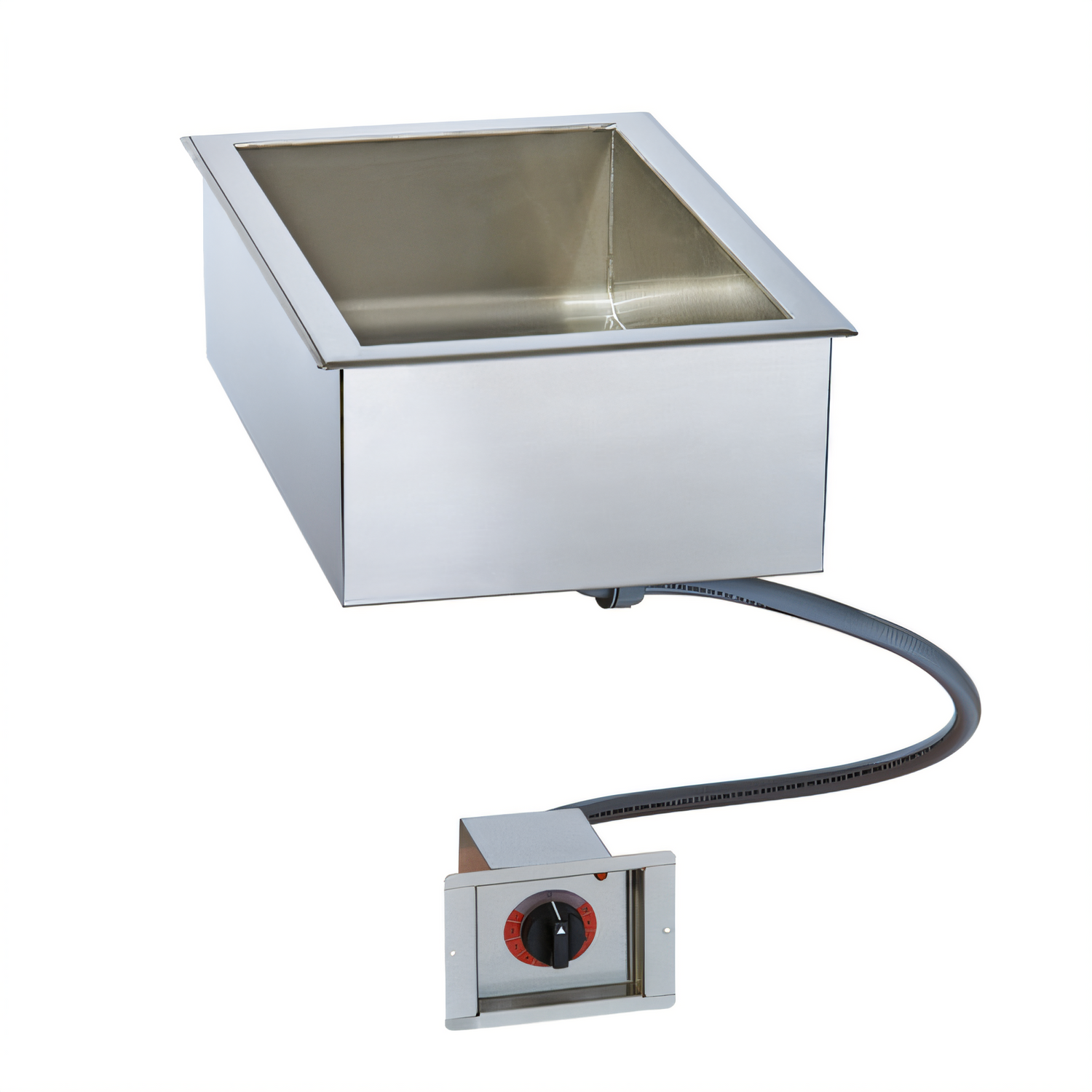

Alto-Shaam 100-HW/D6 Halo Heat® Waterless Hot Food Well

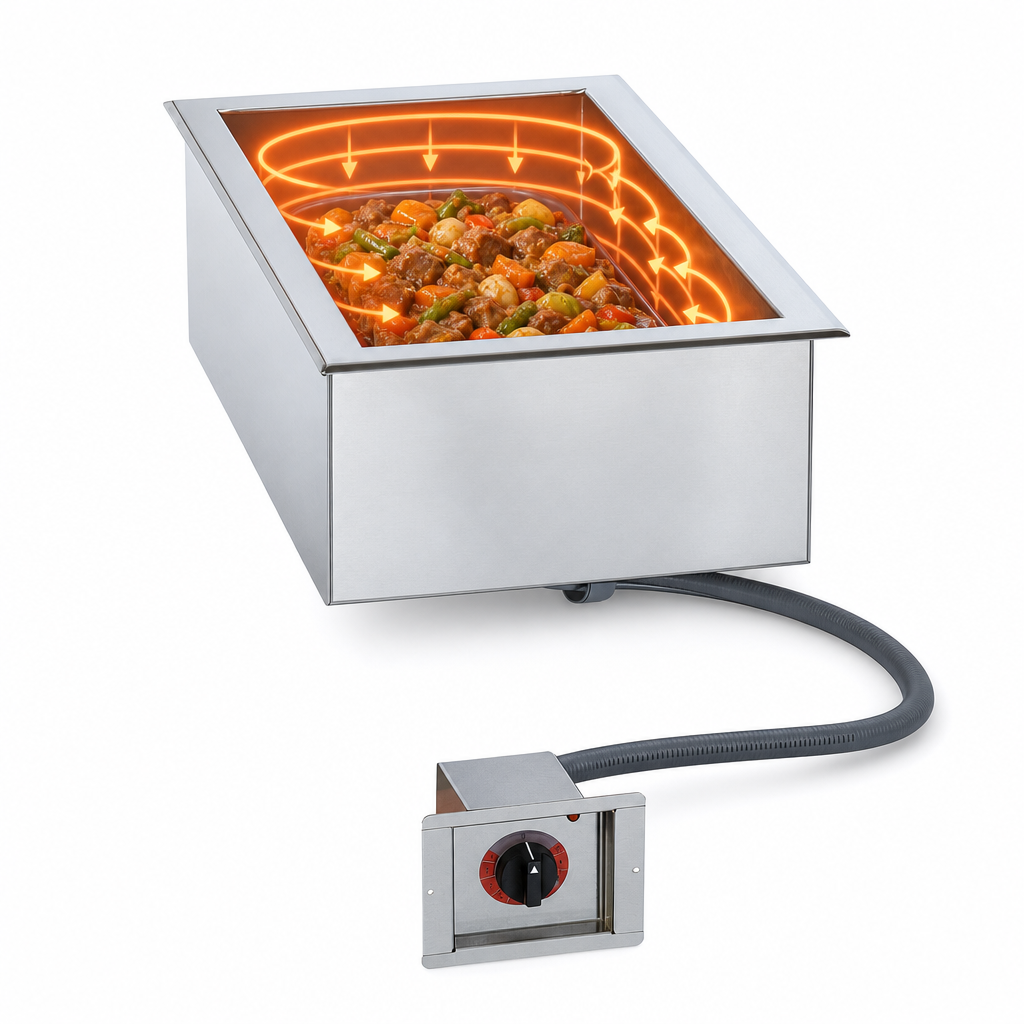

Drop-In • 1 × 12" × 20" Full-Size Pan • ElectricReplace traditional steam wells with the power-saving alternative that keeps food fresher, longer. Alto-Shaam’s patented Halo Heat® technology radiates gentle, even heat around your pan – no water, fans or hot elements required – so every serving tastes just-made from the first plate to the last.
Why you’ll love it
- Waterless Halo Heat® system extends holding times while maintaining texture, color and flavor.
- 6-3/8" (162 mm) deep well accepts 6" (150 mm), 4" (100 mm) or 2½" (65 mm) pans for ultimate menu flexibility.
- Field-adjustable thermostat (flush-mount or remote) lets you dial in precise holding temperatures for any dish.
- Stainless steel well and flange resist corrosion and clean up fast – no lime scale, drains or deliming chemicals.
- EcoSmart® design uses up to 30 % less energy than comparable wet wells, cutting utility costs every shift.
- Includes two half/third-size divider bars for secure pan layout (pans sold separately).
- Safe, water-free operation eliminates steam hazards and reduces slip-and-fall risk around the line.
- Certified cULus, UL EPH, CE, IPX3 & TÜV NORD for worldwide compliance and peace of mind.
At-a-glance specs
| Model | 100-HW/D6 |
|---|---|
| Pan capacity | 1 × 12" × 20" full-size pan (up to 6" deep) |
| Interior (H × W × D) | 6-3/8" × 12" × 20-3/16" (162 mm × 304 mm × 512 mm) |
| Exterior (H × W × D) | 8-7/8" × 15" × 23-1/8" (225 mm × 380 mm × 586 mm) |
| Counter cut-out | 13-13/16" × 22-1/8" (351 mm × 562 mm) |
| Net / ship weight | 29 lb / 75 lb (13 kg / 34 kg) |
| Electrical options |
120 V, 1 ph, 5 A, 0.6 kW, NEMA 5-15P 208 V, 1 ph, 2.2 A, 0.45 kW, NEMA 6-15P 240 V, 1 ph, 2.5 A, 0.6 kW (U.S. only) 230 V, 1 ph, 2.6 A, 0.6 kW, CEE 7/7 |
| Heat rejection | 61 BTU/hr (0.02 kW) |
| Construction | All-stainless steel well, flange & control box |
| Certifications | cULus • UL EPH Classified • CE • IPX3 • TÜV NORD • EcoSmart® |
| Warranty | 1-year parts & labor (USA/Canada) – see full Alto-Shaam warranty for details |
Popular accessories
- Pan divider bar – half/third-size (P/N 11318)
- Locking kit for secure installation (P/N 5020849)
- Undermount kit for concealed support (P/N 5020793)
Made in USA. Specifications are subject to change without notice.
