Alto-Shaam 100-HW/D443 Halo Heat Steam Tables & Food Wells
Alto-Shaam 100-HW/D443 Halo Heat Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Alto-Shaam 100-HW/D443 Halo Heat Steam Tables & Food Wells
Description

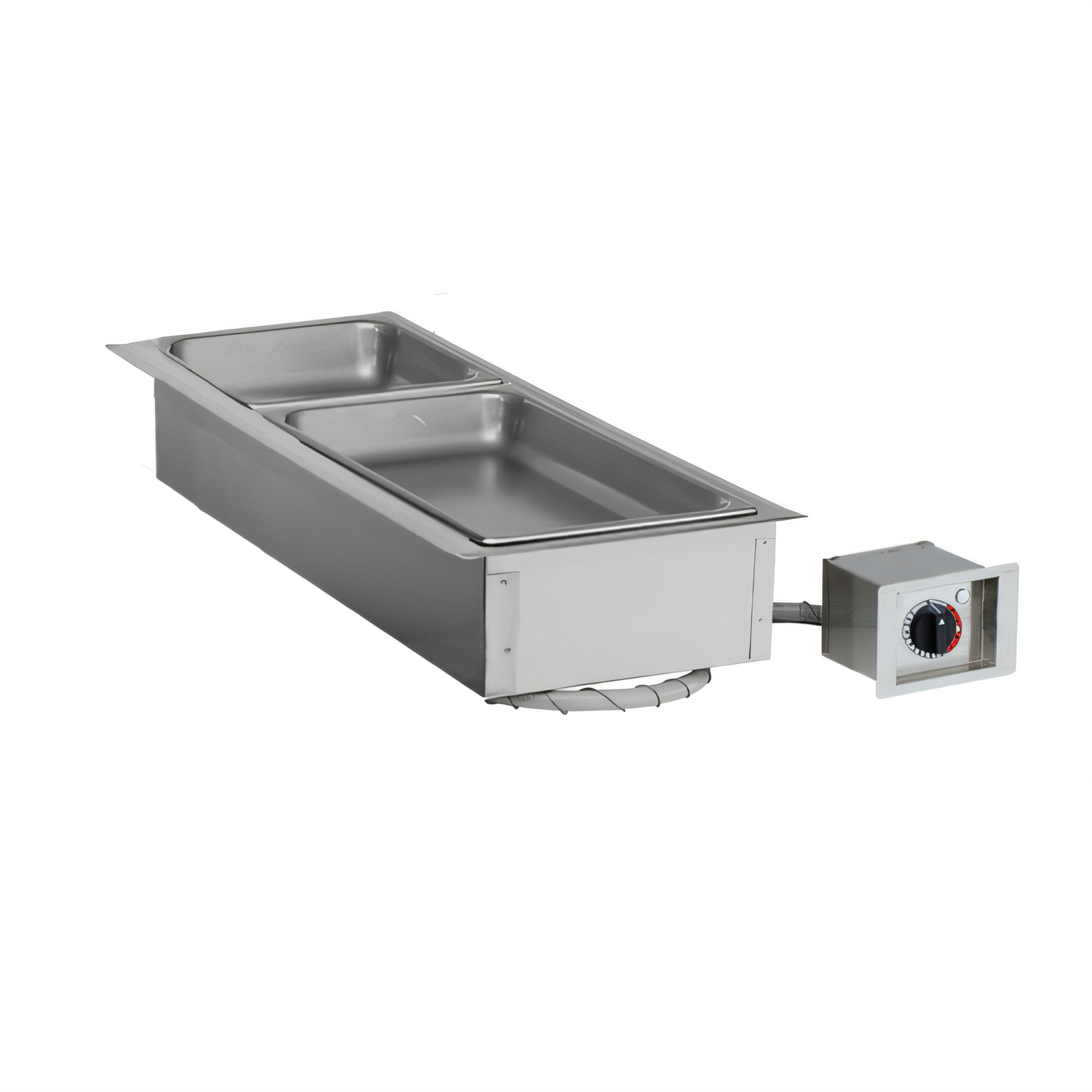

Halo Heat® Drop-In Hot Food Well – Model 100-HW/D4

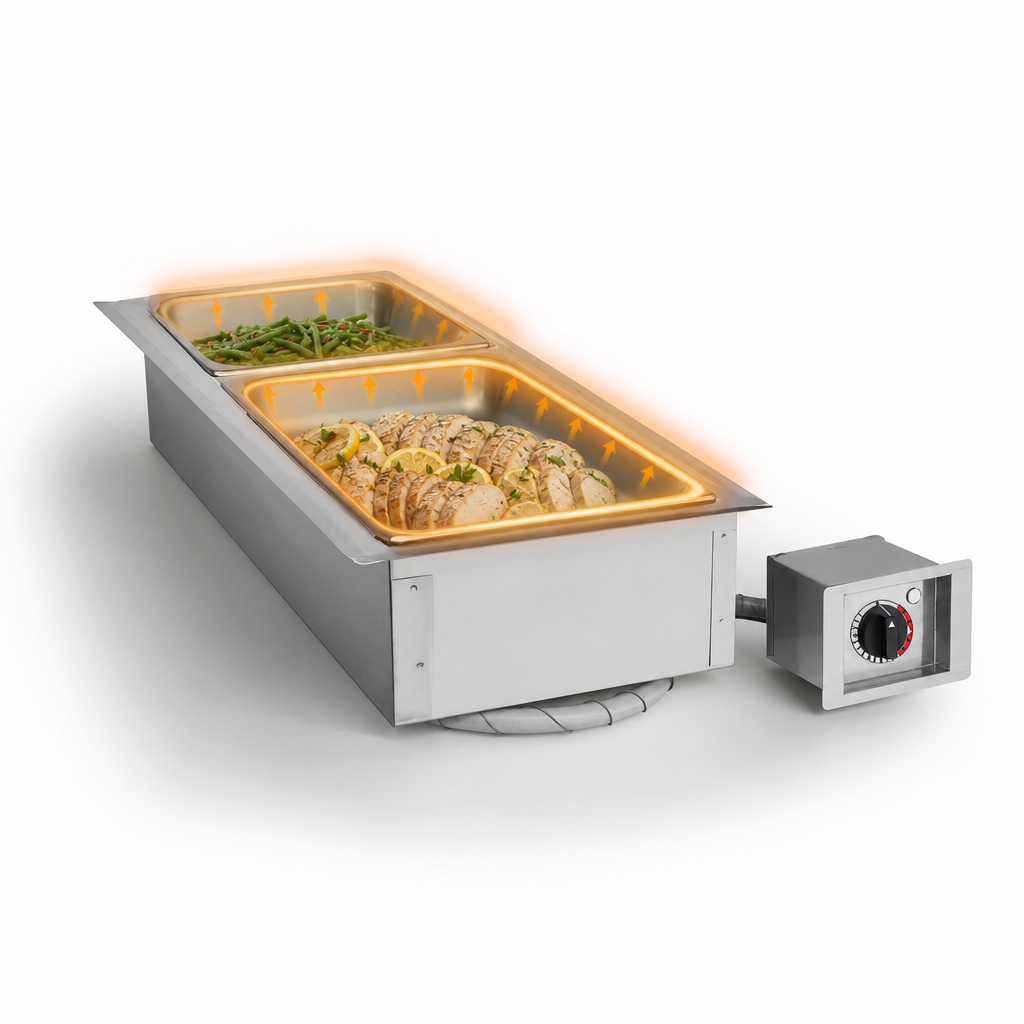

Waterless holding technology that keeps food hot, fresh and profitableGive guests perfectly-held entrées and sides while you save on water, energy and labor. Alto-Shaam’s patented Halo Heat® system gently radiates heat evenly around the food pan—no steam, fans or added humidity—so every service is as appetizing as the first.
Why you’ll love it
- Waterless design eliminates plumbing, scale build-up and frequent deliming.
- Precise, commercial-grade thermostat (1–10 dial) lets you select the ideal holding temperature for any menu item.
- 4-3/8 in (111 mm) deep well holds:
- (1) 12 × 20 in full-size pan and (1) 12 × 6 in third-size pan (pans not included)
- or other combinations such as two half-size or three third-size pans
- EcoSmart® efficiency draws as little as 0.6 kW, cutting utility costs while reducing kitchen heat load.
- All-stainless construction resists corrosion and cleans up fast.
- Drop-in installation with flush-mount or concealed control box for a seamless counter presentation.
- No open water or steam means a safer environment for staff and customers.
- cULus, UL EPH, CE, IPX3 & TUV NORD listed for universal code compliance.
At-a-glance specs
| Model / Series | 100-HW/D4 | Halo Heat® Waterless Hot Food Well |
|---|---|
| Pan Capacity | 1× full-size (12 × 20 in) plus 1× third-size (12 × 6 in) Max product: 24 lb / 14.5 qt (4 in deep pans) |
| Interior Well | 4-3/8 H × 12 W × 20-3/16 D in (111 × 304 × 512 mm) |
| Exterior (Drop-In) | 7 H × 15 W × 23-1/8 D in (177 × 380 × 586 mm) |
| Counter Cut-out | 13-13/16 × 22-1/8 in (351 × 562 mm) |
| Electrical |
120 V / 1 ph / 50-60 Hz – 5.0 A / 0.6 kW (NEMA 5-15P, 6 ft) 208 V / 1 ph – 2.2 A / 0.45 kW (NEMA 6-15P, 9 ft) 240 V / 1 ph – 2.5 A / 0.6 kW (NEMA 6-15P, 9 ft) 230 V / 1 ph – 2.6 A / 0.6 kW (CEE 7/7, 9 ft) |
| Net Weight | 25 lb (11 kg) |
| Construction | 304 stainless steel well & flange, insulated housing, remote control box on 6 ft conduit |
| Certifications | EcoSmart®, cULus, UL EPH, CE, IPX3, TUV NORD |
| Heat Gain | 61 BTU/hr (0.02 kW) to ambient |
Optional accessories
- Half/third-size pan divider bar – Part #11318 (two included)
- Locking kit for countertop security – Part #5020849
- Under-mount kit for concealed installations – Part #5020793
Peace-of-mind warranty
1-year parts & labor from date of installation (15 months from ship date, whichever comes first). See full Alto-Shaam warranty for terms and exclusions.
