Alto-Shaam 100-CW/R EcoSmart Steam Tables & Food Wells
Description

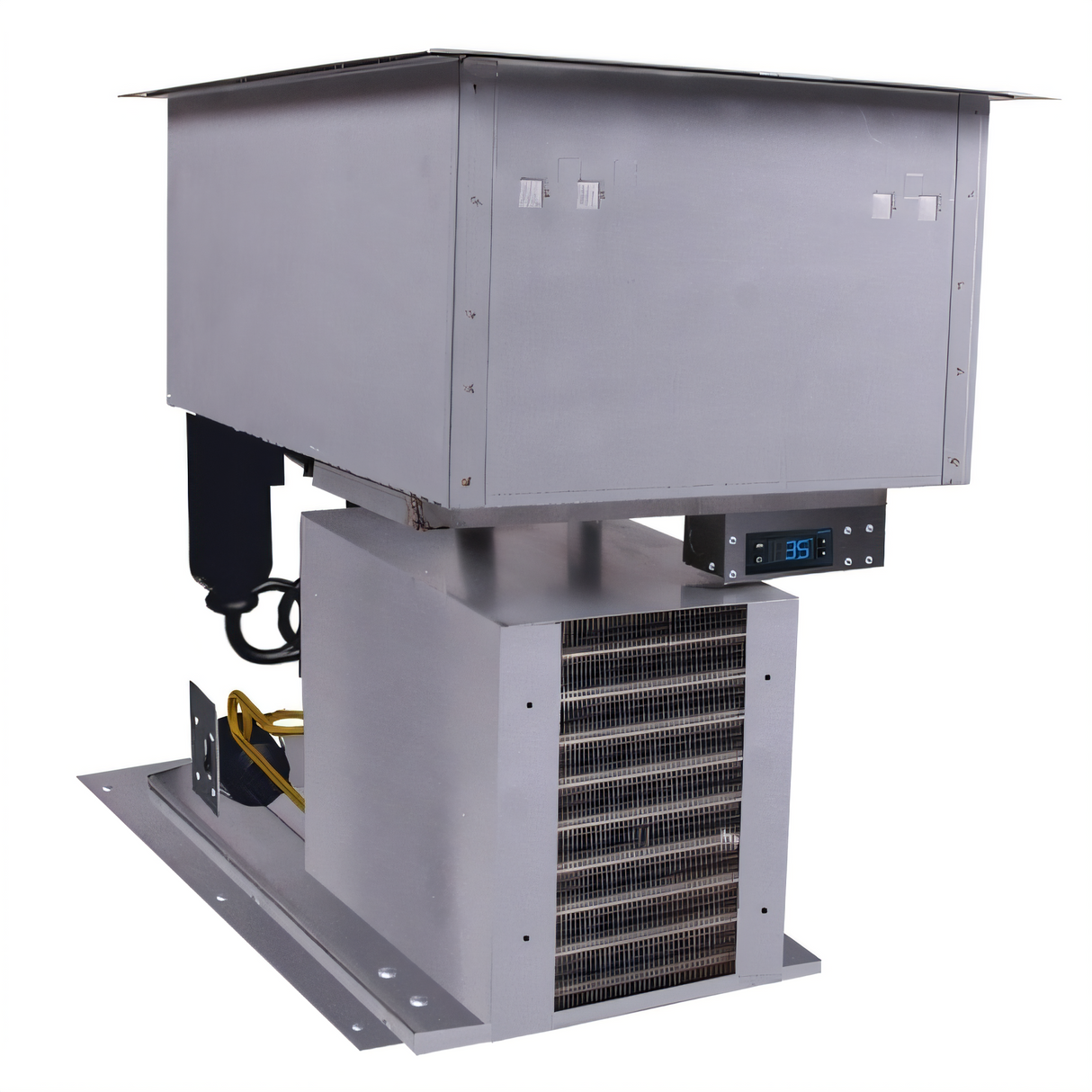

Alto-Shaam EcoSmart® Remote Cold Food Drop-In Well – 100-CW/R
Single 12" × 20" pan capacity • Cold-wall conduction cooling • 115 V plug-in controlsKeep salads, desserts and grab-n-go favourites perfectly chilled without the food-drying blast of forced air. The EcoSmart® 100-CW/R uses cold-wall conductive refrigeration and a digital thermostat to hold product at 41 °F (5 °C) or below—all from a compact, drop-in design that integrates seamlessly into your countertop line-up.
Why You’ll Love It
- Cold-wall technology gently pulls heat away from food, protecting texture and moisture better than air-blown wells.

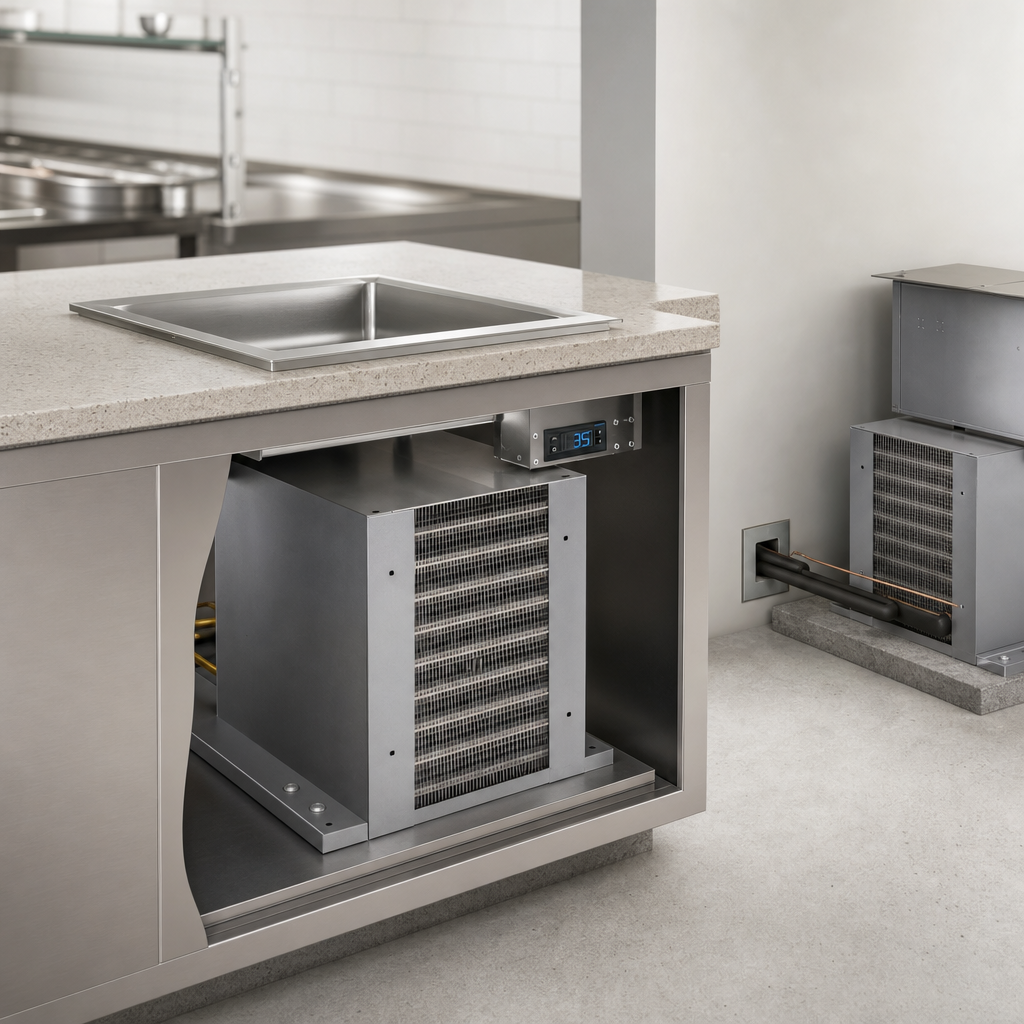

- Remote-ready refrigeration lets you position the compressor out of sight for a quieter, cooler serving area (249 BTU load).
- Digital thermostat with LED display for precise, lockable temperature control.
- NSF 7 certified to maintain 41 °F (5 °C) or lower food temperatures.
- Stainless-steel top, coved-corner interior and corrosion-resistant exterior stand up to commercial kitchens.
- Foamed-in-place, CFC-free polyurethane insulation maximises efficiency.
- Includes two 20" pan-divider bars for flexible pan layouts (pan not included).
Capacity at a Glance
- Holds one full-size 12" × 20" pan up to 6" deep
- Or two half-size, or three third-size pans
- 22 qt (21 L) / 36 lb (16.3 kg) maximum product load
- 6-1/4" (159 mm) deep well fully supports 6" pan depth
Technical Specifications
| Model | 100-CW/R (remote compressor, sold separately) |
|---|---|
| Exterior (H × W × D) | 25-5/16" × 18-1/2" × 27" (643 × 470 × 686 mm) |
| Countertop cut-out | 16-7/8" × 25-1/2" (429 × 648 mm) |
| Well interior (H × W × D) | 8-3/4" × 13-11/16" × 21-7/8" (222 × 348 × 556 mm) |
| Electrical | 115 V / 60 Hz / 1-ph, 5.0 A, 600 W |
| Cord & Plug | 9' (2.7 m) cord, NEMA 5-15P |
| Refrigerant | R-290 (remote system) |
| Remote BTU load | 249 BTU @ –10 °F (–23 °C) suction |
| Certifications | cULus, NSF 7, EcoSmart® |
Perfect For
- Supermarket salad & deli islands
- Hotel breakfast buffets
- C-stores & coffee shops
- Anywhere a silent, moisture-preserving cold well is preferred
Installation & Clearance
- Countertop must be water-resistant and level.
- Maintain ¾" (19 mm) between adjacent wells for cleaning.
- Provide 4" (102 mm) free space in front of the louver for air movement.
- A drain or catch basin is required.
- Unit is not designed for outdoor use, hood placement or direct steam/grease exposure.
- LED overhead lighting recommended for optimal food presentation.
Warranty
1-year parts & labour • 5-year compressor. See full Alto-Shaam warranty for terms & exclusions.
