Description

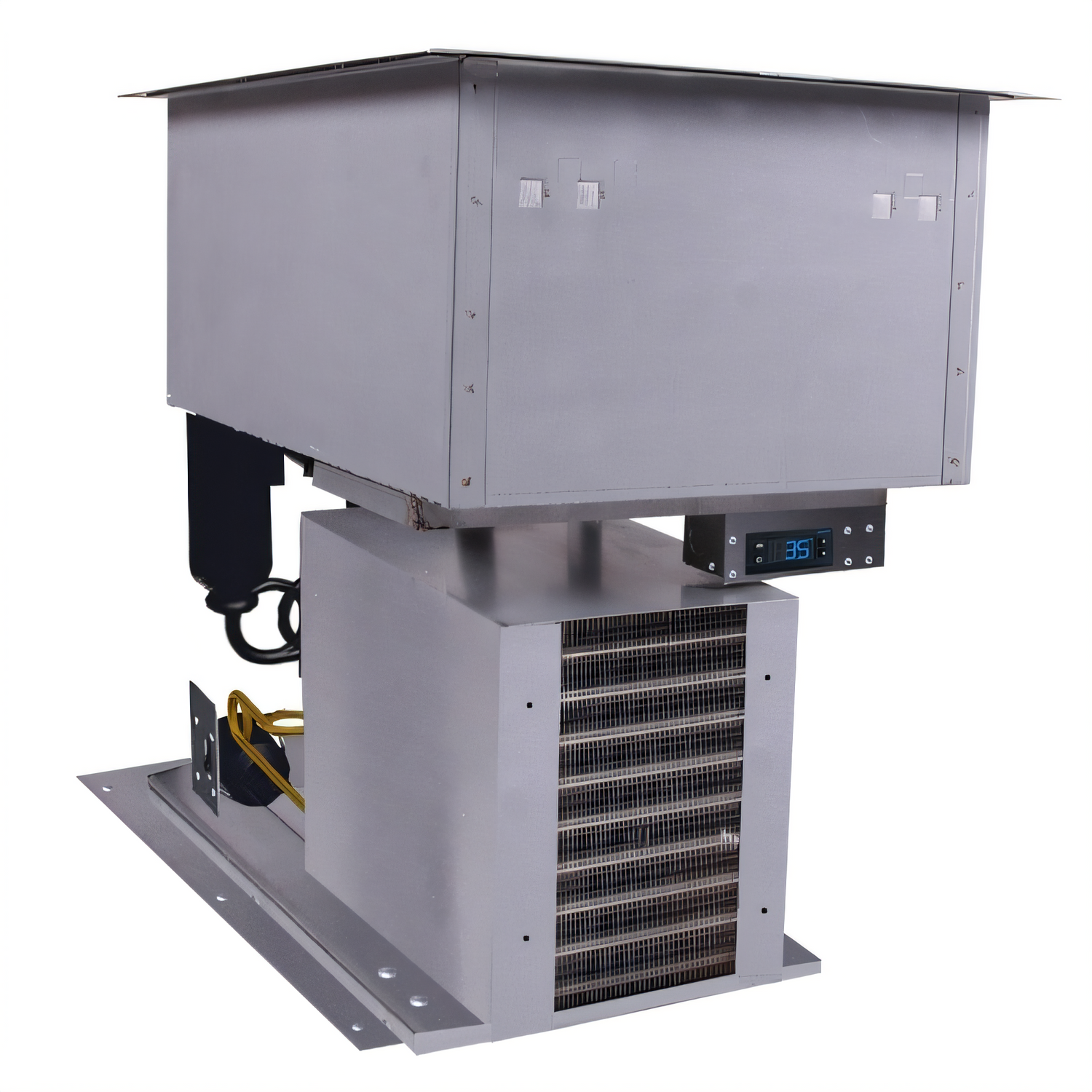

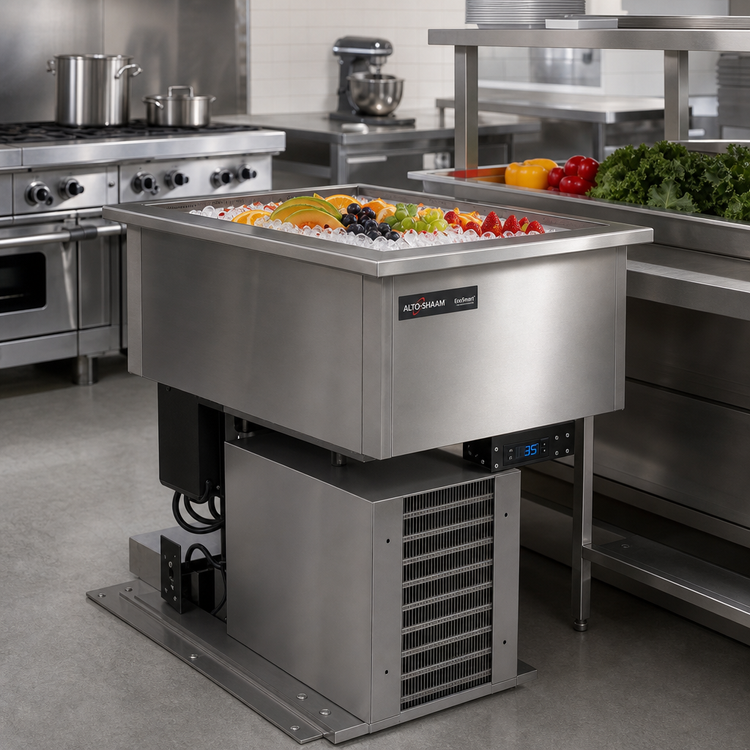

Alto-Shaam EcoSmart™ 100-CW Self-Contained Cold Drop-In Well

12" × 20" Full-Size | Digital Thermostat | R-290 Refrigerant

Keep salads, desserts, and grab-and-go favorites perfectly chilled without sacrificing presentation. The EcoSmart 100-CW cold wall well from Alto-Shaam delivers even, conductive cooling that protects food quality longer than forced-air designs—ideal for any buffet line, market, or make-ready station.

Key Benefits

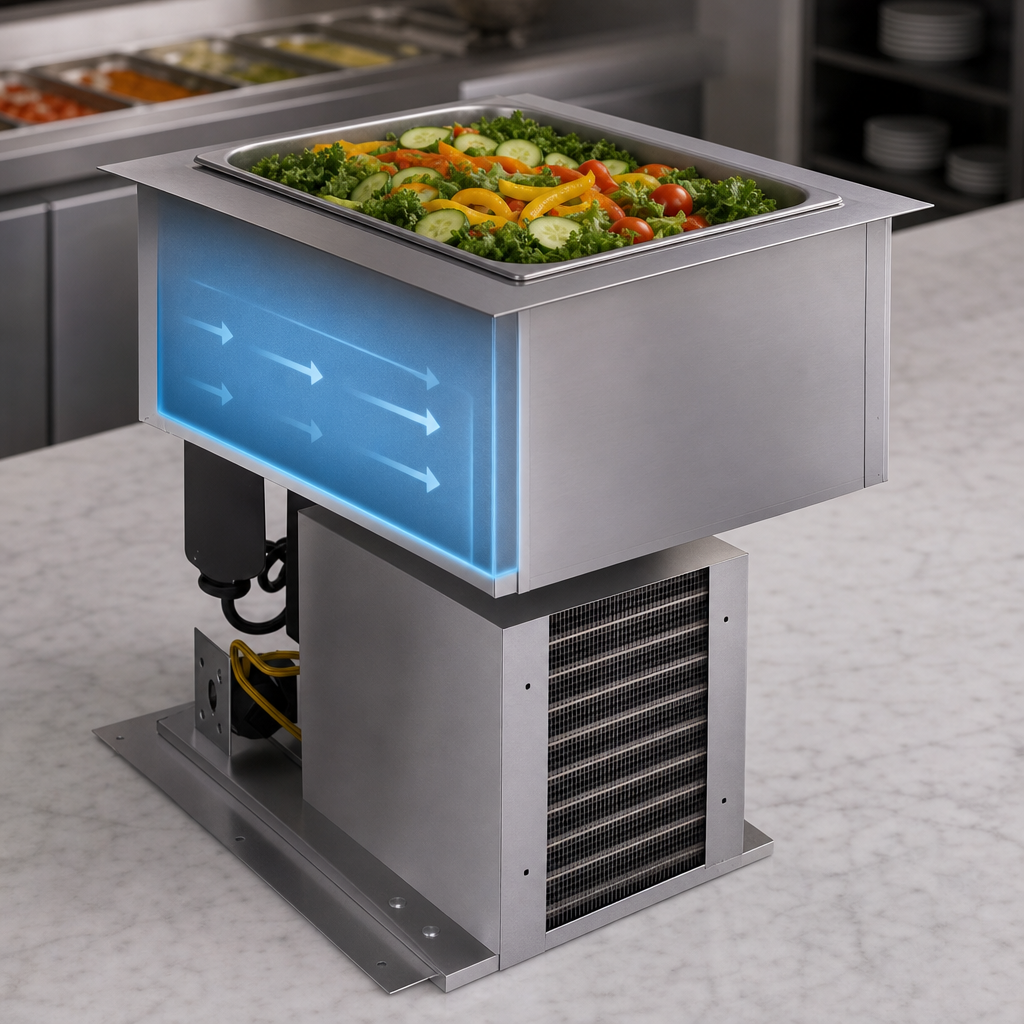

  • Cold-wall, conductive refrigeration—no fans blowing over delicate foods.
  • Digital thermostat maintains ≤ 41 °F (5 °C) for NSF 7 safe holding.
  • Eco-friendly R-290 natural refrigerant with low global-warming potential.
  • Self-contained ¼ hp compressor on a swivel base—louver can face any side.
  • Stainless steel top and coved-corner interior for quick, sanitary wipe-down.
  • CFC-free, foamed-in-place insulation boosts efficiency and temperature stability.
  • (2) 20" pan divider bars included; accommodates 1 full, 2 half, or 3 third pans up to 6" deep.
  • 9' power cord with NEMA 5-15P plug—drop in, plug in, and chill.

Specifications

Pan Capacity (1) 12" × 20" full-size / (2) ½-size / (3) ⅓-size pans  — pan not included
Well Depth 6-1/4" (accepts 6" deep pans)
Temperature Range Cold holding at or below 41 °F (5 °C)
Refrigerant R-290
Compressor ¼ hp, self-contained
Electrical 115 V / 60 Hz / 1-ph, 5.0 A, 600 W, NEMA 5-15P
Cord Length 9' (2.7 m)
Exterior Dimensions 25-5/16" H × 18-1/2" W × 27" D
Counter Cutout 16-7/8" L × 25-1/2" W
Net Weight 140 lb (64 kg)
Certifications cULus, NSF 7, EcoSmart
Warranty 1-year parts & labor, 5-year compressor

Perfect For

  • Buffet lines & salad bars
  • Convenience-store grab-and-go counters
  • Hotel breakfast service
  • Catering & banquet drop-ins
Installation Note: Provide at least 4" (102 mm) clearance in front of the dual-air louver and a water drain or drip pan beneath the unit. Not for outdoor use or installation under a hood. Professional installation is required for all equipment containing R-290 refrigerant.

Food pans shown are for illustration only and are not included.

Features & Specs

Manufacturer

Alto-Shaam

Brand_name

EcoSmart

Certifications

NSF, cULus

Height

27.5in

Width

18.5in

Depth

27.0in

Shipping Weight

171.0lbs

Pan Size

full-size (12" x 20")

Layout

straight

Width (side - side)

13 - 18 inches

Finish

corrosion resistant steel exterior

Style

self-contained refrigeration

Pan Qty

1-pan

Insulation

insulated

Specifications

Coldwell Drop-in Refrigerated Cold Display Unit, self-contained, utilizing R-290 refrigerant, mounted on corrosion resistant framework, suspended below unit body, includes expansion valve, thermostatic control, sliding shroud, dual air movement louver, and (2) pan divider bars for side support, (1) 12" x 20" full-size pan capacity (pan NOT included), 6-1/4" deep well, holds 6" deep pan, 1/4 hp, 600 watts, 115v/60/1, 5.0 amps, 9' cord, NEMA 5-15P, cULus, NSF
