AllPoints Foodservice Parts & Supplies Mavrik 8009492 Lower Door Hinge Bracket, Stainless Steel, for Imperial ICV/ICVD/ICVG
$72.23
/each
Ships in 16–19 business days
- Dimensions
- 1.25"W × 12.5"D × 2.75"H
- Part type
- Lower door hinge bracket
- Material
- Stainless steel
- Application
- ICV new door/40-inch
- Compatible models
- Imperial ICV, ICVD, and ICVG
- Bracket length
- 12-1/2 in
Specifications
Part type
Lower door hinge bracket
Material
Stainless steel
Application
ICV new door/40-inch
Compatible models
Imperial ICV, ICVD, and ICVG
Bracket length
12-1/2 in
Bracket width
1-1/4 in
Shaft diameter
1/2 in
Shaft length
2-1/2 in
Keyway slot width
1/8 in
Description

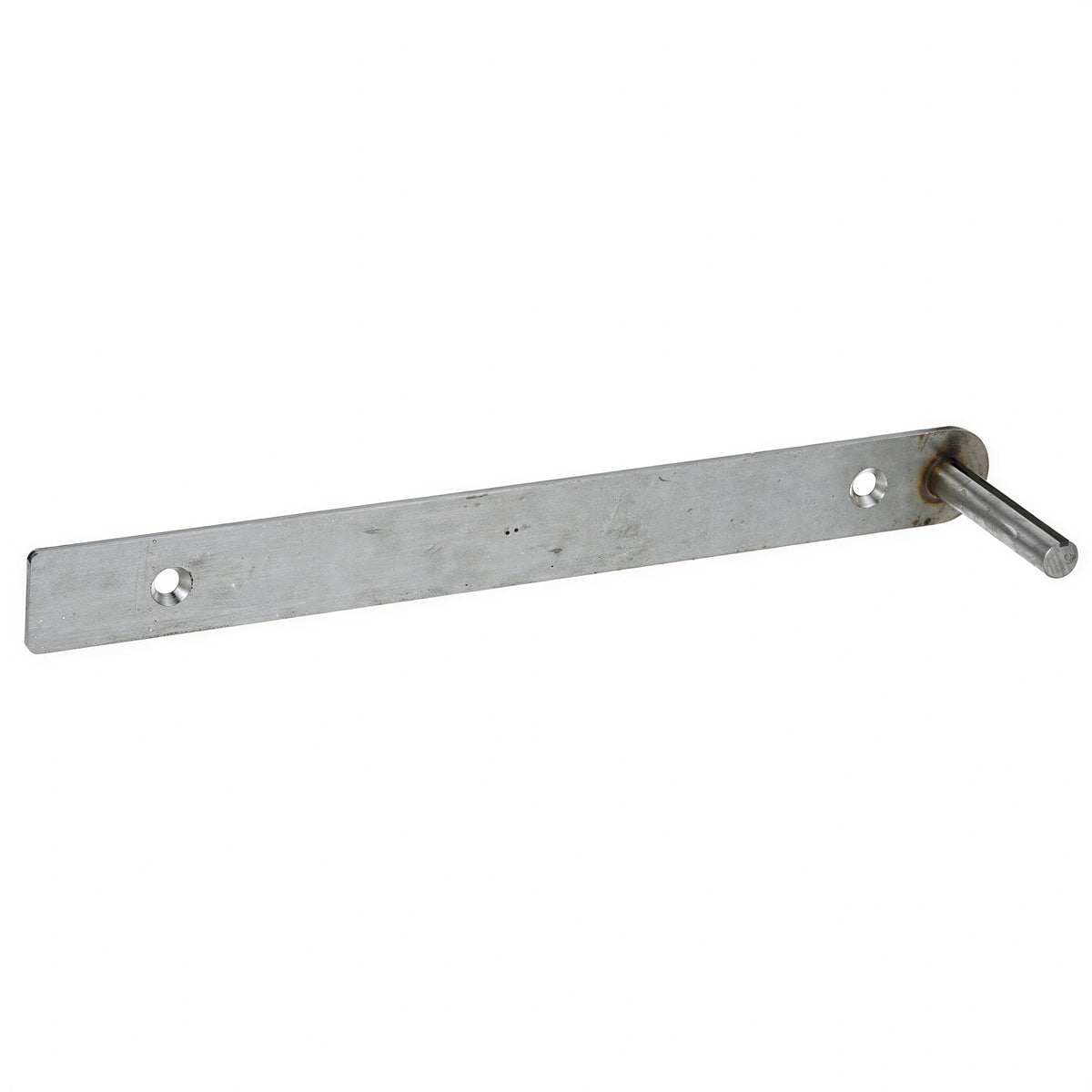

The Mavrik 8009492 is a stainless steel lower door hinge bracket specified for Imperial ICV, ICVD, and ICVG models.
- Bracket dimensions: 12-1/2 inches long by 1-1/4 inches wide.
- Shaft specification: 1/2-inch diameter by 2-1/2 inches long.
- Keyway slot: 1/8 inch wide.
Overall Dimensions:
1.25"W x 12.5"D x 2.75"HProduct Weight:
0.99 lbStainless steel construction
The hinge bracket is specified as stainless steel.
Imperial model fit
Specified to fit Imperial ICV, ICVD, and ICVG models.
Bracket dimensions
The bracket is specified at 12-1/2 inches long by 1-1/4 inches wide.
Shaft specification
The shaft is specified at 1/2 inch in diameter by 2-1/2 inches long.
Keyway slot
The keyway slot is specified as 1/8 inch wide.
Frequently Asked Questions
The 8009492 is specified to fit Imperial ICV, ICVD, and ICVG models.
The hinge bracket is specified as stainless steel.
The bracket is specified as 12-1/2 inches long by 1-1/4 inches wide.
The shaft is specified as 1/2 inch in diameter by 2-1/2 inches long, with a 1/8-inch-wide keyway slot.
