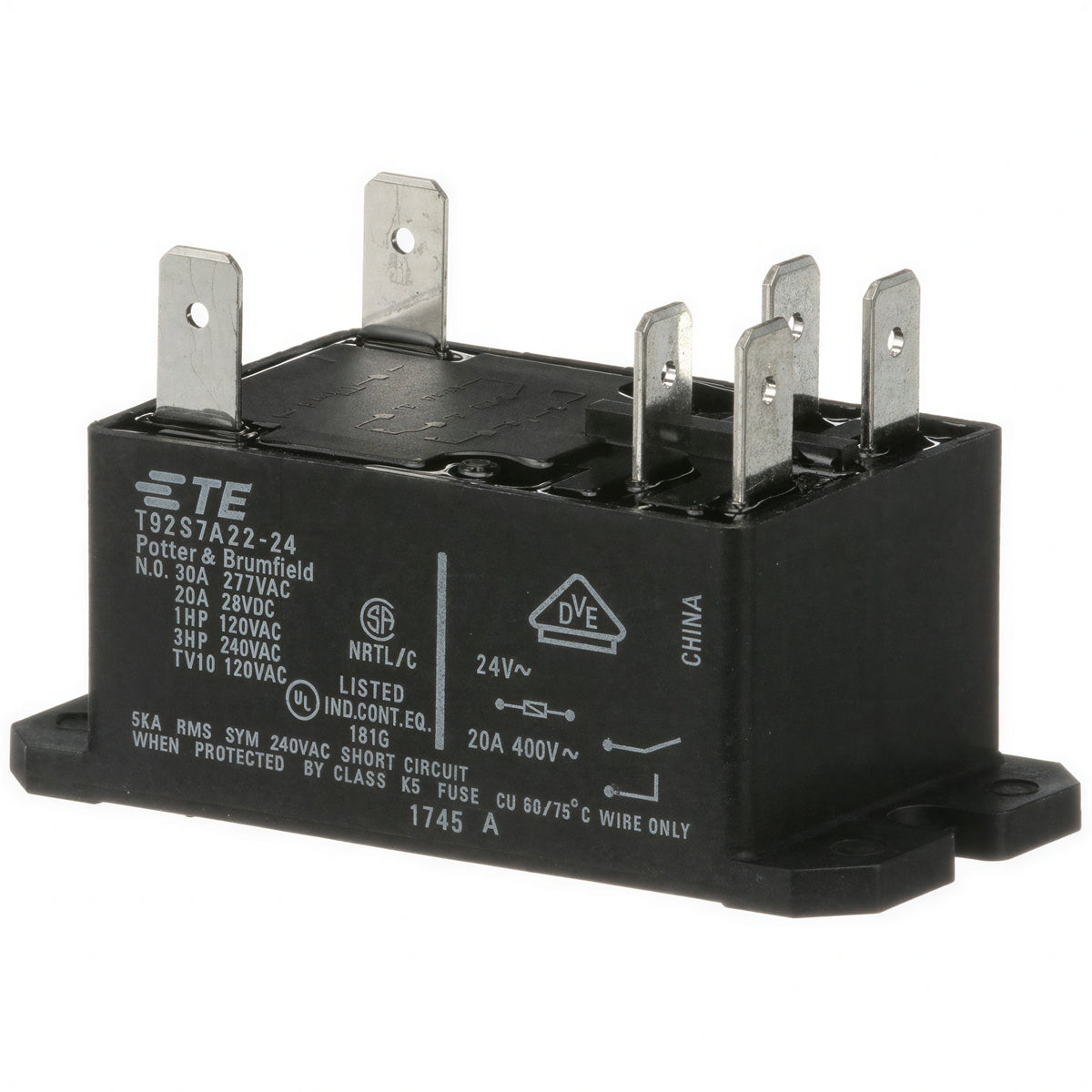

AllPoints Foodservice Parts & Supplies Mavrik 8004680 Foodservice Equipment Relay, 24V Input, 380V/25A Output, 6-Terminal
$114.17
/each
Ships in 16–19 business days
- Product type
- Relay
- Input voltage
- 24V
- Output voltage
- 380V
- Output current
- 25A
- Terminal count
- 6
- Additional electrical ratings
- 30A/277Vac; 20A/28Vdc; 1Hp-120Vac; 3Hp/240Vac; Tv10/120Vac
Specifications
Product type
Relay
Input voltage
24V
Output voltage
380V
Output current
25A
Terminal count
6
Additional electrical ratings
30A/277Vac; 20A/28Vdc; 1Hp-120Vac; 3Hp/240Vac; Tv10/120Vac
Included documentation
Wiring diagram
Fits model
Jf143
Description
The Mavrik 8004680 is a relay with a 24V input, 380V/25A output, and six terminals.
The relay includes a wiring diagram and is listed to fit model Jf143. Additional listed ratings include 30A/277Vac, 20A/28Vdc, 1Hp-120Vac, 3Hp/240Vac, and Tv10/120Vac.
Overall Dimensions:
1.5"W x 2.75"D x 1.5"HProduct Weight:
0.25 lb24V input
Accepts a 24V input.
380V/25A output
Provides a listed 380V/25A output.
Six terminals
Configured with six terminals.
Wiring diagram included
A wiring diagram is included.
Additional electrical ratings
Listed ratings include 30A/277Vac, 20A/28Vdc, 1Hp-120Vac, 3Hp/240Vac, and Tv10/120Vac.
Model fit
Listed to fit model Jf143.
Frequently Asked Questions
The relay uses a 24V input.
The listed output is 380V/25A.
The relay has six terminals.
Yes, a wiring diagram is included.
It is listed to fit model Jf143.
