AllPoints Foodservice Parts & Supplies 681401 Main Fan Blower Motor, 1/6 HP, 115V, 60Hz, 3000 RPM, 5-Inch Shaft
- Phase
- Single phase
- Dimensions
- 7.0"W × 15.0"D × 6.5"H
- Part type
- Main fan LO PRO blower motor
- Horsepower
- 1/6 HP
- Voltage
- 115V
- Frequency
- 60Hz
Specifications
Description

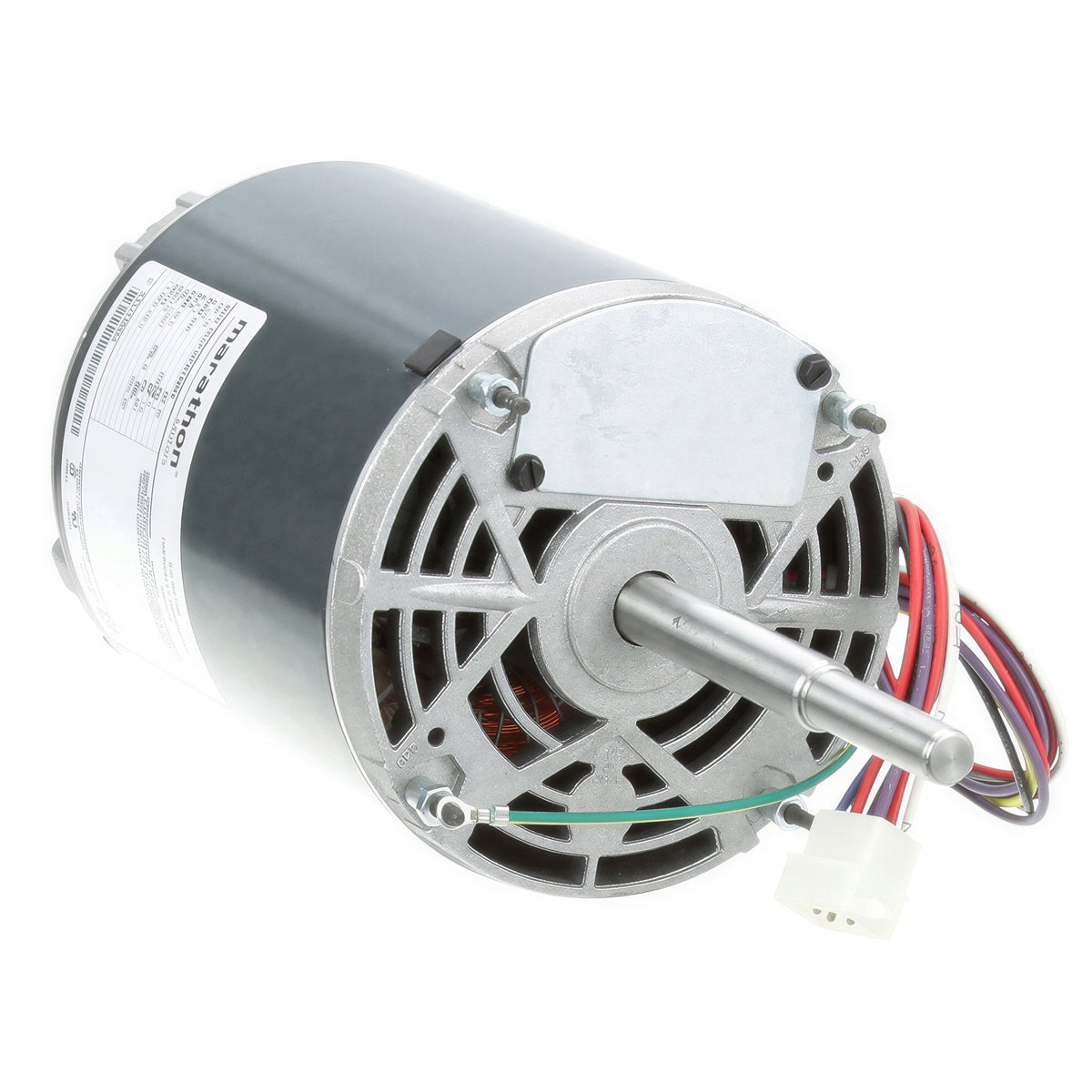

The AllPoints Foodservice Parts & Supplies 681401 is a main fan LO PRO blower motor rated at 1/6 HP, 115V, 60Hz, single phase, and 3000 RPM.
It features a 5-inch-long shaft with a stepped profile from 5/8-inch thickness to 7/16-inch thickness and one flat portion. The specification lists the motor for Lincoln oven models and part numbers including 1600, 1600-000-A, 1601, 1601-000-A, 1622, 1623, 1628, 1629, 1646, 1647, 1650, 1651, and 1652.
Overall Dimensions:
7.0"W x 15.0"D x 6.5"HProduct Weight:
14.06 lbMain fan blower motor
Specified as a main fan LO PRO blower motor.
Electrical rating
Rated at 1/6 HP, 115V, 60Hz, single phase, 3000 RPM, and 2.4A.
Shaft construction
The 5-inch-long shaft starts at 5/8-inch thickness and goes to 7/16-inch thickness, with one flat portion.
Motor frame
Uses a 48Y frame.
Listed Lincoln oven applications
The specification lists Lincoln Oven 1600, 1600-000-A, 1601, 1601-000-A, 1622, 1623, 1628, 1629, 1646, 1647, 1650, 1651, and 1652.
