AllPoints Foodservice Parts & Supplies 341296 Dishwasher Heating Element, 208V, 10,000W, 3-Inch Square Flange

SKU: 341296
$841.22
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

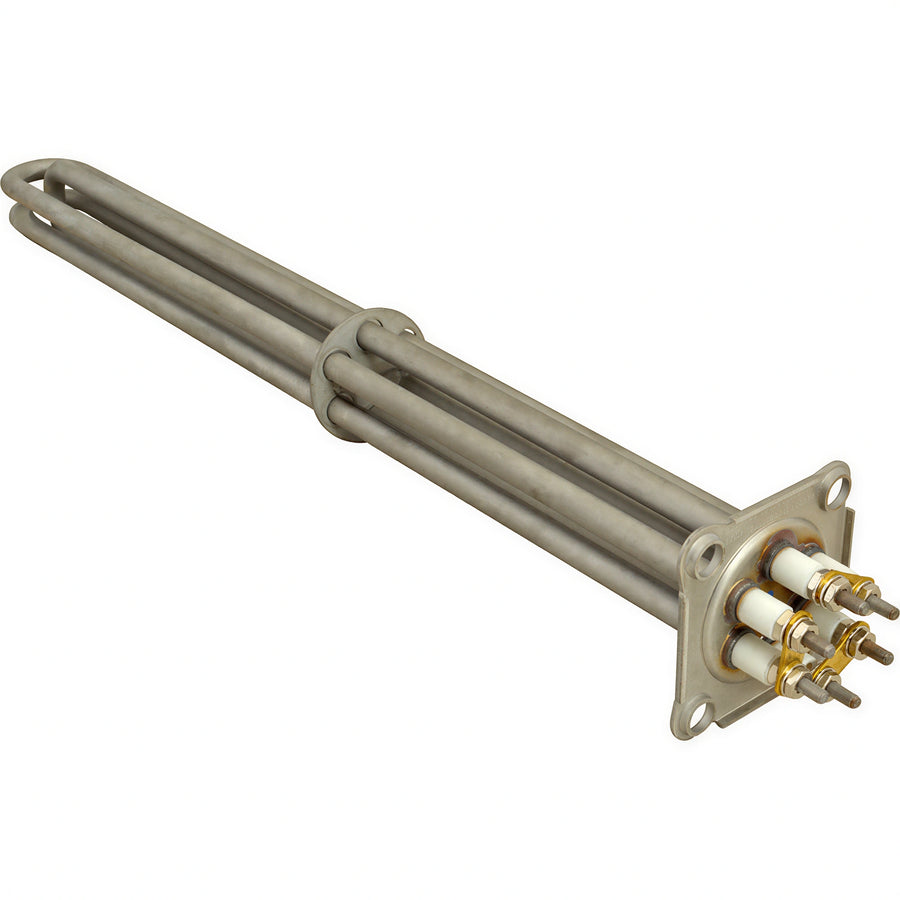

The AllPoints Foodservice Parts & Supplies 341296 is a 208V, 10,000W heating element with a 3-inch square flange.

  • Electrical specification: 208V, 10,000W, 1-3 Ph.
  • 3-inch square flange with 2-1/4-inch bolt-hole centers.
  • Inside length of 20 inches and outside dimension of 21-3/8 inches.
  • Stud terminal specified as #10-32.
  • Gasket is not included; gasket #32-1208 is referenced in the specifications.

Overall Dimensions:

3.0"W x 3.0"D x 22.0"H

Product Weight:

5.0 lb

Electrical rating

Specified at 208V and 10,000W with a 1-3 Ph specification.

Square flange

Includes a 3-inch square flange with 2-1/4-inch bolt-hole centers.

Element dimensions

The specifications list a 20-inch inside length and a 21-3/8-inch outside dimension.

Terminal

Stud terminal specified as #10-32.

Gasket specification

Gasket is not included; gasket #32-1208 is referenced.

Listed dishwasher models

Champion dishwasher models listed are 1Kab, 1Kacb, 20Kb, 20Kprb, 30Kb, 30Kprb, 40Kb, 40Kprb, 64Kb, 64Kprb, Kl-44, and Kl-66.

Listed series

The specifications list series Cc, Uc-C, and Uc-Cw.

Related Searches

AllPoints Foodservice Parts & Supplies Best Sellers Chafer Accessories & Parts Chafers & Chafing Dishes Chafing Dish Fuels & Warmers Commercial Oven Components Cooking Equipment Equipment New Arrivals Smallwares
Element type Heating element
Voltage 208V
Power 10,000W
Phase 1-3 Ph
Flange 3 in square
Bolt-hole centers 2-1/4 in
Inside length 20 in
Outside dimension 21-3/8 in
Terminal Stud, #10-32
Gasket Not included; gasket #32-1208 referenced
Listed dishwasher models Champion 1Kab, 1Kacb, 20Kb, 20Kprb, 30Kb, 30Kprb, 40Kb, 40Kprb, 64Kb, 64Kprb, Kl-44, Kl-66
Listed series Cc, Uc-C, Uc-Cw

Frequently Asked Questions

The element is specified at 208V and 10,000W with a 1-3 Ph specification.
It has a 3-inch square flange with 2-1/4-inch bolt-hole centers.
No. The specifications state that the gasket is not included and reference gasket #32-1208.
The terminal is specified as a stud terminal, #10-32.
The listed dimensions are 3.0 inches wide, 3.0 inches deep, and 22.0 inches high, with a listed weight of 5.0 pounds.
The listed models are 1Kab, 1Kacb, 20Kb, 20Kprb, 30Kb, 30Kprb, 40Kb, 40Kprb, 64Kb, 64Kprb, Kl-44, and Kl-66.
