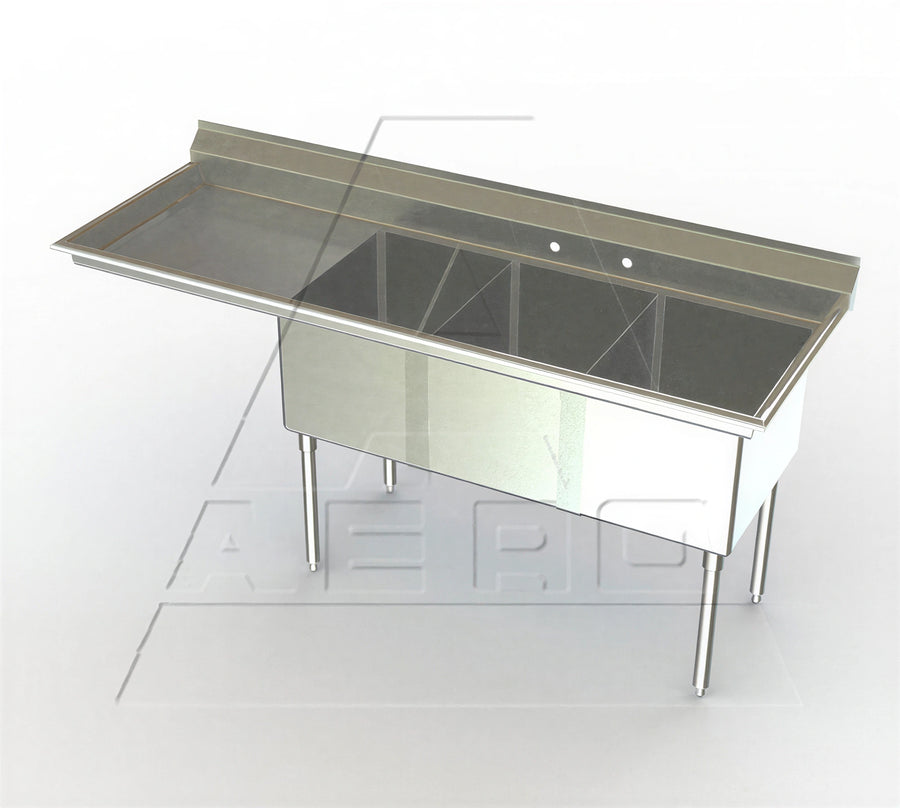

AERO Manufacturing MF3-2424-18L 3-Compartment Stainless Steel Sink, 94-1/4"W, 24" x 24" x 14" Compartments, Left Drainboard

SKU: MF3-2424-18L
$4,357.48
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks AERO Manufacturing Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations

The AERO Manufacturing MF3-2424-18L is an economy three-compartment stainless steel sink with an 18 in left drainboard.

  • Overall size: 94.25 in W x 30 in D x 39.5 in H
  • Compartments: Three fabricated compartments, each 24 in W x 24 in front-to-back x 14 in deep
  • Construction: 16-gauge 304 stainless steel with 16-gauge 430 stainless steel legs and adjustable stainless steel feet
  • Features: 7 in backsplash, two sets of 8 in OC splash-mount faucet holes, raised rolled edges, and fully welded stainless steel gussets
  • Safety edge: Aero Hemmed Safety Edge™
  • Assembly: KD construction

Overall Dimensions:

94.25"W x 30.0"D x 39.5"H

Product Weight:

195.0 lb

Three-compartment design

Includes three fabricated compartments, each measuring 24 in wide x 24 in front-to-back x 14 in deep.

Left drainboard

An 18 in drainboard is positioned on the left side of the sink.

Stainless steel construction

The sink is specified with 16-gauge 304 stainless steel construction.

Backsplash and faucet holes

Includes a 7 in backsplash and two sets of 8 in OC splash-mount faucet holes.

Legs and feet

Uses 16-gauge 430 stainless steel legs with adjustable stainless steel feet.

Welded gussets

Fully welded stainless steel gussets provide the specified support construction.

Aero Hemmed Safety Edge

Features the Aero Hemmed Safety Edge™ with raised rolled edges on the front and sides.

KD construction

The product specification identifies the sink as KD construction.

Product type Economy three-compartment sink
Overall width 94.25 in
Overall depth 30 in
Overall height 39.5 in
Product weight 195 lb
Compartment count 3
Compartment dimensions 24 in W x 24 in front-to-back x 14 in deep each
Drainboard 18 in, left-hand
Backsplash height 7 in
Top gauge 16 gauge
Top stainless series 300 series
Main construction 16-gauge 304 stainless steel
Leg material 16-gauge 430 stainless steel
Feet Adjustable stainless steel
Faucet holes Two sets, 8 in OC, splash mount
Edge design Aero Hemmed Safety Edge™ with raised rolled edges on front and sides
Gussets Fully welded stainless steel
Assembly KD

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The sink measures 94.25 in wide x 30 in deep x 39.5 in high.
It has three compartments, each measuring 24 in wide x 24 in front-to-back x 14 in deep.
The 18 in drainboard is located on the left side.
The sink has two sets of 8 in OC splash-mount faucet holes. Faucets are not included.
Yes. NSF is listed for the MF3-2424-18L.
