AERO Manufacturing MF1-2418-24LR One-Compartment Stainless Steel Sink, 69"W x 30"D x 41-1/4"H, 24" Left/Right Drainboards, 14" Deep

SKU: MF1-2418-24LR
$2,261.48
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks AERO Manufacturing Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations

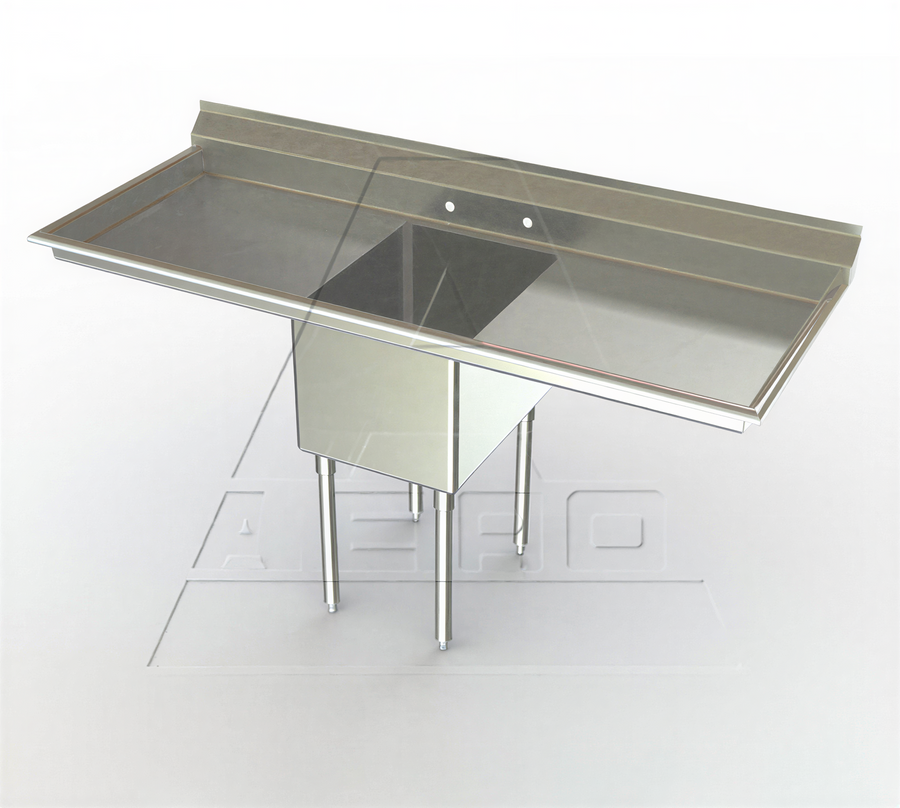

The AERO Manufacturing MF1-2418-24LR is an economy one-compartment stainless steel sink measuring 69 inches wide by 30 inches deep by 41-1/4 inches high. It has a 14-inch-deep fabricated compartment and 24-inch drainboards on the left and right.

  • 16/304 stainless steel construction
  • Raised rolled edges on the front and sides
  • Fully welded stainless steel gussets
  • 16/430 stainless steel legs with adjustable white metal feet
  • Aero Hemmed Safety Edge™
  • 8-inch on-center splash-mount faucet holes; faucets are not included

Overall Dimensions:

69.0"W x 30.0"D x 41.25"H

Product Weight:

100.0 lb

One compartment

The sink has one fabricated compartment measuring 18 inches wide, 24 inches front-to-back, and 14 inches deep.

Left and right drainboards

The sink includes 24-inch drainboards on both the left and right sides.

Stainless steel construction

The product uses 16/304 stainless steel construction and 16/430 stainless steel legs.

Aero Hemmed Safety Edge™

The product includes the specified Aero Hemmed Safety Edge™.

Raised rolled edges

Raised rolled edges are provided on the front and sides.

Welded gussets

Fully welded stainless steel gussets are specified for the sink.

Adjustable feet

The legs have adjustable white metal feet.

Faucet holes

Splash-mount faucet holes are spaced 8 inches on center; faucets are not included.

Overall width 69 in
Overall depth 30 in
Overall height 41-1/4 in
Compartment count 1
Compartment width 18 in
Compartment front-to-back 24 in
Compartment depth 14 in
Drainboards 24 in on the left and right
Backsplash height 8-3/4 in
Faucet hole spacing 8 in on center
Top gauge 16 gauge
Top stainless series 300 series
Base construction Stainless steel
Base type Legs
Leg material 16/430 stainless steel
Feet Adjustable white metal
Edge Aero Hemmed Safety Edge™
Gussets Fully welded stainless steel
Assembly KD

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The sink measures 69 inches wide by 30 inches deep by 41-1/4 inches high.
The single fabricated compartment measures 18 inches wide by 24 inches front-to-back and 14 inches deep.
Yes. It has 24-inch drainboards on both the left and right sides.
The sink has splash-mount faucet holes spaced 8 inches on center. Faucets are not included.
Yes. NSF is specified for the MF1-2418-24LR.
