AERO Manufacturing 3SDI-R-96 Right-to-Left Soiled Dishtable, 96" Corner-to-End, 60" Machine-to-Corner, 16-Gauge 304 Stainless Steel, 7" Backsplash

SKU: 3SDI-R-96
$3,541.68
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

AERO Manufacturing Best Sellers Commercial Work Tables Compartment Sinks Dish Tables Dish Tables & Sorting Stations Equipment New Arrivals Restaurant Equipment Sinks & Handwashing Stations Soiled Dish Tables Specialty Work Tables Work Tables & Fabrication

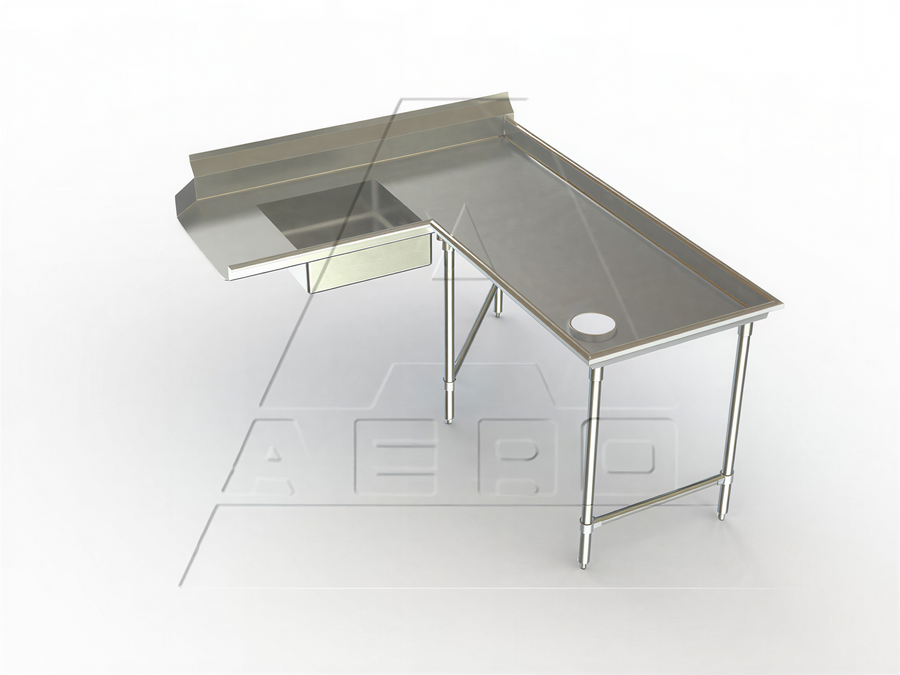

The AERO Manufacturing 3SDI-R-96 is a Delux™ soiled island dishtable designed for right-to-left operation. It has a 16-gauge 304 stainless steel top, a 7-inch backsplash with a 2-inch sanitary return, and a fabricated pre-rinse sink.

  • 60-inch machine-to-corner dimension and 96-inch corner-to-end dimension
  • 30-inch working depth and 40-inch overall height
  • 20-inch wide x 20-inch front-to-back x 5-inch deep fabricated pre-rinse sink
  • 8-inch on-center splash-mount faucet holes
  • 16-gauge 304 stainless steel legs and side cross bracing
  • Adjustable white metal feet and fully welded stainless steel gussets
  • Aero Hemmed Safety Edge™ and knock-down construction

Overall Dimensions:

40.0"H

Product Weight:

200.0 lb

Right-to-left operation

Configured for right-to-left soiled-dish handling.

16-gauge 304 stainless steel construction

The top, legs, and side cross bracing use 16-gauge 304 stainless steel.

Fabricated pre-rinse sink

Includes a 20-inch wide x 20-inch front-to-back x 5-inch deep fabricated pre-rinse sink.

7-inch backsplash

The backsplash includes a 2-inch sanitary return.

Splash-mount faucet holes

Includes 8-inch on-center faucet holes for a splash-mount faucet.

Aero Hemmed Safety Edge™

The table uses AERO's specified hemmed safety edge.

Adjustable white metal feet

Includes adjustable white metal feet.

Fully welded gussets

Fully welded stainless steel gussets support the sink area.

Product type Delux™ soiled island dishtable
Operation Right to left
Machine-to-corner length 60 in
Corner-to-end length 96 in
Working depth 30 in
Overall height 40 in
Top material 16-gauge 304 stainless steel
Backsplash 7 in high with 2 in sanitary return
Sink dimensions 20 in W x 20 in front-to-back x 5 in D
Faucet holes 8 in on center, splash mount
Legs and side cross bracing 16-gauge 304 stainless steel
Feet Adjustable white metal
Construction Knock-down
Weight 200 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The 3SDI-R-96 is configured for right-to-left operation.
The machine-to-corner dimension is 60 inches, and the corner-to-end dimension is 96 inches.
The fabricated pre-rinse sink measures 20 inches wide x 20 inches front-to-back x 5 inches deep.
It has a 7-inch backsplash with a 2-inch sanitary return.
The unit has 8-inch on-center splash-mount faucet holes. The faucet is not included.
The 3SDI-R-96 is NSF certified.
