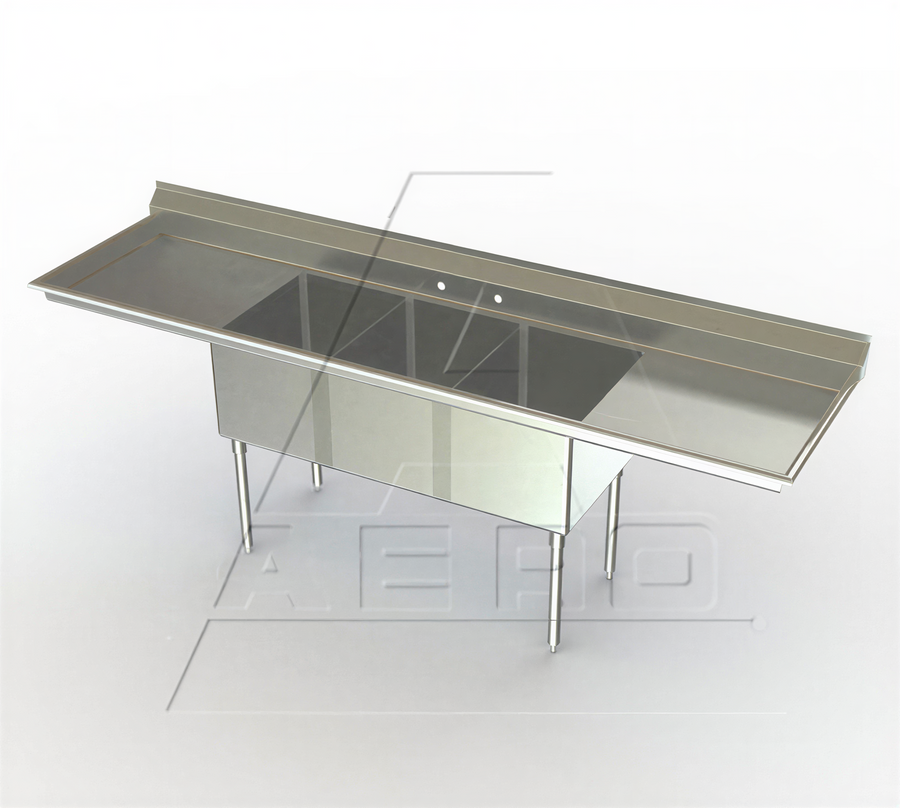

AERO Manufacturing 3F3-2116-18LR 3-Compartment Stainless Steel Sink, 87"W x 27"D x 39-1/2"H, 16-Gauge 304, Left/Right Drainboards

SKU: 3F3-2116-18LR
$3,224.56
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks AERO Manufacturing Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations

The AERO Manufacturing 3F3-2116-18LR is a three-compartment sink with three 16-inch-wide by 21-inch front-to-back by 14-inch-deep fabricated compartments. It has 18-inch drainboards on the left and right, a 7-inch backsplash, and 8-inch on-center splash-mount faucet holes.

  • Construction: 16-gauge 304 stainless steel with fully welded stainless steel gussets.
  • Base: 16-gauge 304 stainless steel legs with adjustable stainless steel feet.
  • Edge detail: Raised rolled edges on the front and sides with the Aero Hemmed Safety Edge™.
  • Included drain components: Stainless steel drain basket and strainer.
  • Configuration: Knockdown construction.

Overall Dimensions:

87.0"W x 27.0"D x 39.5"H

Product Weight:

150.0 lb

Three-compartment configuration

Includes three fabricated compartments measuring 16 inches wide by 21 inches front-to-back by 14 inches deep each.

Left and right drainboards

Includes an 18-inch drainboard on each side of the sink.

16-gauge 304 stainless steel construction

The sink construction is specified as 16-gauge 304 stainless steel.

7-inch backsplash

The sink has a 7-inch backsplash.

Faucet mounting holes

Includes splash-mount faucet holes spaced 8 inches on center.

Stainless steel legs and feet

Includes 16-gauge 304 stainless steel legs with adjustable stainless steel feet.

Hemmed safety edge

Raised rolled edges on the front and sides use the Aero Hemmed Safety Edge™.

Drain basket and strainer

Supplied with a stainless steel drain basket and strainer.

Overall width 87 in
Overall depth 27 in
Overall height 39.5 in
Product weight 150 lb
Number of compartments 3
Compartment width 16 in
Compartment front-to-back 21 in
Compartment depth 14 in
Drainboards 18 in on the left and right
Backsplash height 7 in
Top material 16-gauge 304 stainless steel
Leg material 16-gauge 304 stainless steel
Base type Legs
Faucet hole spacing 8 in on center
Construction Knockdown; fully welded stainless steel gussets

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The sink has three compartments, each 16 inches wide, 21 inches front-to-back, and 14 inches deep.
Yes. It has an 18-inch drainboard on both the left and right sides.
The sink is constructed from 16-gauge 304 stainless steel and has 16-gauge 304 stainless steel legs.
The splash-mount faucet holes are spaced 8 inches on center.
No. The cutsheet states that faucets are not included.
A stainless steel drain basket and strainer are supplied.
